Description

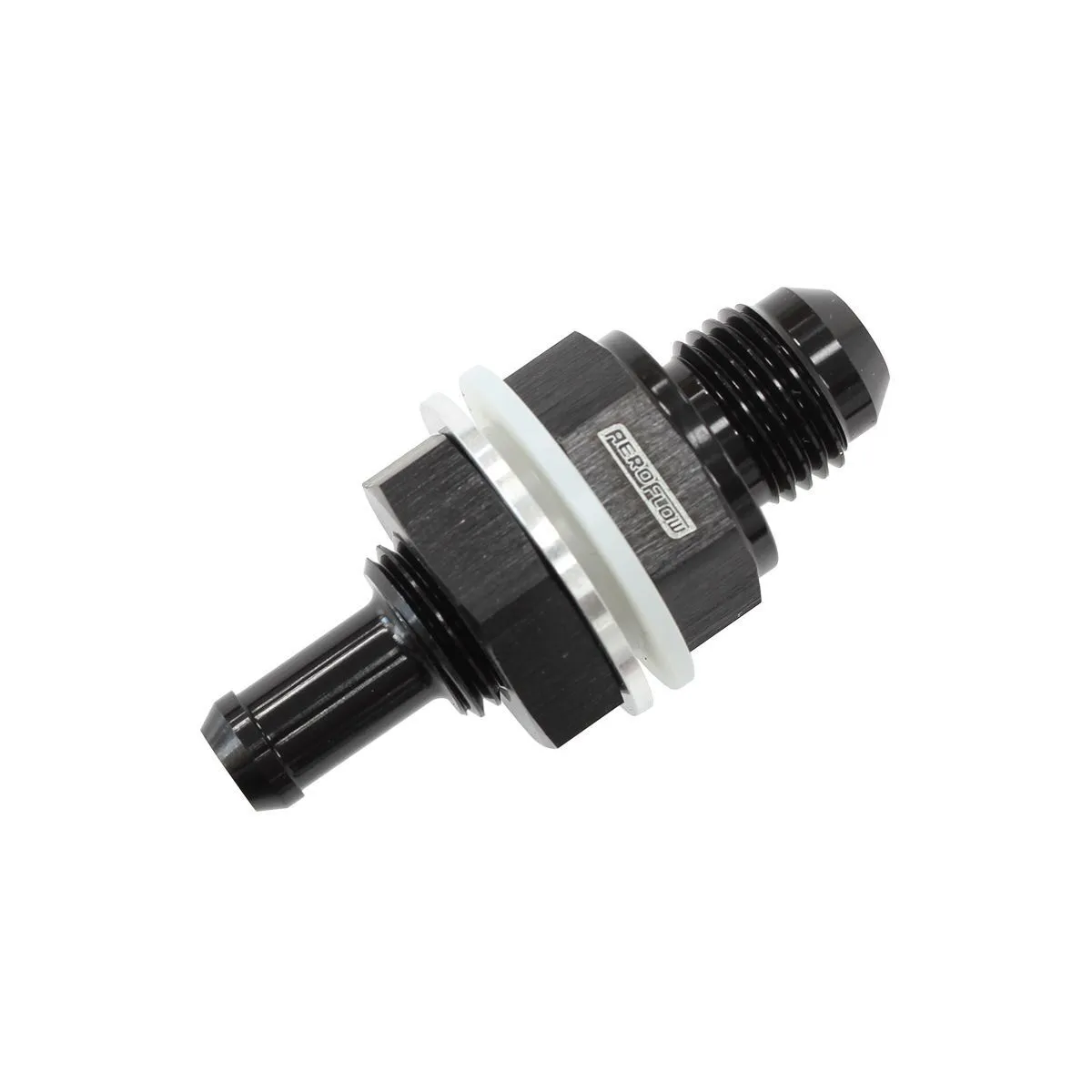

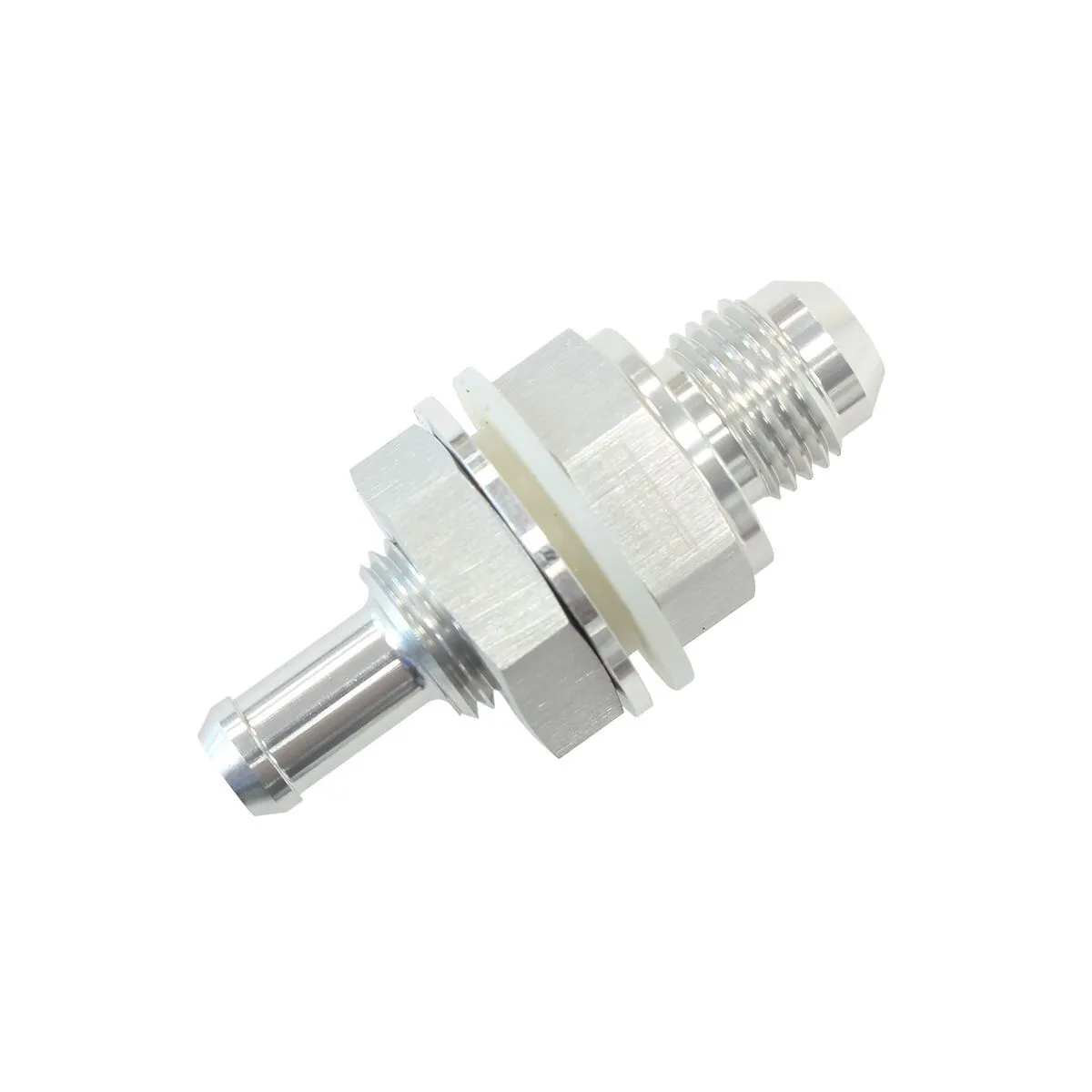

This Aeroflow Performance high flow bulkhead fitting is designed for use in fuel cells.  They feature a radius on Inlet for unrestricted flow. Each bulkhead fitting includes 2 PTFE washers and a bulkhead nut. These fittings can also be used for adding a breather to a valve cover, or a drain on a fabricated tank whether it is a plastic or metal material.

• Constructed from billet aluminum.

• Designed to suit a 14.2mm (9/16”) bulkhead hole.

• Male -6AN to 9.5mm (3/8") Barb

• Fits up to 6mm (1/4") thick material

• Bulkhead nut size O.D. is 22mm

• Overall length is 55mm

Specifications

  • Colour: Black
  • Highlighted Product Item: No
  • Hose End Size: -6AN
  • Hose Size (Inch): 3/8"

Compatibility

  • Universal Part

This Aeroflow Performance high flow bulkhead fitting is designed for use in fuel cells.  They feature a radius on Inlet for unrestricted flow. Each bulkhead fitting includes 2 PTFE washers and a bulkhead nut. These fittings can also be used for adding a breather to a valve cover, or a drain on a fabricated tank whether it is a plastic or metal material.

• Constructed from billet aluminum.

• Designed to suit a 14.2mm (9/16”) bulkhead hole.

• Male -6AN to 9.5mm (3/8") Barb

• Fits up to 6mm (1/4") thick material

• Bulkhead nut size O.D. is 22mm

• Overall length is 55mm

  • Colour: Black
  • Highlighted Product Item: No
  • Hose End Size: -6AN
  • Hose Size (Inch): 3/8"
  • Universal Part
