Description

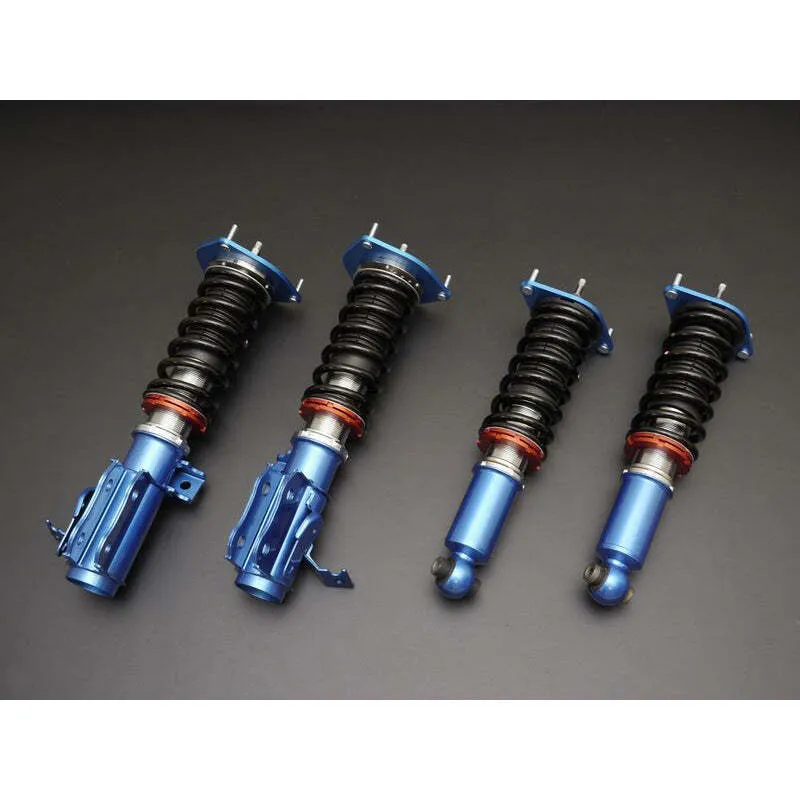

Ride comfort and tuning can be freely adjusted according to the driving stage. CUSCO street series top model with "full length adjustable vehicle height adjustment" and "40-step damping force adjustment"

  • 40 steps of damping force adjustment
  • Full length adjustable vehicle height adjustment
  • Upper mount standard equipment
  • (excluding models with no upper mount)
  • Uses a reinforced rubber upper mount (for sports cars and sedans)
  • A camber adjustable pillow upper mount is set for the front strut type.
  • Adoption of CPRV (Pressure Control Valve)
  • e-con2 compatible

Specifications

  • Dumping Force: 40 steps
  • Recommended Ride Height Range (mm): Front -45 to 0; Rear -70 to 0
  • Max Ride Height Range (mm): Front -68 to 0; Rear -70 to 0
  • Default Height (mm): -40 / -50
  • Spring Rate (kgf/mm): Front 10 or (8/9/11/12/14); Rear 12 or (10/14/16)
  • Height Adjust: Front Full-length Adjustable; Rear Full-length Adjustable
  • Upper mount: Front Non-adjustable pillow ball upper mount; Rear Non-adjustable pillow ball upper mount
  • E-CON2: Imcompatible

Compatibility

  • 1999-2009 Honda S2000 AP1 AP2

Ride comfort and tuning can be freely adjusted according to the driving stage. CUSCO street series top model with "full length adjustable vehicle height adjustment" and "40-step damping force adjustment"

  • 40 steps of damping force adjustment
  • Full length adjustable vehicle height adjustment
  • Upper mount standard equipment
  • (excluding models with no upper mount)
  • Uses a reinforced rubber upper mount (for sports cars and sedans)
  • A camber adjustable pillow upper mount is set for the front strut type.
  • Adoption of CPRV (Pressure Control Valve)
  • e-con2 compatible
  • Dumping Force: 40 steps
  • Recommended Ride Height Range (mm): Front -45 to 0; Rear -70 to 0
  • Max Ride Height Range (mm): Front -68 to 0; Rear -70 to 0
  • Default Height (mm): -40 / -50
  • Spring Rate (kgf/mm): Front 10 or (8/9/11/12/14); Rear 12 or (10/14/16)
  • Height Adjust: Front Full-length Adjustable; Rear Full-length Adjustable
  • Upper mount: Front Non-adjustable pillow ball upper mount; Rear Non-adjustable pillow ball upper mount
  • E-CON2: Imcompatible
  • 1999-2009 Honda S2000 AP1 AP2
