Description

GME’s range of elevated-feed UHF CB radio antennas provide a gain of 6.6 dBi for a great all round performing antenna.

Elevated-feed antennas provide high performance in virtually any mounting position.

The elevated feed-design helps raise the radiating element above the vehicle roof or other obstructions to provide a strong, omni-directional pattern and high performance when mounted on a vehicle gutter, fender or bull bar.

The ability to remove the 6.6dBi whip and replace with a smaller 2.1dBi option allows for a broader radiation pattern which is less likely to be affected by obstacles.

These antennas are a popular choice for the heavy vehicle industry and agricultural vehicles.

It is recommended that the AE4012 are not mounted on the bull bar of diesel vehicles

Specifications

  • Elevated-Feed Base
  • Stainless Steel Whip
  • Ground Independent Design
  • 6.6dBi Gain
  • Length: 780mm

What's Included

  • 6.6dBi Stainless Steel Antenna Whip (AE4012)

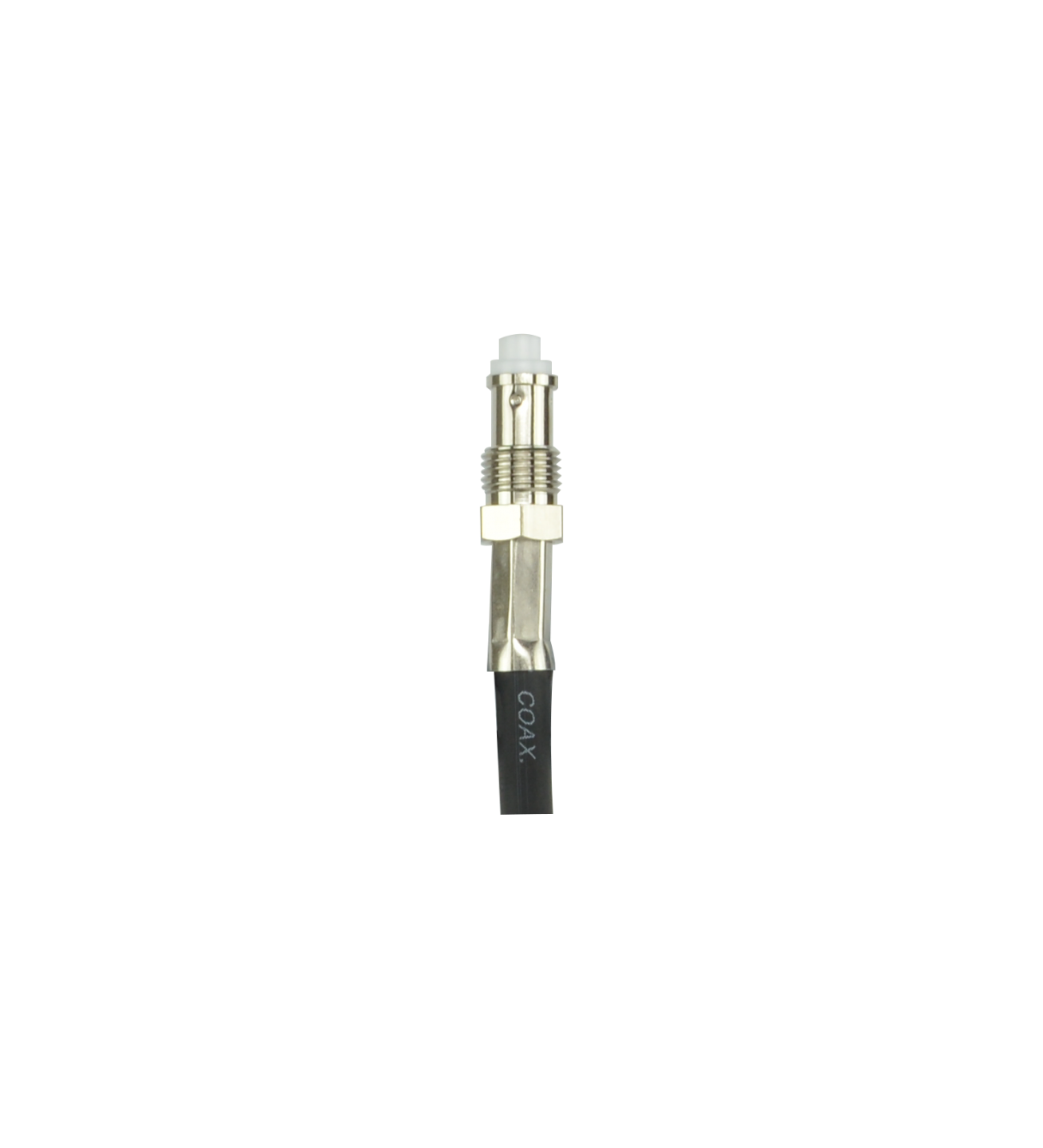

  • Elevated-Feed Base & Lead Assembly (ABL002)
  • PL259 Antenna Plug (PL2592S)

Compatibility

  • Universal Part

GME’s range of elevated-feed UHF CB radio antennas provide a gain of 6.6 dBi for a great all round performing antenna.

Elevated-feed antennas provide high performance in virtually any mounting position.

The elevated feed-design helps raise the radiating element above the vehicle roof or other obstructions to provide a strong, omni-directional pattern and high performance when mounted on a vehicle gutter, fender or bull bar.

The ability to remove the 6.6dBi whip and replace with a smaller 2.1dBi option allows for a broader radiation pattern which is less likely to be affected by obstacles.

These antennas are a popular choice for the heavy vehicle industry and agricultural vehicles.

It is recommended that the AE4012 are not mounted on the bull bar of diesel vehicles

  • Elevated-Feed Base
  • Stainless Steel Whip
  • Ground Independent Design
  • 6.6dBi Gain
  • Length: 780mm
  • 6.6dBi Stainless Steel Antenna Whip (AE4012)
  • Elevated-Feed Base & Lead Assembly (ABL002)
  • PL259 Antenna Plug (PL2592S)
  • Universal Part
