Description

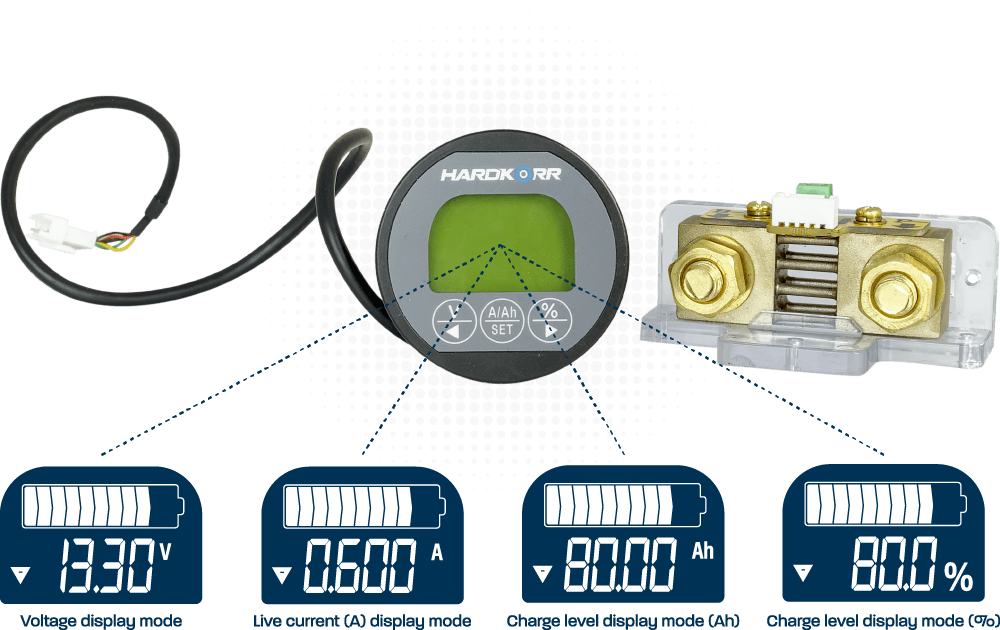

This remote battery capacity monitor, also known as a coulometer, uses a 500A shunt (350A continuous) to return highly accurate readings of battery voltage, live current draw (A) and charge level (Ah and %).

It includes a memory function, and is suitable for all common battery types including AGM, wet, gel, calcium and lithium.

Specifications

  • Working voltage 8-100V DC
  • Max. current 500A peak / 350A continuous
  • Working current draw 10-12mA
  • Backlight current draw 100mA
  • Standby current draw 0.5-0.6mA
  • Accuracy ±1%
  • Operating temperature -10°C to 65°C
  • Weight 410g
  • Dimensions 59mm ? x 20mm
  • Cut-out size 54.5mm
  • Certifications CE, RoHS, C-Tick

What's Included

  • 1x LCD display module
  • 1x 100V/500A shunt
  • 1x Shielded cable
  • 1x Mounting bracket

Compatibility

  • Universal Part

This remote battery capacity monitor, also known as a coulometer, uses a 500A shunt (350A continuous) to return highly accurate readings of battery voltage, live current draw (A) and charge level (Ah and %).

It includes a memory function, and is suitable for all common battery types including AGM, wet, gel, calcium and lithium.

  • Working voltage 8-100V DC
  • Max. current 500A peak / 350A continuous
  • Working current draw 10-12mA
  • Backlight current draw 100mA
  • Standby current draw 0.5-0.6mA
  • Accuracy ±1%
  • Operating temperature -10°C to 65°C
  • Weight 410g
  • Dimensions 59mm ? x 20mm
  • Cut-out size 54.5mm
  • Certifications CE, RoHS, C-Tick
  • 1x LCD display module
  • 1x 100V/500A shunt
  • 1x Shielded cable
  • 1x Mounting bracket
  • Universal Part
