Description

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

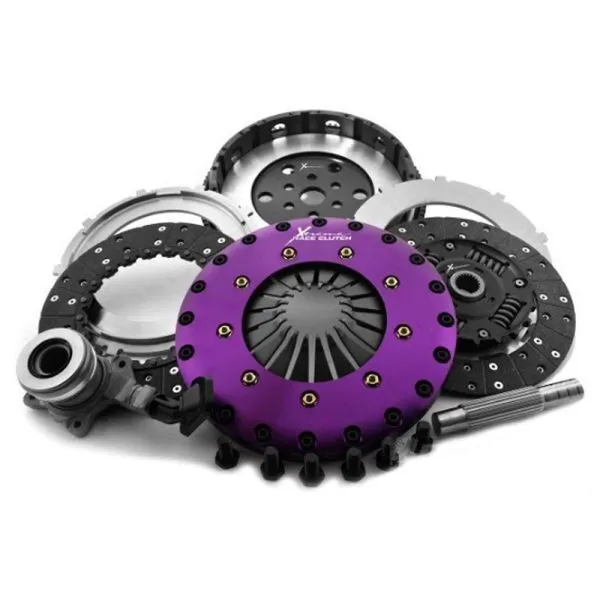

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Discs
  • Intermediate Plate
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1996 - 2001 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX100_, JZX100) _X10_ Sedan 147KW
    • 1996 - 2001 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX100_, JZX100) _X10_ Sedan 206KW
    • 1992 - 1996 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX90) JZX90,JZX93 Sedan 132KW
    • 1992 - 1996 > TOYOTA > CHASER > Petrol Engine 2.5 Turbo (JZX90) _X9_ Sedan 206KW
    • 1992 - 1996 > TOYOTA > MARK II > Petrol Engine 2.5 (JZX90) Sedan 206KW
    • 1996 - 2001 > TOYOTA > MARK II > Petrol Engine 2.5 VVTi (JZX100) _X10_ Sedan 206KW
    • 1990 - 2000 > TOYOTA > SOARER > Petrol Engine 2.5 Turbo (JZZ30) _Z3_ Coupe 206KW
    • 2000 - 2003 > TOYOTA > VEROSSA > Petrol Engine 2.5 VVTi (JZX110) _X11_ Sedan 206KW
    • 1990 - 1993 > TOYOTA > SUPRA > Petrol Engine 2.5 i Bi-Turbo (JZA70) _A7_ Coupe 206KW
    • 1996 - 2001 > TOYOTA > CRESTA > Petrol Engine 2.5 VVTi (JX100) _X10_ Sedan 206KW

    Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Discs
    • Intermediate Plate
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    21

  • Hub Profile:

    29,8x21T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    2,2

  • Max. transferable engine torque [Nm]:

    1200

  • Friction Lining Outer Diameter [mm]:

    200

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 1996 - 2001 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX100_, JZX100) _X10_ Sedan 147KW
    • 1996 - 2001 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX100_, JZX100) _X10_ Sedan 206KW
    • 1992 - 1996 > TOYOTA > CHASER > Petrol Engine 2.5 (JZX90) JZX90,JZX93 Sedan 132KW
    • 1992 - 1996 > TOYOTA > CHASER > Petrol Engine 2.5 Turbo (JZX90) _X9_ Sedan 206KW
    • 1992 - 1996 > TOYOTA > MARK II > Petrol Engine 2.5 (JZX90) Sedan 206KW
    • 1996 - 2001 > TOYOTA > MARK II > Petrol Engine 2.5 VVTi (JZX100) _X10_ Sedan 206KW
    • 1990 - 2000 > TOYOTA > SOARER > Petrol Engine 2.5 Turbo (JZZ30) _Z3_ Coupe 206KW
    • 2000 - 2003 > TOYOTA > VEROSSA > Petrol Engine 2.5 VVTi (JZX110) _X11_ Sedan 206KW
    • 1990 - 1993 > TOYOTA > SUPRA > Petrol Engine 2.5 i Bi-Turbo (JZA70) _A7_ Coupe 206KW
    • 1996 - 2001 > TOYOTA > CRESTA > Petrol Engine 2.5 VVTi (JX100) _X10_ Sedan 206KW
