Description

NOTE: When using this with an ECU other than the Thunder, you will need to use an amplifier. What accessories are required to maximise your Link ECU? We sell a variety of sensors and extras which complement aftermarket ECUs. Extreme Duty Fast Response EGT Temperature Probe.

Specifications

  • Thermocouple type: K
  • Range: -148 to 2372°F (-100 to 1300°C)
  • Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
  • Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
  • Sensing Junction: Exposed, Ungrounded
  • Response Time*: 150 mS
  • *Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
  • Five time constants are required to approach 100% of the step change value
  • Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
  • Cable: Stainless steel overbraiding over Teflonâ„¢ insulated, stranded wires, 20 gauge
  • Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread

Compatibility

  • Universal Part

NOTE: When using this with an ECU other than the Thunder, you will need to use an amplifier. What accessories are required to maximise your Link ECU? We sell a variety of sensors and extras which complement aftermarket ECUs. Extreme Duty Fast Response EGT Temperature Probe.

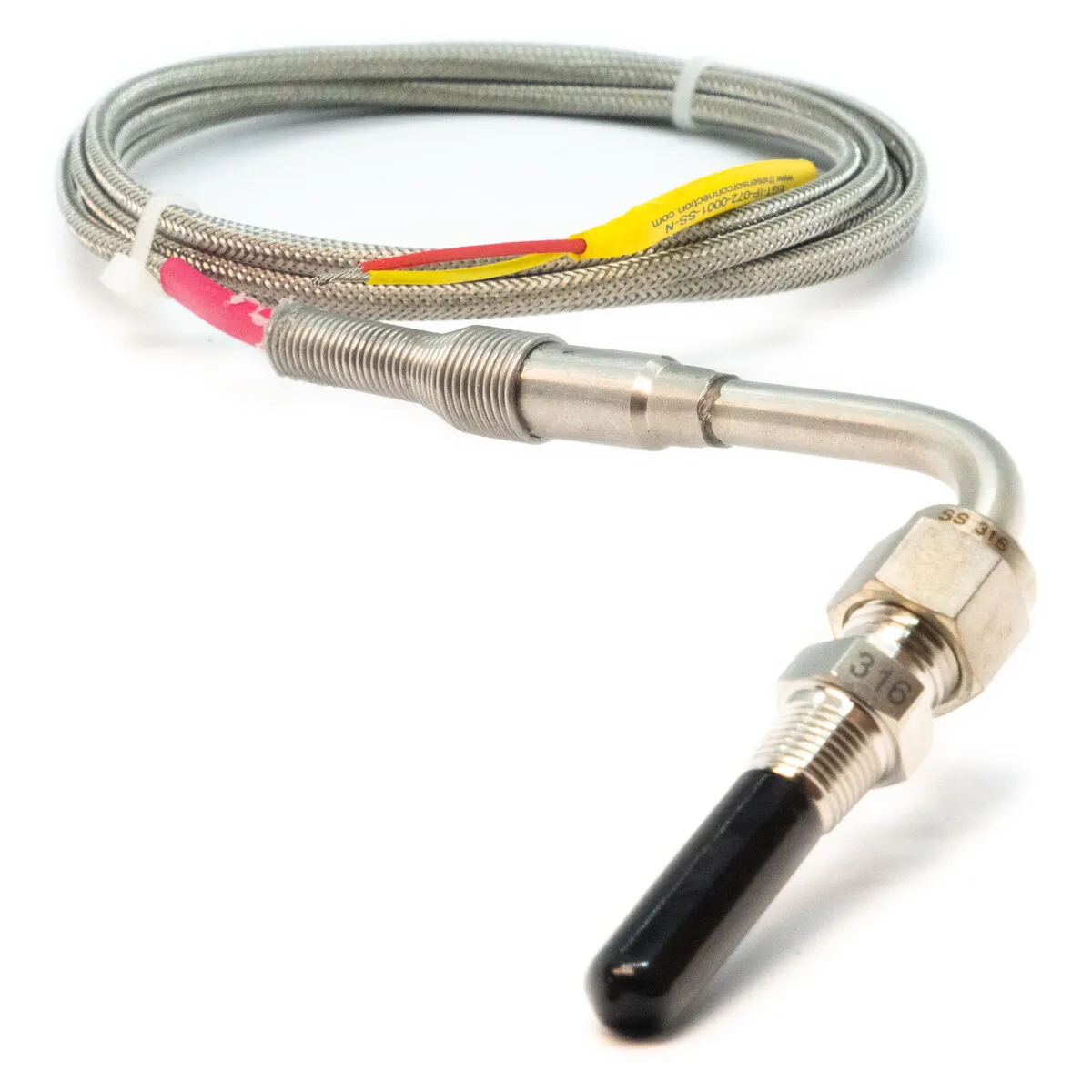

  • Type K thermocouple probe
  • Exposed sensing junction for fastest response
  • Includes 316 SS adjustable compression fitting
  • Stainless steel protected wires
  • Designed for extreme engine test & racing environments
  • Thermocouple type: K
  • Range: -148 to 2372°F (-100 to 1300°C)
  • Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
  • Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
  • Sensing Junction: Exposed, Ungrounded
  • Response Time*: 150 mS
  • *Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
  • Five time constants are required to approach 100% of the step change value
  • Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
  • Cable: Stainless steel overbraiding over Teflonâ„¢ insulated, stranded wires, 20 gauge
  • Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread
  • Universal Part
