Description

MoTec's M1 GPA Package is a versatile and adaptable platform for the operation of port-injected engines. This single product can be configured over a huge range of complexities, from controlloing a simple engine to a multi-throttle, quad cam boosted engine. Configurable engine synchronisation modes accommodate most modern engin triggering systems.

Included are numerous ancillary features such as driver switches (pit switch, boost limit etc), knock control, intercooler sprays and gearbox coolant pumps. It also caters for many systems found on modified road vehicles such as air conditioning control and four definable control outputs.

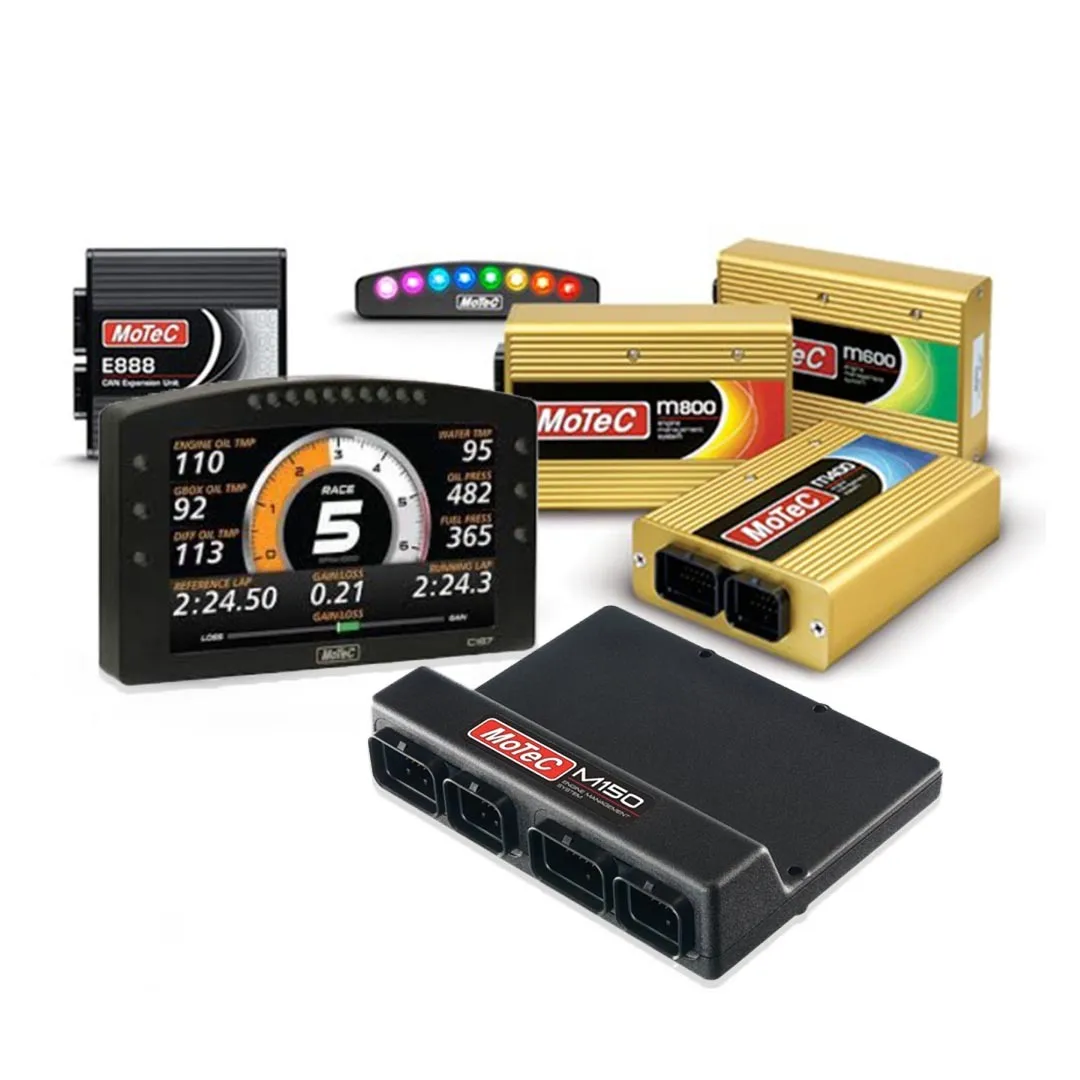

This package is available across MoTeC's range of M1 Port injection ECU's (M130, M150, M170 and M190). It seamlessly intergrates with other MoTeC products and provides pre-defined CAN messaging for all current Display Loggers, Enclosed Loggers, Power Distribution Modules and other devices such as E888, VCS, GPS, ADR, BR2 and SLM.

Specifications

Motec | 13190 | Data Analysis

Injector

  • Peak and Hold Injector Outputs: 12
  • Low Side Injector Outputs: 12

Ignition

  • Outputs: 12

Auxiliary Outputs

  • Half Bridge: 10
  • Low Side Outputs: 6

Inputs

  • Universal Digital: 12
  • Digital: 4
  • Analogue Voltage: 17
  • Analogue Temperature: 6
  • Knock: 4
  • Lambda(narrow band):2

Data

  • CAN Bus: 3
  • RS232: 1
  • LIN: 1
  • Logging Memory: 250Mb

Physical

  • Dimensions: 162 x 127.5 x 40.5
  • Weight: 510g
  • Autosport Connectors
    • 1 x 55 Pin Yellow
    • 1 x 26 Pin Red
    • 1 x 55 Pin Red

Compatibility

  • Universal Part

MoTec's M1 GPA Package is a versatile and adaptable platform for the operation of port-injected engines. This single product can be configured over a huge range of complexities, from controlloing a simple engine to a multi-throttle, quad cam boosted engine. Configurable engine synchronisation modes accommodate most modern engin triggering systems.

Included are numerous ancillary features such as driver switches (pit switch, boost limit etc), knock control, intercooler sprays and gearbox coolant pumps. It also caters for many systems found on modified road vehicles such as air conditioning control and four definable control outputs.

This package is available across MoTeC's range of M1 Port injection ECU's (M130, M150, M170 and M190). It seamlessly intergrates with other MoTeC products and provides pre-defined CAN messaging for all current Display Loggers, Enclosed Loggers, Power Distribution Modules and other devices such as E888, VCS, GPS, ADR, BR2 and SLM.

Motec | 13190 | Data Analysis

Injector

  • Peak and Hold Injector Outputs: 12
  • Low Side Injector Outputs: 12

Ignition

  • Outputs: 12

Auxiliary Outputs

  • Half Bridge: 10
  • Low Side Outputs: 6

Inputs

  • Universal Digital: 12
  • Digital: 4
  • Analogue Voltage: 17
  • Analogue Temperature: 6
  • Knock: 4
  • Lambda(narrow band):2

Data

  • CAN Bus: 3
  • RS232: 1
  • LIN: 1
  • Logging Memory: 250Mb

Physical

  • Dimensions: 162 x 127.5 x 40.5
  • Weight: 510g
  • Autosport Connectors
    • 1 x 55 Pin Yellow
    • 1 x 26 Pin Red
    • 1 x 55 Pin Red
  • Universal Part
