Description

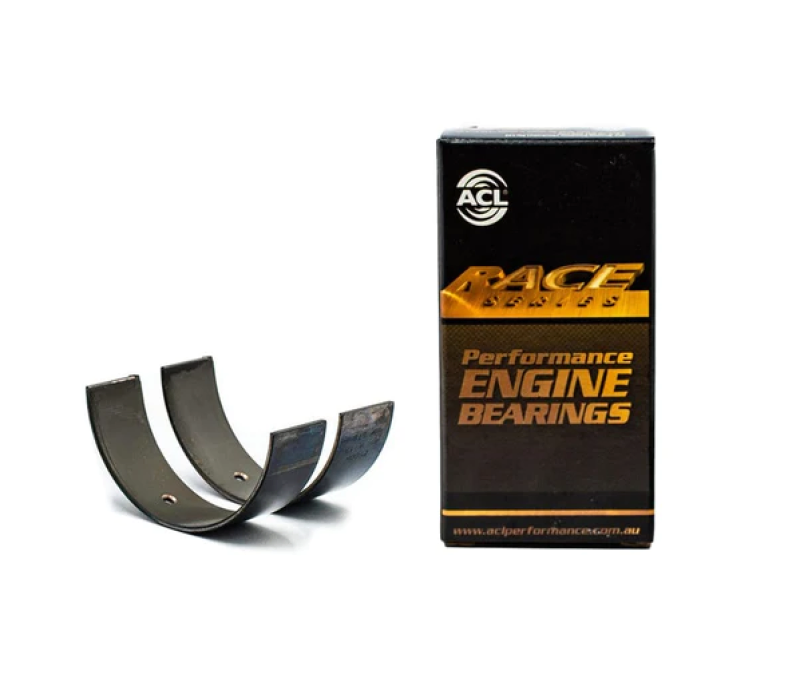

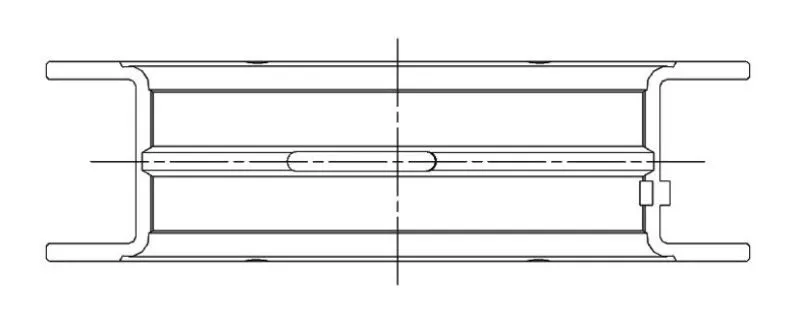

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Connecting Rod Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature: * *High strength overlay plate* with reduced thickness for improved fatigue properties * *Hardened steel backs* on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing. * *Increased crush* for improved bearing retention * *Elimination of flash plating* on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing. * *Increased eccentricity* to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films. * *3/4 grooved Main Bearings* to optimize bearing load carrying surface area and oil flow to the conrod bearings. * *Tight consistent wall tolerances* to help you maintain consistent clearances. * *Enlarged ID chamfers* on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Specifications

Compatibility

  • 1971-1974 DeTomaso Pantera Base V8.5753cc
  • 1981-1985 DeTomaso Pantera GT5 V8.5753cc
  • 1984-1986 DeTomaso Pantera GT5-S V8.5753cc
  • 1981 DeTomaso Pantera GTS V8.5753cc
  • 1969-1974 Ford Country Sedan Base V8.5753cc
  • 1969-1974 Ford Country Squire Base V8.5753cc
  • 1969-1972 Ford Custom Base V8.5753cc
  • 1969-1974 Ford Custom 500 Base V8.5753cc
  • 1969-1970 Ford Fairlane 500 V8.5753cc
  • 1969 Ford Fairlane Base V8.5753cc
  • 1970 Ford Falcon Base V8.5753cc
  • 1970 Ford Falcon Futura V8.5753cc
  • 1969-1974 Ford Galaxie 500 Base V8.5753cc
  • 1969-1970 Ford Galaxie 500 XL V8.5753cc
  • 1972-1974 Ford Gran Torino Base V8.5753cc
  • 1973-1974 Ford Gran Torino Brougham V8.5753cc
  • 1974 Ford Gran Torino Elite V8.5753cc
  • 1972-1974 Ford Gran Torino Sport V8.5753cc
  • 1972-1974 Ford Gran Torino Squire V8.5753cc
  • 1969-1974 Ford LTD Base V8.5753cc
  • 1970-1974 Ford LTD Brougham V8.5753cc
  • 1969-1973 Ford Mustang Base V8.5753cc
  • 1971-1972 Ford Mustang Boss 351 V8.5753cc
  • 1970-1973 Ford Mustang Grande V8.5753cc
  • 1970-1973 Ford Mustang Mach 1 V8.5753cc
  • 1969-1974 Ford Ranch Wagon Base V8.5753cc
  • 1970 Ford Ranch Wagon Police Cruiser V8.5753cc
  • 1969-1974 Ford Ranchero 500 V8.5753cc
  • 1969-1971 Ford Ranchero Base V8.5753cc
  • 1969-1974 Ford Ranchero GT V8.5753cc
  • 1970-1974 Ford Ranchero Squire V8.5753cc
  • 1971 Ford Torino 500 V8.5753cc
  • 1970-1974 Ford Torino Base V8.5753cc
  • 1970-1971 Ford Torino Brougham V8.5753cc
  • 1971 Ford Torino Cobra V8.5753cc
  • 1970-1971 Ford Torino GT V8.5753cc
  • 1970-1971 Ford Torino Squire V8.5753cc
  • 1970-1974 Mercury Colony Park Base V8.5753cc
  • 1969 Mercury Comet Base V8.5753cc
  • 1970-1973 Mercury Cougar Base V8.5753cc
  • 1970-1974 Mercury Cougar XR-7 V8.5753cc
  • 1969-1971 Mercury Cyclone Base V8.5753cc
  • 1970-1971 Mercury Cyclone GT V8.5753cc
  • 1970-1971 Mercury Cyclone Spoiler V8.5753cc
  • 1970-1974 Mercury Marquis Base V8.5753cc
  • 1970-1974 Mercury Marquis Brougham V8.5753cc
  • 1969-1974 Mercury Montego Base V8.5753cc
  • 1972-1973 Mercury Montego GT V8.5753cc
  • 1969-1974 Mercury Montego MX V8.5753cc
  • 1970-1974 Mercury Montego MX Brougham V8.5753cc
  • 1970-1974 Mercury Montego Villager V8.5753cc
  • 1970-1974 Mercury Monterey Base V8.5753cc
  • 1970-1974 Mercury Monterey Custom V8.5753cc
