Description

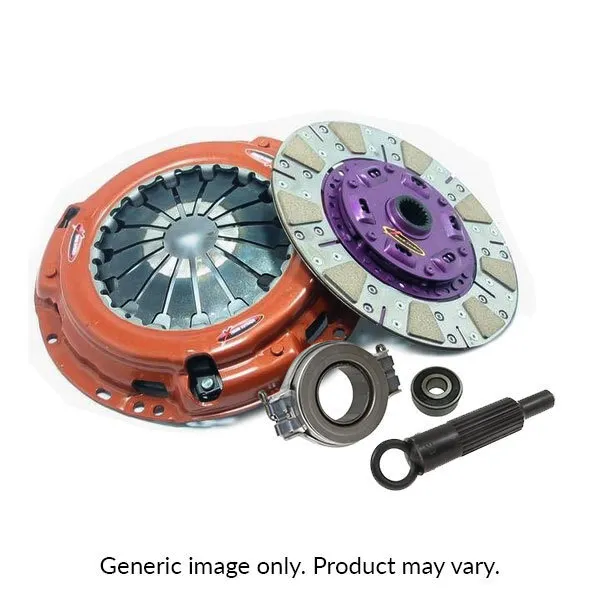

At Xtreme Outback, we don't just produce clutches for passenger performance vehicles, we also have a proud history producing heavy duty clutch kits for an extensive range of 4x4 vehicles. Our 4x4 heavy duty range has been developed in-house at Australian Clutch Services and draws on over 25 years of experience to produce a clutch kit that provides exceptional performance and driveability. The range of clutch kits includes options for everything from the daily driver through to rally vehicles that compete in some of the most gruelling rallies on the planet.

Ceramic heavy duty 4x4 kits are available with either a sprung ceramic friction disc or a cushioned ceramic friction disc. The sprung kits are designed for competition use with the sprung ceramic being used in high speed trial and desert racing whilst the cushioned ceramic is more suited to low speed trial that requires more modulation of the clutch. Both have an approximate 15-40% increase in clamp load.

Specifications

  • Torque (Nm/ ftlbs) INC FOS    430/ 320
  • Clamp Load    700Kg (30% inc.)
  • Flywheel Step    +0.5mm
  • Clutch Disc Diameter    236mm
  • Clutch Disc Spline Count    21
  • Clutch Disc Spline Diameter    29.8mm

Compatibility

  • 2002 Toyota Hilux RZN147R/RZN147 11/97~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2002 Toyota Hilux RZN147R/RZN147 2000~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2001 Toyota Hilux RZN147R/RZN147 11/97~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2001 Toyota Hilux RZN147R/RZN147 2000~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2000 Toyota Hilux RZN147R/RZN147 11/97~2000, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2000 Toyota Hilux RZN147R/RZN147 11/97~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2000 Toyota Hilux RZN147R/RZN147 2000~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • At Xtreme Outback, we don't just produce clutches for passenger performance vehicles, we also have a proud history producing heavy duty clutch kits for an extensive range of 4x4 vehicles. Our 4x4 heavy duty range has been developed in-house at Australian Clutch Services and draws on over 25 years of experience to produce a clutch kit that provides exceptional performance and driveability. The range of clutch kits includes options for everything from the daily driver through to rally vehicles that compete in some of the most gruelling rallies on the planet.

    Ceramic heavy duty 4x4 kits are available with either a sprung ceramic friction disc or a cushioned ceramic friction disc. The sprung kits are designed for competition use with the sprung ceramic being used in high speed trial and desert racing whilst the cushioned ceramic is more suited to low speed trial that requires more modulation of the clutch. Both have an approximate 15-40% increase in clamp load.

    • Torque (Nm/ ftlbs) INC FOS    430/ 320
    • Clamp Load    700Kg (30% inc.)
    • Flywheel Step    +0.5mm
    • Clutch Disc Diameter    236mm
    • Clutch Disc Spline Count    21
    • Clutch Disc Spline Diameter    29.8mm
  • 2002 Toyota Hilux RZN147R/RZN147 11/97~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2002 Toyota Hilux RZN147R/RZN147 2000~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2001 Toyota Hilux RZN147R/RZN147 11/97~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2001 Toyota Hilux RZN147R/RZN147 2000~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2000 Toyota Hilux RZN147R/RZN147 11/97~2000, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2000 Toyota Hilux RZN147R/RZN147 11/97~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
  • 2000 Toyota Hilux RZN147R/RZN147 2000~10/02, WORKMATE, 2D, Utili, RWD, MT 2.0 litre, 1RZE I4 8v SOHC EFI {80KW}
