Description

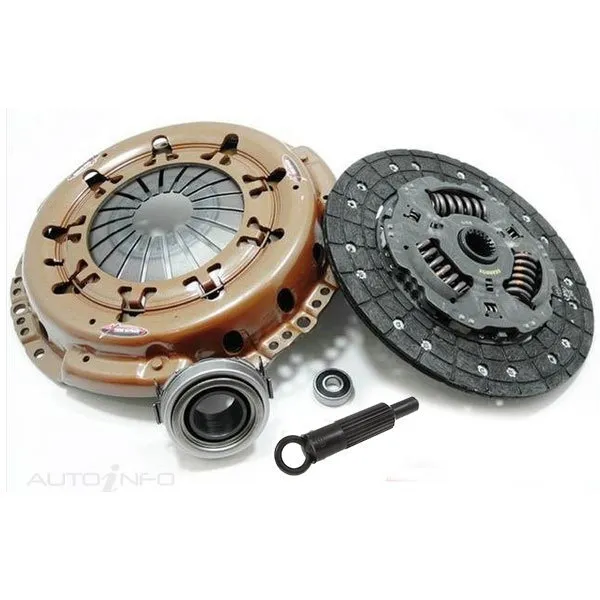

At Xtreme Outback, we don't just produce clutches for passenger performance vehicles, we also have a proud history producing heavy duty clutch kits for an extensive range of 4x4 vehicles. Our 4x4 heavy duty range has been developed in-house at Australian Clutch Services and draws on over 25 years of experience to produce a clutch kit that provides exceptional performance and driveability. The range of clutch kits includes options for everything from the daily driver through to rally vehicles that compete in some of the most gruelling rallies on the planet.

The heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications

  • Torque (Nm/ ftlbs) INC FOS    400/ 300
  • Clamp Load    800Kg (40% inc.)
  • Flywheel Step    -4.2mm
  • Clutch Disc Diameter    260mm
  • Clutch Disc Spline Count    21
  • Clutch Disc Spline Diameter    29.8mm

Compatibility

  • 2005 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2005 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2005 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2004 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2004 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2004 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2003 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2003 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2003 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2002 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2002 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2002 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2001 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2001 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2001 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 11/00~,04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 11/00~,04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 12/99~10/00, SR5, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 12/99~10/00, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • At Xtreme Outback, we don't just produce clutches for passenger performance vehicles, we also have a proud history producing heavy duty clutch kits for an extensive range of 4x4 vehicles. Our 4x4 heavy duty range has been developed in-house at Australian Clutch Services and draws on over 25 years of experience to produce a clutch kit that provides exceptional performance and driveability. The range of clutch kits includes options for everything from the daily driver through to rally vehicles that compete in some of the most gruelling rallies on the planet.

    The heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

    • Torque (Nm/ ftlbs) INC FOS    400/ 300
    • Clamp Load    800Kg (40% inc.)
    • Flywheel Step    -4.2mm
    • Clutch Disc Diameter    260mm
    • Clutch Disc Spline Count    21
    • Clutch Disc Spline Diameter    29.8mm
  • 2005 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2005 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2005 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2004 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2004 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2004 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2003 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2003 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2003 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2002 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2002 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2002 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2001 Toyota Hilux KZN165R/KZN165 11/00~04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2001 Toyota Hilux KZN165R/KZN165 11/00~04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2001 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 11/00~,04/05, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 11/00~,04/05, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 12/99~10/00, SR5, 2D, Cab C, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 12/99~10/00, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
  • 2000 Toyota Hilux KZN165R/KZN165 11/00~04/05, SR5, 4D, Utili, 4WD, MT 3.0 litre, DIESEL, 1KZTE I4 8v SOHC Turbo EFI {85KW}
