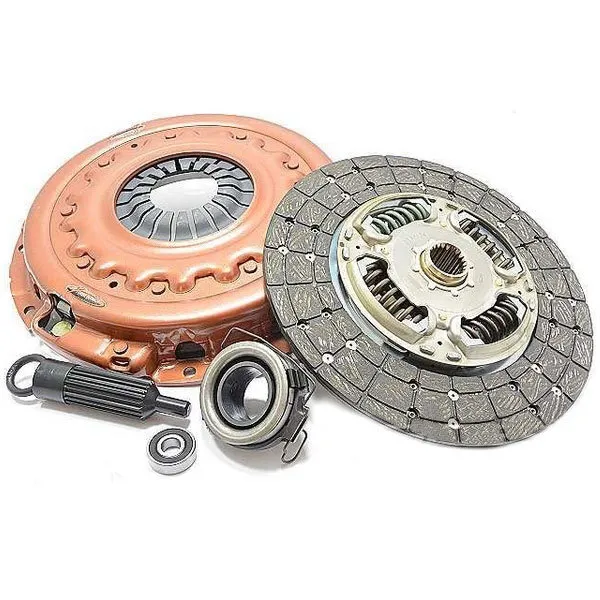

Description

At Xtreme Outback, we don't just produce clutches for passenger performance vehicles, we also have a proud history producing heavy duty clutch kits for an extensive range of 4x4 vehicles. Our 4x4 heavy duty range has been developed in-house at Australian Clutch Services and draws on over 25 years of experience to produce a clutch kit that provides exceptional performance and driveability. The range of clutch kits includes options for everything from the daily driver through to rally vehicles that compete in some of the most gruelling rallies on the planet.

The heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications

  • Torque (Nm/ ftlbs) INC FOS    520/ 380
  • Clamp Load    990Kg (15% inc.)
  • Flywheel Step    -7.5mm
  • Clutch Disc Diameter    275mm
  • Clutch Disc Spline Count    21
  • Clutch Disc Spline Diameter    29.8mm

Compatibility

  • 2018 Toyota Hilux GUN126R/GUN126 10/15-on, SR, 2D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2018 Toyota Hilux GUN126R/GUN126 10/15~on, SR EXTRA CAB, 4D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2018 Toyota Hilux GUN126R/GUN126 10/15~on, SR, SR5, TRD, 4D, Utili, 4WD, MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2018 Toyota Hilux GUN126R/GUN126 10/15~on, SR5, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2018 Toyota Hilux GUN126R/GUN126 10/15~on, SR5 EXTRA CAB, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR, 2D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR EXTRA CAB, 4D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR, SR5, TRD, 4D, Utili, 4WD, MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR5, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR5 EXTRA CAB, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2016 Toyota Hilux GUN126R/GUN126 10/15~on, SR, SR5, TRD, 4D, Utili, 4WD, MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2016 Toyota Hilux GUN126R/GUN126 10/15~on, SR5, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2016 Toyota Hilux GUN126R/GUN126 10/15~on, SR5 EXTRA CAB, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR, 2D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR EXTRA CAB, 4D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR, SR5, TRD, 4D, Utili, 4WD, MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR5, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR5 EXTRA CAB, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • At Xtreme Outback, we don't just produce clutches for passenger performance vehicles, we also have a proud history producing heavy duty clutch kits for an extensive range of 4x4 vehicles. Our 4x4 heavy duty range has been developed in-house at Australian Clutch Services and draws on over 25 years of experience to produce a clutch kit that provides exceptional performance and driveability. The range of clutch kits includes options for everything from the daily driver through to rally vehicles that compete in some of the most gruelling rallies on the planet.

    The heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

    • Torque (Nm/ ftlbs) INC FOS    520/ 380
    • Clamp Load    990Kg (15% inc.)
    • Flywheel Step    -7.5mm
    • Clutch Disc Diameter    275mm
    • Clutch Disc Spline Count    21
    • Clutch Disc Spline Diameter    29.8mm
  • 2018 Toyota Hilux GUN126R/GUN126 10/15-on, SR, 2D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2018 Toyota Hilux GUN126R/GUN126 10/15~on, SR EXTRA CAB, 4D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2018 Toyota Hilux GUN126R/GUN126 10/15~on, SR, SR5, TRD, 4D, Utili, 4WD, MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2018 Toyota Hilux GUN126R/GUN126 10/15~on, SR5, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2018 Toyota Hilux GUN126R/GUN126 10/15~on, SR5 EXTRA CAB, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR, 2D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR EXTRA CAB, 4D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR, SR5, TRD, 4D, Utili, 4WD, MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR5, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2017 Toyota Hilux GUN126R/GUN126 10/15~on, SR5 EXTRA CAB, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2016 Toyota Hilux GUN126R/GUN126 10/15~on, SR, SR5, TRD, 4D, Utili, 4WD, MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2016 Toyota Hilux GUN126R/GUN126 10/15~on, SR5, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2016 Toyota Hilux GUN126R/GUN126 10/15~on, SR5 EXTRA CAB, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR, 2D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR EXTRA CAB, 4D, Cab C, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR, SR5, TRD, 4D, Utili, 4WD, MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR5, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
  • 2015 Toyota Hilux GUN126R/GUN126 10/15~on, SR5 EXTRA CAB, 4D, Utili, 4WD, AT/MT 2.8 litre, DIESEL, 1GDFTV I4 16v DOHC Turbo CRD {130KW}
