Description

Absolute (PSIa) Brass Pressure Sensors
AEM offer high quality brass PSIa sensors in 30(2BAR), 50 (3.5BAR) and 75 (5BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required of you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

Specifications

30-2131-50 - 50 PSIa or 3.5 Bar Brass Sensor Kit

  • Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -40C to 105C / -40F to 221F
  • Burst Pressure: 100PSI
  • Response Time: < 1ms
  • Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Sensor Body: Brass
  • Wetted Materials: 304L & 316L Stainless Steel
  • Thread: 1/8" NPT Male Thread
  • Weight: < 85 Grams
  • Supply Current:
  • Output: .5 to 4.5Vdc Linear
  • Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock

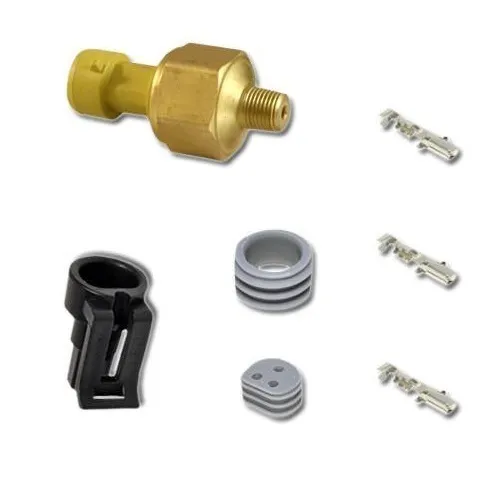

  • Includes: 50 PSIa or 3.5 Bar Brass Sensor, Connector, Pins & Pin Lock

Compatibility

  • Universal Part

Absolute (PSIa) Brass Pressure Sensors
AEM offer high quality brass PSIa sensors in 30(2BAR), 50 (3.5BAR) and 75 (5BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required of you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

30-2131-50 - 50 PSIa or 3.5 Bar Brass Sensor Kit

  • Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -40C to 105C / -40F to 221F
  • Burst Pressure: 100PSI
  • Response Time: < 1ms
  • Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Sensor Body: Brass
  • Wetted Materials: 304L & 316L Stainless Steel
  • Thread: 1/8" NPT Male Thread
  • Weight: < 85 Grams
  • Supply Current:
  • Output: .5 to 4.5Vdc Linear
  • Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
  • Includes: 50 PSIa or 3.5 Bar Brass Sensor, Connector, Pins & Pin Lock
  • Universal Part
