Description

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.

Features

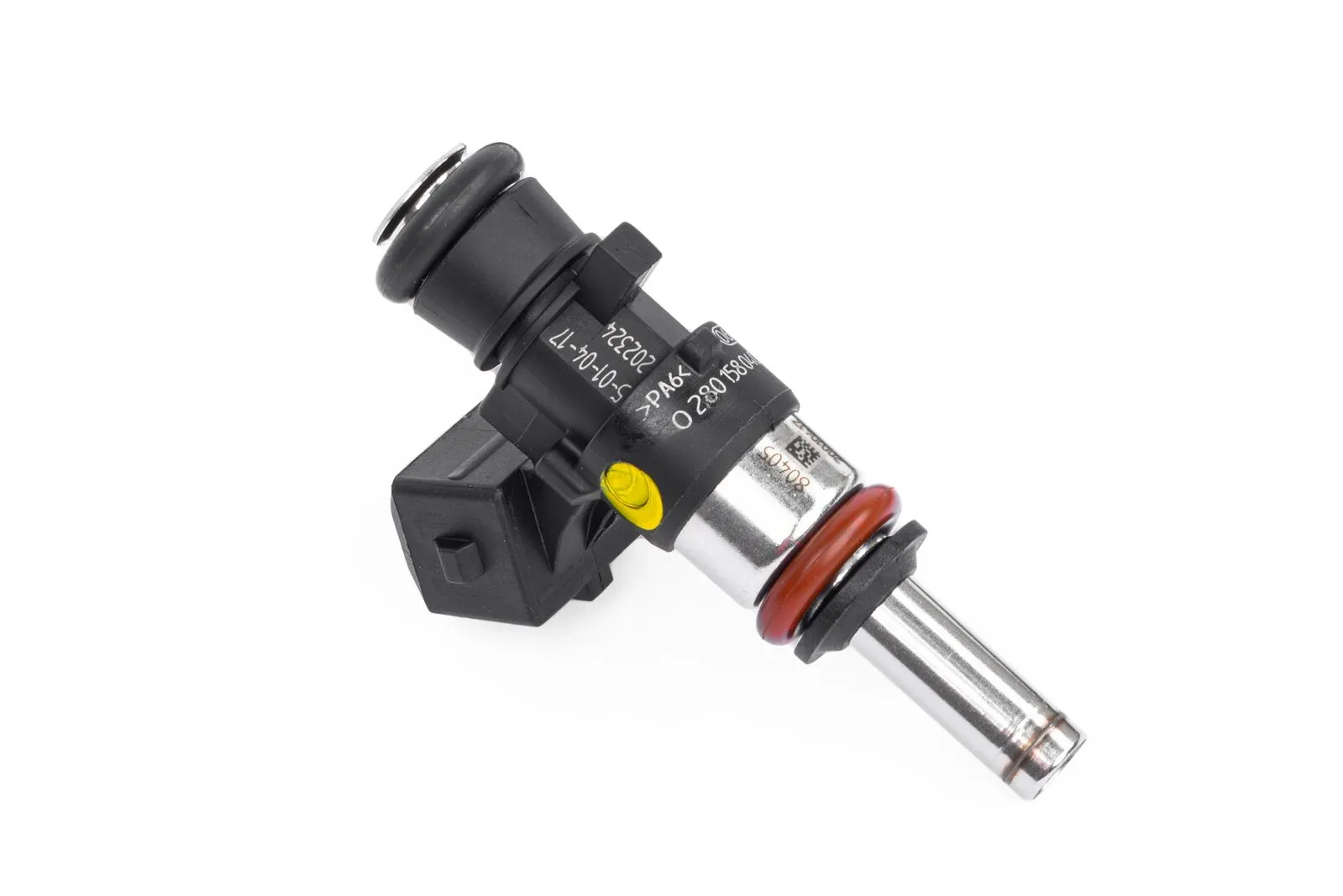

  • Bosch EV 14 CKxT MPI injector (0280 158 040)
  • APR Bosch Jetronic to OEM 2 pin harness
  • 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
  • Supports up to 8 bar of use in motorsport configurations
  • E85 and M100 compatible
  • 30° single cone spray angle with 0° bent angle and 0° gamma angle
  • 33.6mm compact body

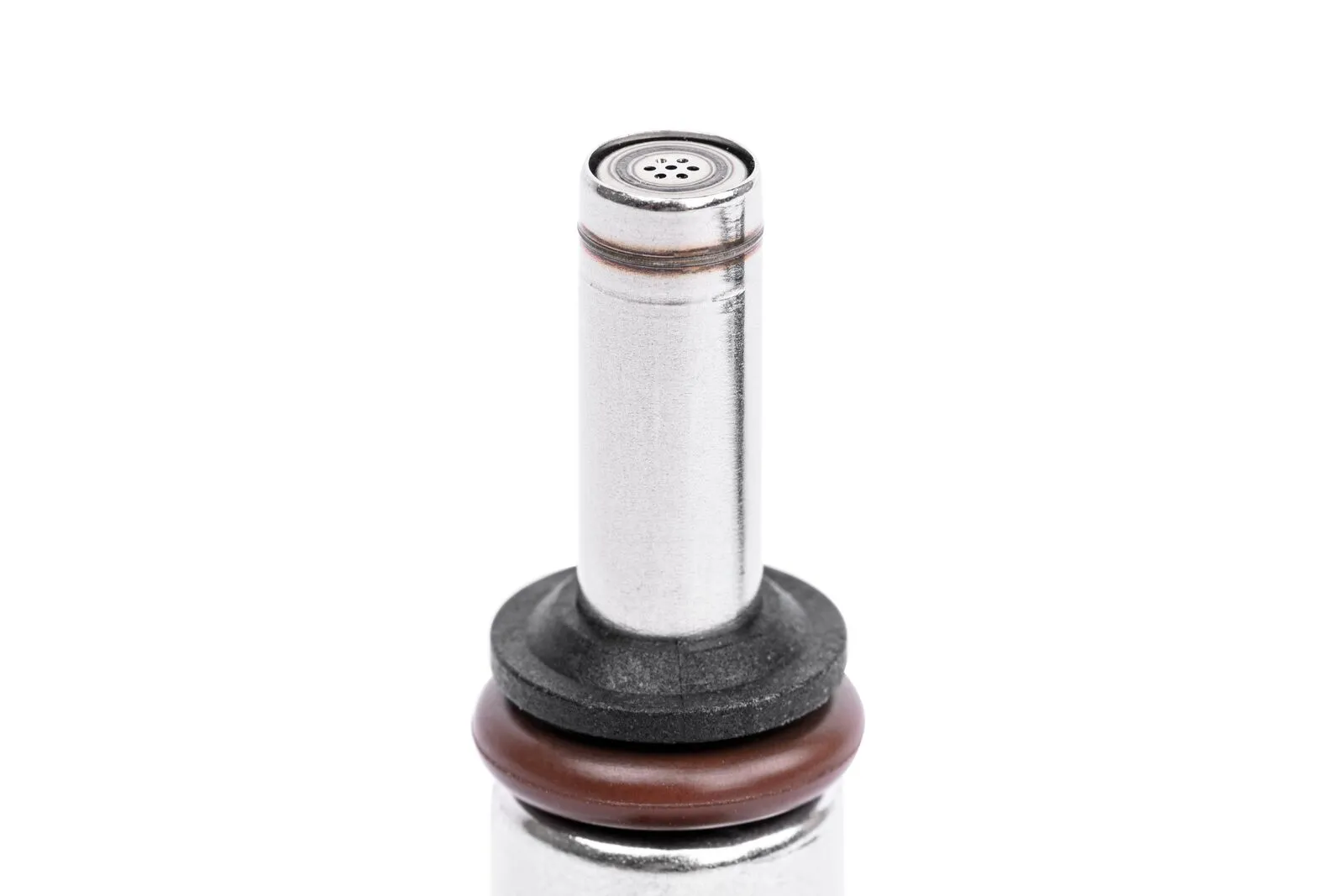

  • 24mm extended tip nozzle
  • Top-feed injector
  • 12 ohm coil resistance
  • 150 mm long harness with braided wire sheathing
  • ECU software required for use
  • Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported

Specifications

BrandAPR
ConnectorBosch Jetronic to OEM
Direct FitYes
Emission Code7
Max Pressure8
MPI Injector CC980cc/min @ 3 bar
MPI Injector Count1
Product TypeFueling

Compatibility

  • 2017 - 2020 Audi RS3 2.5
  • 2022 - 2024 Audi RS3 2.5
  • 2018 - 2023 Audi TT RS Quattro 2.5

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.

Features

  • Bosch EV 14 CKxT MPI injector (0280 158 040)
  • APR Bosch Jetronic to OEM 2 pin harness
  • 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
  • Supports up to 8 bar of use in motorsport configurations
  • E85 and M100 compatible
  • 30° single cone spray angle with 0° bent angle and 0° gamma angle
  • 33.6mm compact body
  • 24mm extended tip nozzle
  • Top-feed injector
  • 12 ohm coil resistance
  • 150 mm long harness with braided wire sheathing
  • ECU software required for use
  • Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported
BrandAPR
ConnectorBosch Jetronic to OEM
Direct FitYes
Emission Code7
Max Pressure8
MPI Injector CC980cc/min @ 3 bar
MPI Injector Count1
Product TypeFueling
  • 2017 - 2020 Audi RS3 2.5
  • 2022 - 2024 Audi RS3 2.5
  • 2018 - 2023 Audi TT RS Quattro 2.5
