Description

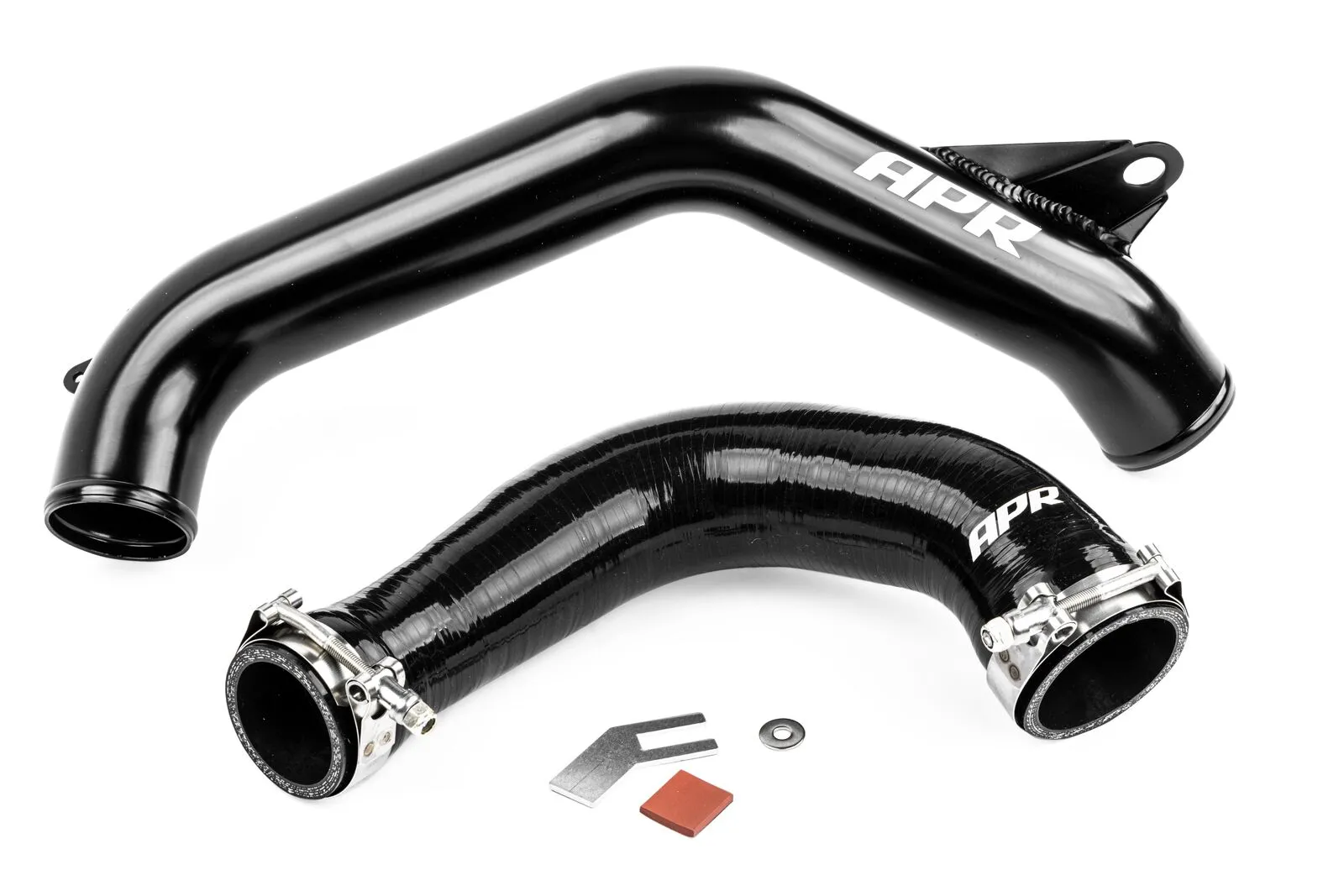

The APR Charge Pipe System is a comprehensive, direct replacement upgrade, to the factory system.

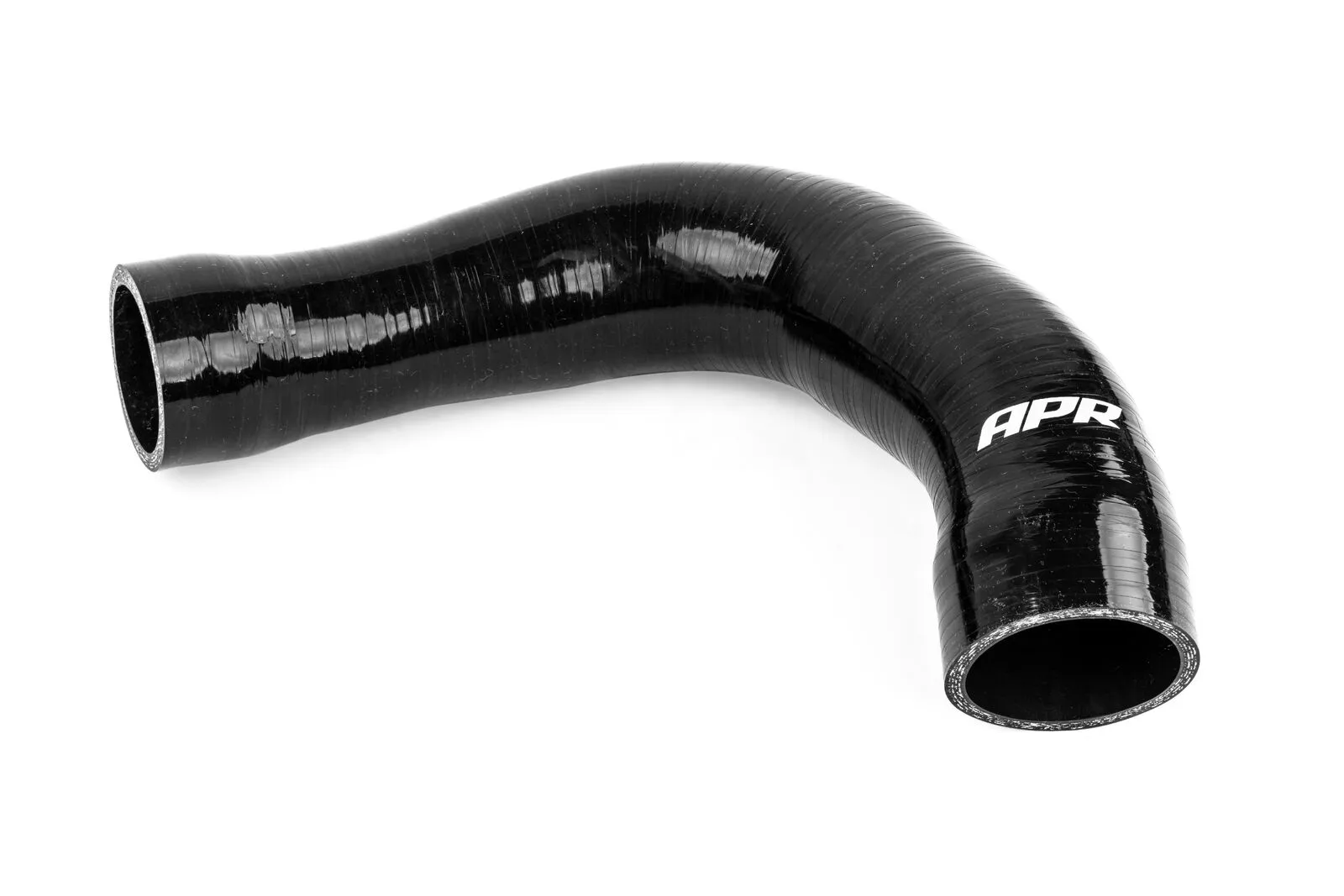

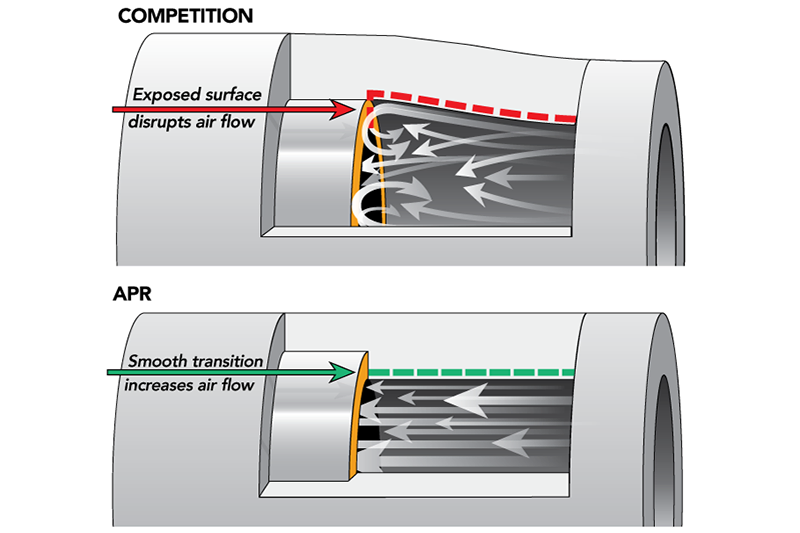

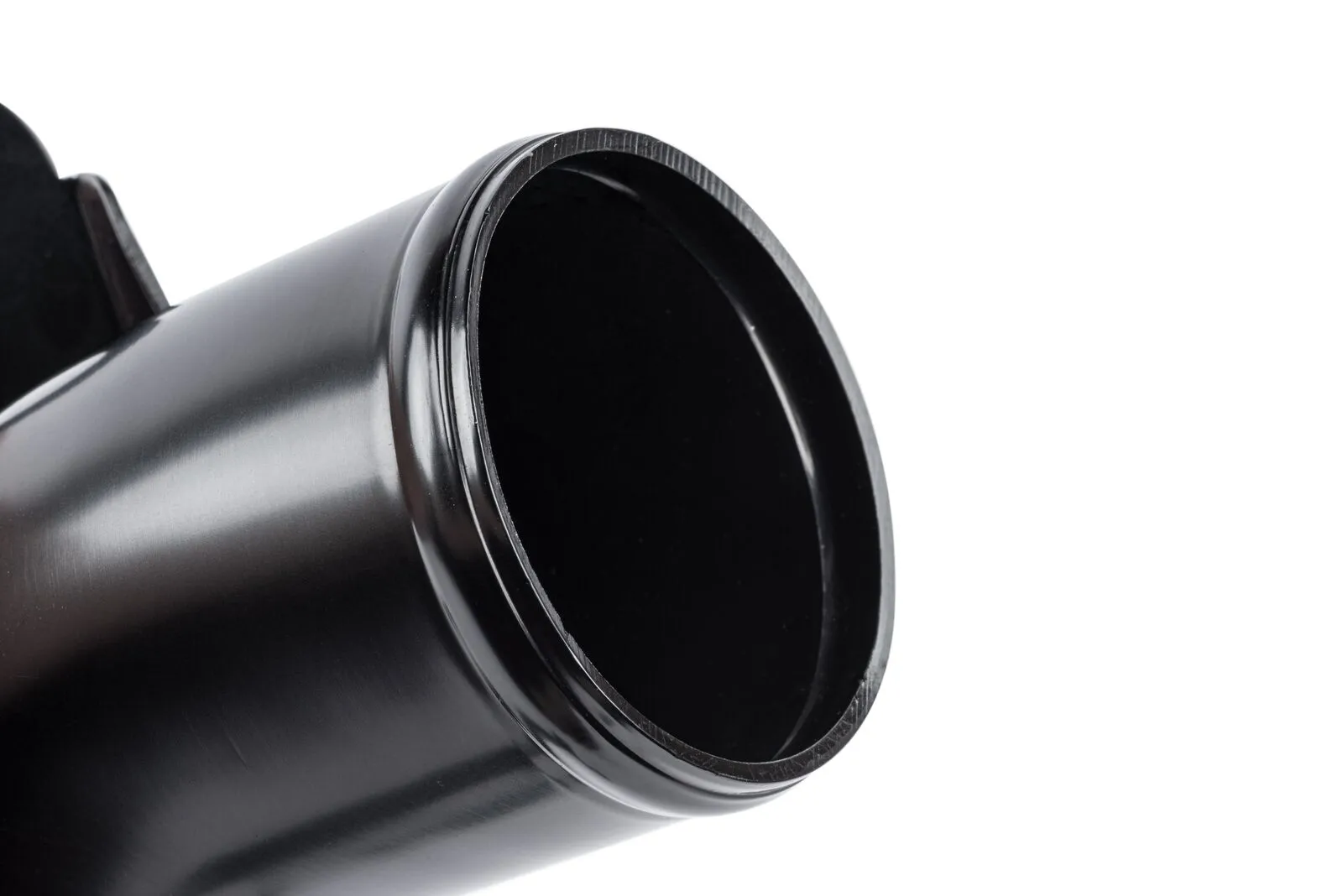

The factory plastic and rubber turbo outlet pipe is a small and restrictive 38mm pipe that has shown to melt, deform, and cause boost leaks under extreme conditions. The APR System remedies this by upgrading the system to a larger 60mm aluminum pipe, along with a new multi-ply fluorosilicone coated turbocharger outlet hose. APR EZ-Flow stepped lip hoses provide a smooth transition from hose to pipe, and the included T-bolt clamps ensure a strong and leak-resistant seal at the pipe. All brackets are TIG-welded for a strong and precise fit, and the pipe is coated black. A protruding lip at the edge of the pipe helps prevent hose slippage. This pipe is a direct fit to the APR DTR6054 Turbocharger and the APR or OEM intercooler hose. APR Recommends upgrading the intercooler hoses as well for maximum performance and reliability.

Features

  • Direct Fit with APR DTR6054 turbo and OEM/APR IC hoses
  • Larger 60mm piping
  • Strong aluminum pipes
  • Multi-ply silicone outer hose construction
  • Fluorosilicone interior hose surface
  • Clampco T-bolt clamp

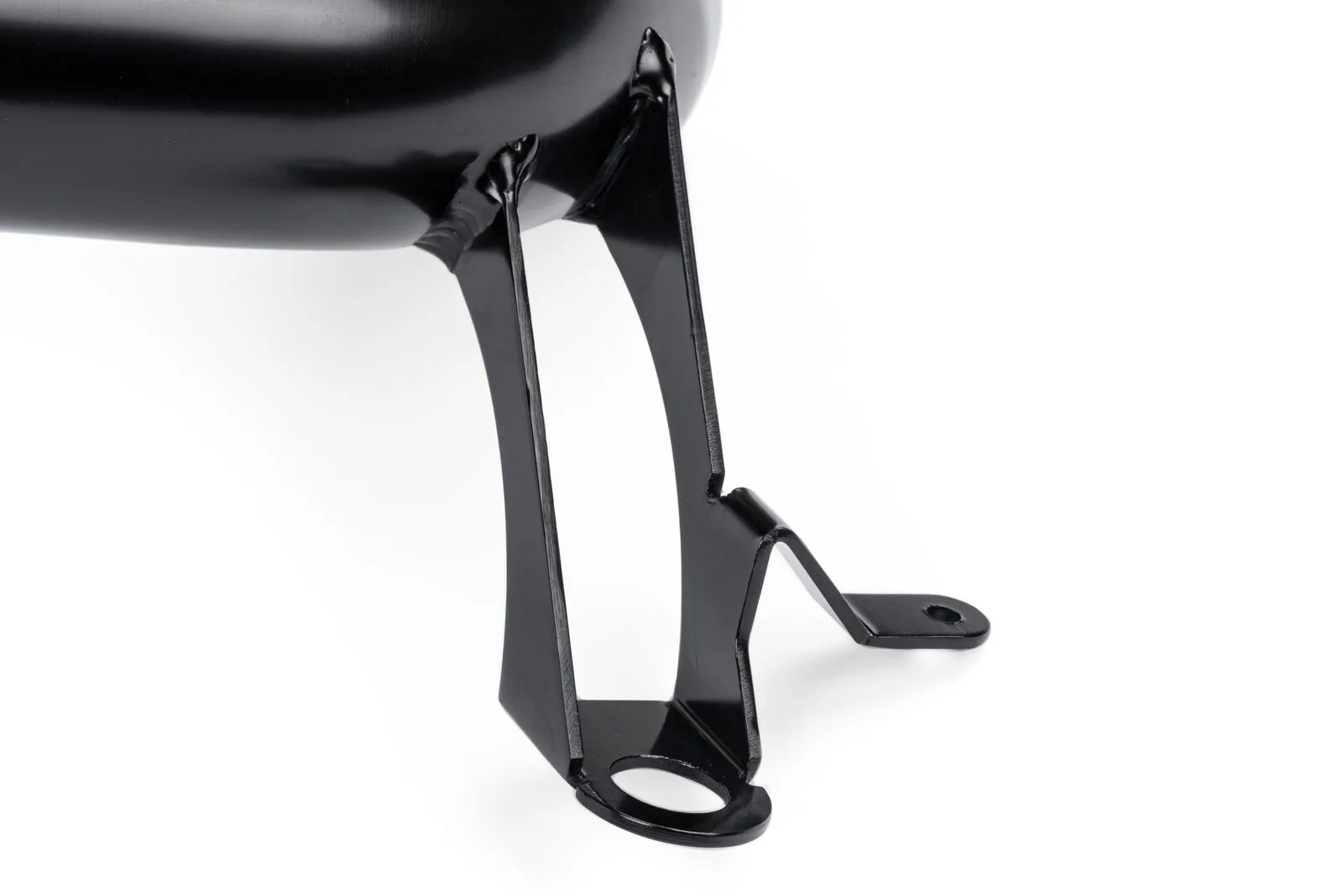

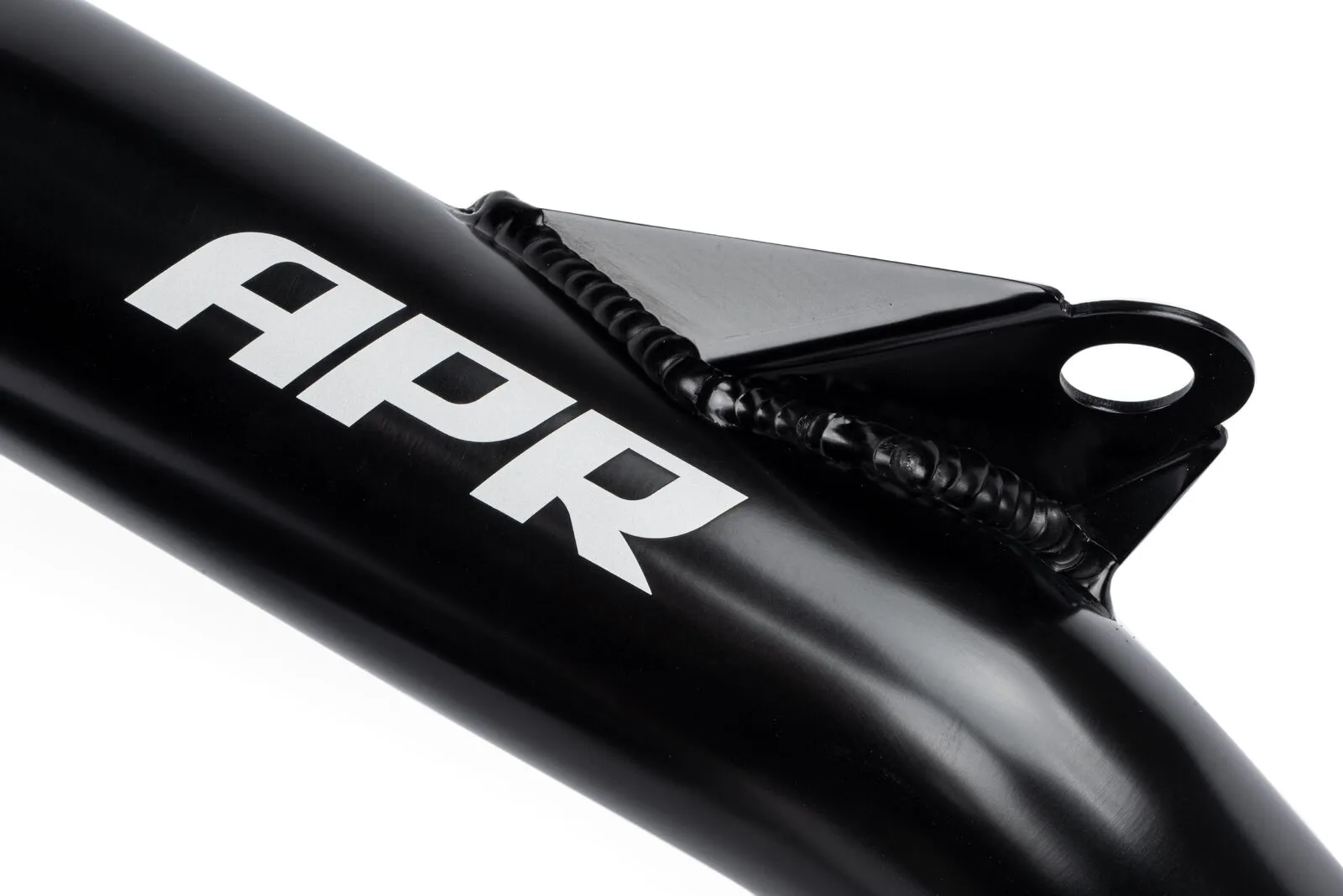

  • TIG-welded brackets
  • Black finish

Specifications

BrandAPR
ClampsT-Bolt
ColourBlack
Emission Code7
MaterialAluminum, Silicon
Product TypeCharge Air Hose
Sale CategoryForced Induction
VersionTurbo Outlet Hose & Pipe for DTR

Compatibility

  • 2019 - 2024 Audi Q3 2.0
  • 2015 - 2020 Audi A3 Quattro 2.0
  • 2016 - 2023 Audi TTS Quattro 2.0
  • 2015 - 2016 Audi A3 1.8
  • 2017 - 2020 Audi A3 2.0
  • 2015 - 2020 Audi S3 2.0
  • 2016 - 2023 Audi TT Quattro 2.0
  • 2015 - 2019 Volkswagen Golf SportWagen 1.8
  • 2015 - 2019 Volkswagen Golf R 2.0
  • 2017 - 2019 Volkswagen Golf Alltrack 1.8
  • 2019 - 2021 Volkswagen Arteon 2.0
  • 2015 - 2021 Volkswagen GTI 2.0
  • 2019 - 2024 Volkswagen Jetta 2.0
  • 2015 - 2018 Volkswagen Golf 1.8

The APR Charge Pipe System is a comprehensive, direct replacement upgrade, to the factory system.

The factory plastic and rubber turbo outlet pipe is a small and restrictive 38mm pipe that has shown to melt, deform, and cause boost leaks under extreme conditions. The APR System remedies this by upgrading the system to a larger 60mm aluminum pipe, along with a new multi-ply fluorosilicone coated turbocharger outlet hose. APR EZ-Flow stepped lip hoses provide a smooth transition from hose to pipe, and the included T-bolt clamps ensure a strong and leak-resistant seal at the pipe. All brackets are TIG-welded for a strong and precise fit, and the pipe is coated black. A protruding lip at the edge of the pipe helps prevent hose slippage. This pipe is a direct fit to the APR DTR6054 Turbocharger and the APR or OEM intercooler hose. APR Recommends upgrading the intercooler hoses as well for maximum performance and reliability.

Features

  • Direct Fit with APR DTR6054 turbo and OEM/APR IC hoses
  • Larger 60mm piping
  • Strong aluminum pipes
  • Multi-ply silicone outer hose construction
  • Fluorosilicone interior hose surface
  • Clampco T-bolt clamp
  • TIG-welded brackets
  • Black finish
BrandAPR
ClampsT-Bolt
ColourBlack
Emission Code7
MaterialAluminum, Silicon
Product TypeCharge Air Hose
Sale CategoryForced Induction
VersionTurbo Outlet Hose & Pipe for DTR
  • 2019 - 2024 Audi Q3 2.0
  • 2015 - 2020 Audi A3 Quattro 2.0
  • 2016 - 2023 Audi TTS Quattro 2.0
  • 2015 - 2016 Audi A3 1.8
  • 2017 - 2020 Audi A3 2.0
  • 2015 - 2020 Audi S3 2.0
  • 2016 - 2023 Audi TT Quattro 2.0
  • 2015 - 2019 Volkswagen Golf SportWagen 1.8
  • 2015 - 2019 Volkswagen Golf R 2.0
  • 2017 - 2019 Volkswagen Golf Alltrack 1.8
  • 2019 - 2021 Volkswagen Arteon 2.0
  • 2015 - 2021 Volkswagen GTI 2.0
  • 2019 - 2024 Volkswagen Jetta 2.0
  • 2015 - 2018 Volkswagen Golf 1.8
