Description

It is common for the brake lines of most vehicles to become tight when lifted above 2 inches, if not extended they are left prone to fatigue and failure. The ATI braided brake lines will not expand under high pressure and temperature, this allows a consistent line pressure giving a firmer and more efficient brake system operation, eliminating that 'spongy' pedal feel.

Specifications

  • Improved safety with enhanced performance
  • Eliminates spongy pedal feel under heavy braking
  • Can reduce braking distance during a panic stop
  • Compatible with all approved brake fluids
  • Abrasion and corrosion resistant
  • ADR 42/04 compliant
  • 5 year warranty
  • Length: 455mm
  • Hose Inner Material: PTFE Teflon
  • Hose Outer Material: 304 stainless steel with PVC outer cover
  • Fitting Material: Steel
  • Temperature Range: -70°C to 260°C
  • Inside Diameter: 3.2mm
  • Outside Diameter: 7.5mm
  • Maximum Working Pressure: 3500PSI
  • Burst Pressure: 12550-13500PSI

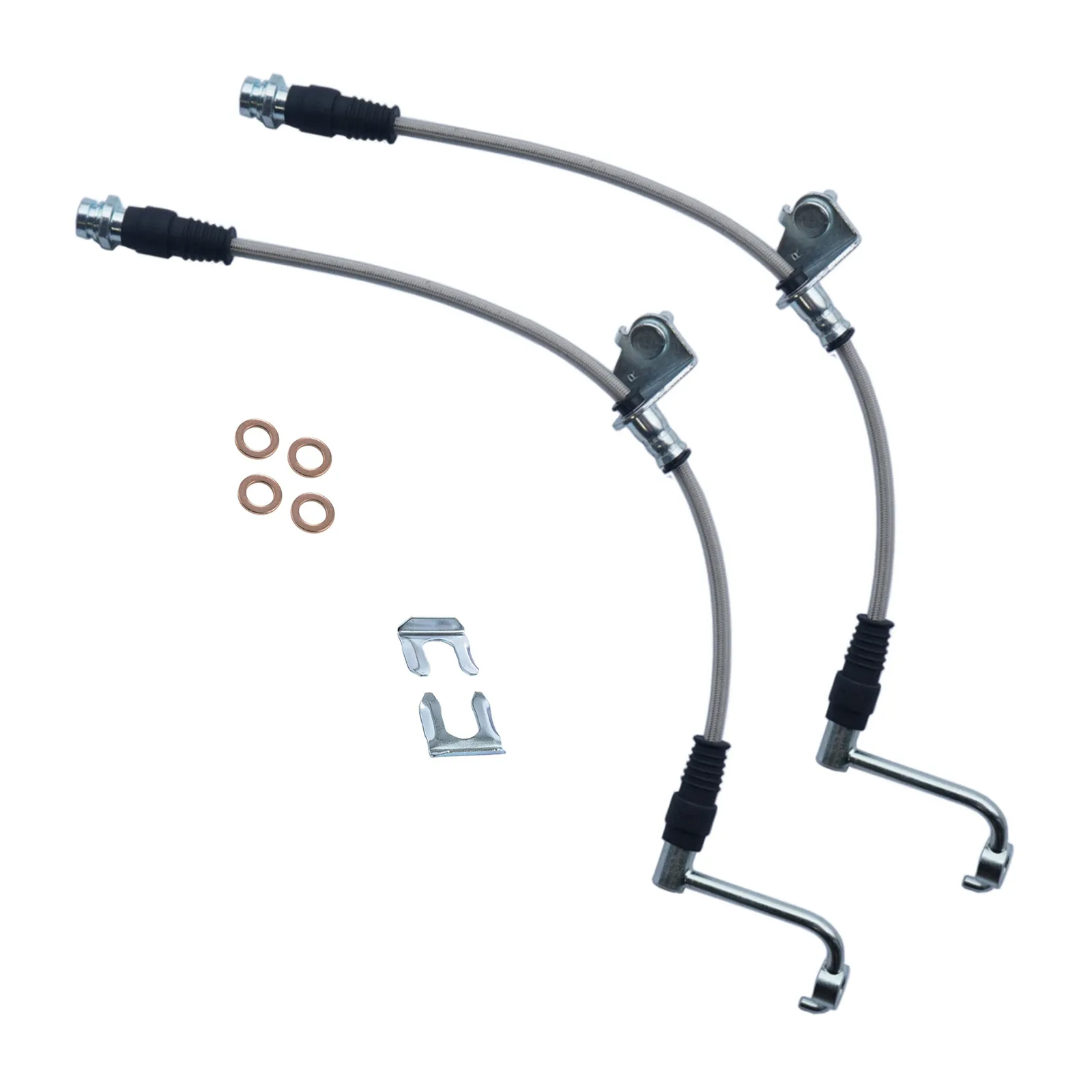

What's Included

  • 2 braided brake lines
  • 4 copper washers
  • 2 retaining clips

Compatibility

  • Holden Colorado 2012 - 2020
  • Isuzu Dmax/Mux 2012 - 2020

It is common for the brake lines of most vehicles to become tight when lifted above 2 inches, if not extended they are left prone to fatigue and failure. The ATI braided brake lines will not expand under high pressure and temperature, this allows a consistent line pressure giving a firmer and more efficient brake system operation, eliminating that 'spongy' pedal feel.

  • Improved safety with enhanced performance
  • Eliminates spongy pedal feel under heavy braking
  • Can reduce braking distance during a panic stop
  • Compatible with all approved brake fluids
  • Abrasion and corrosion resistant
  • ADR 42/04 compliant
  • 5 year warranty
  • Length: 455mm
  • Hose Inner Material: PTFE Teflon
  • Hose Outer Material: 304 stainless steel with PVC outer cover
  • Fitting Material: Steel
  • Temperature Range: -70°C to 260°C
  • Inside Diameter: 3.2mm
  • Outside Diameter: 7.5mm
  • Maximum Working Pressure: 3500PSI
  • Burst Pressure: 12550-13500PSI
  • 2 braided brake lines
  • 4 copper washers
  • 2 retaining clips
  • Holden Colorado 2012 - 2020
  • Isuzu Dmax/Mux 2012 - 2020
