Description

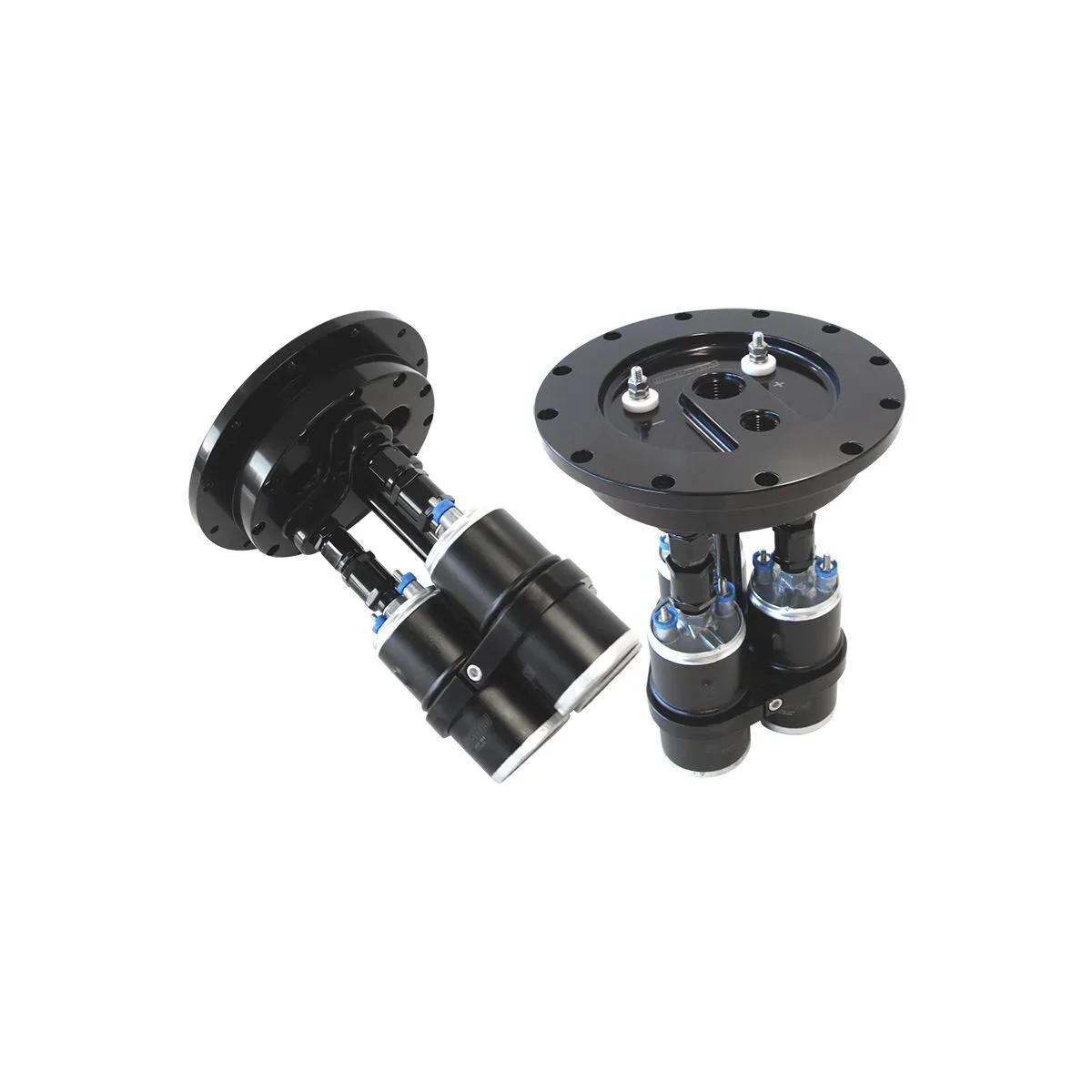

Deliver more fuel to your high powered car with Aeroflow's Triple Pump hanger kit! Our triple Pump Hanger is CNC machined from billet 6061-T6 aluminium with a black anodised option for maximum durability and corrosion protection against E85/Methanol. The 3 piece head incorporates a weld on for custom tanks. The Buna N O-rings provide a positive seal for the internal fuel log which has a -12 feed for large flow applications with a -8 return. With 3 x -8 internal feeds along with the check valves and male to female joiners which remove the need for in tank hose or clamps. We've designed the CNC Billet hanger to mount 2 or 3 Intake pumps

  • Suits a 205mm or 8" diameter cut-out.
  • For Use with 250mm or 10" deep tanks.
  • Twin or triple E85 compatible Aeroflow pumps AF49-1013 or Bosch in tank pumps
  • Built-in fuel manifold chamber for better pressure equalization and no external couplers
  • -12 feed for maximum flow
  • -8 Return
  • Pump wiring kit
  • Block-Off plugs required if using less than 3 pumps (sold separetly)

Specifications

Compatibility

  • Universal Part

Deliver more fuel to your high powered car with Aeroflow's Triple Pump hanger kit! Our triple Pump Hanger is CNC machined from billet 6061-T6 aluminium with a black anodised option for maximum durability and corrosion protection against E85/Methanol. The 3 piece head incorporates a weld on for custom tanks. The Buna N O-rings provide a positive seal for the internal fuel log which has a -12 feed for large flow applications with a -8 return. With 3 x -8 internal feeds along with the check valves and male to female joiners which remove the need for in tank hose or clamps. We've designed the CNC Billet hanger to mount 2 or 3 Intake pumps

  • Suits a 205mm or 8" diameter cut-out.
  • For Use with 250mm or 10" deep tanks.
  • Twin or triple E85 compatible Aeroflow pumps AF49-1013 or Bosch in tank pumps
  • Built-in fuel manifold chamber for better pressure equalization and no external couplers
  • -12 feed for maximum flow
  • -8 Return
  • Pump wiring kit
  • Block-Off plugs required if using less than 3 pumps (sold separetly)
  • Universal Part
