Description

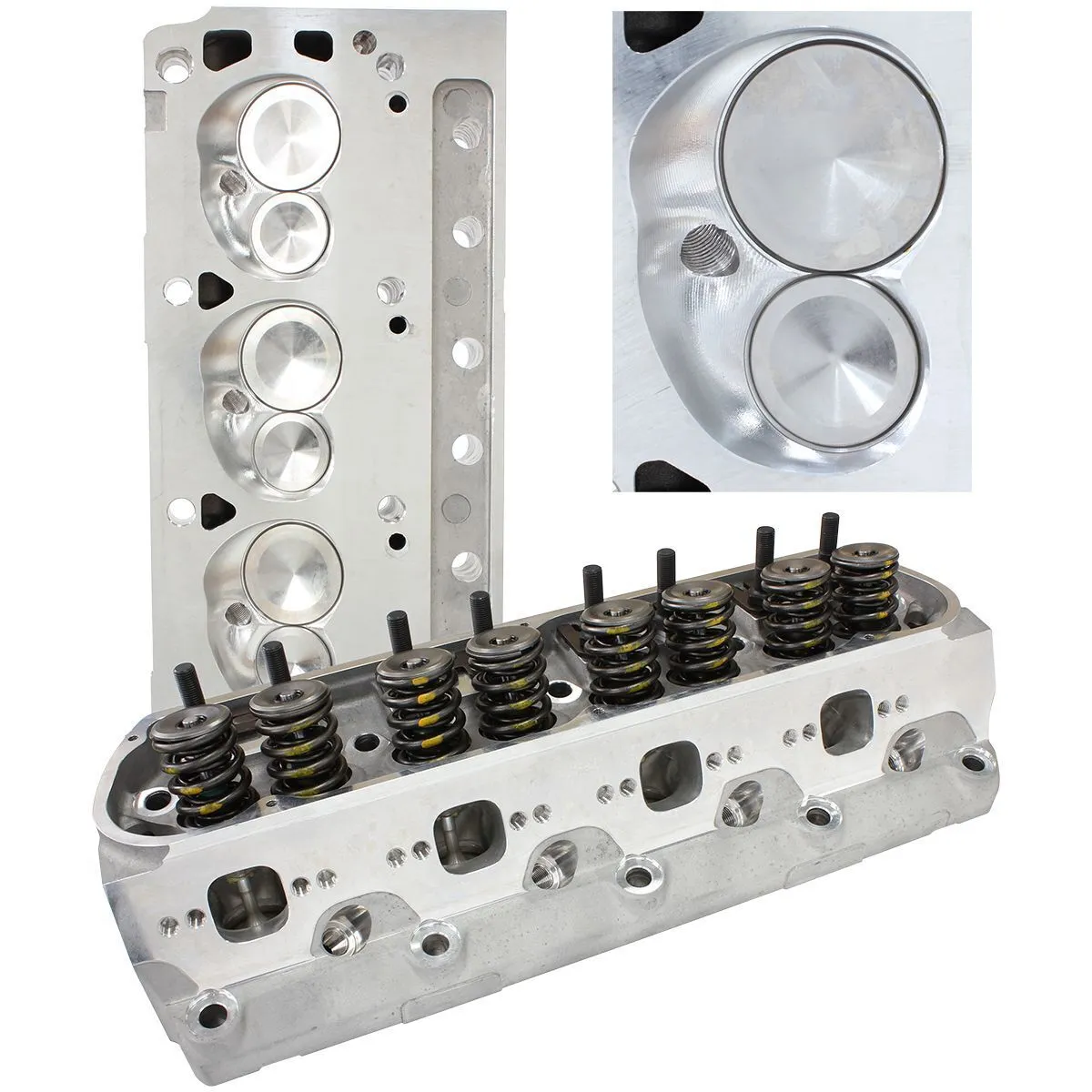

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.

The Aeroflow Performance small block Ford Windsor cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Made from A356-T6 aluminium castings, they feature full CNC intake ports and chambered square exhaust ports. These 200cc heads accept larger then stock 1.575" diameter dual valve spring to handle up to .710" maximum lift. Suits hydrauic roller camshafts.

Note: These heads are drilled for 1/2" head bolts. If using a 7/16" bolt, you must use a head bolt bushing kit or step down head bolts.

Specifications

  • Cylinder Head Configuration: Complete / Assembled
  • Engine: 289-302W, 351W
  • Highlighted Product Item: No
  • Installed Components: Installed Components

    Intake Valves: 2.08" x 5.00" x 8mm
    Exhaust Valves: 1.60" x 5.03" x 8mm
    Valve Springs: 1.575" Dual spring
    Valve Retainers: 10° 8mm
    Valve Locks: 10° 8mm
    Valve Seals: 8mm x .502" Viton
    Rocker Arm Studs: 7/16"-14
    Push Rod Guide Plates: 5/16" Flat

Compatibility

  • Small Block Ford;

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilise ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.

The Aeroflow Performance small block Ford Windsor cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Made from A356-T6 aluminium castings, they feature full CNC intake ports and chambered square exhaust ports. These 200cc heads accept larger then stock 1.575" diameter dual valve spring to handle up to .710" maximum lift. Suits hydrauic roller camshafts.

Note: These heads are drilled for 1/2" head bolts. If using a 7/16" bolt, you must use a head bolt bushing kit or step down head bolts.

  • Cylinder Head Configuration: Complete / Assembled
  • Engine: 289-302W, 351W
  • Highlighted Product Item: No
  • Installed Components: Installed Components

    Intake Valves: 2.08" x 5.00" x 8mm
    Exhaust Valves: 1.60" x 5.03" x 8mm
    Valve Springs: 1.575" Dual spring
    Valve Retainers: 10° 8mm
    Valve Locks: 10° 8mm
    Valve Seals: 8mm x .502" Viton
    Rocker Arm Studs: 7/16"-14
    Push Rod Guide Plates: 5/16" Flat
  • Small Block Ford;
