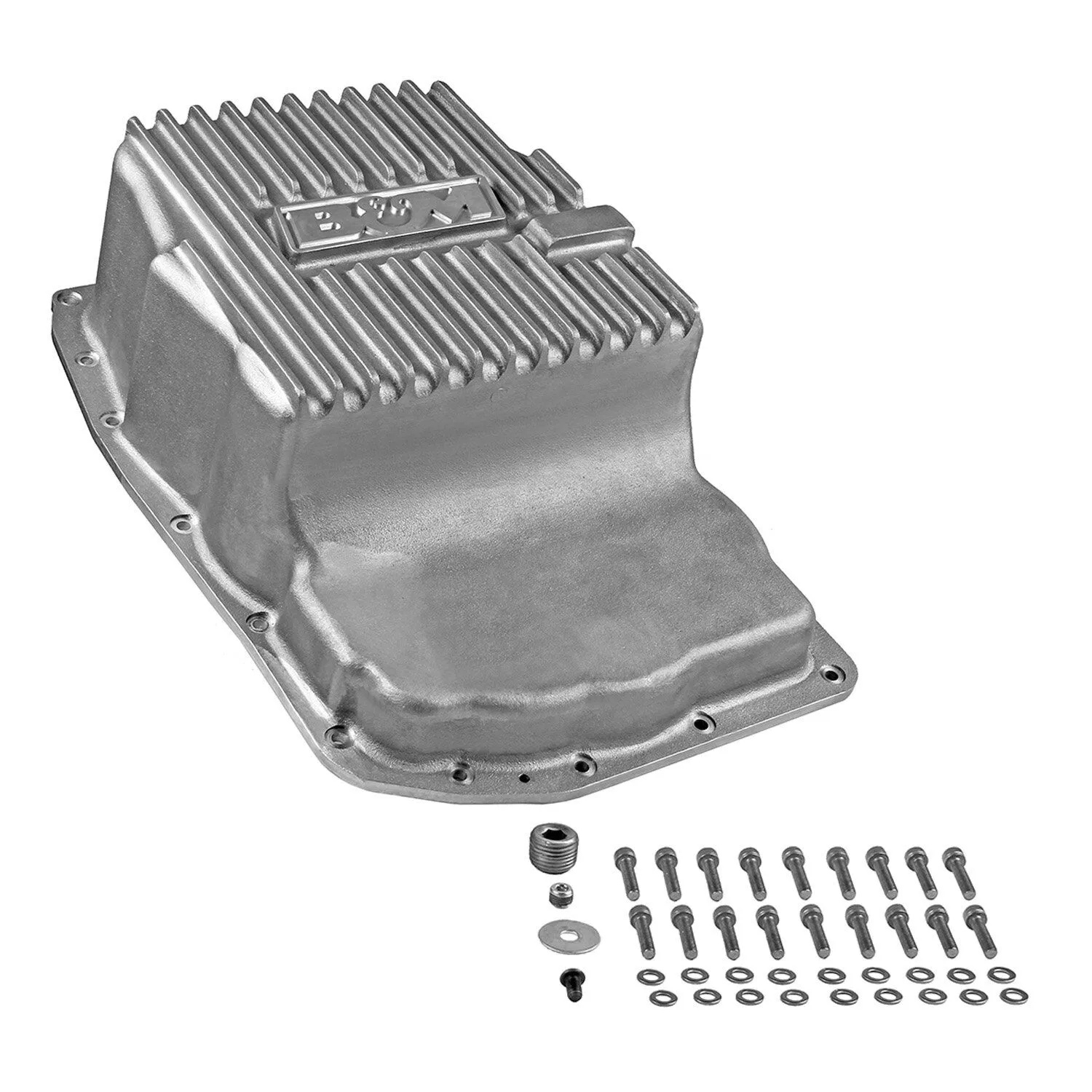

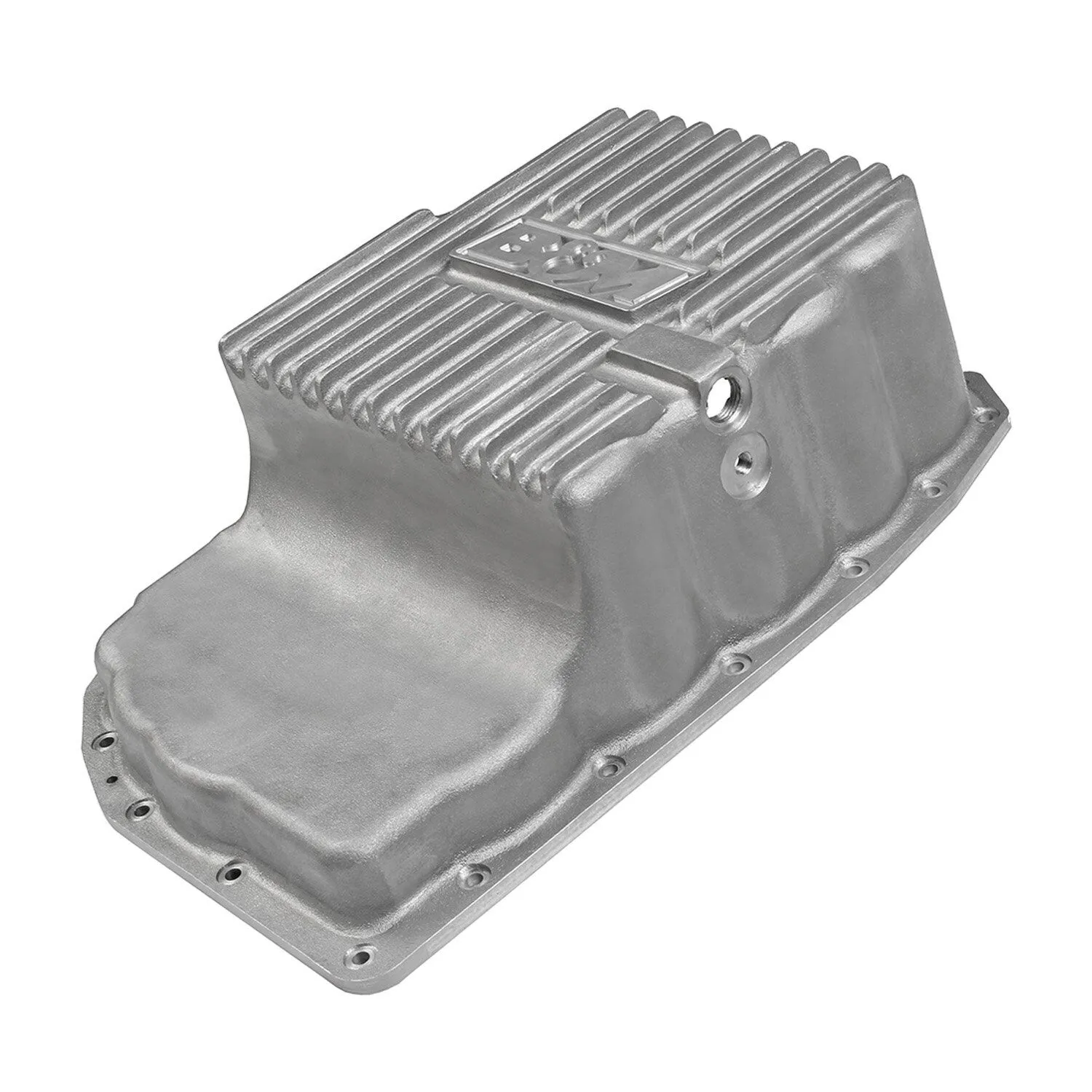

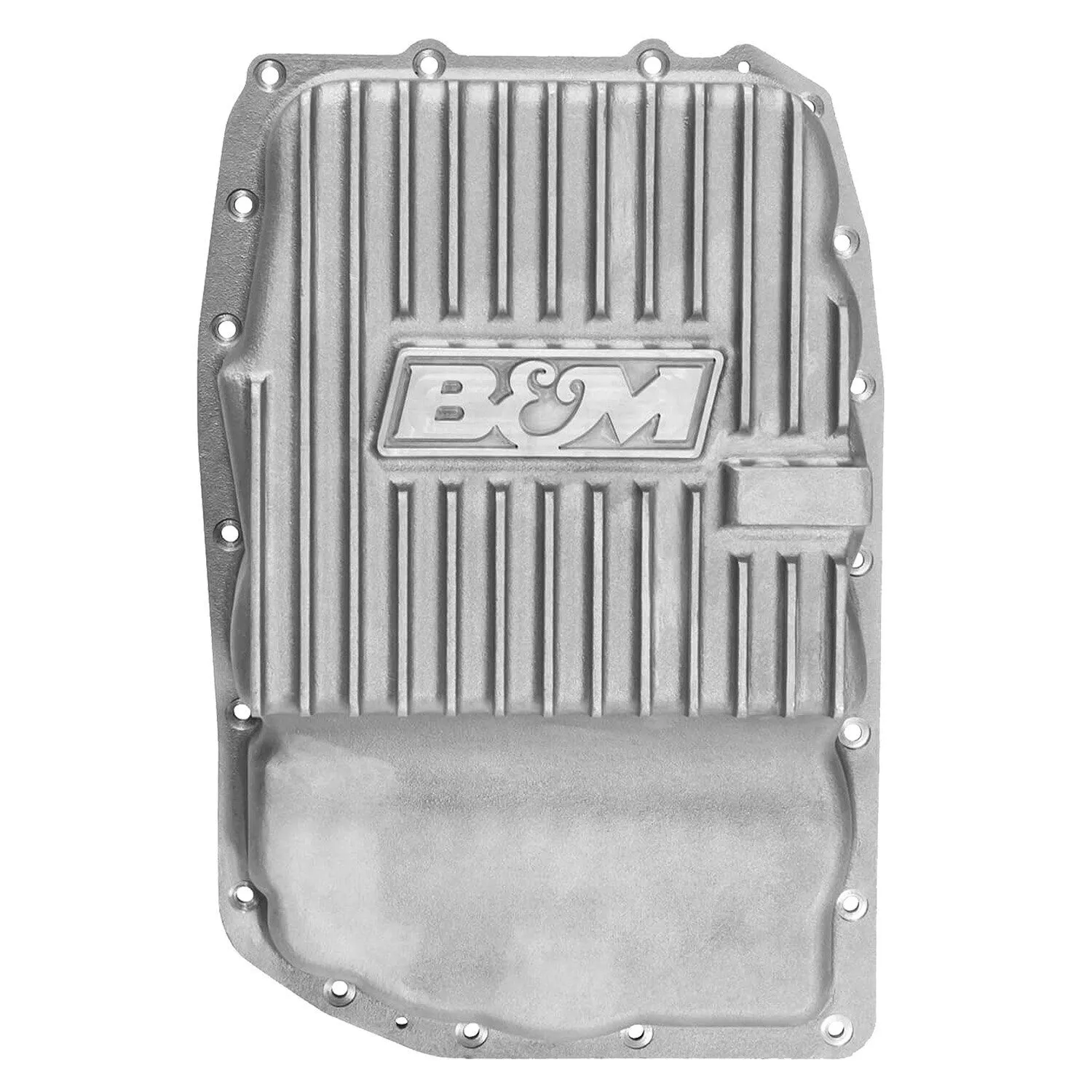

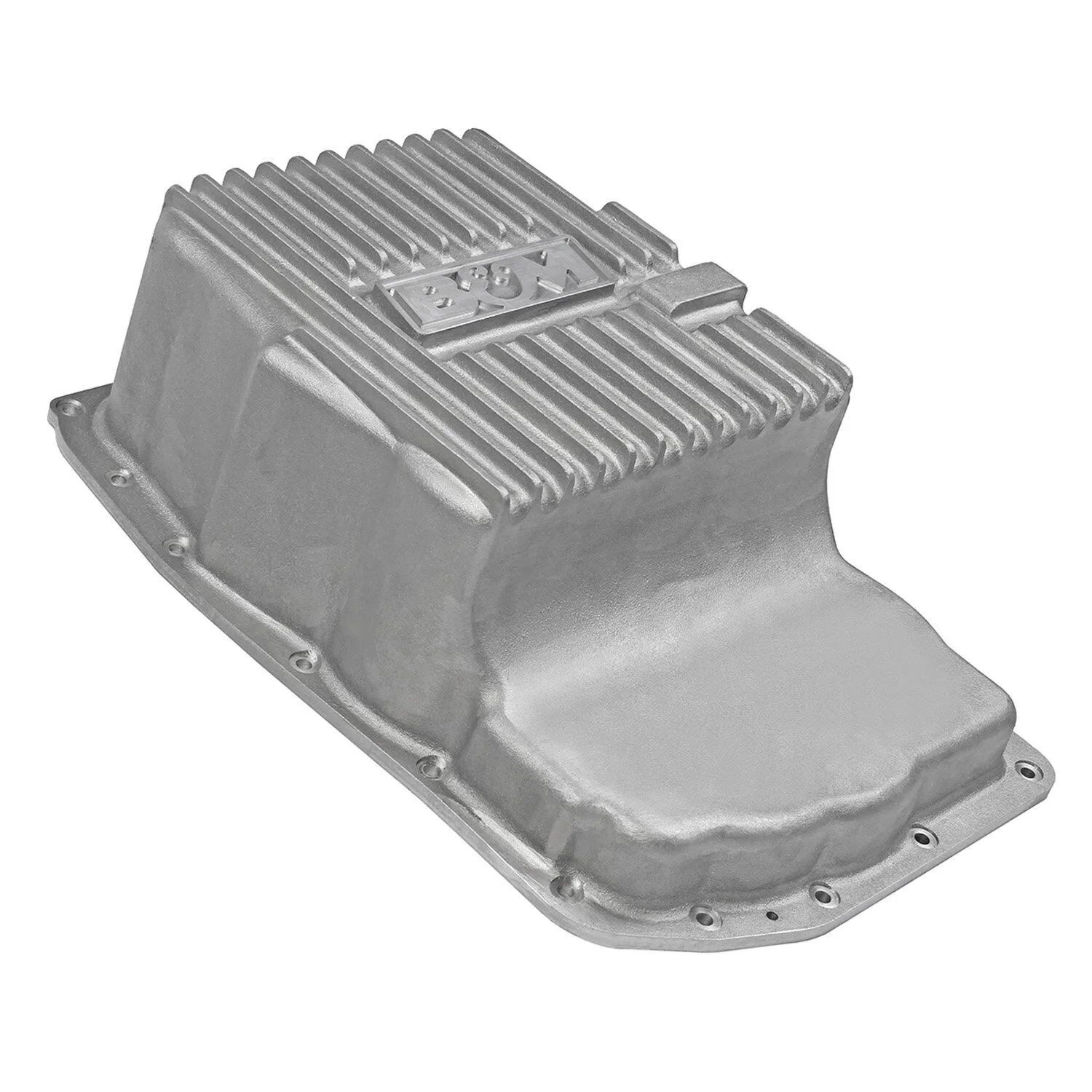

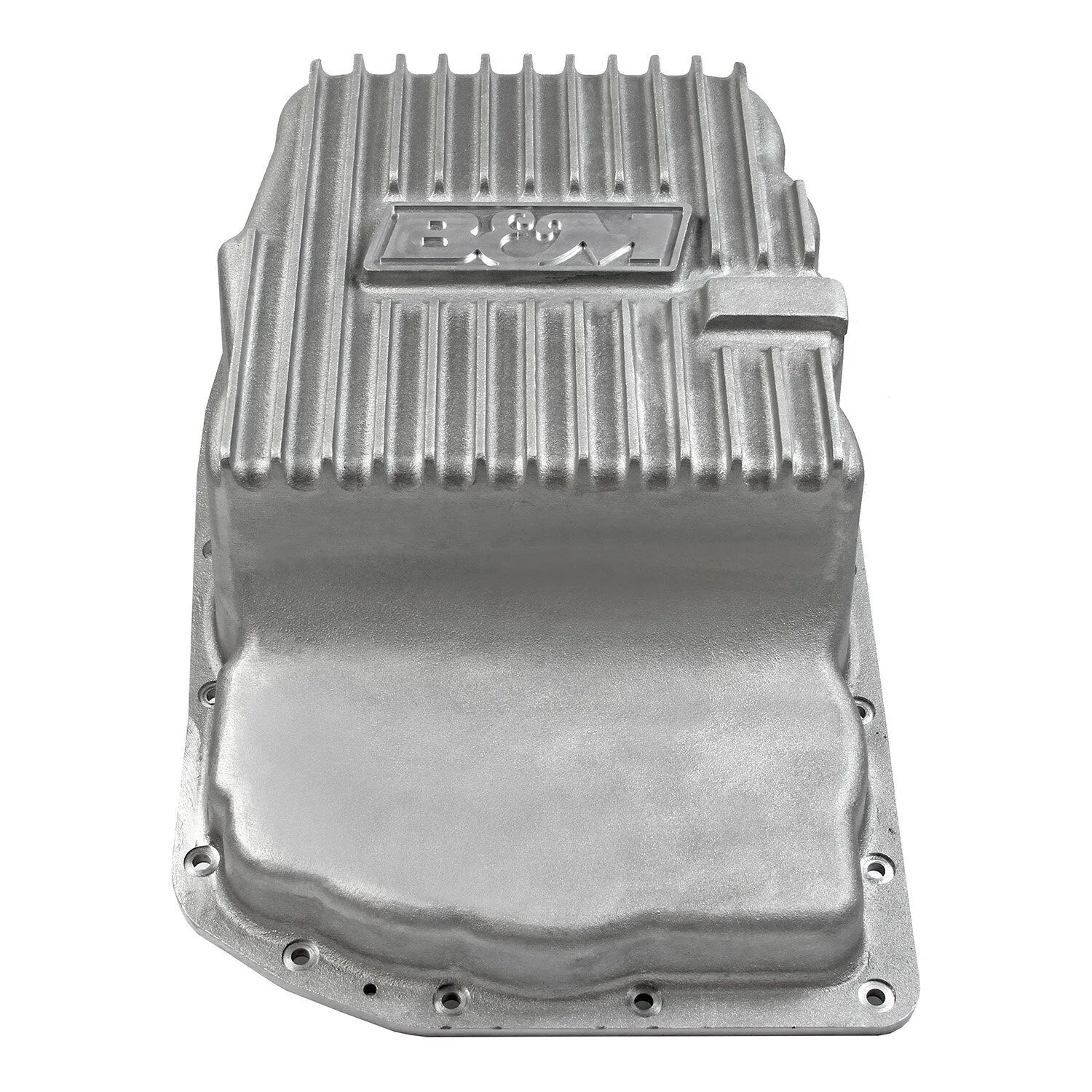

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation.

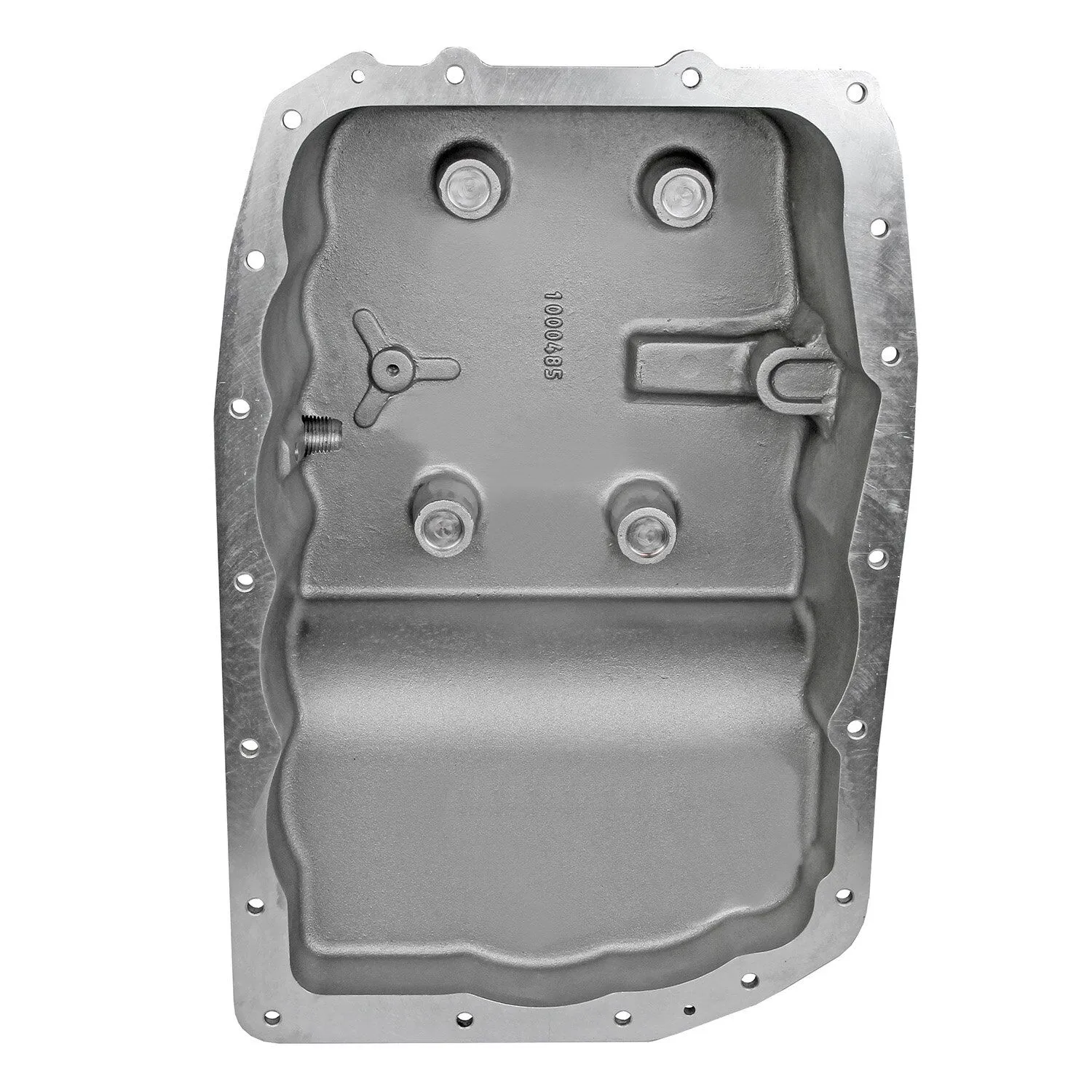

Note: Does Not fit 2010-2015 Camaro 6L80E transmission. Please Verify Transmission Type Prior to Purchase. Gasket and filter not included. Since the pan is deeper than stock, the pan has filter supports cast in and will work with stock filters. No deeper filter/extension is needed.

Features

• Drain Port & Magnetic Drain Plug for Easy Servicing
• Features Temperature Sensor Port
• Additional 2-quart Fluid Capacity
• Improved Cooling Properties
• Lifetime Limited Warranty
• Includes Hardware
• Utilizes stock filter
• Easy Installation
• B&M Quality
