B&M Hi-Tek Aluminum Differential Cover for GM 8.875-inch 12-bolt Truck GM 8.875-inch 12-bolt Truck Differential Cover.
SKU: BNM70504
B&M Hi-Tek Aluminum Differential Cover for GM 8.875-inch 12-bolt Truck GM 8.875-inch 12-bolt Truck Differential Cover.
SKU: 70504
Can't Find What You're Looking For?
If you're looking for something in particular, we can help. Drop us a line using the button below.
Submit A RequestWhy Buy From Us?
- Australian Owned
- 100% Fitment Guarantee
- Genuine Quality Brands
Shop now. Pay Later. Interest Free.
Make 4 interest-free payments of $142.49 fortnightly and receive your order now. More info
Enjoy Now, Pay Later
Description

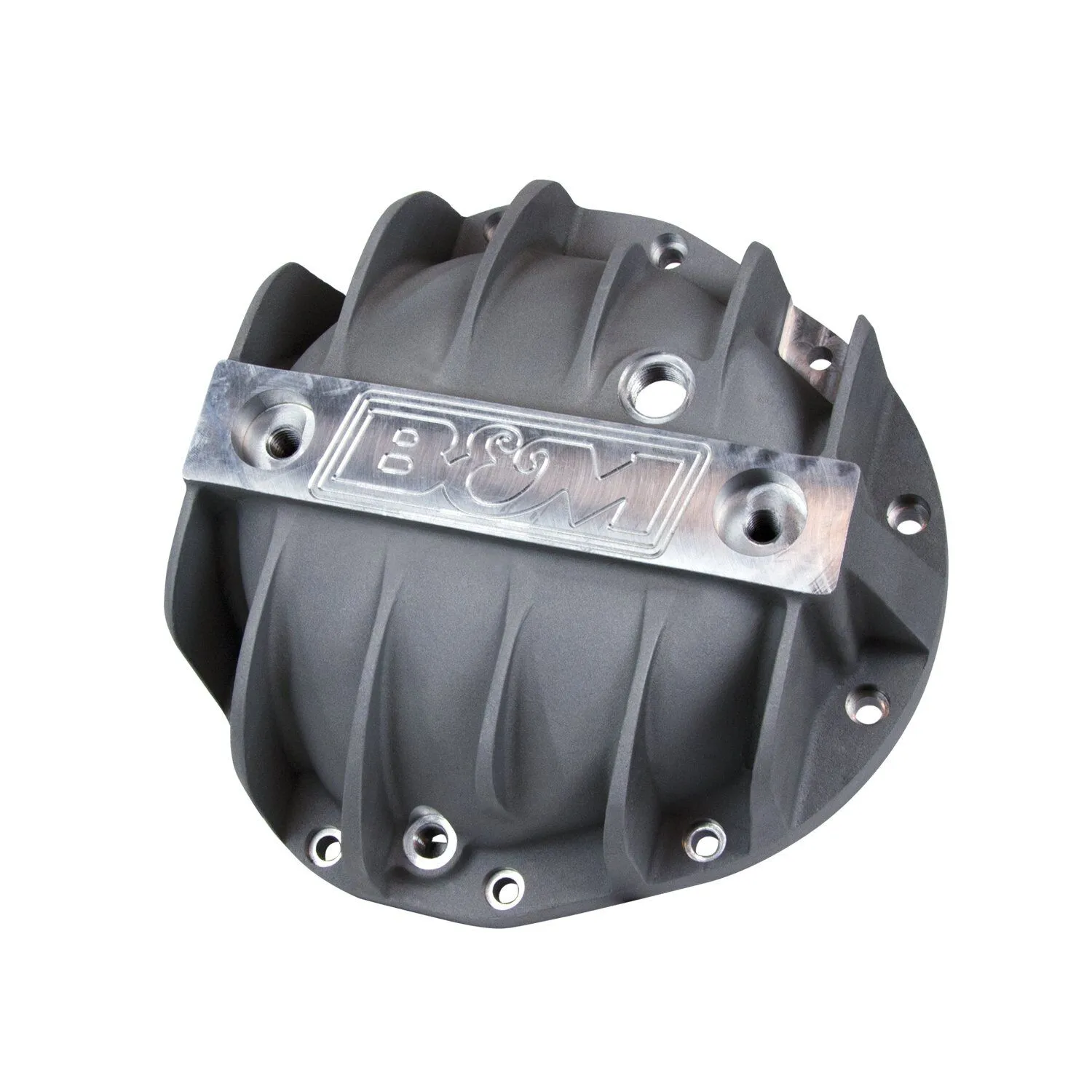

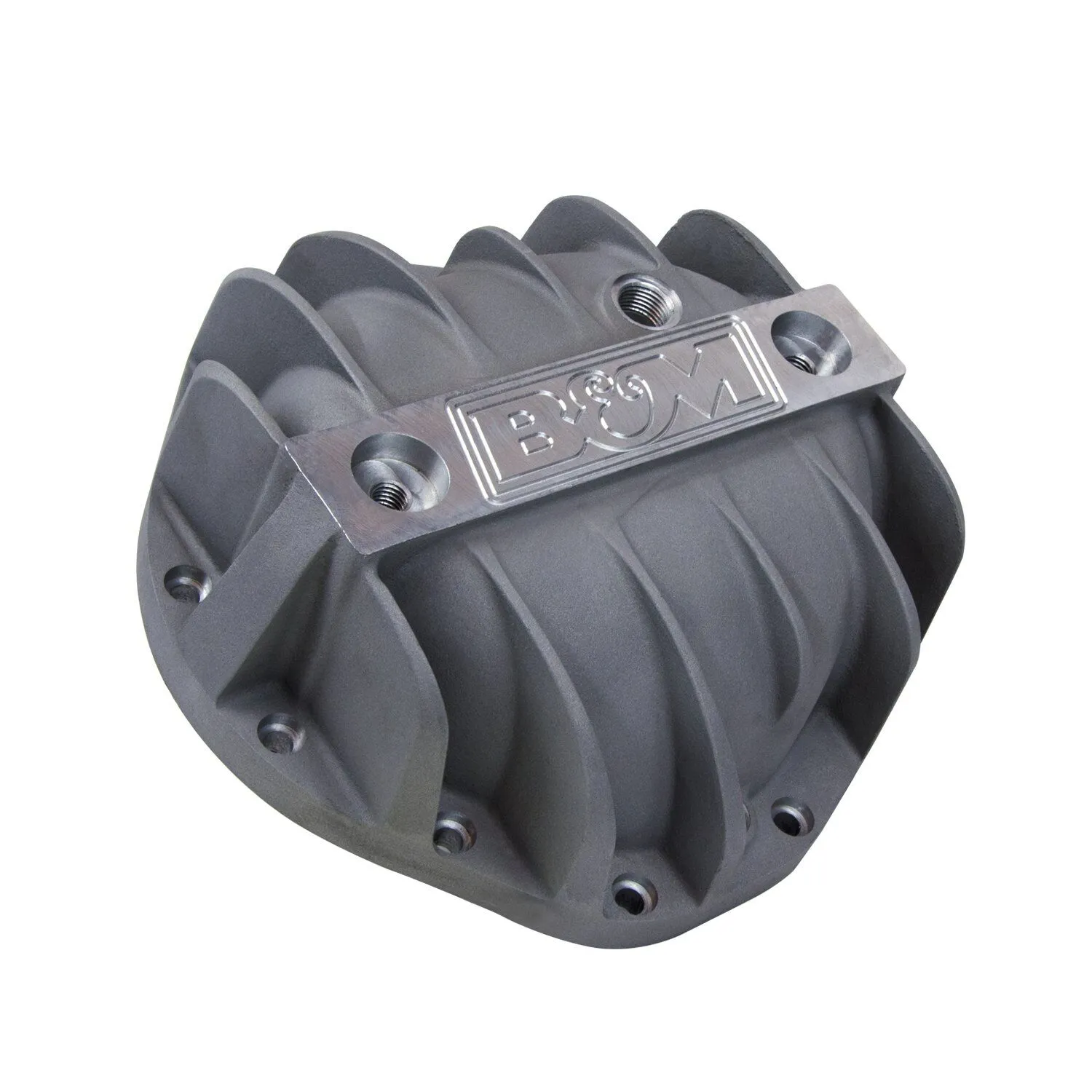

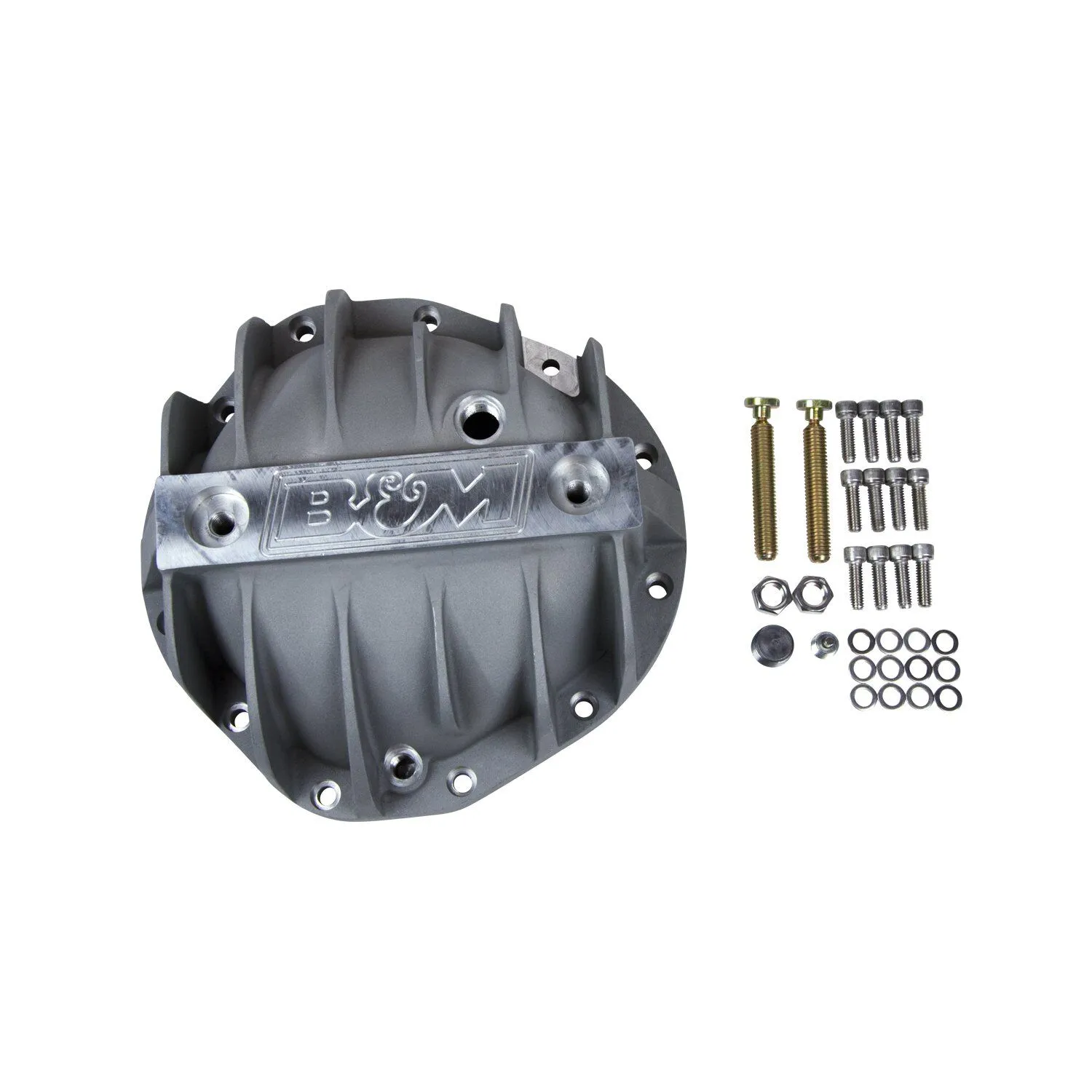

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.
Features
- Load Bolts for Additional Support for Bearing Caps
- Magnetic Drain Plug for Easy Servicing
- Additional .50-quart Fluid Capacity
- A356.0-T6 Aluminum Construction
- Over 65 Years of B&M Quality
- Lifetime Limited Warranty
- Machined B&M Logo

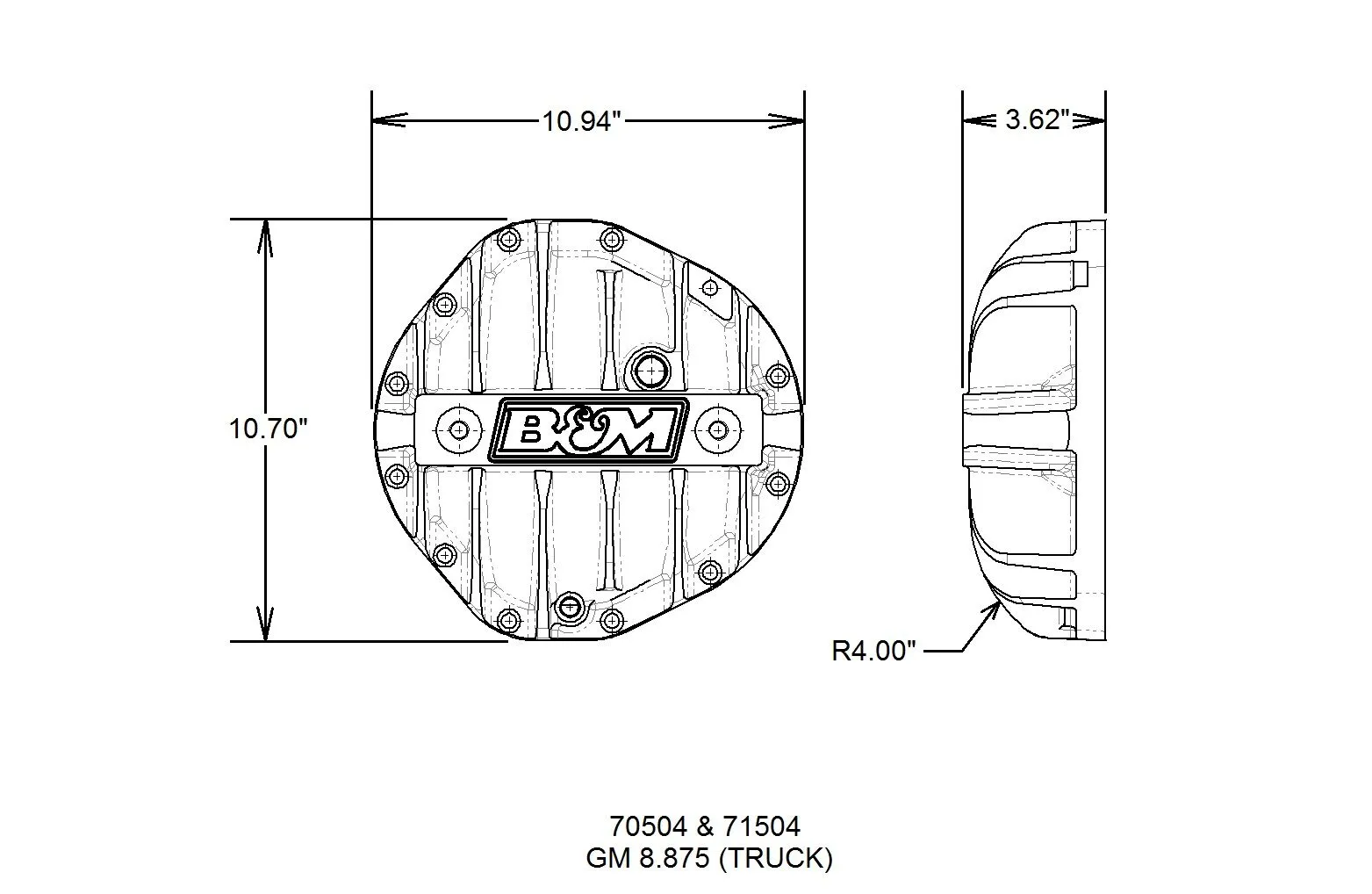

Specifications
| Bolt Count | 12 |
| Bolt Pattern | GM 8.875 Truck |
| Brand | B&M |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| California Proposition 65 Required | Yes |
| Call Out Size (in) | 3.27 |
| Carrier Main Cap Support | Yes |
| Colour/Finish | Raw Aluminum |
| Drain Plug Included | Yes |
| Emission Code | 5 |
| Filler Plug Included | Yes |
| Gasket Included | No |
| Material | A356.0-T6 Aluminum |
| Product Type | Differential Cover |
| Sale Category | Transmission and Drivetrain |
| Thickness (in) | 3.62 |
Compatibility
- 1964 - 1967 Chevrolet C10 Pickup Base 4.6
- 1968 - 1968 Chevrolet C10 Pickup Base 5.4
- 1969 - 1969 Chevrolet C10 Pickup Base 5.3
- 1970 - 1972 Chevrolet C10 Pickup Base 5.0
- 1973 - 1974 Chevrolet C10 Pickup Base 5.7
- 1965 - 1966 Chevrolet K10 Pickup Base 4.6
- 1969 - 1974 Chevrolet K10 Pickup Base 5.7
- 1969 - 1974 Chevrolet Blazer Base 5.7
- 1975 - 1980 Chevrolet K5 Blazer Cheyenne 5.7
- 1975 - 1975 Chevrolet K5 Blazer Custom Deluxe 5.7
- 1977 - 1980 Chevrolet K5 Blazer Custom Deluxe 5.7
- 1976 - 1976 Chevrolet K5 Blazer Base 5.7
- 1978 - 1978 Chevrolet K5 Blazer Silverado 5.7
- 1980 - 1982 Chevrolet K5 Blazer Silverado 5.7
- 1981 - 1982 Chevrolet K5 Blazer Custom 5.7
- 1981 - 1981 Chevrolet K5 Blazer Deluxe 5.7
- 1975 - 1982 Chevrolet C10 Silverado 5.7
- 1975 - 1982 Chevrolet C10 Custom 5.7
- 1975 - 1982 Chevrolet C10 Scottsdale 5.7
- 1975 - 1981 Chevrolet C10 Cheyenne 5.7
- 1975 - 1980 Chevrolet C10 Custom Deluxe 5.7
- 1978 - 1980 Chevrolet C10 Big Ten 5.7
- 1981 - 1981 Chevrolet C10 Deluxe 5.7
- 1975 - 1981 Chevrolet G10 Sportvan 5.7
- 1975 - 1980 Chevrolet G10 Beauville 5.7
- 1975 - 1980 Chevrolet G10 Chevy Van 5.7
- 1975 - 1981 Chevrolet G20 Sportvan 5.7
- 1975 - 1981 Chevrolet G20 Beauville 5.7
- 1975 - 1981 Chevrolet G20 Chevy Van 5.7
- 1978 - 1981 Chevrolet G20 Nomad 5.7
- 1975 - 1982 Chevrolet K10 Scottsdale 5.7
- 1975 - 1982 Chevrolet K10 Silverado 5.7
- 1975 - 1981 Chevrolet K10 Cheyenne 5.7
- 1975 - 1980 Chevrolet K10 Custom Deluxe 5.7
- 1981 - 1982 Chevrolet K10 Custom 5.7
- 1981 - 1981 Chevrolet K10 Deluxe 5.7
- 1975 - 1978 GMC G15 Vandura 4.1
- 1975 - 1978 GMC G15 Vandura 5.7
- 1975 - 1978 GMC G15 Rally STX 5.7
- 1975 - 1978 GMC G15 Rally 5.7
- 1975 - 1975 GMC G15 Rally STX 4.1
- 1977 - 1978 GMC G15 Rally STX 4.1
- 1975 - 1975 GMC G15 Rally 4.1
- 1977 - 1978 GMC G15 Rally 4.1
- 1976 - 1976 GMC G15 Vandura 6.6
- 1977 - 1978 GMC G15 Rally STX 5.0
- 1977 - 1978 GMC G15 Rally 5.0
- 1977 - 1978 GMC G15 Vandura 5.0
- 1975 - 1978 GMC G25 Rally STX 4.8
- 1975 - 1978 GMC G25 Rally STX 6.6
- 1975 - 1978 GMC G25 Vandura 5.7
- 1975 - 1978 GMC G25 Rally 5.7
- 1975 - 1978 GMC G25 Rally 4.8
- 1975 - 1978 GMC G25 Rally 6.6
- 1975 - 1978 GMC G25 Vandura 4.8
- 1975 - 1978 GMC G25 Rally STX 5.7
- 1975 - 1978 GMC G25 Vandura 6.6
- 1975 - 1976 GMC G25 Rally 7.4
- 1975 - 1976 GMC G25 Rally STX 7.4
- 1970 - 1971 GMC Jimmy Base 5.7
- 1973 - 1982 GMC Jimmy Base 5.7
- 1972 - 1972 GMC Jimmy Base Sport Utility 5.7
- 1975 - 1982 GMC Jimmy Sierra Grande 5.7
- 1975 - 1982 GMC Jimmy Sierra Classic 5.7
- 1975 - 1982 GMC Jimmy High Sierra 5.7
- 1978 - 1982 GMC Jimmy Street Coupe 5.7
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.
Features
- Load Bolts for Additional Support for Bearing Caps
- Magnetic Drain Plug for Easy Servicing
- Additional .50-quart Fluid Capacity
- A356.0-T6 Aluminum Construction
- Over 65 Years of B&M Quality
- Lifetime Limited Warranty
- Machined B&M Logo
| Bolt Count | 12 |
| Bolt Pattern | GM 8.875 Truck |
| Brand | B&M |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| California Proposition 65 Required | Yes |
| Call Out Size (in) | 3.27 |
| Carrier Main Cap Support | Yes |
| Colour/Finish | Raw Aluminum |
| Drain Plug Included | Yes |
| Emission Code | 5 |
| Filler Plug Included | Yes |
| Gasket Included | No |
| Material | A356.0-T6 Aluminum |
| Product Type | Differential Cover |
| Sale Category | Transmission and Drivetrain |
| Thickness (in) | 3.62 |
- 1964 - 1967 Chevrolet C10 Pickup Base 4.6
- 1968 - 1968 Chevrolet C10 Pickup Base 5.4
- 1969 - 1969 Chevrolet C10 Pickup Base 5.3
- 1970 - 1972 Chevrolet C10 Pickup Base 5.0
- 1973 - 1974 Chevrolet C10 Pickup Base 5.7
- 1965 - 1966 Chevrolet K10 Pickup Base 4.6
- 1969 - 1974 Chevrolet K10 Pickup Base 5.7
- 1969 - 1974 Chevrolet Blazer Base 5.7
- 1975 - 1980 Chevrolet K5 Blazer Cheyenne 5.7
- 1975 - 1975 Chevrolet K5 Blazer Custom Deluxe 5.7
- 1977 - 1980 Chevrolet K5 Blazer Custom Deluxe 5.7
- 1976 - 1976 Chevrolet K5 Blazer Base 5.7
- 1978 - 1978 Chevrolet K5 Blazer Silverado 5.7
- 1980 - 1982 Chevrolet K5 Blazer Silverado 5.7
- 1981 - 1982 Chevrolet K5 Blazer Custom 5.7
- 1981 - 1981 Chevrolet K5 Blazer Deluxe 5.7
- 1975 - 1982 Chevrolet C10 Silverado 5.7
- 1975 - 1982 Chevrolet C10 Custom 5.7
- 1975 - 1982 Chevrolet C10 Scottsdale 5.7
- 1975 - 1981 Chevrolet C10 Cheyenne 5.7
- 1975 - 1980 Chevrolet C10 Custom Deluxe 5.7
- 1978 - 1980 Chevrolet C10 Big Ten 5.7
- 1981 - 1981 Chevrolet C10 Deluxe 5.7
- 1975 - 1981 Chevrolet G10 Sportvan 5.7
- 1975 - 1980 Chevrolet G10 Beauville 5.7
- 1975 - 1980 Chevrolet G10 Chevy Van 5.7
- 1975 - 1981 Chevrolet G20 Sportvan 5.7
- 1975 - 1981 Chevrolet G20 Beauville 5.7
- 1975 - 1981 Chevrolet G20 Chevy Van 5.7
- 1978 - 1981 Chevrolet G20 Nomad 5.7
- 1975 - 1982 Chevrolet K10 Scottsdale 5.7
- 1975 - 1982 Chevrolet K10 Silverado 5.7
- 1975 - 1981 Chevrolet K10 Cheyenne 5.7
- 1975 - 1980 Chevrolet K10 Custom Deluxe 5.7
- 1981 - 1982 Chevrolet K10 Custom 5.7
- 1981 - 1981 Chevrolet K10 Deluxe 5.7
- 1975 - 1978 GMC G15 Vandura 4.1
- 1975 - 1978 GMC G15 Vandura 5.7
- 1975 - 1978 GMC G15 Rally STX 5.7
- 1975 - 1978 GMC G15 Rally 5.7
- 1975 - 1975 GMC G15 Rally STX 4.1
- 1977 - 1978 GMC G15 Rally STX 4.1
- 1975 - 1975 GMC G15 Rally 4.1
- 1977 - 1978 GMC G15 Rally 4.1
- 1976 - 1976 GMC G15 Vandura 6.6
- 1977 - 1978 GMC G15 Rally STX 5.0
- 1977 - 1978 GMC G15 Rally 5.0
- 1977 - 1978 GMC G15 Vandura 5.0
- 1975 - 1978 GMC G25 Rally STX 4.8
- 1975 - 1978 GMC G25 Rally STX 6.6
- 1975 - 1978 GMC G25 Vandura 5.7
- 1975 - 1978 GMC G25 Rally 5.7
- 1975 - 1978 GMC G25 Rally 4.8
- 1975 - 1978 GMC G25 Rally 6.6
- 1975 - 1978 GMC G25 Vandura 4.8
- 1975 - 1978 GMC G25 Rally STX 5.7
- 1975 - 1978 GMC G25 Vandura 6.6
- 1975 - 1976 GMC G25 Rally 7.4
- 1975 - 1976 GMC G25 Rally STX 7.4
- 1970 - 1971 GMC Jimmy Base 5.7
- 1973 - 1982 GMC Jimmy Base 5.7
- 1972 - 1972 GMC Jimmy Base Sport Utility 5.7
- 1975 - 1982 GMC Jimmy Sierra Grande 5.7
- 1975 - 1982 GMC Jimmy Sierra Classic 5.7
- 1975 - 1982 GMC Jimmy High Sierra 5.7
- 1978 - 1982 GMC Jimmy Street Coupe 5.7
