B&M Automatic Shifter - Pro Gate 4-Speed GM Automatic Transmissions - Rear Cable Exit - Forward Shift Pattern
SKU: BNM80902
Can't Find What You're Looking For?
If you're looking for something in particular, we can help. Drop us a line using the button below.
Submit A RequestWhy Buy From Us?
- Australian Owned
- 100% Fitment Guarantee
- Genuine Quality Brands
Shop now. Pay Later. Interest Free.
Make 4 interest-free payments of $145.24 fortnightly and receive your order now. More info
Enjoy Now, Pay Later
Description

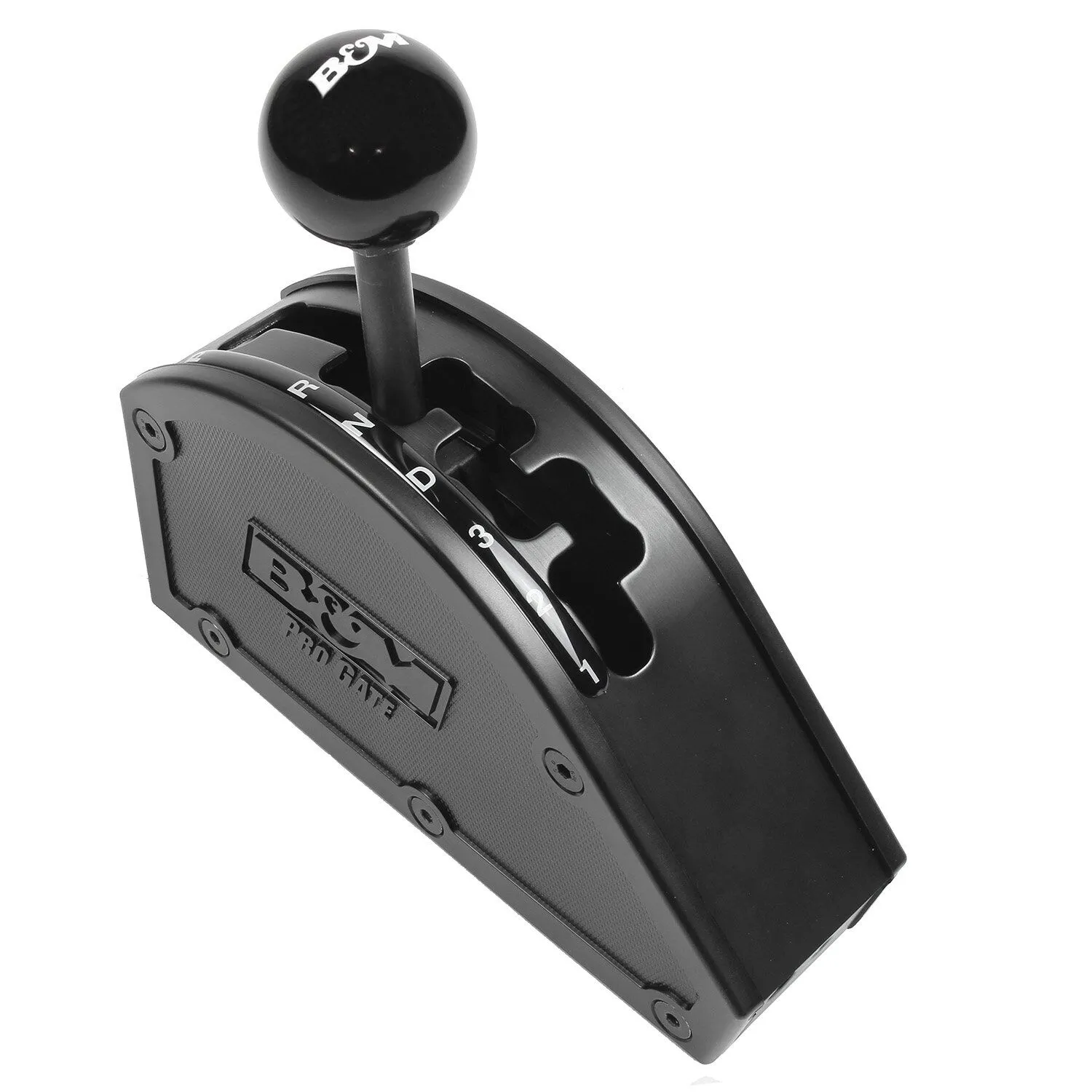

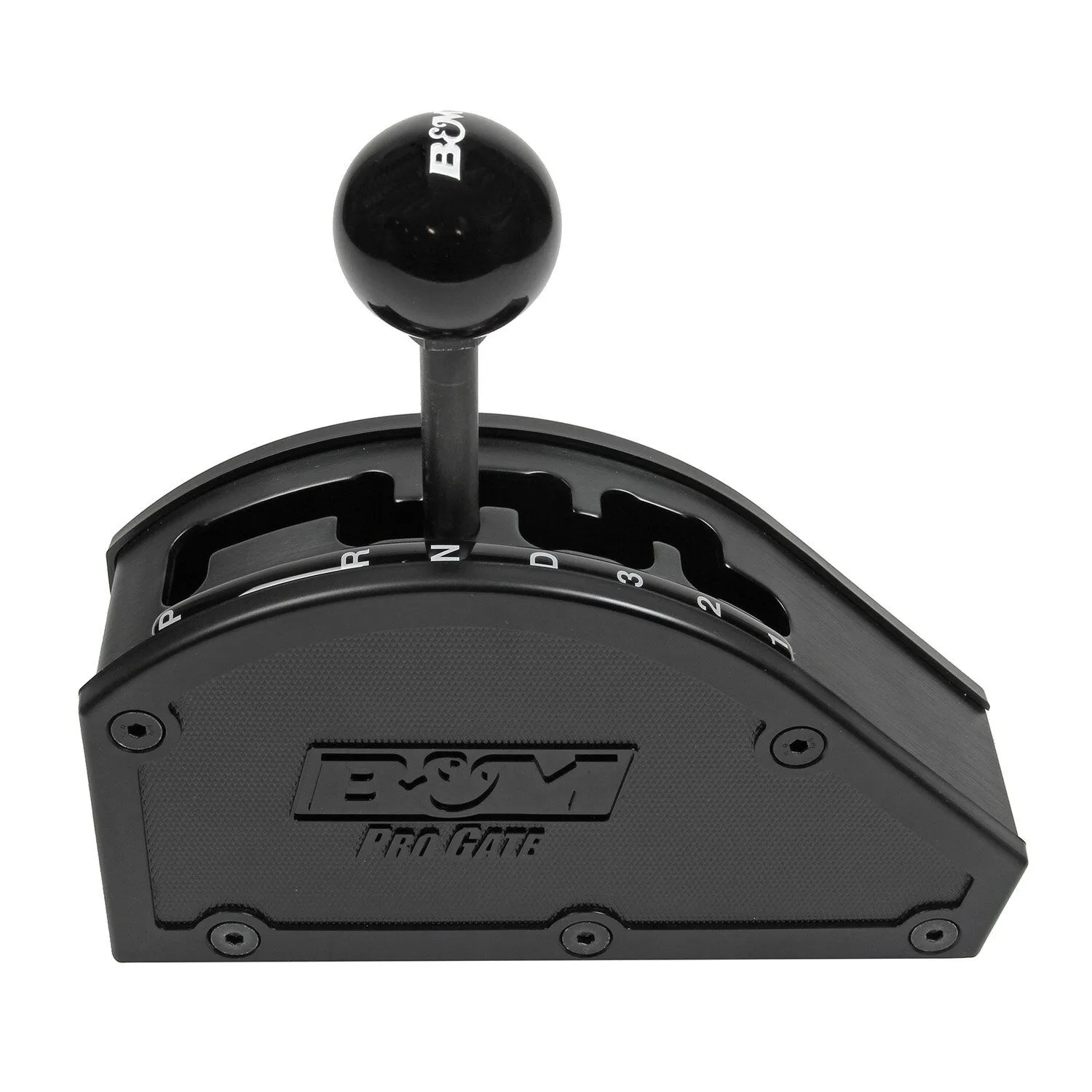

The B&M Pro Gate shifter is an externally gated race shifter for GM 4-speed automatic transmissions. The compact and lightweight design features a 10-gauge black oxide-coated 304 stainless steel base with a heavy-duty 303 stainless steel shift pin for longevity and bullet-proof performance. The 1018 steel shift stick includes a black B&M logo shift knob for shifting duties while the external gate plate is constructed from black oxide-coated 11-gauge 304 stainless steel for durability. The 4-speed gated forward shift pattern features a staggered shift pattern with positive stops between each gear for easy and precise shifts. Other features include thick injection-molded nylon side covers featuring a knurled texture with the B&M Pro Gate logo on both sides. The covers are removable for access to the virtually maintenance-free shifter sub-assembly and will not gum up with dirt affecting shift performance, which is ideal for Off-Road racing. The rear exit cable design includes a black 5-ft Super Duty race shifter cable along with a cable bracket, shift lever, and all necessary hardware for a straightforward installation. Includes Lifetime Limited Warranty.
Overall Dimensions - 9.1L x 2.6W x 9.5H
Note: This shifter is not recommended as-is for street use, as it does not include neutral safety or backup light switches. Add B&M 80850 Pro Gate Switch Kit for street use.
Fits all GM 4-speed Automatic Transmissions - may require B&M #75499 for 4L60E, 4L65E, 4L70E, 4L75E, 4L80E, and 4L85E Automatic Transmissions with PRNDL Switch.
Features
- Heavy 10-gauge 304 Stainless Steel Shifter Base Provides Ultimate Strength and Stability
- High Impact Injection Molded Nylon Side Covers are Built for Abuse
- Includes 5-ft Super Duty Race Shift Cable
- 304 Stainless Steel External Gate Plate Provides Durability and Short Positive Gated Shifts
- Rugged Construction and Durable Black Oxide Coating Provide Low Maintenance
- Lifetime Limited Warranty
- Rear Exit Cable Model
- Forward Shift Pattern
Specifications
Application | Universal |
Automotive Item Grade | High Performance |
Backup Light Switch | No |
Brand | B&M |
Colour | Black |
Emission Code | 5 |
Finish | Smooth, Textured |
Housing Mount Hole Quantity | 4 |
Item Grade | High Performance |
Material | 304SS, Aluminum, Nylon |
Overall Dimension | 9.10Lx 9.50H x 2.60W |
Package Contents | Shifter Assembly, Cable, Hardware and Instructions |
Product Type | Shifter |
Reverse Lockout/Safety Lock? | No |
Rod Diameter (in) | 0.5 |
Rod Length (In) | 4.75 |
Sale Category | Transmission and Drivetrain |
Shifter Knob Colour | Black |
Shifter Knob Included? | Yes |
Shifter Knob Material | PBT/ABS |
Thread Size | 1/2-20 |
Thread Size | 2020-01-02 |
Transmission Type | GM 4-Speed Automatics |
With Overdrive Switch? | No |
Compatibility
- Universal Part
The B&M Pro Gate shifter is an externally gated race shifter for GM 4-speed automatic transmissions. The compact and lightweight design features a 10-gauge black oxide-coated 304 stainless steel base with a heavy-duty 303 stainless steel shift pin for longevity and bullet-proof performance. The 1018 steel shift stick includes a black B&M logo shift knob for shifting duties while the external gate plate is constructed from black oxide-coated 11-gauge 304 stainless steel for durability. The 4-speed gated forward shift pattern features a staggered shift pattern with positive stops between each gear for easy and precise shifts. Other features include thick injection-molded nylon side covers featuring a knurled texture with the B&M Pro Gate logo on both sides. The covers are removable for access to the virtually maintenance-free shifter sub-assembly and will not gum up with dirt affecting shift performance, which is ideal for Off-Road racing. The rear exit cable design includes a black 5-ft Super Duty race shifter cable along with a cable bracket, shift lever, and all necessary hardware for a straightforward installation. Includes Lifetime Limited Warranty.
Overall Dimensions - 9.1L x 2.6W x 9.5H
Note: This shifter is not recommended as-is for street use, as it does not include neutral safety or backup light switches. Add B&M 80850 Pro Gate Switch Kit for street use.
Fits all GM 4-speed Automatic Transmissions - may require B&M #75499 for 4L60E, 4L65E, 4L70E, 4L75E, 4L80E, and 4L85E Automatic Transmissions with PRNDL Switch.
Features
- Heavy 10-gauge 304 Stainless Steel Shifter Base Provides Ultimate Strength and Stability
- High Impact Injection Molded Nylon Side Covers are Built for Abuse
- Includes 5-ft Super Duty Race Shift Cable
- 304 Stainless Steel External Gate Plate Provides Durability and Short Positive Gated Shifts
- Rugged Construction and Durable Black Oxide Coating Provide Low Maintenance
- Lifetime Limited Warranty
- Rear Exit Cable Model
- Forward Shift Pattern
Application | Universal |
Automotive Item Grade | High Performance |
Backup Light Switch | No |
Brand | B&M |
Colour | Black |
Emission Code | 5 |
Finish | Smooth, Textured |
Housing Mount Hole Quantity | 4 |
Item Grade | High Performance |
Material | 304SS, Aluminum, Nylon |
Overall Dimension | 9.10Lx 9.50H x 2.60W |
Package Contents | Shifter Assembly, Cable, Hardware and Instructions |
Product Type | Shifter |
Reverse Lockout/Safety Lock? | No |
Rod Diameter (in) | 0.5 |
Rod Length (In) | 4.75 |
Sale Category | Transmission and Drivetrain |
Shifter Knob Colour | Black |
Shifter Knob Included? | Yes |
Shifter Knob Material | PBT/ABS |
Thread Size | 1/2-20 |
Thread Size | 2020-01-02 |
Transmission Type | GM 4-Speed Automatics |
With Overdrive Switch? | No |
- Universal Part
