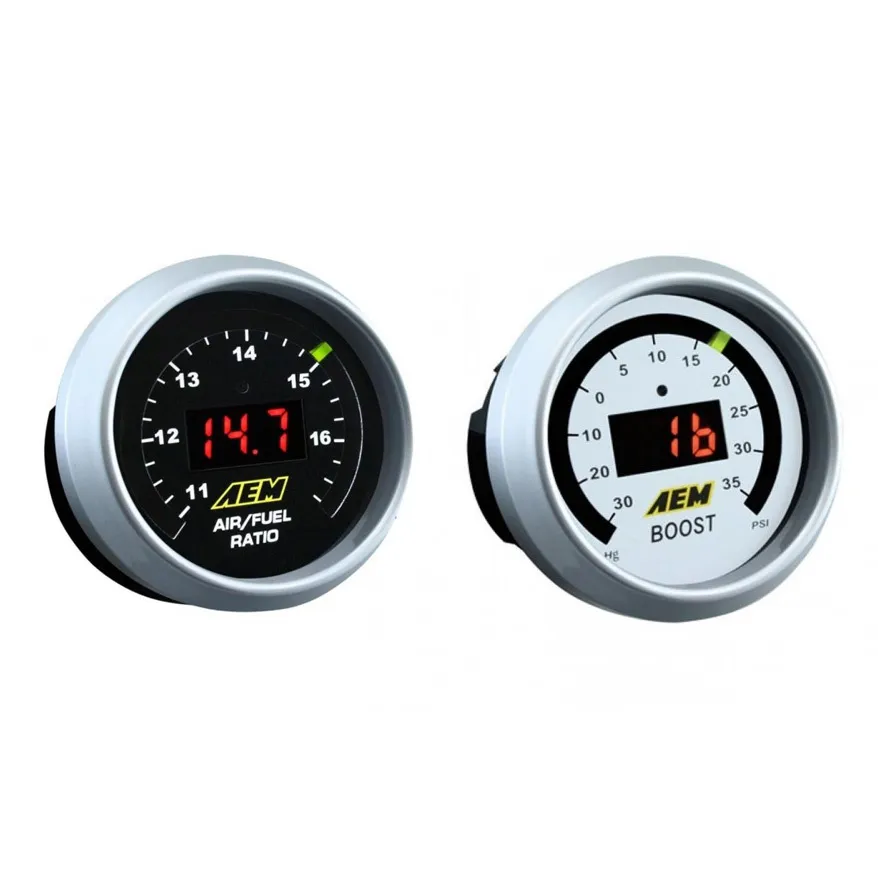

Our World-famous Wideband O2 air/fuel ratio UEGO gauge features a digital LED display and sweeping LED 'needle' that changes colors as AFR changes from rich to lean. A 52mm (2-1/16") gauge housing ensures that it will fit in most gauge pods and can be remotely mounted virtually anywhere. All AEM digital gauges feature a 0-5v analog output for use with data loggers and almost any engine management system. Each gauge comes with black and silver bezels and black and white faceplates for multiple color combinations and a custom look (a black Lambda faceplate and black and white Air/Fuel Ratio faceplates).

The Bosch UEGO sensor gives the controller its speed and accuracy. The Bosch 4.9 LSU sensor used in the 30-4110 AEM Wideband UEGO AFR Controller Gauge has a faster light off time and draws less current than the 4.2 LSU sensor used with AEM’s 30-4100 Wideband UEGO Controller Gauge, which will be superseded to the 30-4110 gauge in August, 2014. The 4.9 LSU sensor features the same fuel compatibility as the 4.2 LSU and NEVER requires free-air calibration when used with AEM’s 30-4110 Wideband UEGO AFR Gauge. The 30-4110’s 4.9 LSU sensor uses a different connector than the connector used with the 4.2 LSU sensors included with the original 30-4100 gauge controller. The sensors are not interchangeable between the two gauge controllers in any way, including changing connectors on the gauges.

The Wideband O2 air/fuel ratio UEGO gauge is a must if you want to maximize your engine's power and safety. When tuning an engine, accurate air/fuel ratio data is critical because running with too rich of an AFR can cause a loss of power, and running a lean AFR can result in serious engine damage. AEM's digital Wideband AFR UEGO gauge can quickly alert you to even a .1 change in air/fuel ratio and provide enough time to shut down an engine before damage occurs.

• Interchangeable black and white faceplates included for customizing gauge appearance (digital gauges only)
• Bosch 4.9 LSU wideband sensor and weld-in bung included (PN 30-4110)
• No free air sensor calibration required - ever
• Interchangeable black and silver bezels included
• Interchangeable black and white faceplates included
• 52mm (2-1/16”) gauge housing
• 0-5v analog output (10-20 AFR range only)

30-4406:

AEMs Digital 35PSI Boost Gauge unites unsurpassed accuracy, speed and control with an easy to read, digital LED interface. AEM digital gauges also offer a 0-5v analog output for use with data loggers and virtually any engine management system, such as the AEM EMS or FIC.

The AEM 35PSI Boost Gauge gives an easy to read numerical digital readout that increments every 1 PSI to anyone wanting to know exactly how much boost they are running. All AEM digital gauges have the digital readout in the center, and sweeping LED needle that lines the edge of the gauge that changes colors as boost changes. The digital readout will automatically increase and decrease in intensity due to the built in ambient light sensing photocell. A 50 PSIa brass sensor gives the gauge its accuracy. Each gauge comes with interchangeable black & silver bezels and black and white gauge faceplates for multiple color combinations.

PRODUCT FEATURES

• Gauge Readout from -30 to 35PSI
• Includes black and silver interchangeable bezels and white and black faceplates
• Boost gauge includes AEM 50PSIa brass sensor
• 0-5v analog output included for use with data loggers and virtually any engine management system
• Size: 52.4mm diameter
• Face Colour: Black/White
• Bezel Finish: Black/Silver
