Description

MANIFOLD

Looking to upgrade the turbo on your VVTI 1JZ? Want to have a set up that is tailored to your goals and provides the best spool characteristics and flow?

6Boost has an option to suit with T3, T4 and V band flanges available with a variety of manifold turbo locations, divided and open entry flange options and a variety of options for wastegate set ups.

6Boost has a setup for you.

If you have any questions or need some guidance reach out to our sales team to help pick a manifold and turbo for your set up.

TURBO

Smaller, Lighter and Faster – The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike.

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

The TS-1 series are oil cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained.

The TS-1 turbocharger series has taken a whole of engine approach to increasing performance, aiming to achieve power through reduced back pressure and high performance turbines – while being smaller, lighter and faster in response than other solutions on the market.

Available In

  • TS-1 oil cooled turbochargers
  • TS-2 oil and water cooled turbochargers
  • V-Band, various T3 Flange and T4 Flange options
  • Reverse rotation (Selected Sizes)
  • Various A/R options
  • Internal and external wastegated options available

WASTEGATE

The Gen-V WG50 Pro-Gate50 external wastegate is a cost effective, high performing 50mm external wastegate.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8? NPT ports, and are provided with a range of springs.

Available in Compressed Gas configuration

Product features summary:

  • Liquid cooling provision
  • Strap type V-band clamps
  • User adjustable actuator position
  • Modular actuator design
  • Compressed Gas configurations available

Specifications

MANIFOLD



  • Required Wastegate: Minimum 50mm Required

TURBO



  • Unparalleled transient response
  • Aggressive aerodynamics with 7+7 splitter wheels
  • Lightweight 310s stainless steel investment cast turbine housings
  • Lightweight, Aluminium compressor covers
  • CFD driven designed housings for optimal A/Rs and flow
  • T14 Inconel turbine wheel for extreme EGT's
  • VSR speed balanced
  • Proprietary dual ceramic bearing system
  • Integrated Iron backplate on center housing
  • Compressor Inlet: 4? / 101.6mm
  • Compressor Inducer: 58mm
  • Turbine Inlet: V-Band (2.25?)
  • Turbine Exducer: 62mm
  • Turbine AR: 0.82
  • Turbine Outlet: V-Band (3.00?)
  • Weight: 6.06kg / 13.3lbs
  • Horsepower Rating: 600-750HP

WASTEGATE



  • Pressure: 14psi
  • Colour: Black

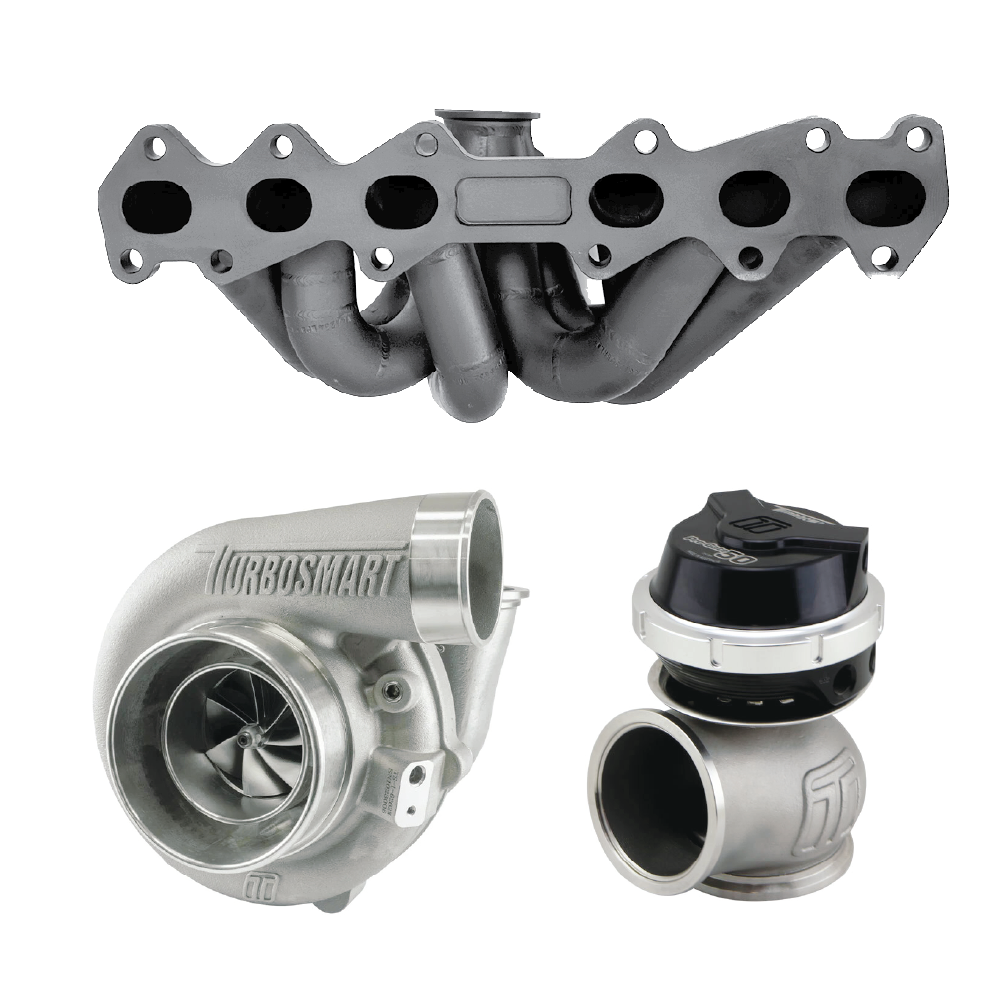

What's Included

  • 1x Manifold: VVTi-VBG-50-1
  • 1x Turbo: TS-1-5862B-VB082E
  • 1x Wastegate: TS-0554-1012

Compatibility

  • TOYOTA 1JZGTE VVTi
