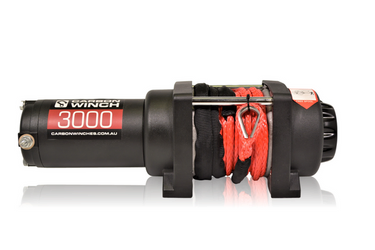

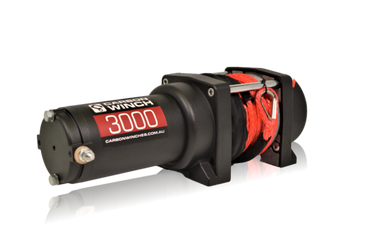

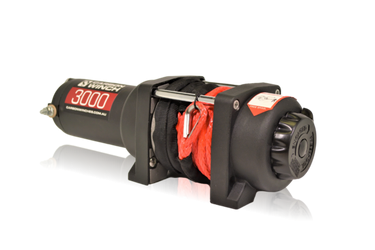

The Carbon CW-3U 3000lb Light-Duty Trailer and Utility Winch

The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it's one big value when you conside the reliability and the overall quality. Built to handle lighter loads ( to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.

Specifications

Part number: CW-3U

Rated line pull: 3000lbs, (1360kg) single-line

Motor: 12V DC 1.5HP Permanent Magnet motor

Remote Control: Remote Switch, 12? (3.7m) lead.

Wireless Remote Control: Included

Geartrain: Single Stage Planetary.

Gear Ratio: 153:1

Clutch (freespooling): Split Ring Gear

Brake: Self-locking gear train ( Rated Load Holding

Drum Diameter/Length: 1.26??/2.87?? (32mm/73mm)

Synthetic Rope: 43?, 3/16?? diameter ( 13m, 4.8 diameter)

Fairlead: Roller

Mounting Bolt Pattern: 3.0?? x 4.87?? ( 76mm x 124mm )

Winch Dimensions ( L x W x H ): 12.2'' x 5.0'' x 5.0'' (310x 127 x 127mm )

Packing Dimensions( L x W x H ): 15.7??x 7.9'' x 8.7'' ( 400 x 200 x 220mm )

Shipping Weight: 10kg ( 22lbs)

Warranty : 1 year

Compatibility

  • Universal Part

The Carbon CW-3U 3000lb Light-Duty Trailer and Utility Winch

The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it's one big value when you conside the reliability and the overall quality. Built to handle lighter loads ( to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.

Part number: CW-3U

Rated line pull: 3000lbs, (1360kg) single-line

Motor: 12V DC 1.5HP Permanent Magnet motor

Remote Control: Remote Switch, 12? (3.7m) lead.

Wireless Remote Control: Included

Geartrain: Single Stage Planetary.

Gear Ratio: 153:1

Clutch (freespooling): Split Ring Gear

Brake: Self-locking gear train ( Rated Load Holding

Drum Diameter/Length: 1.26??/2.87?? (32mm/73mm)

Synthetic Rope: 43?, 3/16?? diameter ( 13m, 4.8 diameter)

Fairlead: Roller

Mounting Bolt Pattern: 3.0?? x 4.87?? ( 76mm x 124mm )

Winch Dimensions ( L x W x H ): 12.2'' x 5.0'' x 5.0'' (310x 127 x 127mm )

Packing Dimensions( L x W x H ): 15.7??x 7.9'' x 8.7'' ( 400 x 200 x 220mm )

Shipping Weight: 10kg ( 22lbs)

Warranty : 1 year
  • Universal Part
