Description

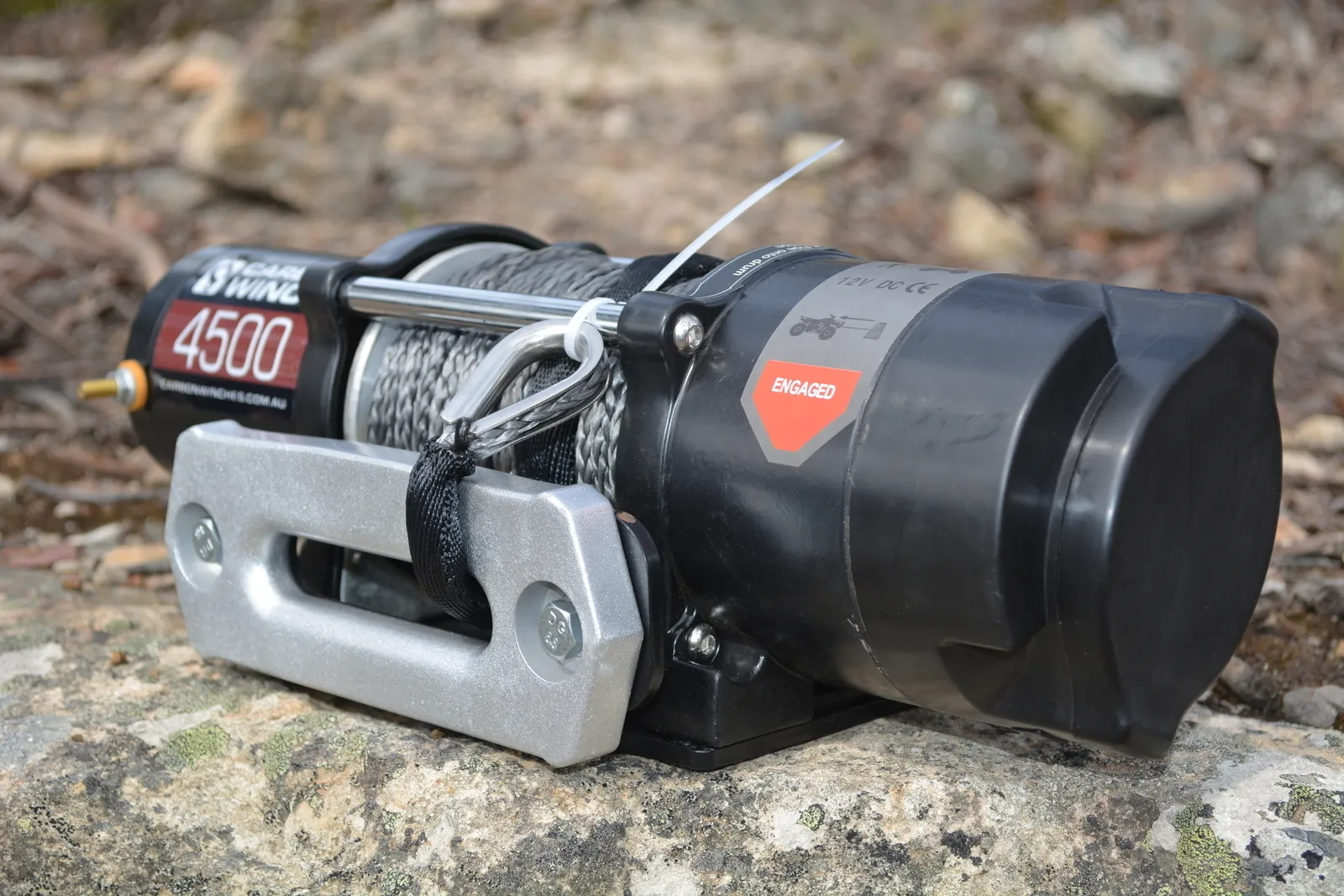

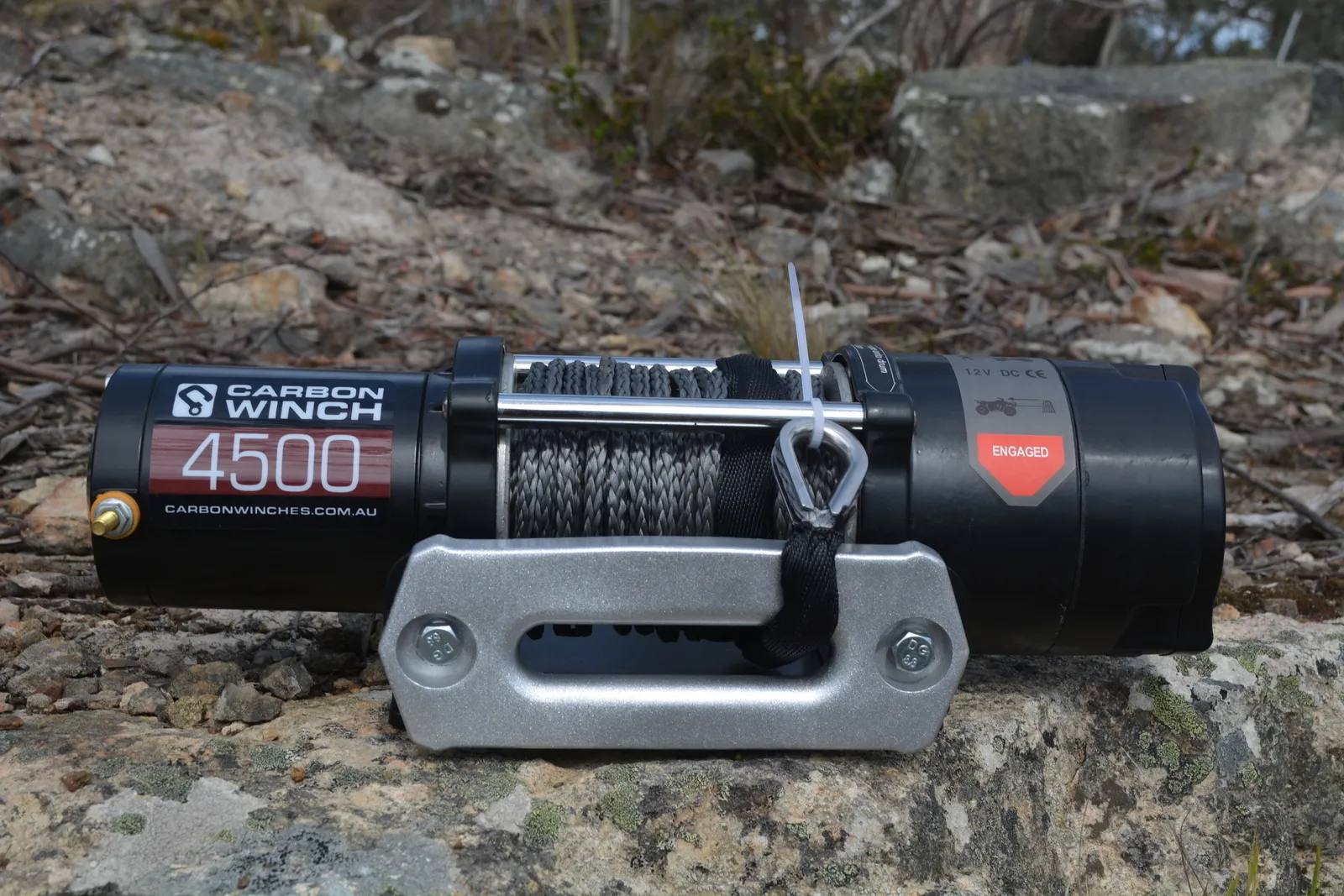

The Carbon Offroad 4,500 lb Capacity ATV/UTV winch for big ATV, UTV and sides x sides, and car trailers.

A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an exisitng pedestal on a trailer, or into a winch loCation on an ATV or Buggy.

With wireless remote control included free and a handlebar rocker switch control option, it's a very versatile winch setup.

Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open Cattle gates on Livestock Truck Trailers.

A great small all rounder winch to make work easier or to get your buggy out of the bog.

Specifications

  • 4,500 lb (2,040 kg ) line pull
  • Power in and power out
  • Winch drum centred avoids the interference of rope and provides streamlined appearance.
  • Mechanical load holding and dynamic brake for 100% braking.
  • High efficiency, low amp draw and sealed permanent magnet motor
  • Full metal 3 stage planetary gear train for greater pulling force
  • Sliding pin and ring gear clutch for rapid wire rope payout
  • Synthetic rope
  • Rated line pull: 4,500 lbs, (2040kg) single-line
  • Motor: 12v DC 1.9HP motor
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 176:1
  • Clutch (freespooling): Split Ring Gear
  • Brake: Dynamic and mechanical braking
  • Drum Diameter/Length: 2.5"/4.4" (60.5mm/112mm)
  • Synthetic Rope: 43’, 1/4" diameter ( 13m, 6.35 diameter)
  • Fairlead: Aluminium Hawse
  • Mounting Bolt Pattern: 3" x 6.59â" ( 76mm x 167mm )
  • Winch Dimensions ( L x W x H ): 16.5'' x 6.5'' x 5.1'' (421x 165 x 130mm )
  • Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )
  • Shipping Weight: 12.2kg

Compatibility

  • Universal Part

The Carbon Offroad 4,500 lb Capacity ATV/UTV winch for big ATV, UTV and sides x sides, and car trailers.

A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an exisitng pedestal on a trailer, or into a winch loCation on an ATV or Buggy.

With wireless remote control included free and a handlebar rocker switch control option, it's a very versatile winch setup.

Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open Cattle gates on Livestock Truck Trailers.

A great small all rounder winch to make work easier or to get your buggy out of the bog.

  • 4,500 lb (2,040 kg ) line pull
  • Power in and power out
  • Winch drum centred avoids the interference of rope and provides streamlined appearance.
  • Mechanical load holding and dynamic brake for 100% braking.
  • High efficiency, low amp draw and sealed permanent magnet motor
  • Full metal 3 stage planetary gear train for greater pulling force
  • Sliding pin and ring gear clutch for rapid wire rope payout
  • Synthetic rope
  • Rated line pull: 4,500 lbs, (2040kg) single-line
  • Motor: 12v DC 1.9HP motor
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 176:1
  • Clutch (freespooling): Split Ring Gear
  • Brake: Dynamic and mechanical braking
  • Drum Diameter/Length: 2.5"/4.4" (60.5mm/112mm)
  • Synthetic Rope: 43’, 1/4" diameter ( 13m, 6.35 diameter)
  • Fairlead: Aluminium Hawse
  • Mounting Bolt Pattern: 3" x 6.59â" ( 76mm x 167mm )
  • Winch Dimensions ( L x W x H ): 16.5'' x 6.5'' x 5.1'' (421x 165 x 130mm )
  • Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )
  • Shipping Weight: 12.2kg
  • Universal Part
