Description

Important: Please see notes in compatibilty section regarding vehicle fitment.

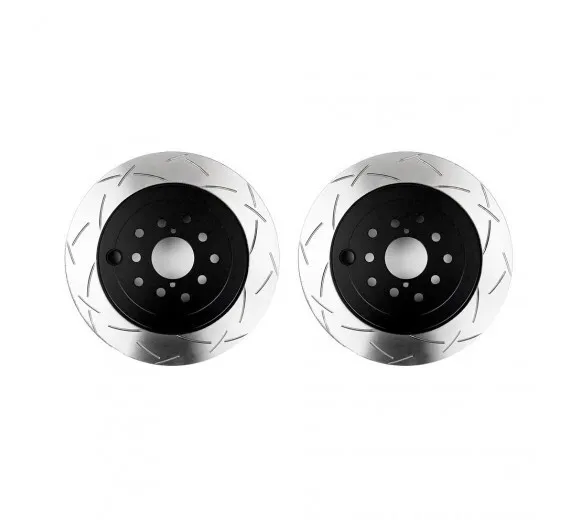

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.



Description Advantage Benefit
"Kangaroo Paw* – 144 diamond and tear drop pillar ventilation system" Increased surface area resulting in greater heat dissipation Minimises brake fade and increases braking effectiveness
    Increased surface area resulting in greater heat dissipation
CBN (Cubic Boron Nitride) machine turned Reduced DTV (Disc thickness variation) and parallelism Less occurrence of brake shudder or brake pedal ‘judder’



Specifications

Disc Vent V
Diameter [mm] 316
Height [mm] 63.5
Thickness [mm] 20
Minimum Thickness [mm] 18
Inner Diameter [mm] 58
Number of Holes 10
Weight [kg] 7.8

What's Included

  • 2 x DBA T2 Series Rear Rotors

Compatibility

Note : 2 piston caliper only

Note: Due to the variety of different brake packages sometimes used by manufacturers it is impossible to know exactly which car is fitted with which discs. The vehicle fitment information below is provided as a majority case only. Please measure factory discs and compare with the specifications above to confirm fitment.

Country Make Model Year Variant
Australia SUBARU IMPREZA, 2.5 STI 2008-2018 2.5 STI AWD-All-wheel Drive-Petrol

Important: Please see notes in compatibilty section regarding vehicle fitment.

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.



Description Advantage Benefit
"Kangaroo Paw* – 144 diamond and tear drop pillar ventilation system" Increased surface area resulting in greater heat dissipation Minimises brake fade and increases braking effectiveness
    Increased surface area resulting in greater heat dissipation
CBN (Cubic Boron Nitride) machine turned Reduced DTV (Disc thickness variation) and parallelism Less occurrence of brake shudder or brake pedal ‘judder’



Disc Vent V
Diameter [mm] 316
Height [mm] 63.5
Thickness [mm] 20
Minimum Thickness [mm] 18
Inner Diameter [mm] 58
Number of Holes 10
Weight [kg] 7.8
  • 2 x DBA T2 Series Rear Rotors

Note : 2 piston caliper only

Note: Due to the variety of different brake packages sometimes used by manufacturers it is impossible to know exactly which car is fitted with which discs. The vehicle fitment information below is provided as a majority case only. Please measure factory discs and compare with the specifications above to confirm fitment.

Country Make Model Year Variant
Australia SUBARU IMPREZA, 2.5 STI 2008-2018 2.5 STI AWD-All-wheel Drive-Petrol
