Description

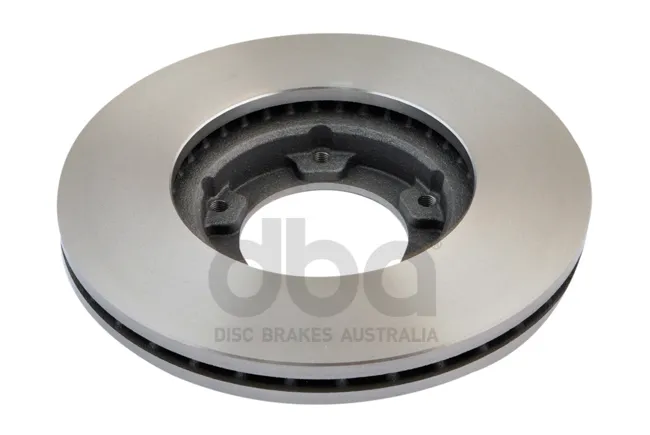

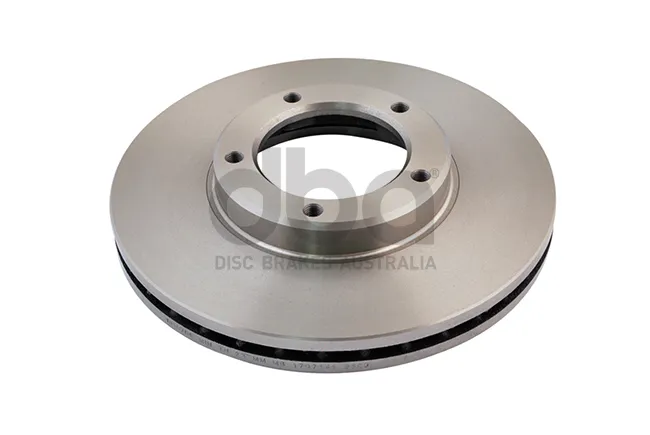

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 255
Height [mm] 47
Thickness [mm] 25
Minimum Thickness [mm] 23
Inner Diameter [mm] 84
Weight [kg] 6.5
Number of Holes 5
Class standard
Disc Vent standard

Compatibility

Country Make Model Year Variant
Australia TOYOTA HIACE, 2.0 (RZH102) 8/1989-4/1998 2.0 (RZH102)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4 D (LH102) 8/1989-8/1995 2.4 D (LH102)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE, 2.4 (RZH103) 8/1989-8/1995 2.4 (RZH103)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4 D (LH5_, LH6_, LH7_, LH10_, LH11_) 8/1987-12/2004 2.4 D (LH5_, LH6_, LH7_, LH10_, LH11_)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE, 2.4 (RZH10) 8/1989-8/2004 2.4 (RZH10)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_) 8/1989-7/1995 2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_)-All-wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4 D 4WD (LH51_, LH61_, LH66_, LH71_) 8/1987-8/1995 2.4 D 4WD (LH51_, LH61_, LH66_, LH71_)-All-wheel Drive-Diesel
Australia TOYOTA HIACE, 3.0 D (LH18_) 8/1998-2/2005 3.0 D (LH18_)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE, 2.4 D 4WD 9/1989-8/1995 2.4 D 4WD-All-wheel Drive-Diesel
Australia TOYOTA HIACE, 2.5 D-4D 4WD 8/2001-8/2004 2.5 D-4D 4WD-All-wheel Drive-Diesel
Australia TOYOTA HIACE, 2.8 D (LH12_) 8/1989-8/2000 2.8 D (LH12_)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE, 2.4 (RZH12_) 8/1995-2/2005 2.4 (RZH12_)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.8 D (LH11, LH10) 8/1989-8/2000 2.8 D (LH11, LH10)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE SBV, 2.4 i (RZH10) 8/1995-2/2005 2.4 i (RZH10)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4L 11/1989-12/2004 2.4L-Rear Wheel Drive-

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 255
Height [mm] 47
Thickness [mm] 25
Minimum Thickness [mm] 23
Inner Diameter [mm] 84
Weight [kg] 6.5
Number of Holes 5
Class standard
Disc Vent standard
Country Make Model Year Variant
Australia TOYOTA HIACE, 2.0 (RZH102) 8/1989-4/1998 2.0 (RZH102)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4 D (LH102) 8/1989-8/1995 2.4 D (LH102)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE, 2.4 (RZH103) 8/1989-8/1995 2.4 (RZH103)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4 D (LH5_, LH6_, LH7_, LH10_, LH11_) 8/1987-12/2004 2.4 D (LH5_, LH6_, LH7_, LH10_, LH11_)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE, 2.4 (RZH10) 8/1989-8/2004 2.4 (RZH10)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_) 8/1989-7/1995 2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_)-All-wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4 D 4WD (LH51_, LH61_, LH66_, LH71_) 8/1987-8/1995 2.4 D 4WD (LH51_, LH61_, LH66_, LH71_)-All-wheel Drive-Diesel
Australia TOYOTA HIACE, 3.0 D (LH18_) 8/1998-2/2005 3.0 D (LH18_)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE, 2.4 D 4WD 9/1989-8/1995 2.4 D 4WD-All-wheel Drive-Diesel
Australia TOYOTA HIACE, 2.5 D-4D 4WD 8/2001-8/2004 2.5 D-4D 4WD-All-wheel Drive-Diesel
Australia TOYOTA HIACE, 2.8 D (LH12_) 8/1989-8/2000 2.8 D (LH12_)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE, 2.4 (RZH12_) 8/1995-2/2005 2.4 (RZH12_)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.8 D (LH11, LH10) 8/1989-8/2000 2.8 D (LH11, LH10)-Rear Wheel Drive-Diesel
Australia TOYOTA HIACE SBV, 2.4 i (RZH10) 8/1995-2/2005 2.4 i (RZH10)-Rear Wheel Drive-Petrol
Australia TOYOTA HIACE, 2.4L 11/1989-12/2004 2.4L-Rear Wheel Drive-
