Description

The updated EWP®/Fan Digital Controller will manage the operation of your chosen EWP® by varying the speed of your pump in response to coolant temperature and manage control of your electric Thermatic® Fan, No need for a separate thermal switch

For optimum control of Davies, Craig 12 Volt and 24 Volt Electric Water Pumps.
Suits EWP®80, EWP®115, EWP®130, EWP®150, Thermatic® / Electric Fans and billeted style Electric Water Pumps.

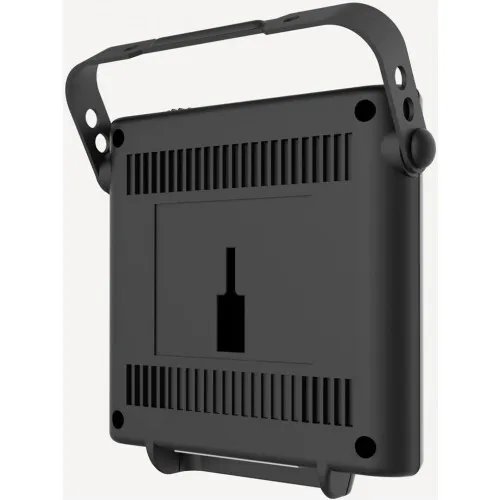

The updated controller offers enhanced rounded appearance, slimmer and the seven-pin plug is now safely tucked away, out of sight at the base of the Controller.  It now also has 3 mounting options:

  • Bracket
  • Nylon Plate
  • Velcro patch (current method)


The EWP®/Fan Digital Controller has two specific functions:

  • Will manage the operation of the EWP® by varying the speed of the pump in response to the coolant temperature
  • Manage control of your electric engine fan.
  • The Controller has a push-button to lock in any temperature from 40°C (104°F) to 110°C (230°F). It’s recommended you set/target the Controller to closely match your engine’s existing thermostat temperature.
  • The Digital Controller will operate the engine’s electric fan automatically once the engine has reached +3°C (+5.4°F) above the targeted / set temperature. Another significant benefit is that the Controller allows the EWP® & Fan to run on after ignition shutdown for either 3 minutes or -10°C (-14°F) of set set / target temperature to eliminate heat soak.

Sensor Wire Length: 250cm, Increase to 380cm (Oct 2020)

Specifications

  • Voltage range - 12V DC to 29V DC
  • Display LCD size - 64.6mm (2.54”) x 55.6mm (2.19”)
  • Maximum current - 12Amps
  • Warning alarm - High & low Temp., Above set temp., Sensor short circuit, Pump error, High & low voltage and Sensor open circuit
  • Targeted (set) temperatures - Singular degrees from: 40°C (104°F) to 110°C (230°F)
  • Memory - Set & targeted temperature
  • Fan cut-in temp. -  3°C (5.4°F) above the targeted (set) temperature
  • Controller type - PCB with micro-processor
  • Sensor type - Thermister in housing
  • Overrun/ shutdown -  -10°C (14°F) below set/target temperature or 3 minutes
  • Indicators - Temperature, power, EWP®, test, fan, high & low temp, voltage, above set temperature (with alarm)
  • Weight - 135 grams

Dimensions :

  • Length = 98mm (3.8")
  • Width = 95mm (3.7")
  • Depth = 25mm (1”)

Compatibility

  • Universal Part

The updated EWP®/Fan Digital Controller will manage the operation of your chosen EWP® by varying the speed of your pump in response to coolant temperature and manage control of your electric Thermatic® Fan, No need for a separate thermal switch

For optimum control of Davies, Craig 12 Volt and 24 Volt Electric Water Pumps.
Suits EWP®80, EWP®115, EWP®130, EWP®150, Thermatic® / Electric Fans and billeted style Electric Water Pumps.

The updated controller offers enhanced rounded appearance, slimmer and the seven-pin plug is now safely tucked away, out of sight at the base of the Controller.  It now also has 3 mounting options:

  • Bracket
  • Nylon Plate
  • Velcro patch (current method)


The EWP®/Fan Digital Controller has two specific functions:

  • Will manage the operation of the EWP® by varying the speed of the pump in response to the coolant temperature
  • Manage control of your electric engine fan.
  • The Controller has a push-button to lock in any temperature from 40°C (104°F) to 110°C (230°F). It’s recommended you set/target the Controller to closely match your engine’s existing thermostat temperature.
  • The Digital Controller will operate the engine’s electric fan automatically once the engine has reached +3°C (+5.4°F) above the targeted / set temperature. Another significant benefit is that the Controller allows the EWP® & Fan to run on after ignition shutdown for either 3 minutes or -10°C (-14°F) of set set / target temperature to eliminate heat soak.

Sensor Wire Length: 250cm, Increase to 380cm (Oct 2020)

The contrasting black & white screen and comprehensive diagnostic menu of engine cooling management at a glance includes;

  • Numerical LCD exhibiting real-time numerical on-going engine & targeted/set temperatures
  • Flashing EWP® logo signifying pump pulse, width, modulation (PWM) operation and delivering the desired coolant flow through the engine
  • Individual, adjustable targeted/set temperatures from 40°C (104°F) to 110°C (230°F)
  • Rotating Davies Craig Thermatic® Fan symbol indicating fan operation (which automatically engages at +3ºC (+37.4ºF) above the set/targeted coolant temperature.)
  • Your set/targeted temperature can now be held in memory if the battery is disconnected.
  • Override feature to assist with EWP® bleeding operation.
  • Voltage output.

A suite of self-diagnostic ‘test’ functions are still on offer that identify and deliver visual and audible warnings enabling simple trouble-shooting if a system problem is evident. An audible alarm will sound when;

* Coolant temperature doesn’t exceed 40ºC (104ºF) within 5 mins of start-up.
* Coolant exceeds +10ºC (+50ºF) of set/targeted temperature.
* Coolant temperature exceeds 100ºC (212ºF).
* Voltage supply is either too high or too low.
* EWP error.
* Temperature Sensor error.

  • Voltage range - 12V DC to 29V DC
  • Display LCD size - 64.6mm (2.54”) x 55.6mm (2.19”)
  • Maximum current - 12Amps
  • Warning alarm - High & low Temp., Above set temp., Sensor short circuit, Pump error, High & low voltage and Sensor open circuit
  • Targeted (set) temperatures - Singular degrees from: 40°C (104°F) to 110°C (230°F)
  • Memory - Set & targeted temperature
  • Fan cut-in temp. -  3°C (5.4°F) above the targeted (set) temperature
  • Controller type - PCB with micro-processor
  • Sensor type - Thermister in housing
  • Overrun/ shutdown -  -10°C (14°F) below set/target temperature or 3 minutes
  • Indicators - Temperature, power, EWP®, test, fan, high & low temp, voltage, above set temperature (with alarm)
  • Weight - 135 grams

Dimensions :

  • Length = 98mm (3.8")
  • Width = 95mm (3.7")
  • Depth = 25mm (1”)
  • Universal Part
