Description

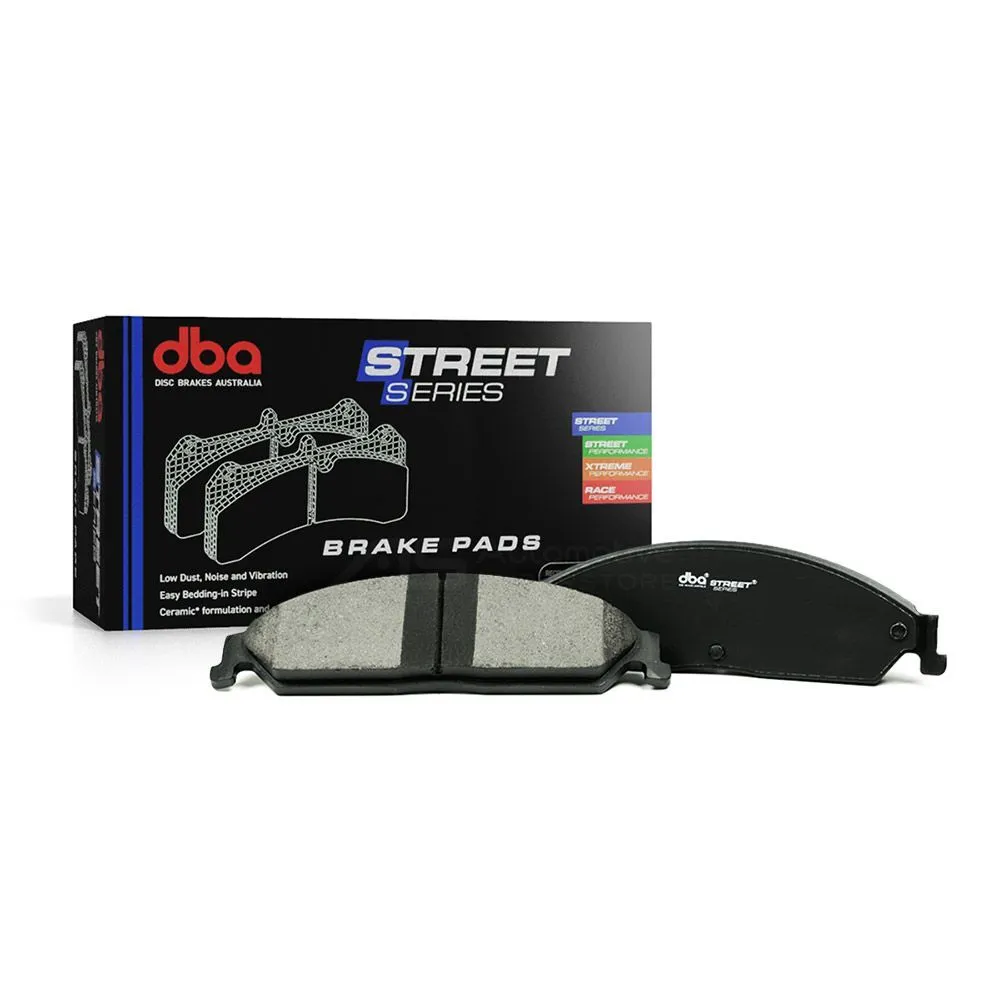

The DB1109SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mmPad Overall Length mmPad Overall Height mmPad Thickness mm
2 Inner Pads + 2 Outer Pads129.660.711.8129.660.712.8

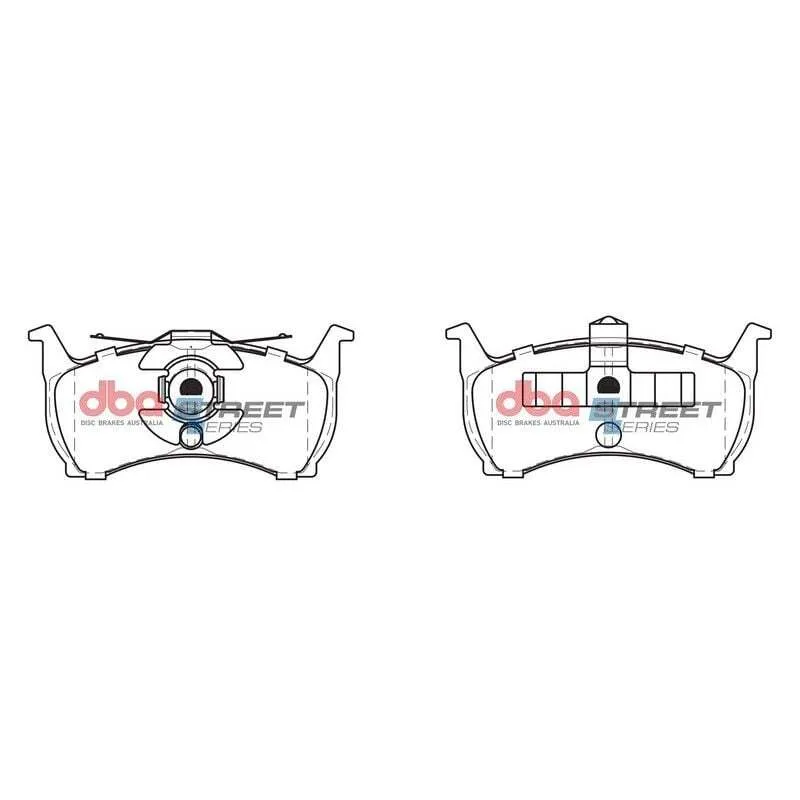

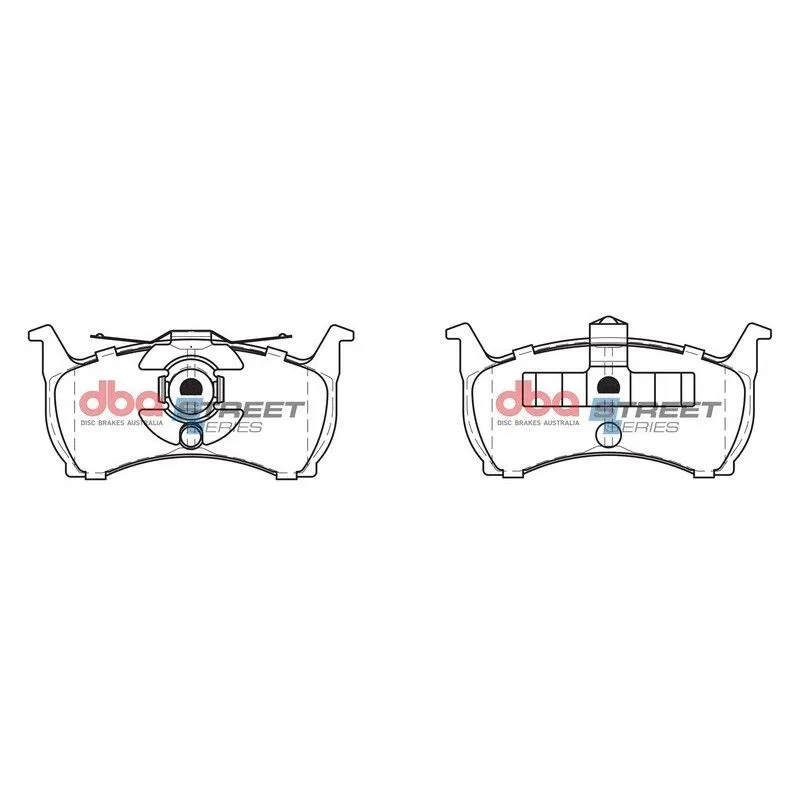

Specifications

Brake Type:Disc Brake
Length 1 [mm]:129,6
Length 2 [mm]:129,6
Thickness 1 [mm]:11,8
Thickness 2 [mm]:12,8
Width 1 [mm]:60,7
Width 2 [mm]:60,7

Compatibility

  • FORD AUSTRALIA
  • FAIRLANE
  • 1988 - 1991 Petrol Engine 3.9 MPFI NA Sedan 139KW
  • 1991 - 1995 Petrol Engine 4.9 EFI V8 NC Sedan 165KW
  • 1991 - 1992 Petrol Engine 3.9 MPFI GHIA NC Sedan 139KW
  • 1992 - 1995 Petrol Engine 4.0 MPFI GHIA NC Sedan 148KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI GHIA SPORTSMAN NC Sedan 161KW
  • FALCON
  • 1999 - 2001 Petrol Engine 5.0 MPFI V8 XR8 (AU, AUII) AU Ute 185KW
  • 1988 - 1988 Petrol Engine 3.2 EFI EA Sedan 90KW
  • 1988 - 1991 Petrol Engine 3.9 SPFI EA Sedan 120KW
  • 1988 - 1991 Petrol Engine 3.9 MPFI EA Sedan 139KW
  • 1988 - 1988 Petrol Engine 3.2 EFI EA Wagon 90KW
  • 1988 - 1991 Petrol Engine 3.9 SPFI EA Wagon 120KW
  • 1989 - 1991 Petrol Engine 3.9 MPFI EA Wagon 139KW
  • 1991 - 1992 Petrol Engine 3.9 SPFI EB Sedan 120KW
  • 1991 - 1992 Petrol Engine 3.9 MPFI EB Sedan 139KW
  • 1992 - 1993 Petrol Engine 4.0 MPFI EB Sedan 148KW
  • 1992 - 1993 Petrol Engine 4.0 MPFI S XR6 EB Sedan 161KW
  • 1991 - 1993 Petrol Engine 5.0 EFI V8 (Inc S XR8) EB Sedan 165KW
  • 1996 - 1999 Petrol Engine 4.0 EFI XH Ute 148KW
  • 1999 - 2001 Petrol Engine 4.0 MPFI XR6 (AU, AUII, AUIII) AU Ute 164KW
  • 1992 - 1993 Petrol Engine 5.0 GT EB Sedan 200KW
  • 1996 - 1997 Petrol Engine 5.0 EFI V8 XR8 XH Ute 165KW
  • 1996 - 1999 Petrol Engine 4.0 EFI XH Wagon Van 148KW
  • 1991 - 1992 Petrol Engine 3.9 SPFI EB Wagon 120KW
  • 1991 - 1992 Petrol Engine 3.9 MPFI EB Wagon 139KW
  • 1992 - 1993 Petrol Engine 4.0 MPFI EB Wagon 148KW
  • 1992 - 1993 Petrol Engine 5.0 EFI V8 EB Wagon 165KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI ED Sedan 148KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI XR6 ED Sedan 160KW
  • 1993 - 1994 Petrol Engine 5.0 EFI V8 (Inc XR8) ED Sedan 165KW
  • 1993 - 1994 Petrol Engine 5.0 EFI V8 XR8 Sprint ED Sedan 192KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI ED Wagon 148KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI XR6 ED Wagon 160KW
  • 1993 - 1994 Petrol Engine 5.0 EFI V8 ED Wagon 165KW
  • 1996 - 1999 Petrol Engine 4.0 MPFI XR6 XH Ute 164KW
  • 1997 - 1999 Petrol Engine 5.0 EFI V8 XR8 XH Ute 185KW
  • LTD
  • 1999 - 2002 Petrol Engine 4.0 MPFI VCT AU Sedan 168KW
  • 1999 - 2002 Petrol Engine 5.0 MPFI V8 AU Sedan 185KW
  • 1988 - 1991 Petrol Engine 3.9 MPFI DA Sedan 139KW
  • 1991 - 1995 Petrol Engine 3.9 MPFI DC Sedan 139KW
  • 1991 - 1995 Petrol Engine 4.0 MPFI DC Sedan 148KW
  • 1991 - 1995 Petrol Engine 5.0 EFI V8 DC Sedan 165KW

The DB1109SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mmPad Overall Length mmPad Overall Height mmPad Thickness mm
2 Inner Pads + 2 Outer Pads129.660.711.8129.660.712.8
Brake Type:Disc Brake
Length 1 [mm]:129,6
Length 2 [mm]:129,6
Thickness 1 [mm]:11,8
Thickness 2 [mm]:12,8
Width 1 [mm]:60,7
Width 2 [mm]:60,7
  • FORD AUSTRALIA
  • FAIRLANE
  • 1988 - 1991 Petrol Engine 3.9 MPFI NA Sedan 139KW
  • 1991 - 1995 Petrol Engine 4.9 EFI V8 NC Sedan 165KW
  • 1991 - 1992 Petrol Engine 3.9 MPFI GHIA NC Sedan 139KW
  • 1992 - 1995 Petrol Engine 4.0 MPFI GHIA NC Sedan 148KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI GHIA SPORTSMAN NC Sedan 161KW
  • FALCON
  • 1999 - 2001 Petrol Engine 5.0 MPFI V8 XR8 (AU, AUII) AU Ute 185KW
  • 1988 - 1988 Petrol Engine 3.2 EFI EA Sedan 90KW
  • 1988 - 1991 Petrol Engine 3.9 SPFI EA Sedan 120KW
  • 1988 - 1991 Petrol Engine 3.9 MPFI EA Sedan 139KW
  • 1988 - 1988 Petrol Engine 3.2 EFI EA Wagon 90KW
  • 1988 - 1991 Petrol Engine 3.9 SPFI EA Wagon 120KW
  • 1989 - 1991 Petrol Engine 3.9 MPFI EA Wagon 139KW
  • 1991 - 1992 Petrol Engine 3.9 SPFI EB Sedan 120KW
  • 1991 - 1992 Petrol Engine 3.9 MPFI EB Sedan 139KW
  • 1992 - 1993 Petrol Engine 4.0 MPFI EB Sedan 148KW
  • 1992 - 1993 Petrol Engine 4.0 MPFI S XR6 EB Sedan 161KW
  • 1991 - 1993 Petrol Engine 5.0 EFI V8 (Inc S XR8) EB Sedan 165KW
  • 1996 - 1999 Petrol Engine 4.0 EFI XH Ute 148KW
  • 1999 - 2001 Petrol Engine 4.0 MPFI XR6 (AU, AUII, AUIII) AU Ute 164KW
  • 1992 - 1993 Petrol Engine 5.0 GT EB Sedan 200KW
  • 1996 - 1997 Petrol Engine 5.0 EFI V8 XR8 XH Ute 165KW
  • 1996 - 1999 Petrol Engine 4.0 EFI XH Wagon Van 148KW
  • 1991 - 1992 Petrol Engine 3.9 SPFI EB Wagon 120KW
  • 1991 - 1992 Petrol Engine 3.9 MPFI EB Wagon 139KW
  • 1992 - 1993 Petrol Engine 4.0 MPFI EB Wagon 148KW
  • 1992 - 1993 Petrol Engine 5.0 EFI V8 EB Wagon 165KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI ED Sedan 148KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI XR6 ED Sedan 160KW
  • 1993 - 1994 Petrol Engine 5.0 EFI V8 (Inc XR8) ED Sedan 165KW
  • 1993 - 1994 Petrol Engine 5.0 EFI V8 XR8 Sprint ED Sedan 192KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI ED Wagon 148KW
  • 1993 - 1994 Petrol Engine 4.0 MPFI XR6 ED Wagon 160KW
  • 1993 - 1994 Petrol Engine 5.0 EFI V8 ED Wagon 165KW
  • 1996 - 1999 Petrol Engine 4.0 MPFI XR6 XH Ute 164KW
  • 1997 - 1999 Petrol Engine 5.0 EFI V8 XR8 XH Ute 185KW
  • LTD
  • 1999 - 2002 Petrol Engine 4.0 MPFI VCT AU Sedan 168KW
  • 1999 - 2002 Petrol Engine 5.0 MPFI V8 AU Sedan 185KW
  • 1988 - 1991 Petrol Engine 3.9 MPFI DA Sedan 139KW
  • 1991 - 1995 Petrol Engine 3.9 MPFI DC Sedan 139KW
  • 1991 - 1995 Petrol Engine 4.0 MPFI DC Sedan 148KW
  • 1991 - 1995 Petrol Engine 5.0 EFI V8 DC Sedan 165KW
