Description

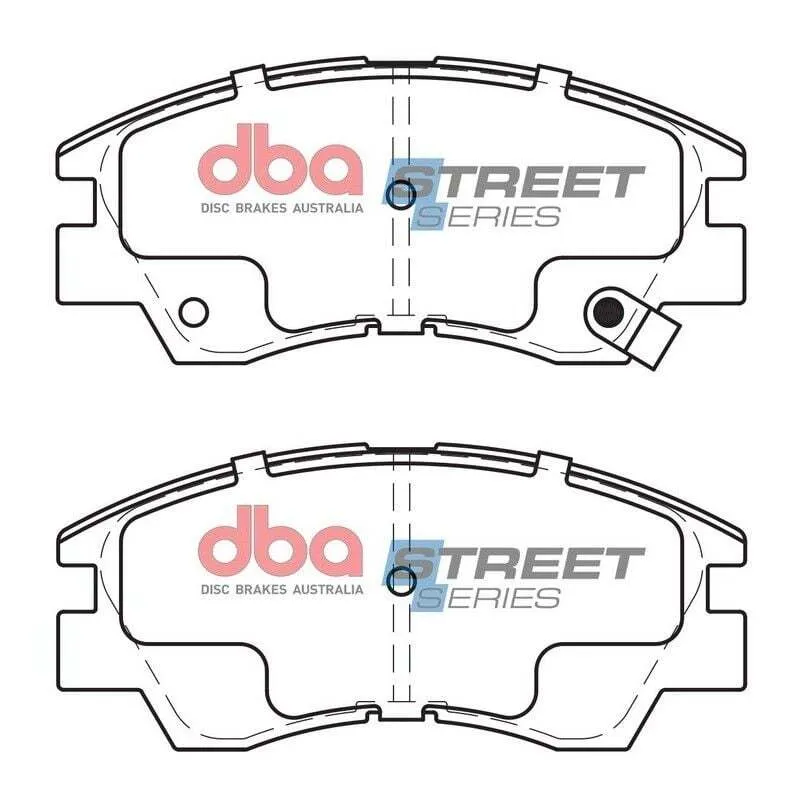

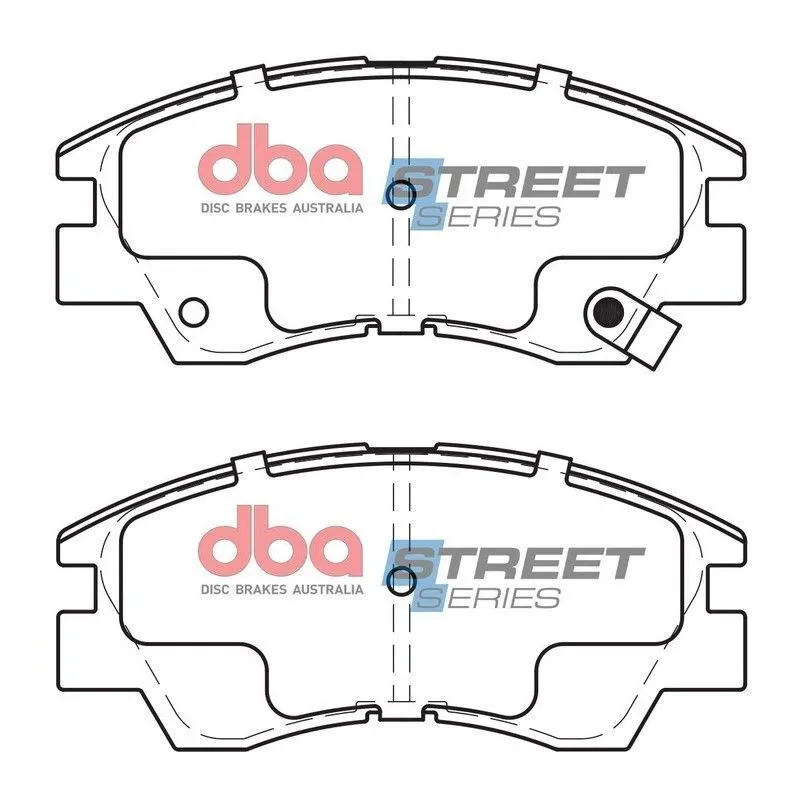

The DB1113SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
LH Inner + RH Inner + 2 Outer Pads127.756.616

Specifications

Brake Type:Disc Brake
Length 1 [mm]:127,7
Thickness 1 [mm]:16
Width 1 [mm]:56,6

Compatibility

  • MITSUBISHI
  • EXPRESS
  • 1988 - 1994 Diesel 2.5 D (P05V, P05W, P15V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 51KW
  • 1986 - 1994 Petrol Engine 2.0 (P03V, P13V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 64KW
  • 1994 - 2003 Petrol Engine 2.0 (P23V, P03V, P13V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 78KW
  • 1986 - 1994 Petrol Engine 2.4 (P24V, P24W) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 82KW
  • 1986 - 1994 Petrol Engine 2.4 4WD (P24V, P24W) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 82KW
  • 1980 - 1986 Petrol Engine 1.6 (L062P, L032P) L03_P,SA,SB,SC,SD,SE Van 50KW
  • 2006 - 2013 Petrol Engine 2.4 i (P04V, P14V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 84KW
  • 1994 - 2006 Petrol Engine 2.4 i (P04V, P14V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 97KW
  • 2003 - 2006 Petrol Engine 2.0 (P23W, P23V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 83KW
  • 1994 - 2003 Diesel 2.5 D (P05V, P15V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 55KW
  • 1994 - 1996 Petrol Engine 2.0 (P03V, P13V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 78KW
  • 1986 - 1988 Petrol Engine 2.0 (P03V, P13V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 66KW
  • STARWAGON
  • 1986 - 1994 Petrol Engine 2.4 4WD (P24W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 82KW
  • 1986 - 1997 Petrol Engine 2.0 (P03W, P13W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 66KW
  • 1988 - 1994 Petrol Engine 2.4 (P04W, P14W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 82KW
  • 1994 - 2004 Petrol Engine 2.0 GLS (P03W, P13W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 78KW
  • 1994 - 2002 Petrol Engine 2.0 i (P03W, P13W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 83KW
  • TRITON
  • 1990 - 1996 Petrol Engine 3.0 i 4WD K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 109KW
  • 1986 - 1996 Diesel 2.5 D (K14T) K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 55KW
  • 1986 - 1996 Diesel 2.5 D 4WD (K24T) K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 55KW
  • 1986 - 1996 Petrol Engine 2.6 (K33T) K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 79KW
  • 1986 - 1996 Petrol Engine 2.6 4WD (K33T) K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 84KW
  • PAJERO
  • 1986 - 1989 Diesel 2.5 TD 4WD (L049G, L149G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 62KW
  • 1986 - 1991 Petrol Engine 2.6 4WD (L042G, L047G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 79KW
  • 1988 - 1991 Petrol Engine 3.0 i 4WD L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 105KW

The DB1113SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
LH Inner + RH Inner + 2 Outer Pads127.756.616
Brake Type:Disc Brake
Length 1 [mm]:127,7
Thickness 1 [mm]:16
Width 1 [mm]:56,6
  • MITSUBISHI
  • EXPRESS
  • 1988 - 1994 Diesel 2.5 D (P05V, P05W, P15V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 51KW
  • 1986 - 1994 Petrol Engine 2.0 (P03V, P13V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 64KW
  • 1994 - 2003 Petrol Engine 2.0 (P23V, P03V, P13V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 78KW
  • 1986 - 1994 Petrol Engine 2.4 (P24V, P24W) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 82KW
  • 1986 - 1994 Petrol Engine 2.4 4WD (P24V, P24W) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 82KW
  • 1980 - 1986 Petrol Engine 1.6 (L062P, L032P) L03_P,SA,SB,SC,SD,SE Van 50KW
  • 2006 - 2013 Petrol Engine 2.4 i (P04V, P14V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 84KW
  • 1994 - 2006 Petrol Engine 2.4 i (P04V, P14V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 97KW
  • 2003 - 2006 Petrol Engine 2.0 (P23W, P23V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 83KW
  • 1994 - 2003 Diesel 2.5 D (P05V, P15V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 55KW
  • 1994 - 1996 Petrol Engine 2.0 (P03V, P13V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 78KW
  • 1986 - 1988 Petrol Engine 2.0 (P03V, P13V) P0_V,P1_V,P2_V,SF,SG,SH,SJ,WA Van 66KW
  • STARWAGON
  • 1986 - 1994 Petrol Engine 2.4 4WD (P24W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 82KW
  • 1986 - 1997 Petrol Engine 2.0 (P03W, P13W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 66KW
  • 1988 - 1994 Petrol Engine 2.4 (P04W, P14W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 82KW
  • 1994 - 2004 Petrol Engine 2.0 GLS (P03W, P13W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 78KW
  • 1994 - 2002 Petrol Engine 2.0 i (P03W, P13W) P0_W,P1_W,P2_W,P3_W,SD,SE,SF,SG,SH,SJ,WA Bus 83KW
  • TRITON
  • 1990 - 1996 Petrol Engine 3.0 i 4WD K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 109KW
  • 1986 - 1996 Diesel 2.5 D (K14T) K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 55KW
  • 1986 - 1996 Diesel 2.5 D 4WD (K24T) K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 55KW
  • 1986 - 1996 Petrol Engine 2.6 (K33T) K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 79KW
  • 1986 - 1996 Petrol Engine 2.6 4WD (K33T) K3_T,K2_T,K1_T,K0_T,ME,MF,MG,MH,MJ Ute 84KW
  • PAJERO
  • 1986 - 1989 Diesel 2.5 TD 4WD (L049G, L149G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 62KW
  • 1986 - 1991 Petrol Engine 2.6 4WD (L042G, L047G) L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 79KW
  • 1988 - 1991 Petrol Engine 3.0 i 4WD L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG Closed Off-Road Vehicle 105KW
