Description

The DB1346SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors

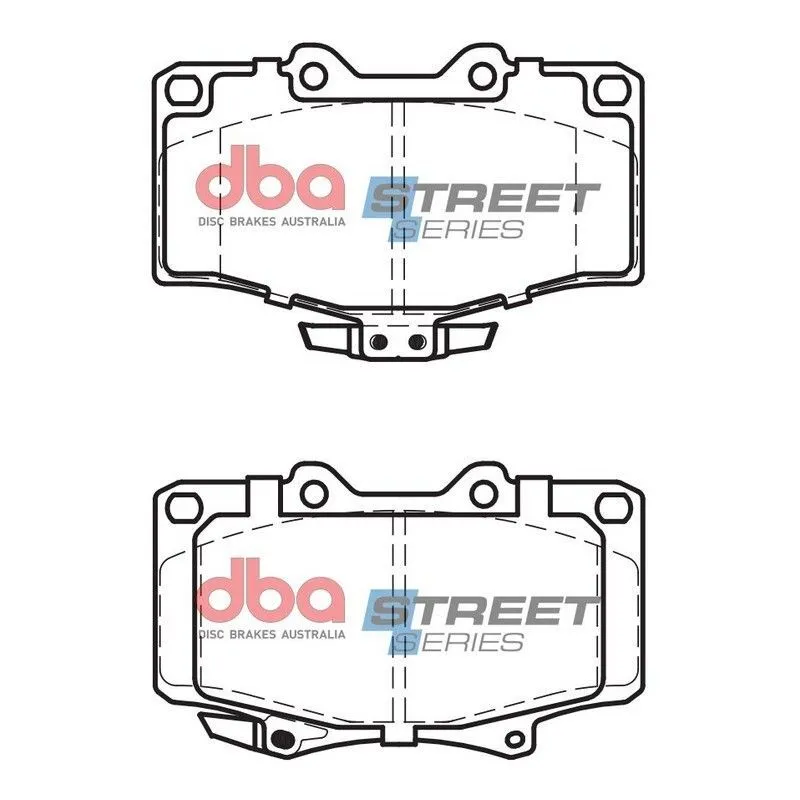

Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mmPad Overall Length mmPad Overall Height mmPad Thickness mm
2 Inner Pads + LH Outer + RH Outer Pads119.3876.915119.371.815

Specifications

Brake Type:Disc Brake
Length 1 [mm]:119,4
Length 2 [mm]:119,3
Thickness 1 [mm]:15
Thickness 2 [mm]:15
Width 1 [mm]:76,9
Width 2 [mm]:71,8

Compatibility

MAZDA:1Y0Z-33-28Z
TOYOTA:04465-35060
TOYOTA:04465-35140
TOYOTA:04465-YZZCC
TOYOTA:04491-35140
TOYOTA:04491-35210
TOYOTA:04491-35240
TOYOTA:04491-35241
TOYOTA:04491-35250
TOYOTA:04491-35251
TOYOTA:V9118-1043
TOYOTA:V9118-A043

The DB1346SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mmPad Overall Length mmPad Overall Height mmPad Thickness mm
2 Inner Pads + LH Outer + RH Outer Pads119.3876.915119.371.815
Brake Type:Disc Brake
Length 1 [mm]:119,4
Length 2 [mm]:119,3
Thickness 1 [mm]:15
Thickness 2 [mm]:15
Width 1 [mm]:76,9
Width 2 [mm]:71,8
MAZDA:1Y0Z-33-28Z
TOYOTA:04465-35060
TOYOTA:04465-35140
TOYOTA:04465-YZZCC
TOYOTA:04491-35140
TOYOTA:04491-35210
TOYOTA:04491-35240
TOYOTA:04491-35241
TOYOTA:04491-35250
TOYOTA:04491-35251
TOYOTA:V9118-1043
TOYOTA:V9118-A043
