Description

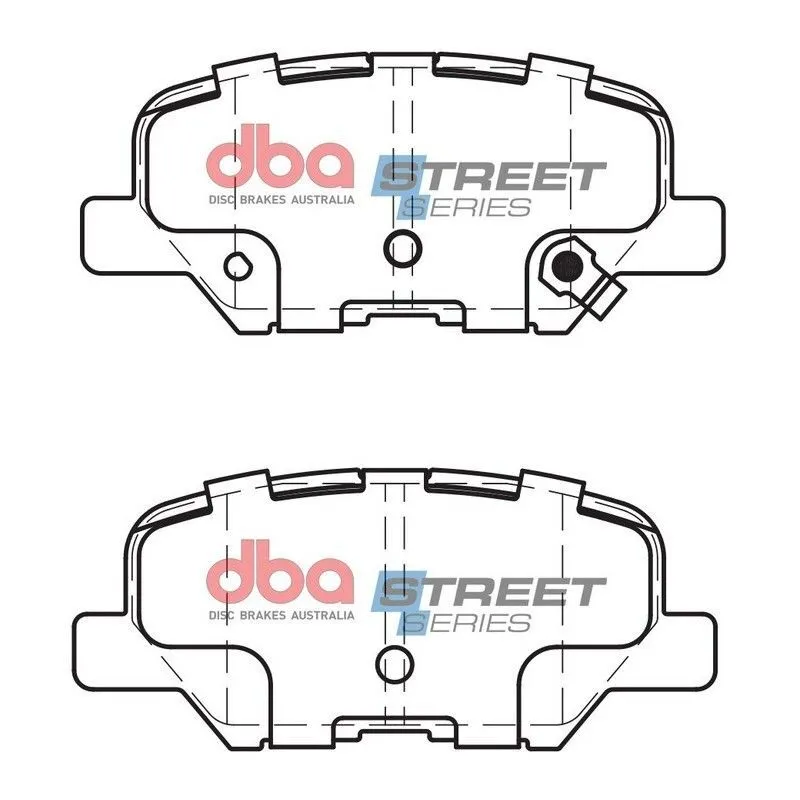

The DB2294SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
LH Inner + RH Inner + 2 Outer Pads101.34413.9

Specifications

Brake Type:Disc Brake
Length 1 [mm]:101,3
Thickness 1 [mm]:13,9
Width 1 [mm]:44

Compatibility

CITROËN/PEUGEOT:1635677180
MAZDA:BJY7-26-48Z
MAZDA:GHY9-26-48Z
MAZDA:GHY9-26-48ZA
MAZDA:GHY9-26-48ZB
MAZDA:GHY9-26-48ZC
MITSUBISHI:4605A802
MITSUBISHI:4605A998
MITSUBISHI:4605B070
MITSUBISHI:4605B071
MITSUBISHI:4605B384
MITSUBISHI:4605B805
MITSUBISHI:4605B806
MITSUBISHI:4605B807
MITSUBISHI:4605B808
MITSUBISHI:4605B914
MITSUBISHI:4605B915
MITSUBISHI:4605B916
MITSUBISHI:MZ690592
PEUGEOT:1609899680
PEUGEOT:1619790780
PEUGEOT:1620368680

The DB2294SS Street Series brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of Street Series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

Replacing your brake rotors? DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

Features:

  • OE-style post-cured process for optimal braking performance over the pad life
  • Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels
  • High-friction stripe for easy bedding-in
  • Application-specific NVH shims, slots and chamfers for less vibration and noise

Ideal for:

  • OE replacement & everyday use
  • Passenger cars & SUVs
  • Light commercial Vehicles
  • Use with DBA Street Series Disc Rotors
Set ContainsPad Overall Length mmPad Overall Height mmPad Thickness mm
LH Inner + RH Inner + 2 Outer Pads101.34413.9
Brake Type:Disc Brake
Length 1 [mm]:101,3
Thickness 1 [mm]:13,9
Width 1 [mm]:44
CITROËN/PEUGEOT:1635677180
MAZDA:BJY7-26-48Z
MAZDA:GHY9-26-48Z
MAZDA:GHY9-26-48ZA
MAZDA:GHY9-26-48ZB
MAZDA:GHY9-26-48ZC
MITSUBISHI:4605A802
MITSUBISHI:4605A998
MITSUBISHI:4605B070
MITSUBISHI:4605B071
MITSUBISHI:4605B384
MITSUBISHI:4605B805
MITSUBISHI:4605B806
MITSUBISHI:4605B807
MITSUBISHI:4605B808
MITSUBISHI:4605B914
MITSUBISHI:4605B915
MITSUBISHI:4605B916
MITSUBISHI:MZ690592
PEUGEOT:1609899680
PEUGEOT:1619790780
PEUGEOT:1620368680
