Description

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned

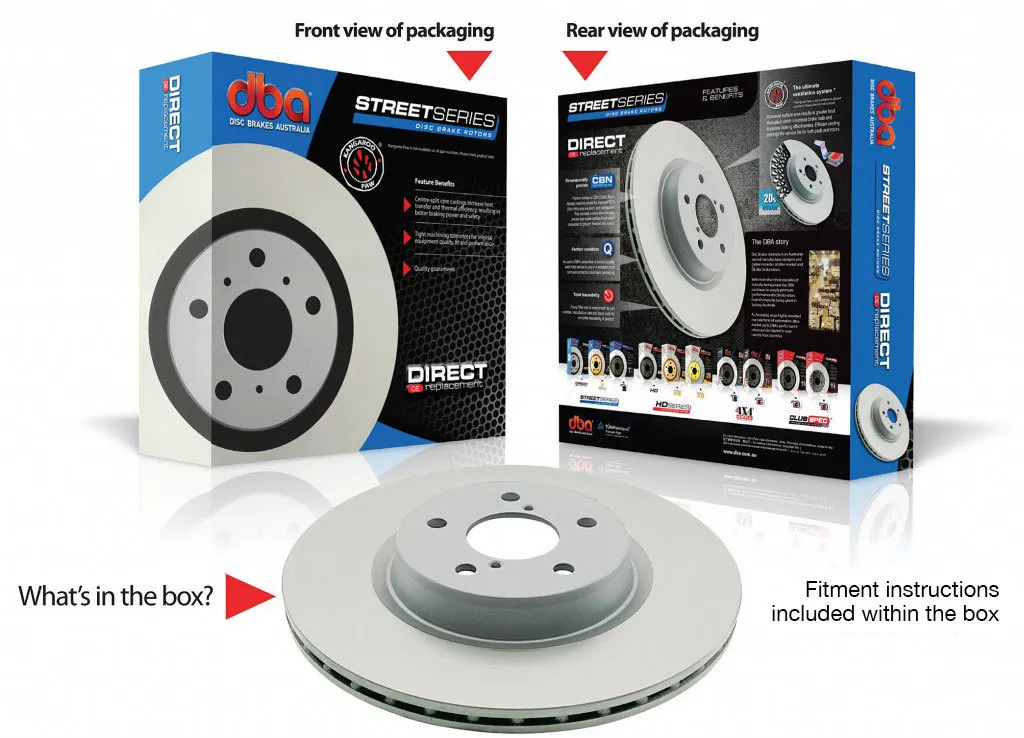

  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 354.6
Height [mm] 49.5
Thickness [mm] 32
Minimum Thickness [mm] 30
Inner Diameter [mm] 68
Pitch Circle Ø [mm] 114.3
Number of Holes 5
Class standard

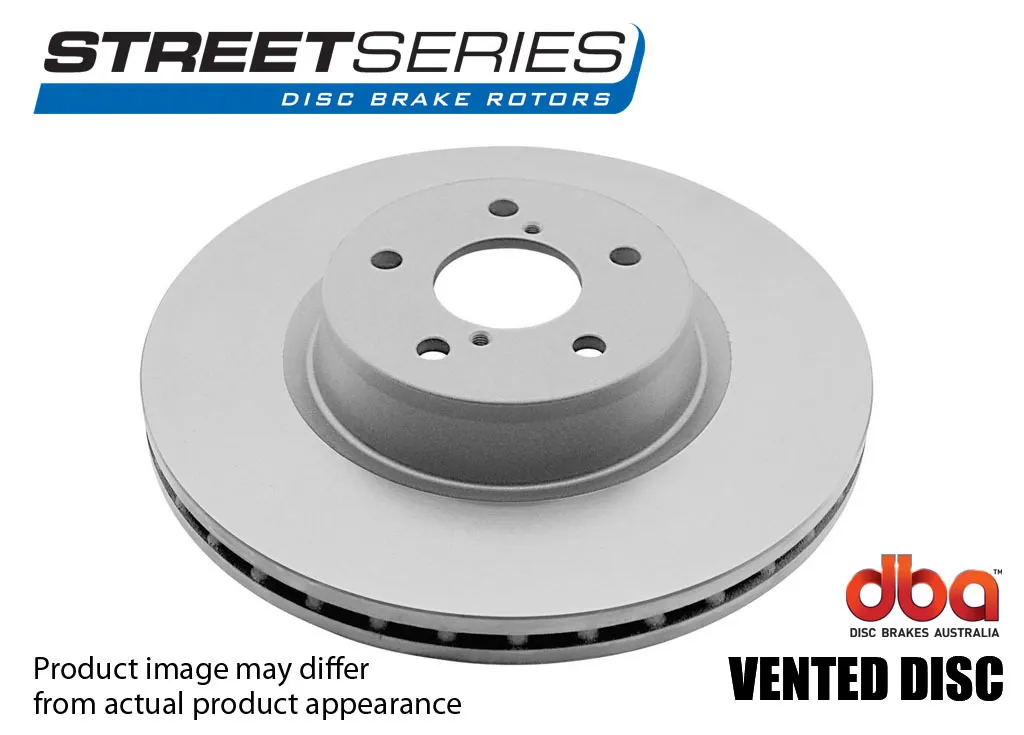

Disc Vent Vented

Compatibility

Country Make Model Year Variant
Australia INFINITI FX, 37 AWD 10/2008-10/2008 37 AWD-All-wheel Drive-Petrol
Australia INFINITI FX, 50 AWD 10/2008-10/2008 50 AWD-All-wheel Drive-Petrol
Australia NISSAN 370 Z, 3.7 6/2009-1/2013 3.7-Rear Wheel Drive-Petrol
Australia INFINITI FX, 30d AWD 4/2010-4/2010 30d AWD-All-wheel Drive-Diesel
Australia INFINITI G, 37 9/2010-9/2010 37-Rear Wheel Drive-Petrol
Australia INFINITI M, 30d 3/2010-3/2010 30d-Rear Wheel Drive-Diesel
Australia NISSAN 370 Z, 3.7 12/2009-1/2013 3.7-Rear Wheel Drive-Petrol
Australia INFINITI Q60, 3.7 10/2013-10/2013 3.7-Rear Wheel Drive-Petrol
Australia INFINITI QX70, 30d AWD 8/2013-8/2013 30d AWD-All-wheel Drive-Diesel
Australia INFINITI Q70, 3.7 3/2013-3/2013 3.7-Rear Wheel Drive-Petrol
Australia INFINITI Q70, 3 3/2013-3/2013 3-Rear Wheel Drive-Diesel
Australia INFINITI QX70, 3.7 AWD 8/2013-8/2013 3.7 AWD-All-wheel Drive-Petrol
Australia NISSAN SKYLINE, 370GT Tune SP 12/2008-12/2008 370GT Tune SP-Rear Wheel Drive-Petrol

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 354.6
Height [mm] 49.5
Thickness [mm] 32
Minimum Thickness [mm] 30
Inner Diameter [mm] 68
Pitch Circle Ø [mm] 114.3
Number of Holes 5
Class standard
Disc Vent Vented
Country Make Model Year Variant
Australia INFINITI FX, 37 AWD 10/2008-10/2008 37 AWD-All-wheel Drive-Petrol
Australia INFINITI FX, 50 AWD 10/2008-10/2008 50 AWD-All-wheel Drive-Petrol
Australia NISSAN 370 Z, 3.7 6/2009-1/2013 3.7-Rear Wheel Drive-Petrol
Australia INFINITI FX, 30d AWD 4/2010-4/2010 30d AWD-All-wheel Drive-Diesel
Australia INFINITI G, 37 9/2010-9/2010 37-Rear Wheel Drive-Petrol
Australia INFINITI M, 30d 3/2010-3/2010 30d-Rear Wheel Drive-Diesel
Australia NISSAN 370 Z, 3.7 12/2009-1/2013 3.7-Rear Wheel Drive-Petrol
Australia INFINITI Q60, 3.7 10/2013-10/2013 3.7-Rear Wheel Drive-Petrol
Australia INFINITI QX70, 30d AWD 8/2013-8/2013 30d AWD-All-wheel Drive-Diesel
Australia INFINITI Q70, 3.7 3/2013-3/2013 3.7-Rear Wheel Drive-Petrol
Australia INFINITI Q70, 3 3/2013-3/2013 3-Rear Wheel Drive-Diesel
Australia INFINITI QX70, 3.7 AWD 8/2013-8/2013 3.7 AWD-All-wheel Drive-Petrol
Australia NISSAN SKYLINE, 370GT Tune SP 12/2008-12/2008 370GT Tune SP-Rear Wheel Drive-Petrol
