Description

With over four decades of innovation under their belt, backed by intensive research and development, DBA has positioned itself as a world leader in the extremely competitive marketplace of OE and aftermarket disc brake rotor solutions. Whether you are after some basic replacement rotors for your standard passenger vehicle, 4x4 offroad or commercial vehicle, weekend toy or a hard-tuned track car, DBA has a set of rotors to enhance your vehicle's braking performance at a price and performance level to meet your unique requirements.

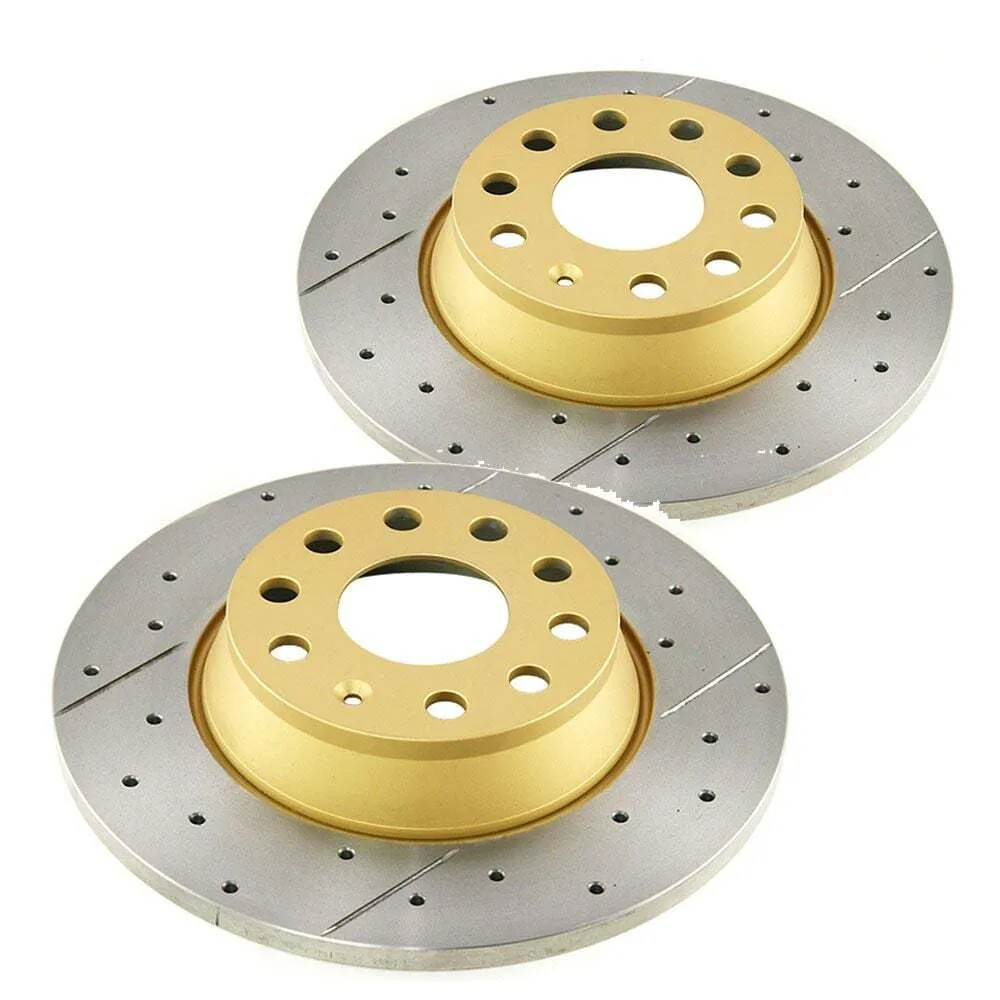

DBA rotors can be improved with the X-Gold design, a unique non-directional cross-drilled pattern that increases passive cooling, allows for gas-escape whilst maintaining excellent rigidity. The performance realised is similar to the T2 slotted range, however the aesthetics are further enhanced with all of the non-friction surfaces being coated in a unique gold paint.

All of DBA's brake rotors come from a unique starting point - DBA's own developed high carbon cast iron alloy known as XG-150. This proprietary compound was chosen for high strength and excellent thermal stability. This means the rotors naturally possess excellent resistance to warping from excess heat. The base material is taken to the next level with more DBA innovation - the Kangaroo Paw ventilation system maximises the passive cooling ability of a network of machined passages, whilst retaining maximum material to maintain physical rigidity and heat capacity of the rotor. This is finished with machining by Cubic Boron Nitride equipped tooling to produce a surface finish within exact tolerances, resulting in a rotor with minimal variation in thickness and the ability to withstand repeated punishment on the street.

Drive Style Suitability

  • Daily Drivers
  • Family Cars
  • 4WD and SUV
  • Utes and Vans

Selecting the Right Brake Pads for your Application

Street Series (Blue) suitable for everyday use in passenger cars and small SUV's, these are recommended for use with the OE Replacement and En-Shield rotors. Street Series brake pads provide OE performance and reliability at a fraction of the price. DBA have developed a post-curing process to ensure consistent braking performance over the service life of the pad, whilst maintaining a low level of brake dust emission and noise. Every pad comes out of the box with a high friction stripe for easier bedding in.

Street Performance (Green) suitable for performance cars, heavier SUV's and 4WD's, and where performance rotors are fitted. Street Performance brake pads have been developed to provide greater than OE levels of performance, having improved initial bite and temperature resistance. DBA have developed a scorching process that removes leftover resins from the production process, minimising the bedding in process and preventing brake fade from pad contamination. This is achieved while maintaining a low level of brake dust emission and noise.

Specifications

Outer Diameter [mm]:285,6
Height [mm]:48,4
Brake Disc Thickness [mm]:11,7
Minimum Thickness [mm]:10
Centering Diameter [mm]:65
Pitch Circle Ø [mm]:112
Weight [kg]:4,7
Number of Holes:5
Class:gold
Disc Vent:gold
Brake Disc Type:solid

Compatibility

  • AUDI
  • A3
  • 2004 - 2010 Diesel 1.9 TDI 8PA Hatchback 77KW
  • 2004 - 2008 Petrol Engine 2.0 FSI 8PA Hatchback 110KW
  • 2006 - 2012 Diesel 2.0 TDI 8P1 Hatchback 125KW
  • 2006 - 2013 Diesel 2.0 TDI 8PA Hatchback 125KW
  • 2005 - 2008 Diesel 2.0 TDI 8PA Hatchback 103KW
  • 2003 - 2008 Petrol Engine 2.0 FSI 8P1 Hatchback 110KW
  • 2003 - 2010 Diesel 1.9 TDI 8P1 Hatchback 77KW
  • 2008 - 2013 Petrol Engine 1.8 TFSI 8P7 Convertible 118KW
  • 2009 - 2013 Diesel 1.6 TDI 8PA Hatchback 77KW
  • SKODA
  • OCTAVIA
  • 2008 - 2011 Diesel 1.9 TDI 1Z3 Hatchback 77KW
  • 2008 - 2013 Diesel 2.0 TDI 16V 1Z3 Hatchback 103KW
  • 2004 - 2011 Diesel 1.9 TDI 1Z5 Wagon 77KW
  • 2004 - 2013 Diesel 2.0 TDI 16V 1Z5 Wagon 103KW
  • 2004 - 2010 Diesel 1.9 TDI 4x4 1Z5 Wagon 77KW
  • 2008 - 2013 Petrol Engine 2.0 TFSI 1Z3 Hatchback 147KW
  • 2005 - 2013 Petrol Engine 2.0 TFSI 1Z5 Wagon 147KW
  • 2006 - 2010 Diesel 2.0 TDI 4x4 1Z5 Wagon 103KW
  • 2005 - 2010 Diesel 2.0 TDI 1Z3 Hatchback 103KW
  • 2010 - 2013 Diesel 2.0 TDI 16V 4x4 1Z5 Wagon 103KW
  • VW
  • JETTA
  • 2005 - 2010 Diesel 1.9 TDI 1K2 Sedan 77KW
  • 2005 - 2010 Petrol Engine 2.0 TFSI 1K2 Sedan 147KW
  • 2006 - 2010 Diesel 2.0 TDI 1K2 Sedan 125KW
  • 2009 - 2010 Diesel 1.6 TDI 1K2 Sedan 77KW
  • 2010 - 2015 Diesel 1.6 TDI 162,163,AV3,AV2 Sedan 77KW
  • 2011 - 2015 Diesel 2.0 TDI 162,163,AV3,AV2 Sedan 103KW
  • GOLF
  • 2005 - 2008 Petrol Engine 1.4 GT Sport TSI MKV,1K1 Hatchback 125KW
  • 2004 - 2008 Diesel 2.0 TDI MKV,1K1 Hatchback 103KW
  • 2004 - 2008 Petrol Engine 2.0 FSI MKV,1K1 Hatchback 110KW
  • 2013 - 2017 Petrol Engine 1.4 TSI MKVII,BA5,BV5,BX5,BX6 Wagon 90KW
  • EOS
  • 2006 - 2009 Petrol Engine 3.2 V6 1F7,1F8 Convertible 184KW
  • PASSAT
  • 2000 - 2005 Petrol Engine 2.8 4motion 3B3 Sedan 142KW
  • CC
  • 2008 - 2011 Petrol Engine 3.6 FSI 4motion 357 Coupe 220KW
  • 2008 - 2012 Diesel 2.0 TDI 357 Coupe 125KW
  • 2011 - 2016 Diesel 2.0 TDI 358 Coupe 125KW
  • 2011 - 2016 Petrol Engine 3.6 FSI 4motion 358 Coupe 220KW
  • 2012 - 2016 Diesel 2.0 TDI 358 Coupe 130KW
  • PASSAT ALLTRACK
  • 2012 - 2014 Diesel 2.0 TDI 4motion 3C(365) Wagon 125KW

With over four decades of innovation under their belt, backed by intensive research and development, DBA has positioned itself as a world leader in the extremely competitive marketplace of OE and aftermarket disc brake rotor solutions. Whether you are after some basic replacement rotors for your standard passenger vehicle, 4x4 offroad or commercial vehicle, weekend toy or a hard-tuned track car, DBA has a set of rotors to enhance your vehicle's braking performance at a price and performance level to meet your unique requirements.

DBA rotors can be improved with the X-Gold design, a unique non-directional cross-drilled pattern that increases passive cooling, allows for gas-escape whilst maintaining excellent rigidity. The performance realised is similar to the T2 slotted range, however the aesthetics are further enhanced with all of the non-friction surfaces being coated in a unique gold paint.

All of DBA's brake rotors come from a unique starting point - DBA's own developed high carbon cast iron alloy known as XG-150. This proprietary compound was chosen for high strength and excellent thermal stability. This means the rotors naturally possess excellent resistance to warping from excess heat. The base material is taken to the next level with more DBA innovation - the Kangaroo Paw ventilation system maximises the passive cooling ability of a network of machined passages, whilst retaining maximum material to maintain physical rigidity and heat capacity of the rotor. This is finished with machining by Cubic Boron Nitride equipped tooling to produce a surface finish within exact tolerances, resulting in a rotor with minimal variation in thickness and the ability to withstand repeated punishment on the street.

Drive Style Suitability

  • Daily Drivers
  • Family Cars
  • 4WD and SUV
  • Utes and Vans

Selecting the Right Brake Pads for your Application

Street Series (Blue) suitable for everyday use in passenger cars and small SUV's, these are recommended for use with the OE Replacement and En-Shield rotors. Street Series brake pads provide OE performance and reliability at a fraction of the price. DBA have developed a post-curing process to ensure consistent braking performance over the service life of the pad, whilst maintaining a low level of brake dust emission and noise. Every pad comes out of the box with a high friction stripe for easier bedding in.

Street Performance (Green) suitable for performance cars, heavier SUV's and 4WD's, and where performance rotors are fitted. Street Performance brake pads have been developed to provide greater than OE levels of performance, having improved initial bite and temperature resistance. DBA have developed a scorching process that removes leftover resins from the production process, minimising the bedding in process and preventing brake fade from pad contamination. This is achieved while maintaining a low level of brake dust emission and noise.

Outer Diameter [mm]:285,6
Height [mm]:48,4
Brake Disc Thickness [mm]:11,7
Minimum Thickness [mm]:10
Centering Diameter [mm]:65
Pitch Circle Ø [mm]:112
Weight [kg]:4,7
Number of Holes:5
Class:gold
Disc Vent:gold
Brake Disc Type:solid
  • AUDI
  • A3
  • 2004 - 2010 Diesel 1.9 TDI 8PA Hatchback 77KW
  • 2004 - 2008 Petrol Engine 2.0 FSI 8PA Hatchback 110KW
  • 2006 - 2012 Diesel 2.0 TDI 8P1 Hatchback 125KW
  • 2006 - 2013 Diesel 2.0 TDI 8PA Hatchback 125KW
  • 2005 - 2008 Diesel 2.0 TDI 8PA Hatchback 103KW
  • 2003 - 2008 Petrol Engine 2.0 FSI 8P1 Hatchback 110KW
  • 2003 - 2010 Diesel 1.9 TDI 8P1 Hatchback 77KW
  • 2008 - 2013 Petrol Engine 1.8 TFSI 8P7 Convertible 118KW
  • 2009 - 2013 Diesel 1.6 TDI 8PA Hatchback 77KW
  • SKODA
  • OCTAVIA
  • 2008 - 2011 Diesel 1.9 TDI 1Z3 Hatchback 77KW
  • 2008 - 2013 Diesel 2.0 TDI 16V 1Z3 Hatchback 103KW
  • 2004 - 2011 Diesel 1.9 TDI 1Z5 Wagon 77KW
  • 2004 - 2013 Diesel 2.0 TDI 16V 1Z5 Wagon 103KW
  • 2004 - 2010 Diesel 1.9 TDI 4x4 1Z5 Wagon 77KW
  • 2008 - 2013 Petrol Engine 2.0 TFSI 1Z3 Hatchback 147KW
  • 2005 - 2013 Petrol Engine 2.0 TFSI 1Z5 Wagon 147KW
  • 2006 - 2010 Diesel 2.0 TDI 4x4 1Z5 Wagon 103KW
  • 2005 - 2010 Diesel 2.0 TDI 1Z3 Hatchback 103KW
  • 2010 - 2013 Diesel 2.0 TDI 16V 4x4 1Z5 Wagon 103KW
  • VW
  • JETTA
  • 2005 - 2010 Diesel 1.9 TDI 1K2 Sedan 77KW
  • 2005 - 2010 Petrol Engine 2.0 TFSI 1K2 Sedan 147KW
  • 2006 - 2010 Diesel 2.0 TDI 1K2 Sedan 125KW
  • 2009 - 2010 Diesel 1.6 TDI 1K2 Sedan 77KW
  • 2010 - 2015 Diesel 1.6 TDI 162,163,AV3,AV2 Sedan 77KW
  • 2011 - 2015 Diesel 2.0 TDI 162,163,AV3,AV2 Sedan 103KW
  • GOLF
  • 2005 - 2008 Petrol Engine 1.4 GT Sport TSI MKV,1K1 Hatchback 125KW
  • 2004 - 2008 Diesel 2.0 TDI MKV,1K1 Hatchback 103KW
  • 2004 - 2008 Petrol Engine 2.0 FSI MKV,1K1 Hatchback 110KW
  • 2013 - 2017 Petrol Engine 1.4 TSI MKVII,BA5,BV5,BX5,BX6 Wagon 90KW
  • EOS
  • 2006 - 2009 Petrol Engine 3.2 V6 1F7,1F8 Convertible 184KW
  • PASSAT
  • 2000 - 2005 Petrol Engine 2.8 4motion 3B3 Sedan 142KW
  • CC
  • 2008 - 2011 Petrol Engine 3.6 FSI 4motion 357 Coupe 220KW
  • 2008 - 2012 Diesel 2.0 TDI 357 Coupe 125KW
  • 2011 - 2016 Diesel 2.0 TDI 358 Coupe 125KW
  • 2011 - 2016 Petrol Engine 3.6 FSI 4motion 358 Coupe 220KW
  • 2012 - 2016 Diesel 2.0 TDI 358 Coupe 130KW
  • PASSAT ALLTRACK
  • 2012 - 2014 Diesel 2.0 TDI 4motion 3C(365) Wagon 125KW
