Description

Important: Please see notes in compatibilty section regarding vehicle fitment.

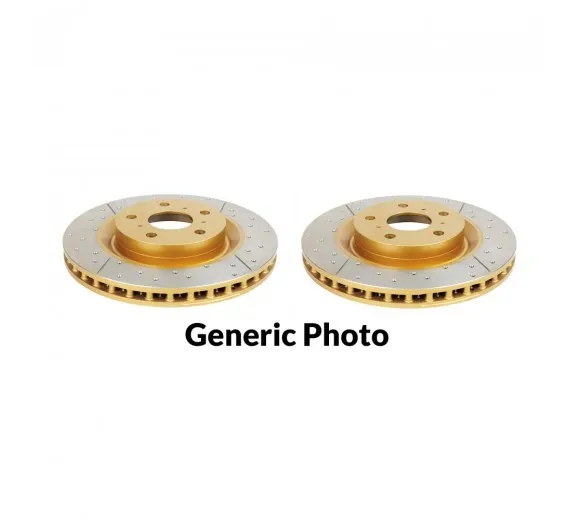

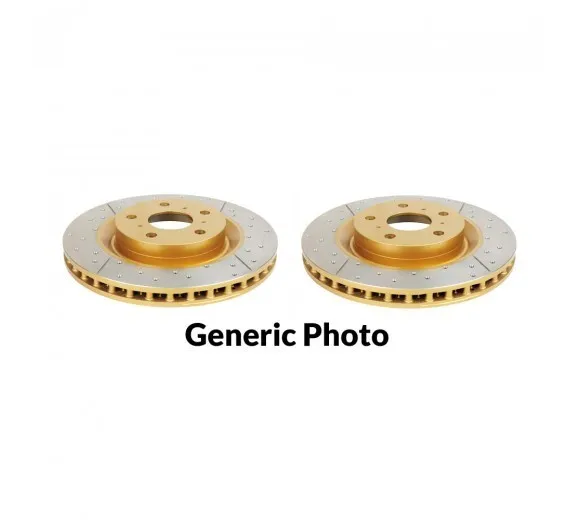

DBA’s X Gold provides all the benefits of Street Series, with a premium non-directional cross drilled and slotted design, plus an attractive gold finish on the rotor hub.

The introduction of our unique cross drilled and slotted design increases the number of exit points, allowing more brake pad friction dust and gases to escape through both the cross drilled holes and slots, resulting in better braking performance.

While providing a similar performance benefit to the T2 slot, the X Gold is a popular alternative for open wheel and show cars. We recommend the T2 slot design for more intensive braking applications.

X Gold is denoted by the suffix (X) in Street Series part numbers.



Specifications

Diameter [mm] 294
Height [mm] 57
Thickness [mm] 24
Minimum Thickness [mm] 22
Inner Diameter [mm] 58
Pitch Circle Ø [mm] 100
Weight [kg] 7.25
Number of Holes 5
Class gold
Disc Vent V

What's Included

  • 2 x DBA X-Gold Street Series Front Rotors

Compatibility

Note: Due to the variety of different brake packages sometimes used by manufacturers it is impossible to know exactly which car is fitted with which discs. The vehicle fitment information below is provided as a majority case only. Please measure factory discs and compare with the specifications above to confirm fitment.

Country Make Model Year Variant
Australia SUBARU FORESTER SG 2003-2008 2.0/2.5 XT All-wheel Drive-Petrol
Australia SUBARU FORESTER SH 2008-2013 2.5 XT All-wheel Drive-Petrol
Australia SUBARU IMPREZA WRX GC/GF 1999-2000 2.0 WRX All-wheel Drive-Petrol Sedan and Wagon
Australia SUBARU IMPREZA STI GC/GM 1999-2000 2.0 STI All-wheel Drive-Petrol Sedan
Australia SUBARU IMPREZA WRX GD/GG 2001-2005 2.0 WRX All-wheel Drive-Petrol Sedan and Wagon
Australia SUBARU IMPREZA WRX GD/GG 2006-2007 2.5 WRX All-wheel Drive-Petrol Sedan and Wagon
Australia SUBARU IMPREZA WRX G3 2009-2014 2.5 WRX All-wheel Drive-Petrol Sedan and Hatch
Australia SUBARU LIBERTY GT BL/BP 2004-2009 2.0/2.5 GT All-wheel Drive-Petrol Sedan and Wagon
Australia SUBARU OUTBACK BH 1998-2003 3.0 All-wheel Drive-Petrol
Australia SUBARU  OUTBACK BP 2004-2009 2.5/3.0 All-wheel Drive-Petrol
Australia SUBARU OUTBACK BR 2010-2015 2.5 All-wheel Drive-Petrol
Australia SUBARU BRZ ZC6 2012-2018 2.0 Premium Rear Wheel Drive-Petrol
Australia TOYOTA 86 GTS ZN6 2012-2018 2.0 GTS Rear Wheel Drive-Petrol

Important: Please see notes in compatibilty section regarding vehicle fitment.

DBA’s X Gold provides all the benefits of Street Series, with a premium non-directional cross drilled and slotted design, plus an attractive gold finish on the rotor hub.

The introduction of our unique cross drilled and slotted design increases the number of exit points, allowing more brake pad friction dust and gases to escape through both the cross drilled holes and slots, resulting in better braking performance.

While providing a similar performance benefit to the T2 slot, the X Gold is a popular alternative for open wheel and show cars. We recommend the T2 slot design for more intensive braking applications.

X Gold is denoted by the suffix (X) in Street Series part numbers.



Diameter [mm] 294
Height [mm] 57
Thickness [mm] 24
Minimum Thickness [mm] 22
Inner Diameter [mm] 58
Pitch Circle Ø [mm] 100
Weight [kg] 7.25
Number of Holes 5
Class gold
Disc Vent V

  • 2 x DBA X-Gold Street Series Front Rotors

Note: Due to the variety of different brake packages sometimes used by manufacturers it is impossible to know exactly which car is fitted with which discs. The vehicle fitment information below is provided as a majority case only. Please measure factory discs and compare with the specifications above to confirm fitment.

Country Make Model Year Variant
Australia SUBARU FORESTER SG 2003-2008 2.0/2.5 XT All-wheel Drive-Petrol
Australia SUBARU FORESTER SH 2008-2013 2.5 XT All-wheel Drive-Petrol
Australia SUBARU IMPREZA WRX GC/GF 1999-2000 2.0 WRX All-wheel Drive-Petrol Sedan and Wagon
Australia SUBARU IMPREZA STI GC/GM 1999-2000 2.0 STI All-wheel Drive-Petrol Sedan
Australia SUBARU IMPREZA WRX GD/GG 2001-2005 2.0 WRX All-wheel Drive-Petrol Sedan and Wagon
Australia SUBARU IMPREZA WRX GD/GG 2006-2007 2.5 WRX All-wheel Drive-Petrol Sedan and Wagon
Australia SUBARU IMPREZA WRX G3 2009-2014 2.5 WRX All-wheel Drive-Petrol Sedan and Hatch
Australia SUBARU LIBERTY GT BL/BP 2004-2009 2.0/2.5 GT All-wheel Drive-Petrol Sedan and Wagon
Australia SUBARU OUTBACK BH 1998-2003 3.0 All-wheel Drive-Petrol
Australia SUBARU  OUTBACK BP 2004-2009 2.5/3.0 All-wheel Drive-Petrol
Australia SUBARU OUTBACK BR 2010-2015 2.5 All-wheel Drive-Petrol
Australia SUBARU BRZ ZC6 2012-2018 2.0 Premium Rear Wheel Drive-Petrol
Australia TOYOTA 86 GTS ZN6 2012-2018 2.0 GTS Rear Wheel Drive-Petrol
