Description

Built tough for tough situationsÂ…

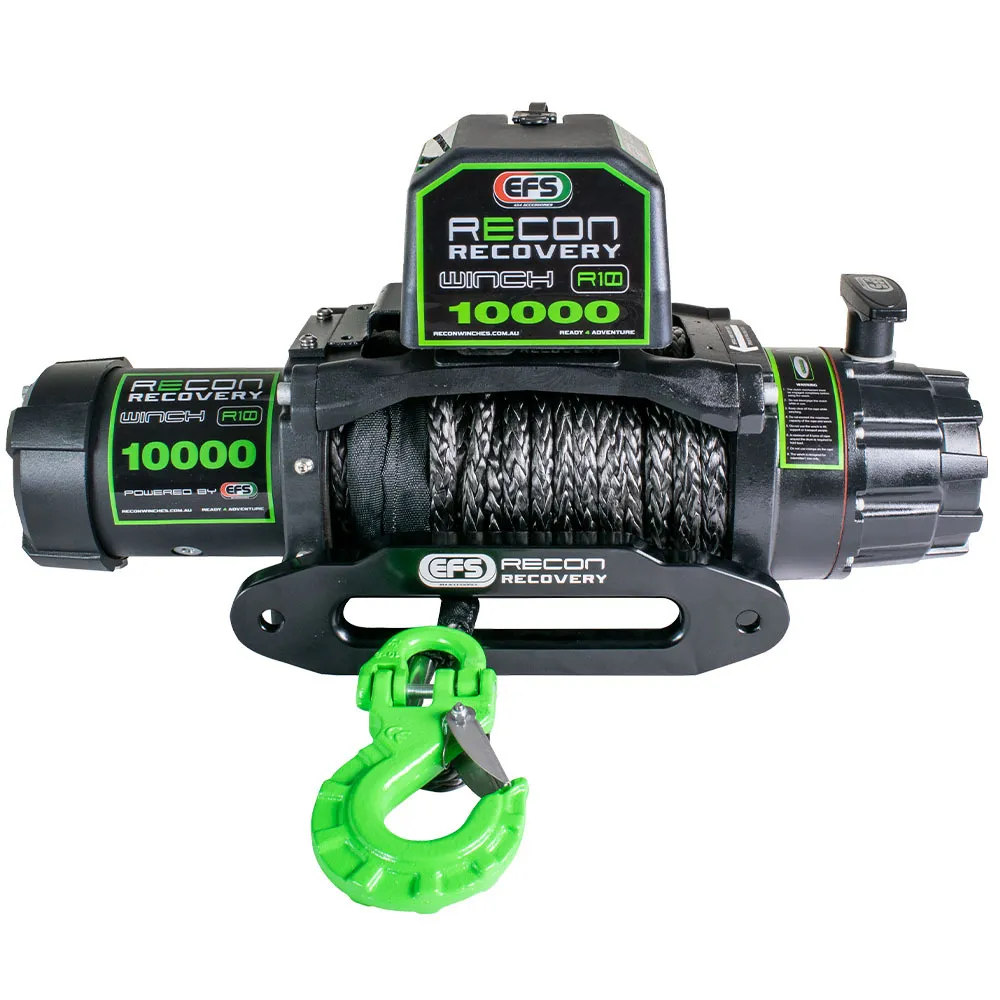

The EFS Recon R10 Winch has been developed with a super-fast retrieve rate and boasts a 10,000 LBS rated single line pull. The R10 has a full load automatic brake with a 158:1 gear ratio and comes complete with all pictured accessories.

Specifications

  • 10,000lbs / 4,540kg rated single line pull
  • 6.0HP 12volt series wound balanced electric motor waterproof motor/gearbox
  • 3 stage zinc plated hardened planetary gears
  • Motor breather kit
  • 158 :1 gear ratio
  • Rotating ring gear clutch with T-handle clutch engagement
  • 18,000lbs SYNTUFF synthetic multi-strand rope
  • Rope features high strength anti-bind nanotechnology &
  • Abrasion-resistance – 10mm diameter – 25 metre length
  • Full load automatic brake located at the motor side of the drum
  • Designed for synthetic rope – no heat build-up in the drum
  • Recommended battery 650 CCA minimum for winching
  • Battery leads: 1.83m
  • Shipping weight: 38kg
  • Winch dimensions (LxWxH): 562mm x 160mm x 172mm
  • Packing dimensions (LxWxH): 650mm x 250mm x 410mm
  • Mounting bolt pattern: 254mm x 114.3mm
  • Fairlead: Aluminium
  • Control box relay: 450A
  • Waterproof
  • Includes wireless & wired remote 3.6 metre lead

Compatibility

  • Universal Part

Built tough for tough situationsÂ…

The EFS Recon R10 Winch has been developed with a super-fast retrieve rate and boasts a 10,000 LBS rated single line pull. The R10 has a full load automatic brake with a 158:1 gear ratio and comes complete with all pictured accessories.

  • 10,000lbs / 4,540kg rated single line pull
  • 6.0HP 12volt series wound balanced electric motor waterproof motor/gearbox
  • 3 stage zinc plated hardened planetary gears
  • Motor breather kit
  • 158 :1 gear ratio
  • Rotating ring gear clutch with T-handle clutch engagement
  • 18,000lbs SYNTUFF synthetic multi-strand rope
  • Rope features high strength anti-bind nanotechnology &
  • Abrasion-resistance – 10mm diameter – 25 metre length
  • Full load automatic brake located at the motor side of the drum
  • Designed for synthetic rope – no heat build-up in the drum
  • Recommended battery 650 CCA minimum for winching
  • Battery leads: 1.83m
  • Shipping weight: 38kg
  • Winch dimensions (LxWxH): 562mm x 160mm x 172mm
  • Packing dimensions (LxWxH): 650mm x 250mm x 410mm
  • Mounting bolt pattern: 254mm x 114.3mm
  • Fairlead: Aluminium
  • Control box relay: 450A
  • Waterproof
  • Includes wireless & wired remote 3.6 metre lead
  • Universal Part
