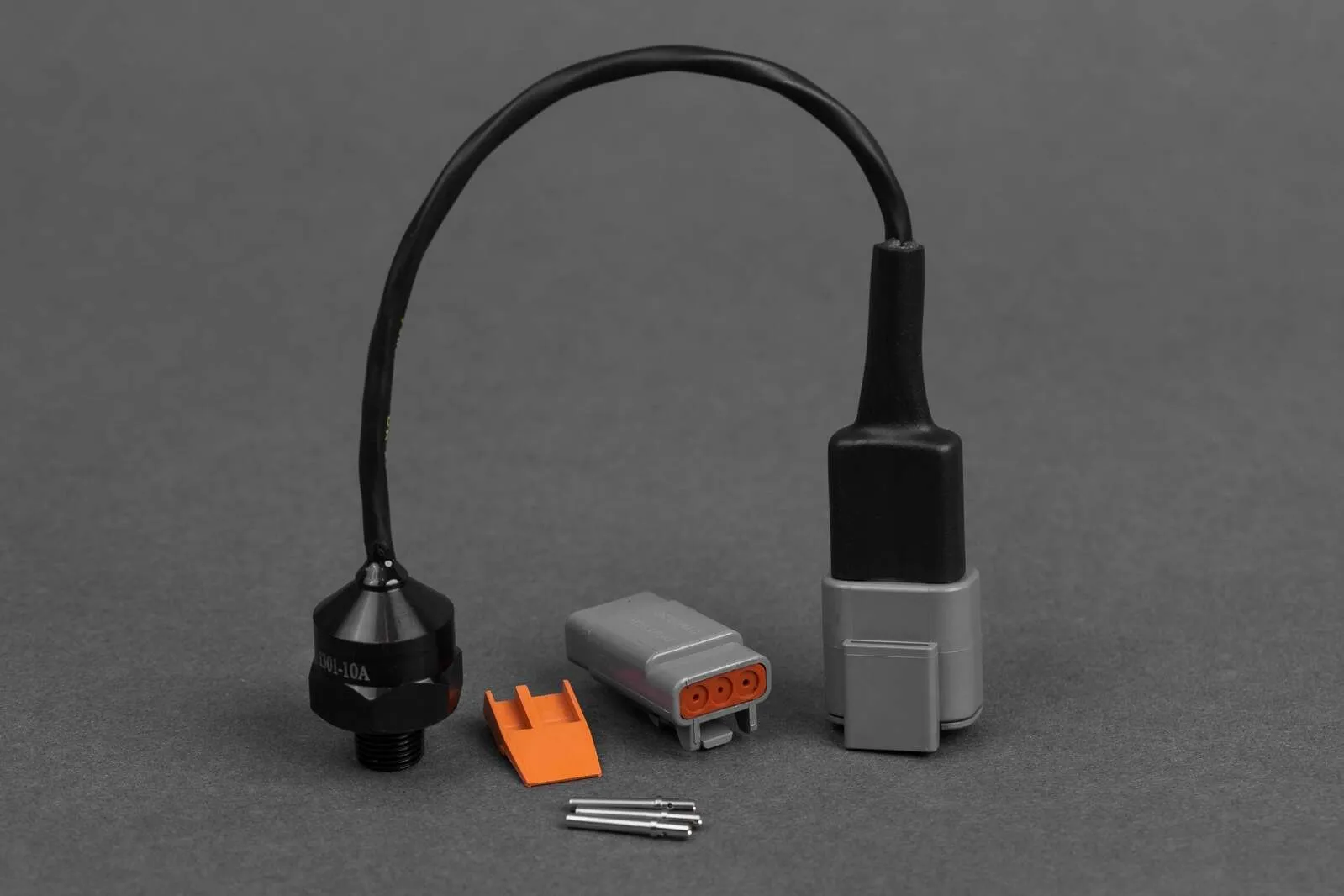

Description

The Emtron 1.0 Bar MAP Sensor uses a state-of-the-art piezoresistive transducer from NXP Semiconductors. It is highly accurate, providing a high level analog output signal that is proportional to the applied pressure. ​​​​​​​

Specifications

  • Genuine NXP Sensor
  • Pressure Range: 15kPa to 115kPa
  • Supply Voltage: 4.75 to 5.25 Volts DC
  • Current Supply 6.0mA
  • Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol.
  • Fully calibrated and temperature compensated from -40 DegC to +125 DegC
  • Response time 1ms
  • Compact Design
  • Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
  • Fully potted for a waterproof seal and resistance to shock and vibration
  • 1/8 NPT Thread
  • Deutsch 3 Way Connector (mating end also supplied)

Compatibility

  • Universal Part

The Emtron 1.0 Bar MAP Sensor uses a state-of-the-art piezoresistive transducer from NXP Semiconductors. It is highly accurate, providing a high level analog output signal that is proportional to the applied pressure. ​​​​​​​

  • Genuine NXP Sensor
  • Pressure Range: 15kPa to 115kPa
  • Supply Voltage: 4.75 to 5.25 Volts DC
  • Current Supply 6.0mA
  • Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol.
  • Fully calibrated and temperature compensated from -40 DegC to +125 DegC
  • Response time 1ms
  • Compact Design
  • Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
  • Fully potted for a waterproof seal and resistance to shock and vibration
  • 1/8 NPT Thread
  • Deutsch 3 Way Connector (mating end also supplied)
  • Universal Part
