Description

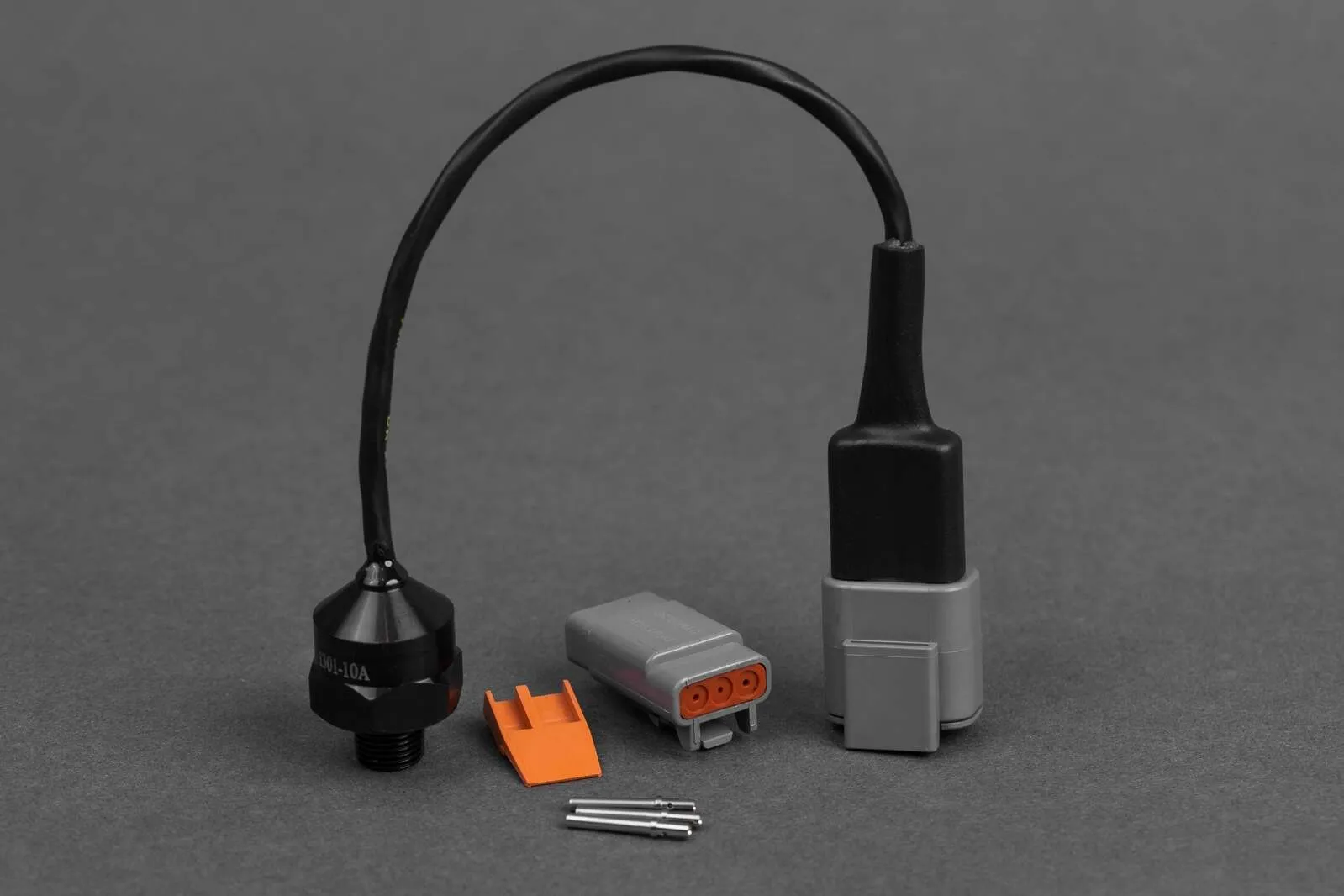

The Emtron 4.0 Bar MAP Sensor is a state-of-the-art, high temperature, media resistant absolute pressure sensor. It is highly accurate, providing an analog output signal proportional to the pressure applied.

Specifications

  • Genuine NXP Pressure Sensor
  • Pressure Range: 20kPa to 400kPa
  • Max Supply Voltage: 4.70 to 5.30 Volts DC
  • Output Type: Amplified, Ratiometric 0.0V - 5.0V
  • Current Supply 6.0mA
  • Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol
  • Fully calibrated and temperature compensated from -40 DegC to +125 DegC
  • Response time 1ms
  • Media Type: Air
  • Compact Design
  • Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
  • 1/8 NPT Thread
  • DTM 3 Way Connector(mating end also supplied)
  • Fully potted for a waterproof seal and resistance to shock and vibration

Compatibility

  • Universal Part

The Emtron 4.0 Bar MAP Sensor is a state-of-the-art, high temperature, media resistant absolute pressure sensor. It is highly accurate, providing an analog output signal proportional to the pressure applied.

  • Genuine NXP Pressure Sensor
  • Pressure Range: 20kPa to 400kPa
  • Max Supply Voltage: 4.70 to 5.30 Volts DC
  • Output Type: Amplified, Ratiometric 0.0V - 5.0V
  • Current Supply 6.0mA
  • Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol
  • Fully calibrated and temperature compensated from -40 DegC to +125 DegC
  • Response time 1ms
  • Media Type: Air
  • Compact Design
  • Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
  • 1/8 NPT Thread
  • DTM 3 Way Connector(mating end also supplied)
  • Fully potted for a waterproof seal and resistance to shock and vibration
  • Universal Part
