Description

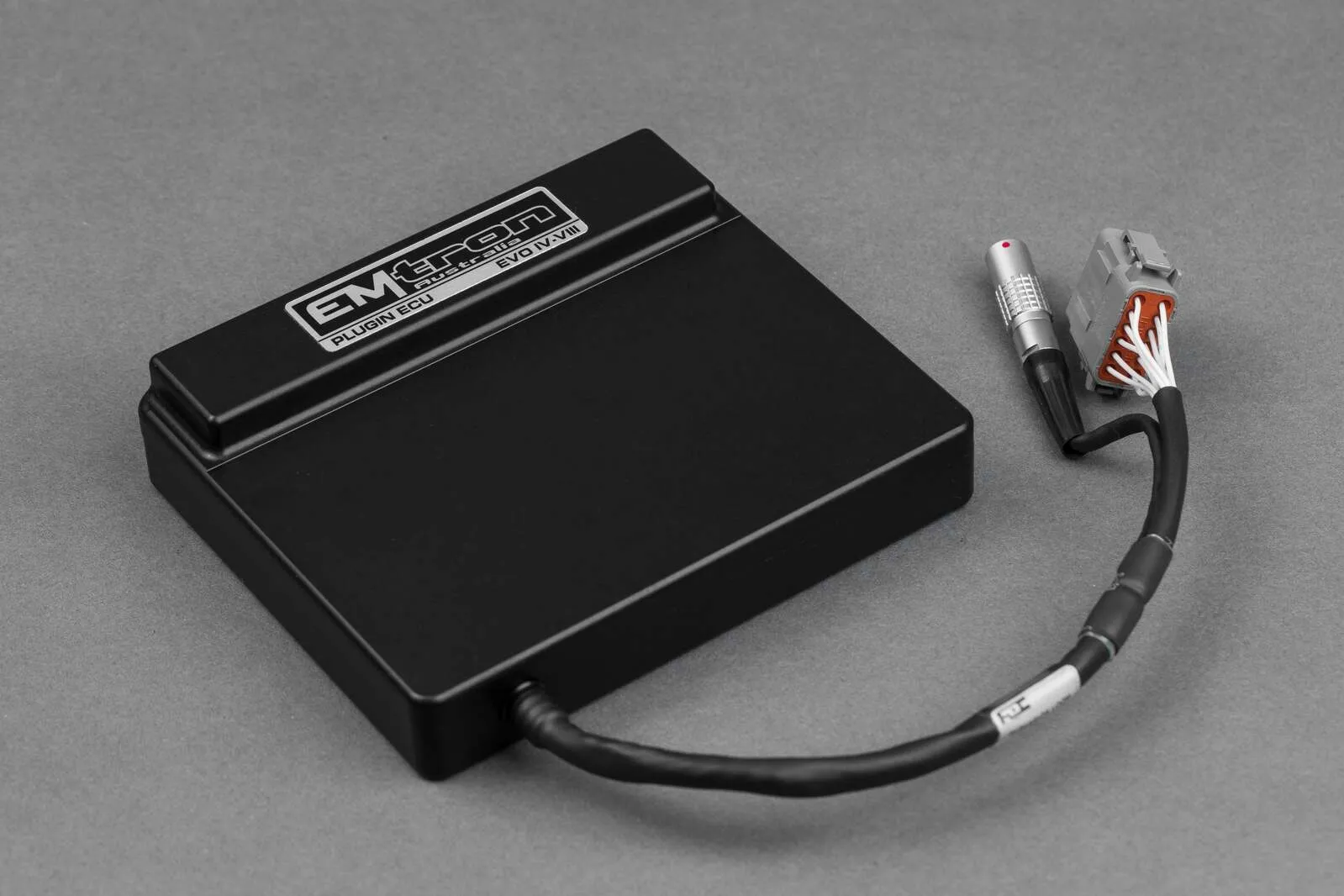

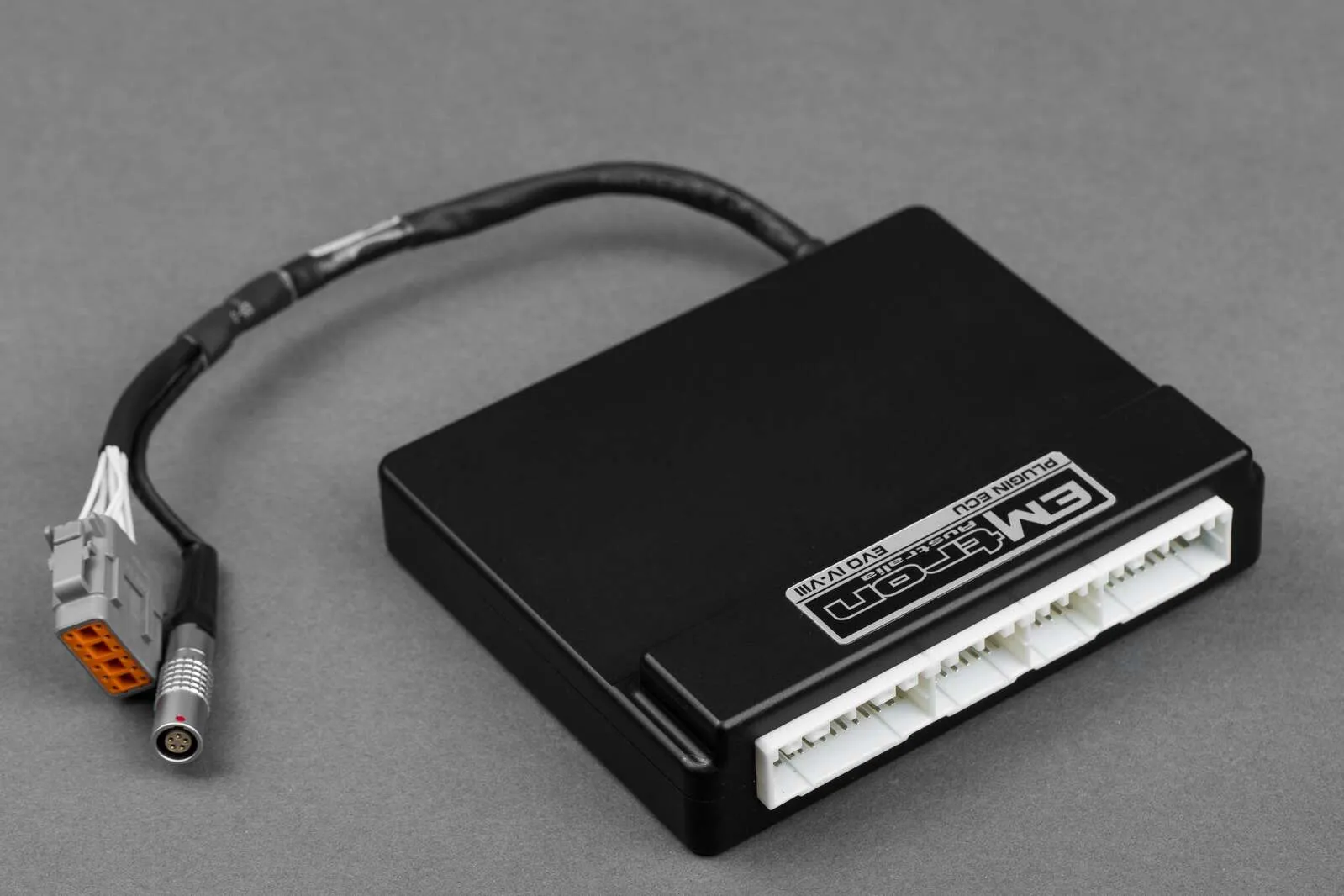

The Mitsubishi EVO 4-8 ECU is designed to be plugged into the OEM harness to allow for a true “Plug and Play” install. The system is based on the KV Series Motorsport ECU, so all the same features are available excluding any limitations based around the OEM connector system. An Expansion port is included giving access to unused Input channels. CAN Bus 2 is also available providing additional I/O expandability.

Specifications

Our Plugin ECU Series merges the extreme power of our race proven KV series ECU with the convenience of connecting directly into the factory vehicle connector system

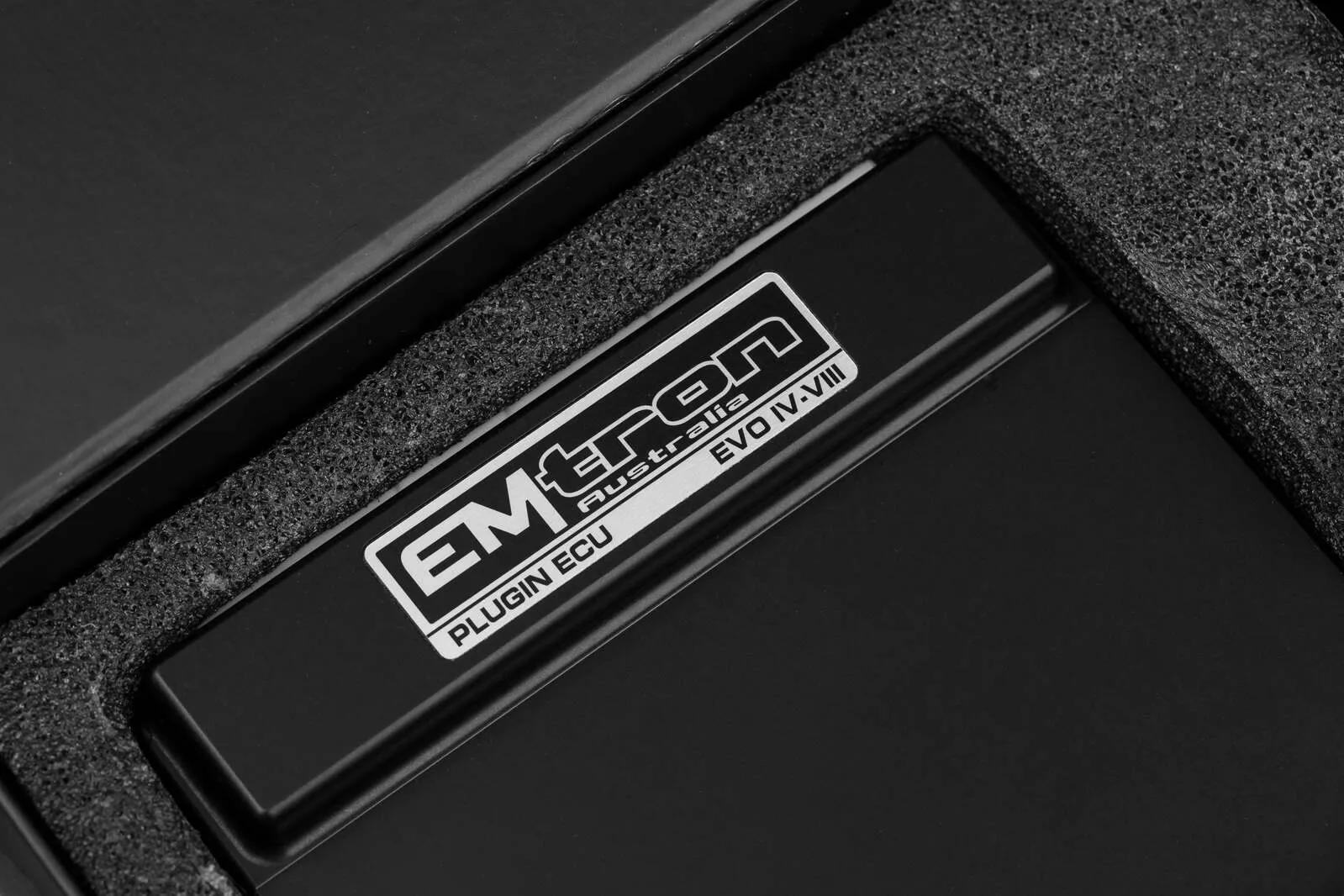

  • 6061 Aluminium CNC Billet Enclosure
  • Dual 100MHz Processors
  • 32MB ECU Logging (Over 600 Channels)
  • Ethernet High Speed Communications
  • Up to 4 Ignition Outputs (Re assign factory pins)
  • DBW Control (Re assign factory pins)
  • 3 Axis Accelerometer
  • 1 x CAN Bus (Expansion Connector)
  • 1 x Individual Cylinder Knock Control Input (Bosch)
  • Upgradable to run the Emtron Fuel model through installation of a Flex Meter, Fuel Temperature and Fuel Pressure Sensor
  • Compatible with all Emtron Motorsport features

Compatibility

  • Mitsubishi EVO 4-8 1996-2005

The Mitsubishi EVO 4-8 ECU is designed to be plugged into the OEM harness to allow for a true “Plug and Play” install. The system is based on the KV Series Motorsport ECU, so all the same features are available excluding any limitations based around the OEM connector system. An Expansion port is included giving access to unused Input channels. CAN Bus 2 is also available providing additional I/O expandability.

Our Plugin ECU Series merges the extreme power of our race proven KV series ECU with the convenience of connecting directly into the factory vehicle connector system

  • 6061 Aluminium CNC Billet Enclosure
  • Dual 100MHz Processors
  • 32MB ECU Logging (Over 600 Channels)
  • Ethernet High Speed Communications
  • Up to 4 Ignition Outputs (Re assign factory pins)
  • DBW Control (Re assign factory pins)
  • 3 Axis Accelerometer
  • 1 x CAN Bus (Expansion Connector)
  • 1 x Individual Cylinder Knock Control Input (Bosch)
  • Upgradable to run the Emtron Fuel model through installation of a Flex Meter, Fuel Temperature and Fuel Pressure Sensor
  • Compatible with all Emtron Motorsport features
  • Mitsubishi EVO 4-8 1996-2005
