Description

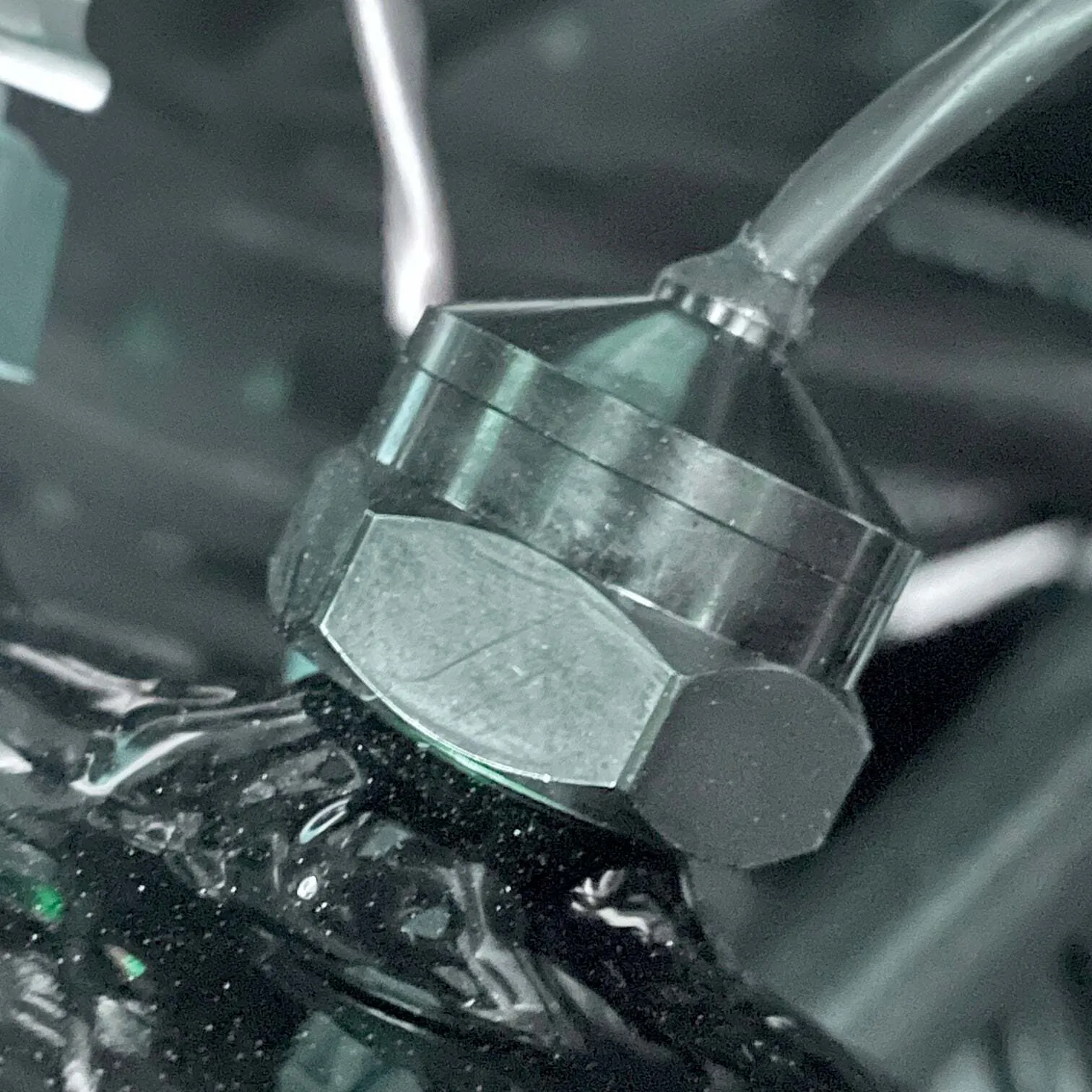

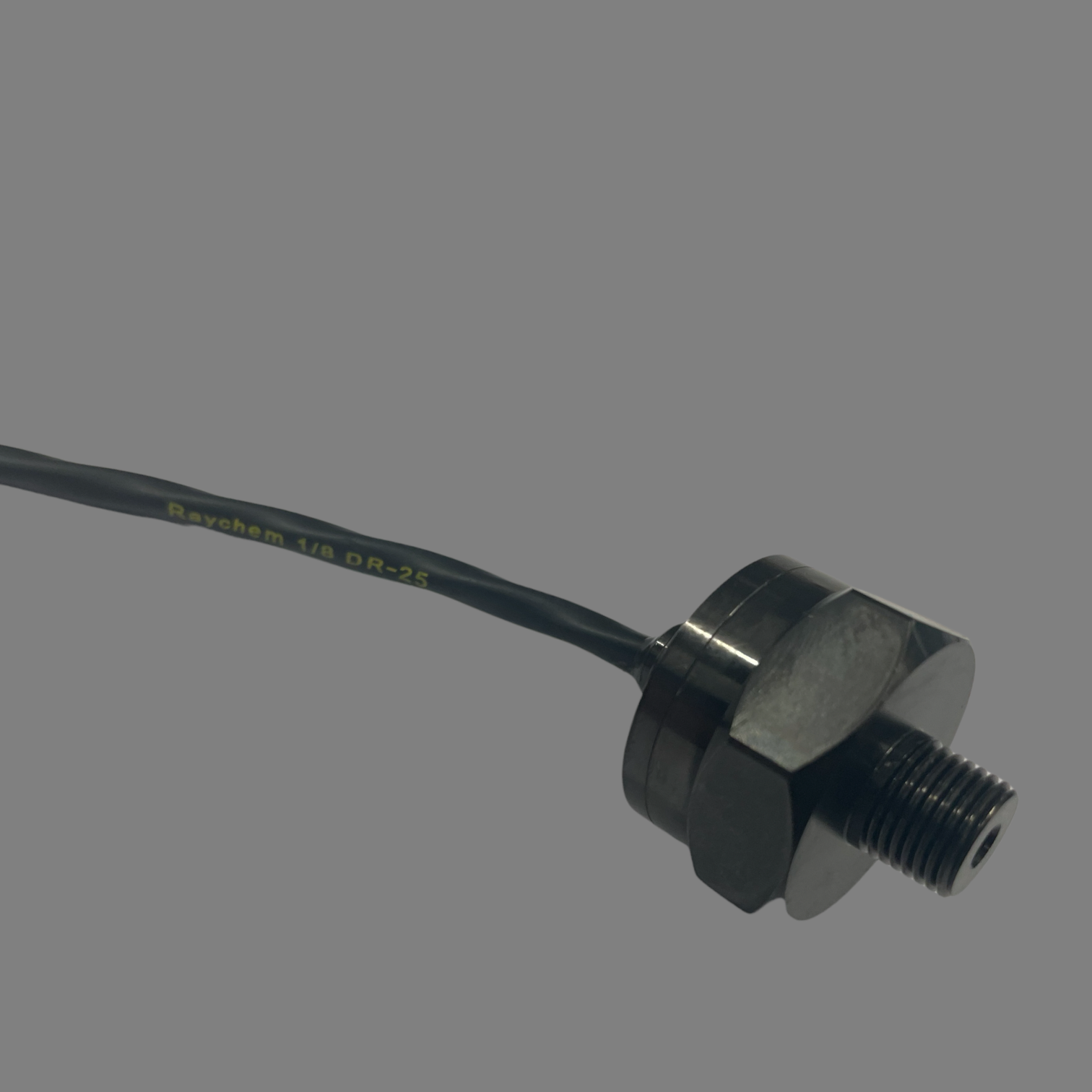

The Emtron 300psi Gauge Pressure Sensor uses a state-of-the-art piezoresistive transducer from Bourns Semiconductors. It is highly accurate, providing a high level analog output signal that is proportional to the applied pressure.

Specifications

  • Genuine Bourns BPX130 series sensor
  • Pressure Range: 0kPa to 2068.4kPa
  • Supply Voltage: 4.50 to 5.50 Volts DC
  • Current Supply 10.0mA
  • Compatible with harsh media - air, water, oil, petrol and methanol.
  • Fully calibrated and temperature compensated from -40 DegC to +150 DegC
  • Response time 1ms
  • Compact Design
  • Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
  • Fully potted for a waterproof seal and resistance to shock and vibration
  • 1/8 NPT Thread
  • Deutsch 3 Way Connector (mating end also supplied)

Compatibility

  • Universal Part

The Emtron 300psi Gauge Pressure Sensor uses a state-of-the-art piezoresistive transducer from Bourns Semiconductors. It is highly accurate, providing a high level analog output signal that is proportional to the applied pressure.

  • Genuine Bourns BPX130 series sensor
  • Pressure Range: 0kPa to 2068.4kPa
  • Supply Voltage: 4.50 to 5.50 Volts DC
  • Current Supply 10.0mA
  • Compatible with harsh media - air, water, oil, petrol and methanol.
  • Fully calibrated and temperature compensated from -40 DegC to +150 DegC
  • Response time 1ms
  • Compact Design
  • Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
  • Fully potted for a waterproof seal and resistance to shock and vibration
  • 1/8 NPT Thread
  • Deutsch 3 Way Connector (mating end also supplied)
  • Universal Part
