Description

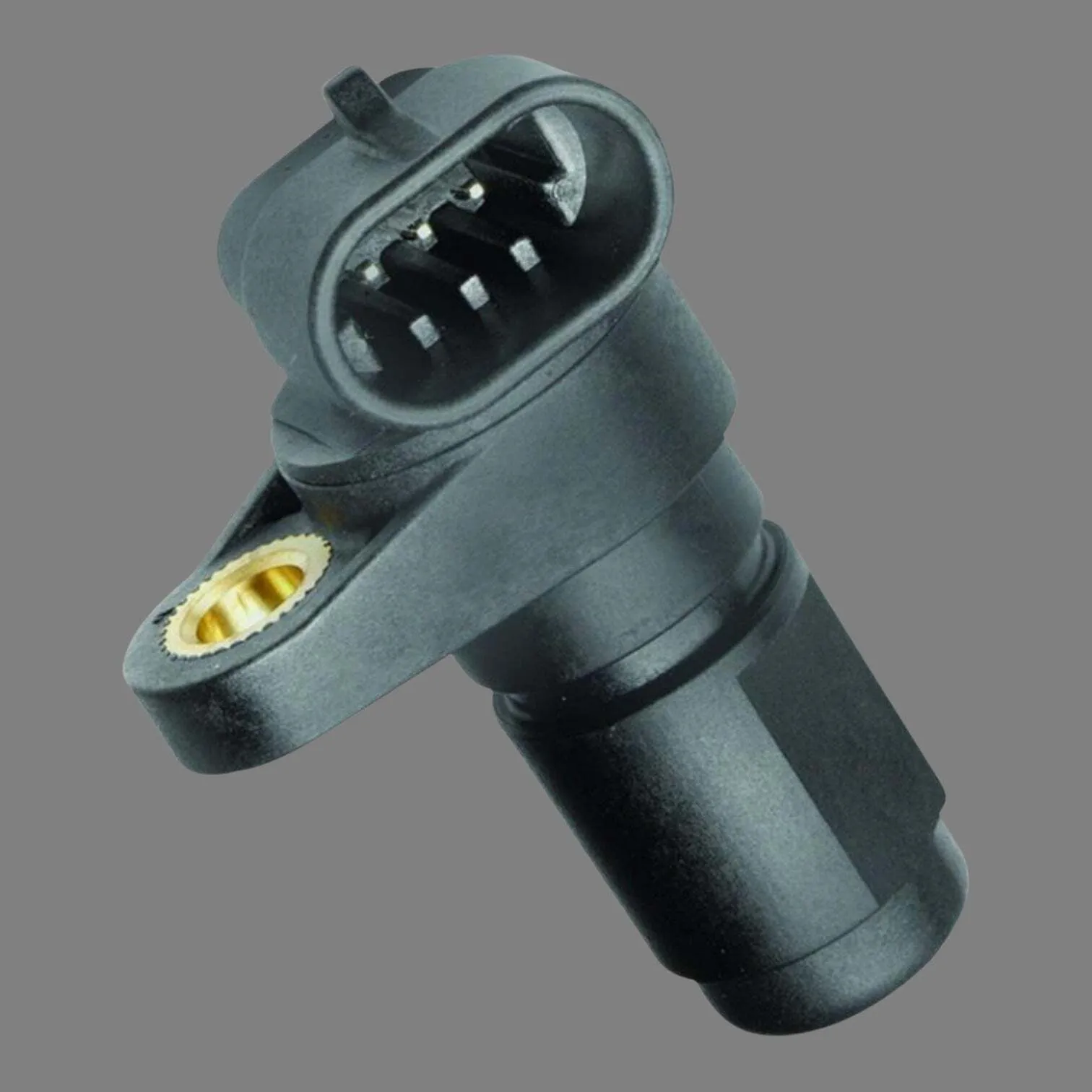

The Emtron Gear Tooth Sensor is a state-of-the-art flange mounted hall effect Hall Effect sensor designed for use in applications where ferrous edge detection/near zero speed sensing is required. Being of a single Hall design, the sensor is immune to alignment issues allowing unlimited mounting positions. Features & Benefits:

Specifications

  • From near zero speed up to 15 kHz sensing capability
  • Capable of operating up to 150ºC
  • Plastic flange mount-housing
  • Resistant to fuels, solvents, and lubricants associated with vehicles
  • RoHS compliant
  • Sealed design exceeds IEC60529 IP67 standard for immersion
  • Easily customizable connector orientation
  • Typical air gap of 1.5 mm (With recommended target type; see drawing)
  • Mating connector - Delphi 12162280 (Type 102) *
  • Mating connector pin - Delphi PN: 12124075 or 12124076

Compatibility

  • Universal Part

The Emtron Gear Tooth Sensor is a state-of-the-art flange mounted hall effect Hall Effect sensor designed for use in applications where ferrous edge detection/near zero speed sensing is required. Being of a single Hall design, the sensor is immune to alignment issues allowing unlimited mounting positions. Features & Benefits:

  • From near zero speed up to 15 kHz sensing capability
  • Capable of operating up to 150ºC
  • Plastic flange mount-housing
  • Resistant to fuels, solvents, and lubricants associated with vehicles
  • RoHS compliant
  • Sealed design exceeds IEC60529 IP67 standard for immersion
  • Easily customizable connector orientation
  • Typical air gap of 1.5 mm (With recommended target type; see drawing)
  • Mating connector - Delphi 12162280 (Type 102) *
  • Mating connector pin - Delphi PN: 12124075 or 12124076
  • Universal Part
