Description

Emtron ED5 and 8 Button CAN Keypad package.

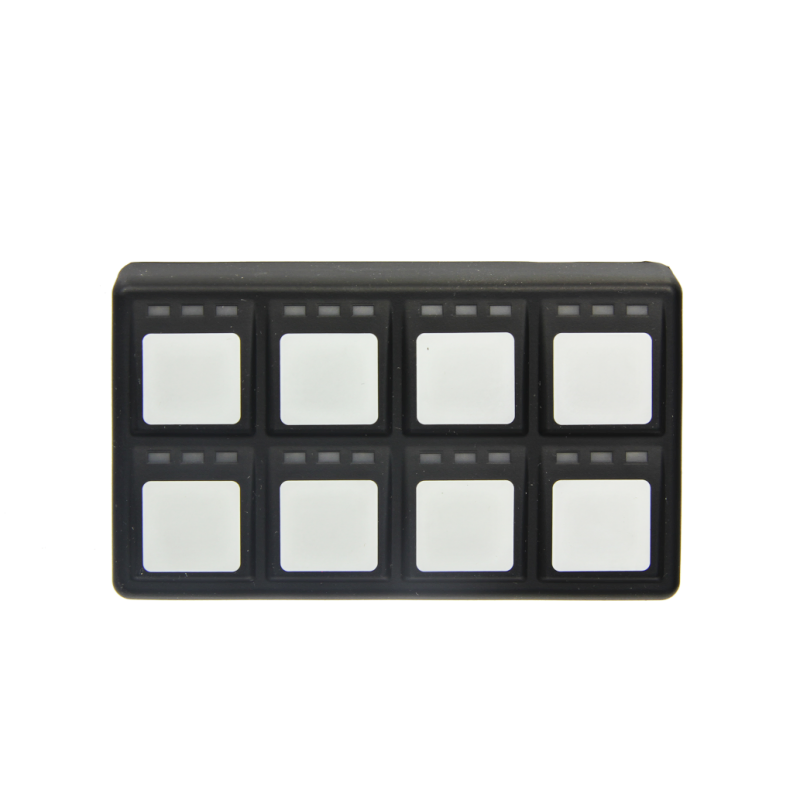

This keypad can be configured to control various engine, display and vehicular functions. This keypad has been tested in the most vigorous motorsport environments and ensure reliability and consistency for those seeking the best option in the marketplace. Utilising the CAN Bus network, r the keypad requires just 4 wires and your mounting options are endless due its size mounting solution. The 3 LED lights will provide feedback as to which function is being utilised and the buttons are backlit to provide night time visibility. This keypad is pre-programmed to be plug and play with the current range of Emtron ECUs and the Emtron CD5 display.

The keypad comes with a sticker sheet to be used to identify the function each button represents.

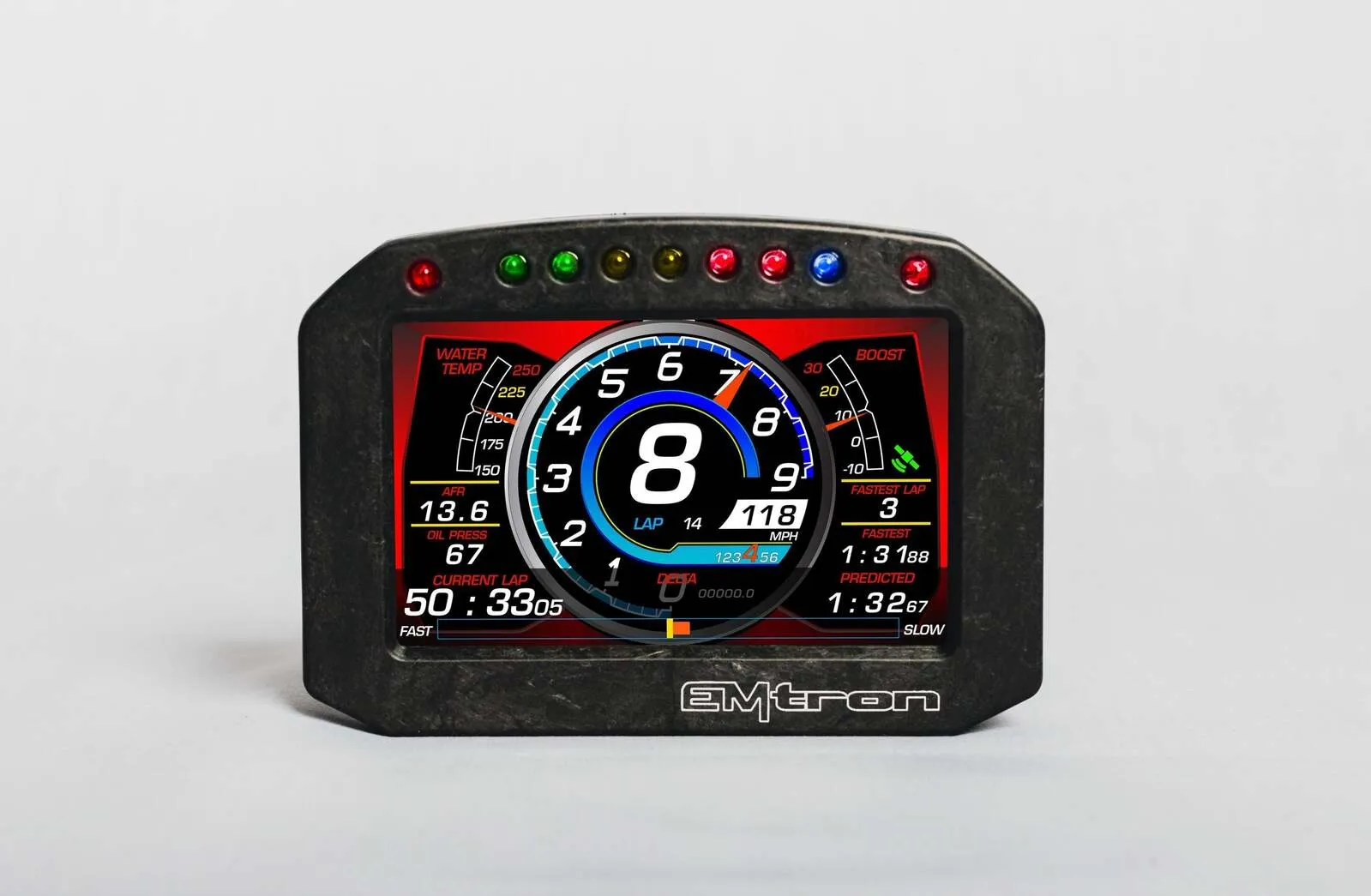

ED-5 Carbon Digital Dash Displays feature a full-colour, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed colour LEDs. A remote button can be wired into the rear connector, allowing the user to scroll between screens . Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.

Specifications

  • Full colour 5" screen with 800×480 resolution.
  • Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
  • Rugged, lightweight flow-molded carbon fiber composite enclosure
  • Total display weight of 11.7 oz./331 grams
  • IP66 water resistance allows for operation in boats and motorcycles without worry

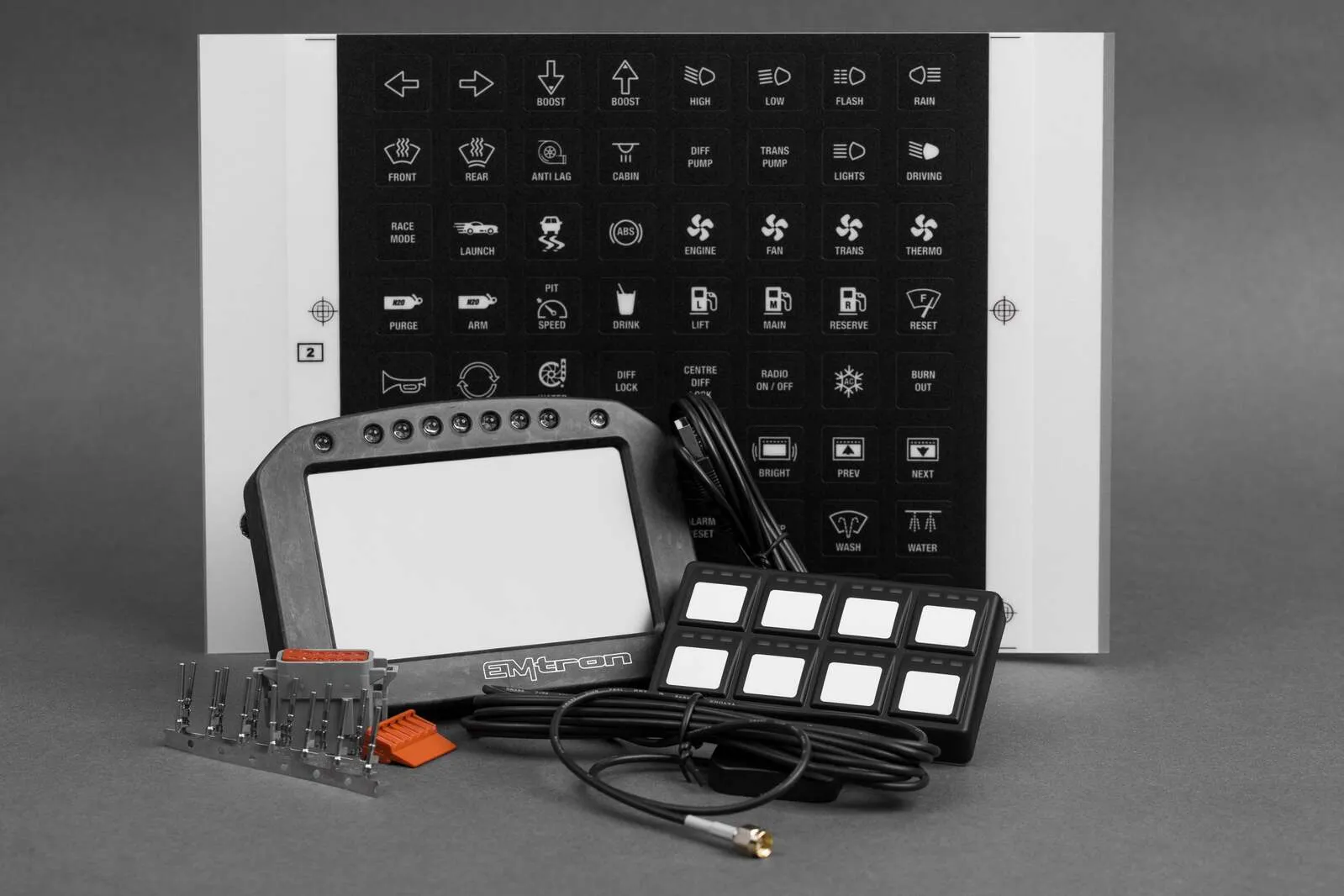

Comes with ED5, communication cable, GPS module and plug and pin kit.

Compatibility

  • Universal Part

Emtron ED5 and 8 Button CAN Keypad package.

This keypad can be configured to control various engine, display and vehicular functions. This keypad has been tested in the most vigorous motorsport environments and ensure reliability and consistency for those seeking the best option in the marketplace. Utilising the CAN Bus network, r the keypad requires just 4 wires and your mounting options are endless due its size mounting solution. The 3 LED lights will provide feedback as to which function is being utilised and the buttons are backlit to provide night time visibility. This keypad is pre-programmed to be plug and play with the current range of Emtron ECUs and the Emtron CD5 display.

The keypad comes with a sticker sheet to be used to identify the function each button represents.

ED-5 Carbon Digital Dash Displays feature a full-colour, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed colour LEDs. A remote button can be wired into the rear connector, allowing the user to scroll between screens . Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.

  • Full colour 5" screen with 800×480 resolution.
  • Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
  • Rugged, lightweight flow-molded carbon fiber composite enclosure
  • Total display weight of 11.7 oz./331 grams
  • IP66 water resistance allows for operation in boats and motorcycles without worry

Comes with ED5, communication cable, GPS module and plug and pin kit.

  • Universal Part
