Description

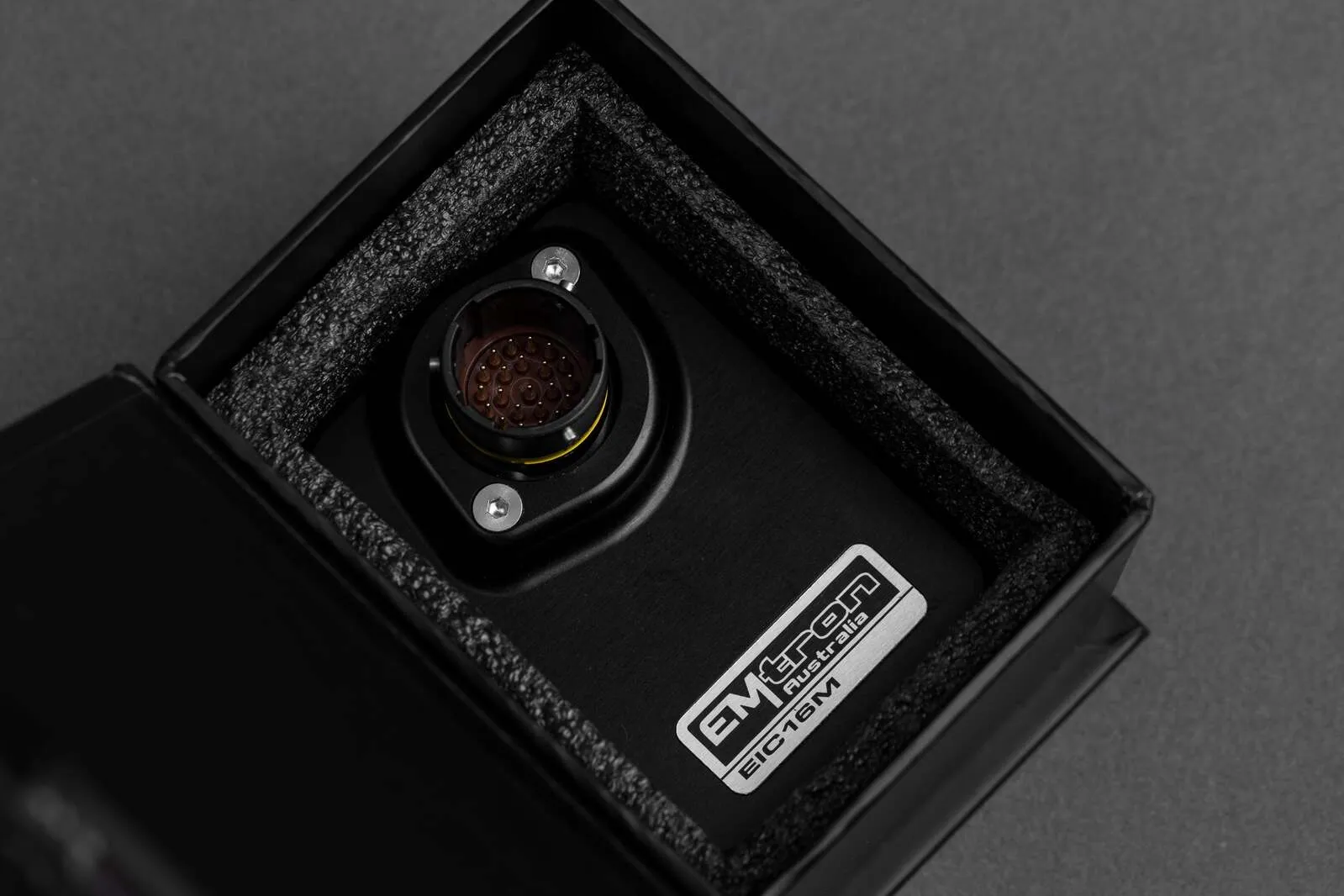

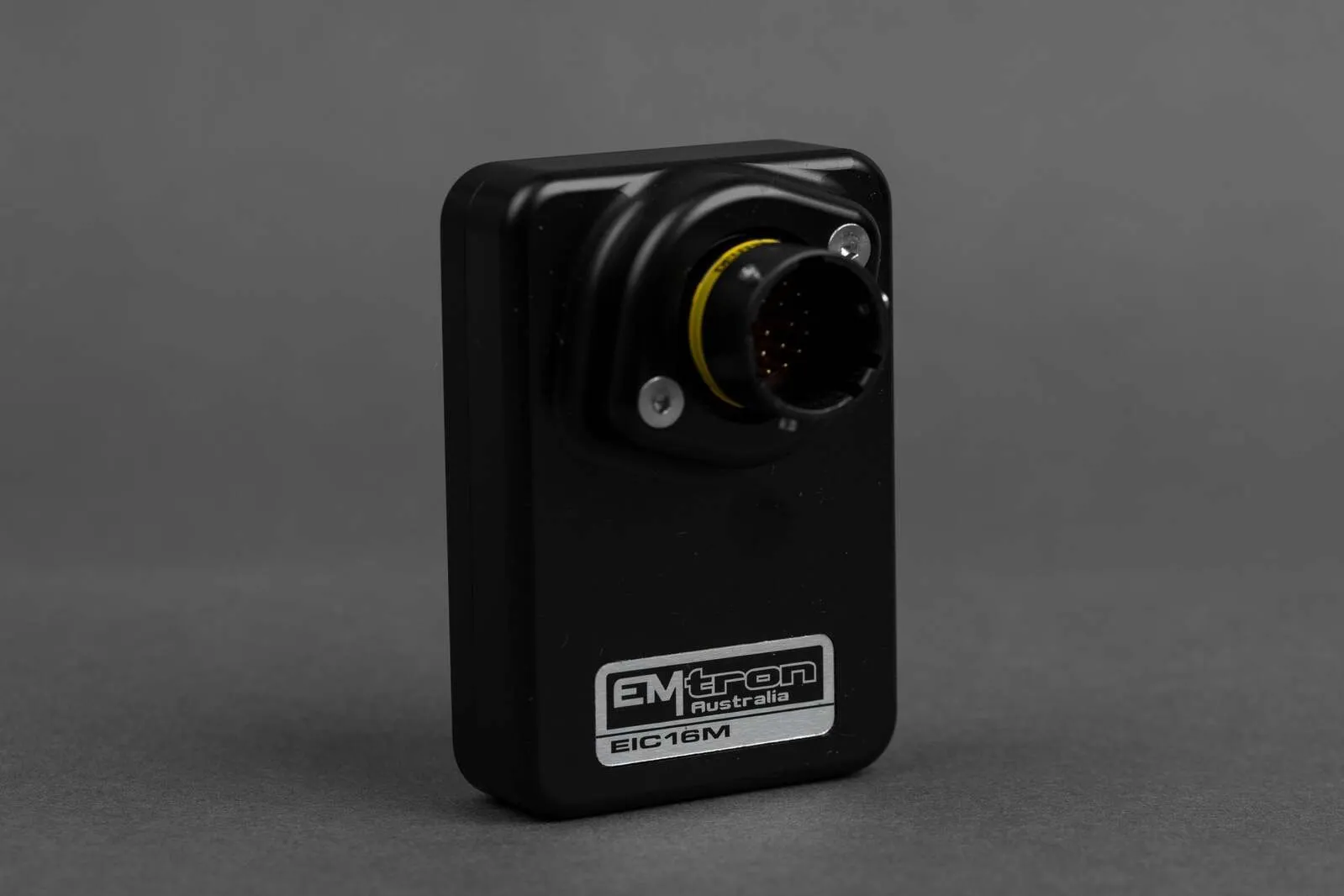

The EIC16M is a device designed to increase the input channel capability of all Emtron ECUs. The device is connected via CAN bus and will be automatically detected which will significantly minimize configuration time. The enclosure is made from billet 6061 aluminium and is waterproof to allow for implementation in extreme environments. Installation is made simple through use of a Motorsport proven Deutsch Autosport connector system

Specifications

  • Operating Voltage: 7.0 to 22.0 Volts DC
  • Operating Current 60mA at 14.0V
  • Reverse Battery Protection
  • 64MHz 16-bit Automotive Processor
  • x12 Analog Inputs 0.0 – 5.0V
Resolution:
  • 0 - 5.0V: 12 Bit 1.22mV
  • x4 Analog Inputs 0.0 - 16.0V
Resolution:
  • 0 - 16.0V: 12 Bit 3.90mV
  • Analog Sampling Rate 500 Hz
  • Frequency Inputs x4 Channels (Shared with Inputs ANV13-16):
    • Range 0.2Hz up to 6500.0Hz
    • 0.1Hz
  • Switchable 1k Pullups to 5V on Inputs AN9 - 16
  • CAN Baud Rate: 250kBaud, 500kBaud or 1Mbaud Auto Detect
  • CAN Transmit Rate Adjustable: 100Hz/200Hz/500 Hz
  • Operating Temperature Range: -30 to 85°C (-22 to 185°F)

Compatibility

  • Universal Part

The EIC16M is a device designed to increase the input channel capability of all Emtron ECUs. The device is connected via CAN bus and will be automatically detected which will significantly minimize configuration time. The enclosure is made from billet 6061 aluminium and is waterproof to allow for implementation in extreme environments. Installation is made simple through use of a Motorsport proven Deutsch Autosport connector system

  • Operating Voltage: 7.0 to 22.0 Volts DC
  • Operating Current 60mA at 14.0V
  • Reverse Battery Protection
  • 64MHz 16-bit Automotive Processor
  • x12 Analog Inputs 0.0 – 5.0V
Resolution:
  • 0 - 5.0V: 12 Bit 1.22mV
  • x4 Analog Inputs 0.0 - 16.0V
Resolution:
  • 0 - 16.0V: 12 Bit 3.90mV
  • Analog Sampling Rate 500 Hz
  • Frequency Inputs x4 Channels (Shared with Inputs ANV13-16):
    • Range 0.2Hz up to 6500.0Hz
    • 0.1Hz
  • Switchable 1k Pullups to 5V on Inputs AN9 - 16
  • CAN Baud Rate: 250kBaud, 500kBaud or 1Mbaud Auto Detect
  • CAN Transmit Rate Adjustable: 100Hz/200Hz/500 Hz
  • Operating Temperature Range: -30 to 85°C (-22 to 185°F)
  • Universal Part
