Description

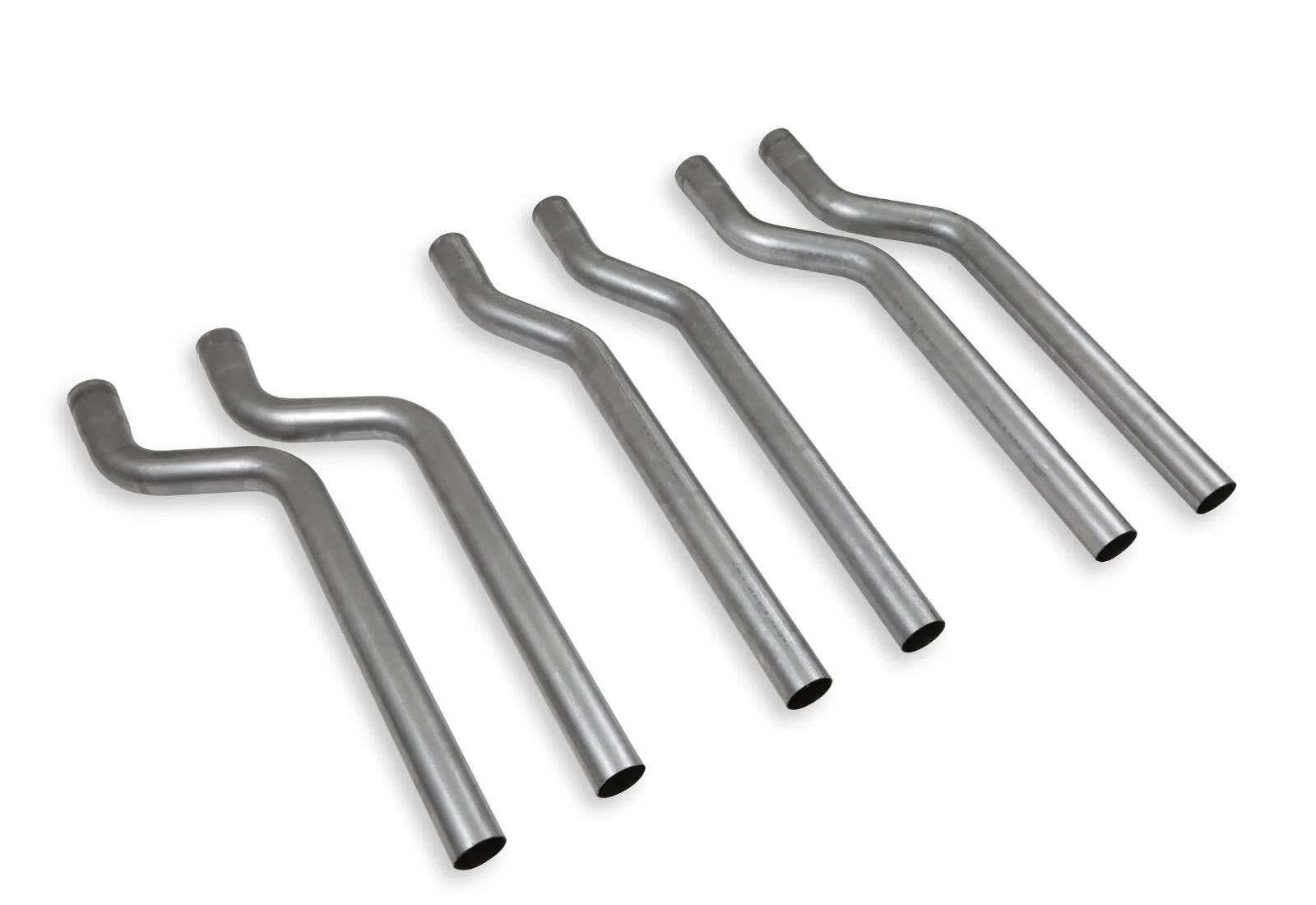

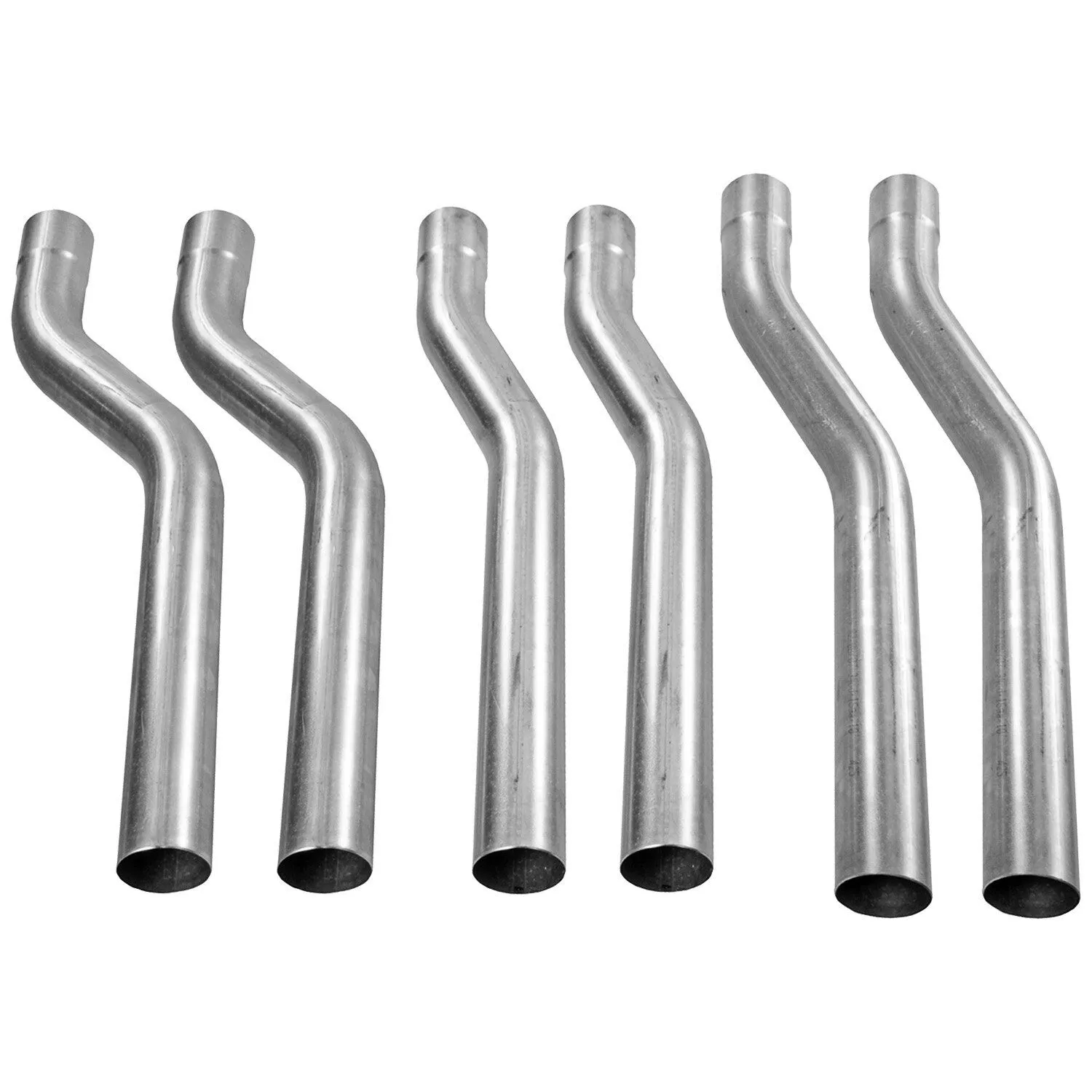

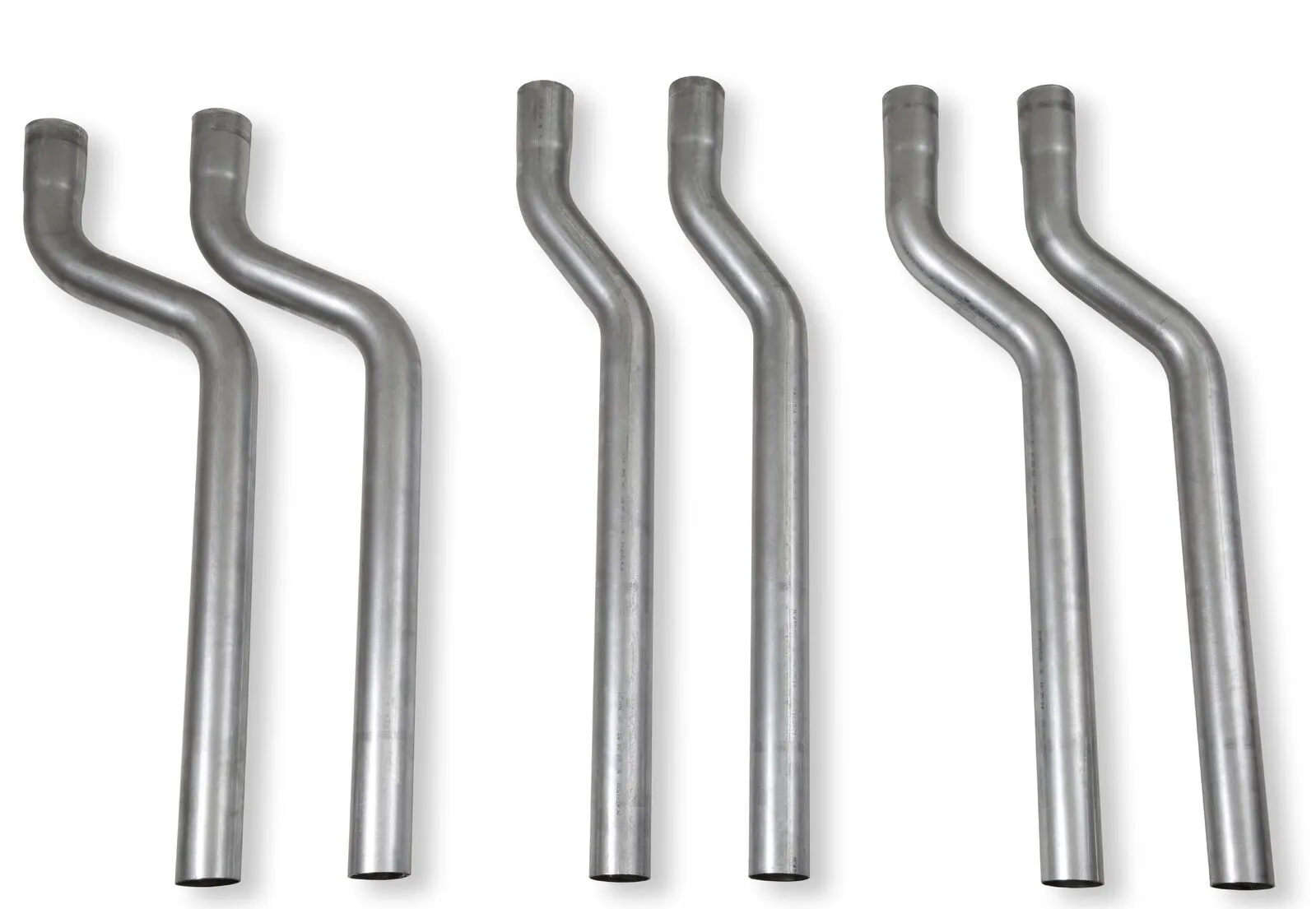

Mandrel bent S-shape pipes developed to simplify the routing and fabrication of exhaust pipes from headers to muffler. Deep slip fit on single end of pipe(s). Available in various sizes.

Features

  • Includes (2) Each of 4.00-inch, 6.00-inch and 8.00-inch Offsets
  • 2.50-inch Tubing Approximately 36-inches in Length
  • Mandrel-bent 16 Gauge Aluminized Steel Tubing
  • Great for Dual Exhaust System Fabrication

Specifications

Bend TypeS-Bend
BrandFlowmaster
California Proposition 65 RequiredNo
Clamping TypeU Bolt
Clamps IncludedNo
ColourGray
Emission Code5
FinishAluminized
Flanged InletNo
Gasket Or Seal IncludedNo
Grade TypePerformance
Inlet ConnectionSlip-Fit
Inlet Inside Diameter2.50
Inlet Outside Diameter2.625
Length~36.00
Main Piping Diameter2-1/2
Main Piping Diameter2.50
MaterialAluminized Steel
Outlet ConnectionSlip-Fit
Outlet Inside Diameter2.375
Outlet Outside Diameter2.50
Pipe Bend TypeMandrel
Pipe Diameter2.50
Primary Tube Dia.2-1/2 inch
Product TypeExhaust Accessories
Quantity1
Sale CategoryExhaust
Sheen LevelFlat
Tube MaterialAluminized Steel
Tubing Diameter2.5
Welded Bracket Quantity0
Welded HangerNo

Compatibility

  • Universal Part

Mandrel bent S-shape pipes developed to simplify the routing and fabrication of exhaust pipes from headers to muffler. Deep slip fit on single end of pipe(s). Available in various sizes.

Features

  • Includes (2) Each of 4.00-inch, 6.00-inch and 8.00-inch Offsets
  • 2.50-inch Tubing Approximately 36-inches in Length
  • Mandrel-bent 16 Gauge Aluminized Steel Tubing
  • Great for Dual Exhaust System Fabrication
Bend TypeS-Bend
BrandFlowmaster
California Proposition 65 RequiredNo
Clamping TypeU Bolt
Clamps IncludedNo
ColourGray
Emission Code5
FinishAluminized
Flanged InletNo
Gasket Or Seal IncludedNo
Grade TypePerformance
Inlet ConnectionSlip-Fit
Inlet Inside Diameter2.50
Inlet Outside Diameter2.625
Length~36.00
Main Piping Diameter2-1/2
Main Piping Diameter2.50
MaterialAluminized Steel
Outlet ConnectionSlip-Fit
Outlet Inside Diameter2.375
Outlet Outside Diameter2.50
Pipe Bend TypeMandrel
Pipe Diameter2.50
Primary Tube Dia.2-1/2 inch
Product TypeExhaust Accessories
Quantity1
Sale CategoryExhaust
Sheen LevelFlat
Tube MaterialAluminized Steel
Tubing Diameter2.5
Welded Bracket Quantity0
Welded HangerNo
  • Universal Part
