Description

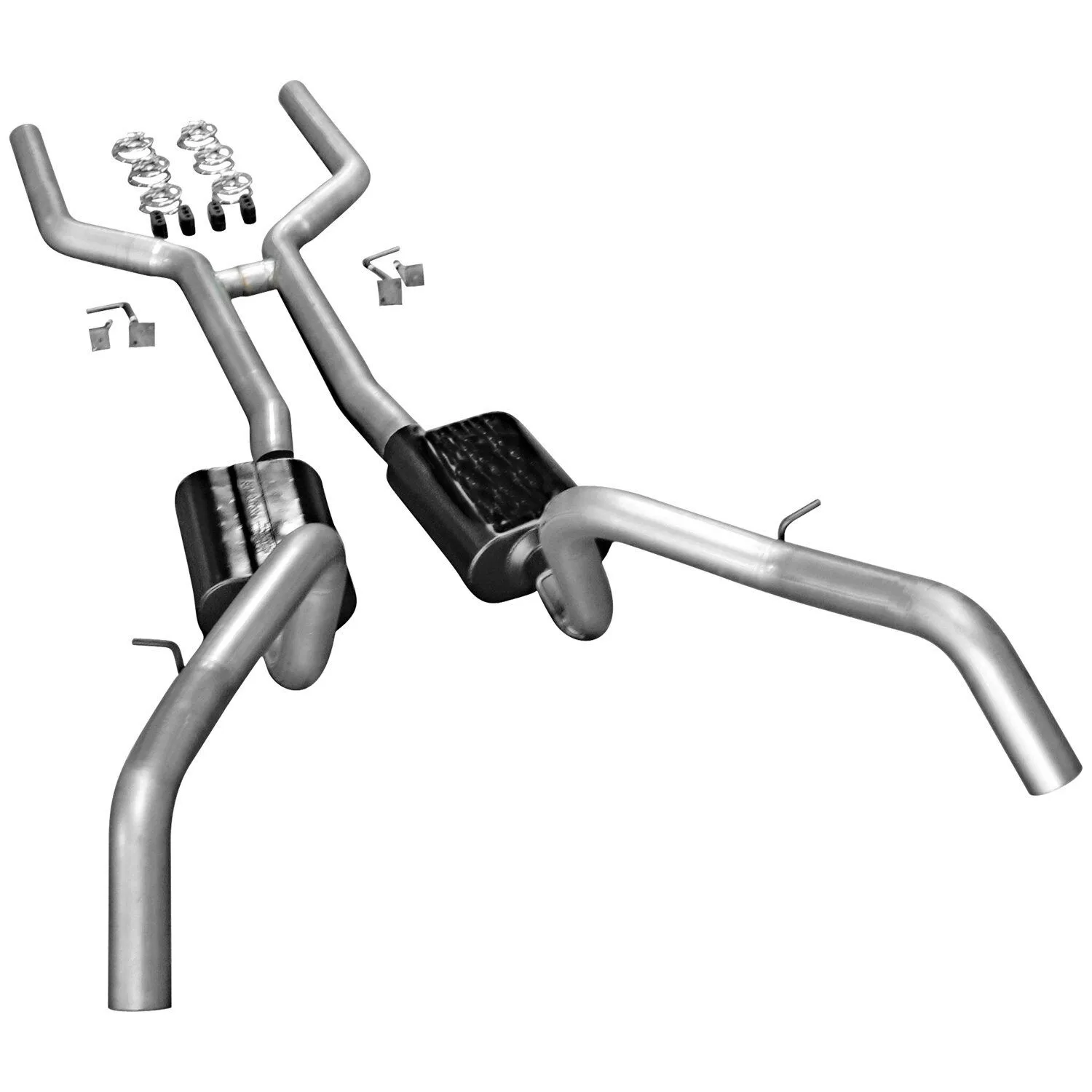

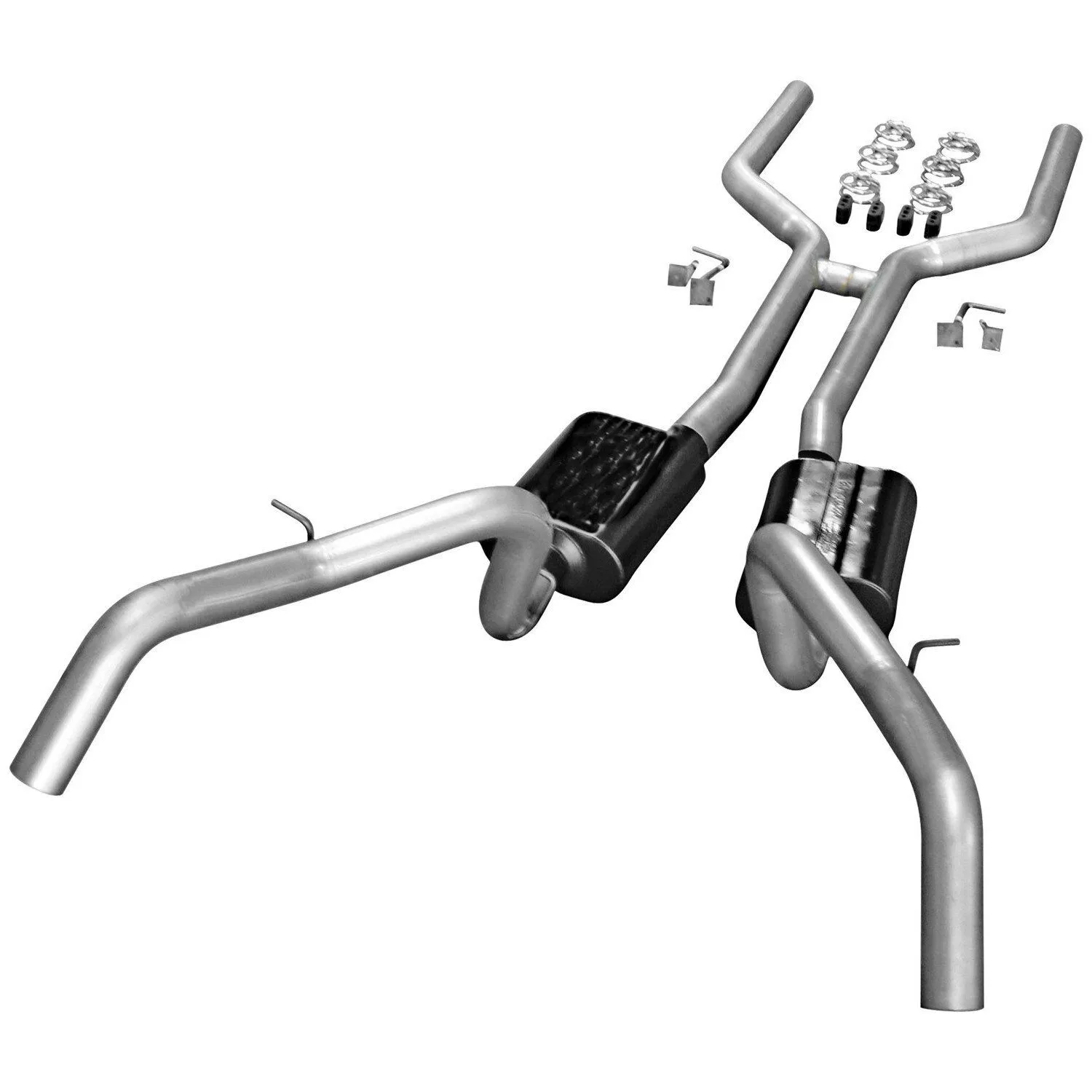

This Crossmember-Back American Thunder system is custom designed for high horsepower and large cubic inch engines in 1967-1969 Chevrolet Camaro and Pontiac Firebirds with a V8 engine. It's a true-dual exhaust system featuring all mandrel-bent 3.00-inch aluminized steel tubing with a built-in H-pipe crossover assembly flowing into a pair of large cased Super 40 Series performance mufflers for maximum power and a deep powerful aggressive exhaust note. The large 3.00-inch mandrel-bent tailpipes are custom bent to tuck up high above the rear end and exit with a slight turn down at the quarter panels behind the rear wheels. The system is constructed from aluminized steel and includes all necessary hardware and hangers for installation. Covered by our 3-year Limited Warranty.

Features

  • H-pipe Crossover for Maximum Power and Deep Tone
  • Super 40 Series Mufflers for Deep Powerful Sound
  • Mandrel-bent 16-gauge Aluminized Steel Tubing
  • Includes Hangers and Hardware for Installation
  • Moderate to Aggressive Exterior Exhaust Tone
  • Crossmember-Back True Dual Exhaust System
  • Does Not Include Header Reducers or Downpipes for Factory Manifolds
  • Large Dual 3.00-inch Tubing

Specifications

2WD/4WD2WD
BrandFlowmaster
California Proposition 65 RequiredNo
Catalytic Converter QuantityNot Included
Clamping TypeU Bolt
Clamps IncludedYes
Emission Code5
Exhaust SeriesAmerican Thunder
Exhaust Tip QuantitySold Separately
Exit PositionDual Out Rear
Exit StyleDual Out Rear
FinishAluminized
Gasket Or Seal IncludedNo
Grade TypePerformance
Hangers IncludedYes
Heat ShieldNo
Inlet Diameter3
Inlet TypeWeld-On
Main Piping Diameter3.00
MaterialAluminized Steel
Mounting Bracket IncludedYes
Muffler (Left) Body Height5
Muffler (Left) Body Length13.5
Muffler (Left) Body Width10
Muffler (Left) TypeChambered
Muffler (Right) Body Height5
Muffler (Right) Body Length13.5
Muffler (Right) Body Width10
Muffler (Right) TypeChambered
Muffler Body MaterialAluminized Steel
Muffler Body ShapeOval
Muffler FinishBlack High-Temperature Paint Finish
Muffler Flanged InletNo
Muffler Flanged OutletNo
Muffler Inlet ConnectionSlip-Fit
Muffler Inlet Inside Diameter3.00
Muffler Inlet Outside Diameter3.13
Muffler Outlet ConnectionSlip-Fit
Muffler Outlet Quantity1
Muffler Part Number953046
Muffler Quantity2
Muffler SeriesSuper 40 Series
Muffler TypeChambered
Outlet Diameter3
Pipe MaterialAluminized Steel
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelAggressive
Spring Bolt Kit IncludedNo
System TypeCrossmember-back
Tail Pipe Outlet Outside Diameter3
Tail Pipe Quantity2
Tail Pipe Tapered OutletNo
Tip QuantityNot Included
Tube Diameter3 inch
Tubing Diameter3
TypeCrossmember-back
Type of ExhaustCrossmember-back
Valve IncludedNo
Valve TypeNot Included

Compatibility

  • 1967 - 1969 Chevrolet Camaro RS 5.3
  • 1967 - 1969 Chevrolet Camaro SS 6.5
  • 1967 - 1968 Chevrolet Camaro Base
  • 1967 - 1968 Chevrolet Camaro Base
  • 1967 - 1968 Chevrolet Camaro Base
  • 1967 - 1968 Chevrolet Camaro Base
  • 1967 - 1968 Chevrolet Camaro RS
  • 1967 - 1968 Chevrolet Camaro RS
  • 1967 - 1968 Chevrolet Camaro RS
  • 1967 - 1968 Chevrolet Camaro RS
  • 1967 - 1968 Chevrolet Camaro SS
  • 1967 - 1968 Chevrolet Camaro SS
  • 1967 - 1968 Chevrolet Camaro SS
  • 1967 - 1968 Chevrolet Camaro SS
  • 1967 - 1968 Chevrolet Camaro Z28
  • 1967 - 1968 Chevrolet Camaro Z28
  • 1967 - 1968 Chevrolet Camaro Z28
  • 1967 - 1968 Chevrolet Camaro Z28
  • 1967 - 1967 Chevrolet Camaro RS 5.7
  • 1969 - 1969 Chevrolet Camaro RS 5.7
  • 1967 - 1967 Chevrolet Camaro Base 6.5
  • 1969 - 1969 Chevrolet Camaro Base 5.0
  • 1969 - 1969 Chevrolet Camaro RS 5.0
  • 1969 - 1969 Chevrolet Camaro Base 5.7
  • 1969 - 1969 Chevrolet Camaro Base 7.0
  • 1969 - 1969 Chevrolet Camaro RS 7.0
  • 1967 - 1969 Pontiac Firebird Base 6.6
  • 1967 - 1969 Pontiac Firebird 400 6.6
  • 1967 - 1967 Pontiac Firebird HO 5.3
  • 1967 - 1967 Pontiac Firebird 326 5.3
  • 1967 - 1967 Pontiac Firebird Sprint 3.8
  • 1967 - 1967 Pontiac Firebird Base 5.3
  • 1967 - 1967 Pontiac Firebird Base 3.8
  • 1967 - 1967 Pontiac Firebird HO 6.6
  • 1967 - 1967 Pontiac Firebird 326
  • 1967 - 1967 Pontiac Firebird 326
  • 1967 - 1967 Pontiac Firebird 326
  • 1967 - 1967 Pontiac Firebird 326
  • 1967 - 1967 Pontiac Firebird 400
  • 1967 - 1967 Pontiac Firebird 400
  • 1967 - 1967 Pontiac Firebird 400
  • 1967 - 1967 Pontiac Firebird 400
  • 1967 - 1967 Pontiac Firebird Base
  • 1967 - 1967 Pontiac Firebird Base
  • 1967 - 1967 Pontiac Firebird Base
  • 1967 - 1967 Pontiac Firebird Base
  • 1967 - 1967 Pontiac Firebird HO
  • 1967 - 1967 Pontiac Firebird HO
  • 1967 - 1967 Pontiac Firebird HO
  • 1967 - 1967 Pontiac Firebird HO
  • 1967 - 1967 Pontiac Firebird Sprint
  • 1967 - 1967 Pontiac Firebird Sprint
  • 1967 - 1967 Pontiac Firebird Sprint
  • 1967 - 1967 Pontiac Firebird Sprint
  • 1968 - 1969 Pontiac Firebird Sprint 4.1
  • 1968 - 1969 Pontiac Firebird Base 5.7
  • 1968 - 1969 Pontiac Firebird Base 4.1
  • 1968 - 1969 Pontiac Firebird 350 5.7
  • 1968 - 1968 Pontiac Firebird HO 5.7
  • 1969 - 1969 Pontiac Firebird 350 HO 5.7
  • 1969 - 1969 Pontiac Firebird Trans Am 6.6
