Description

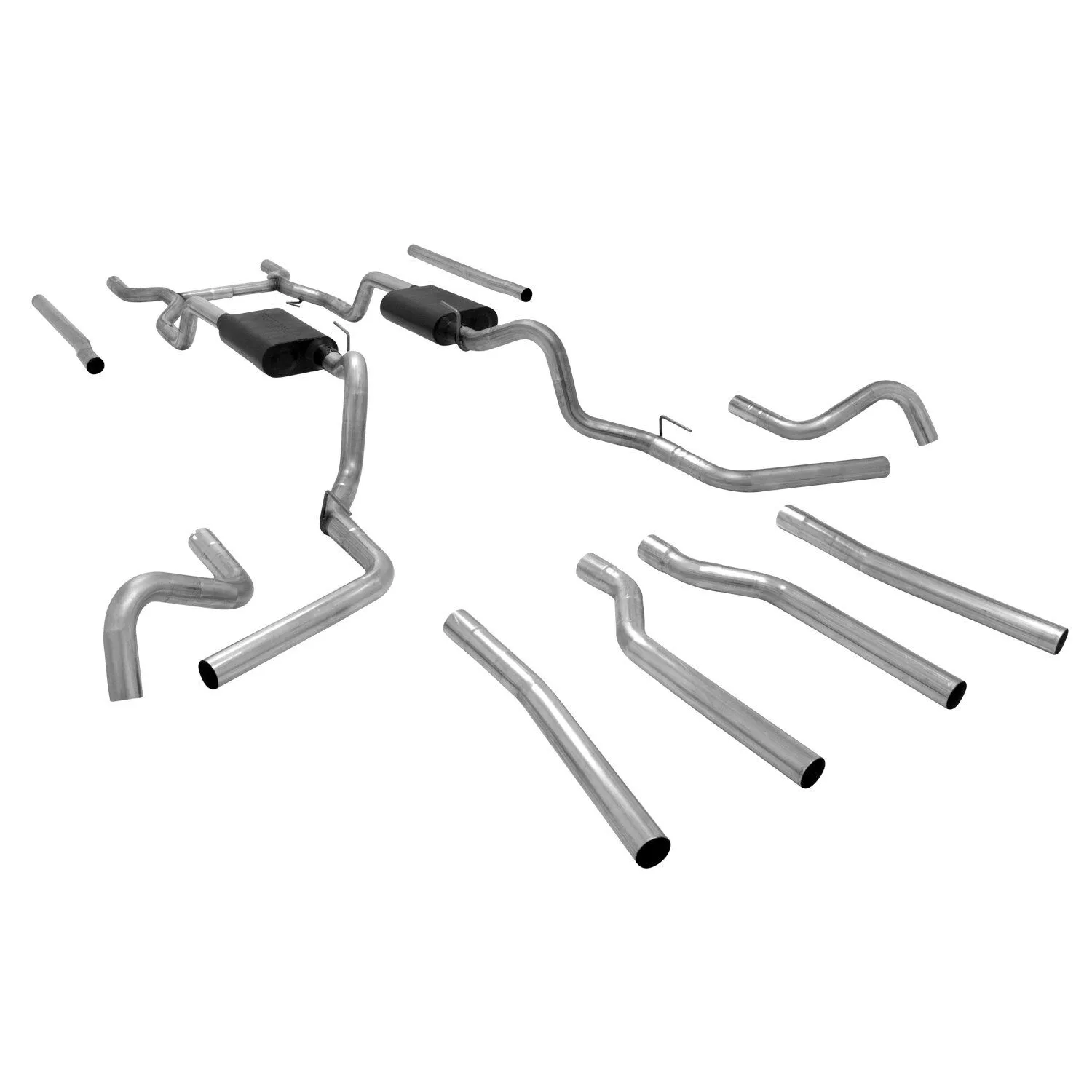

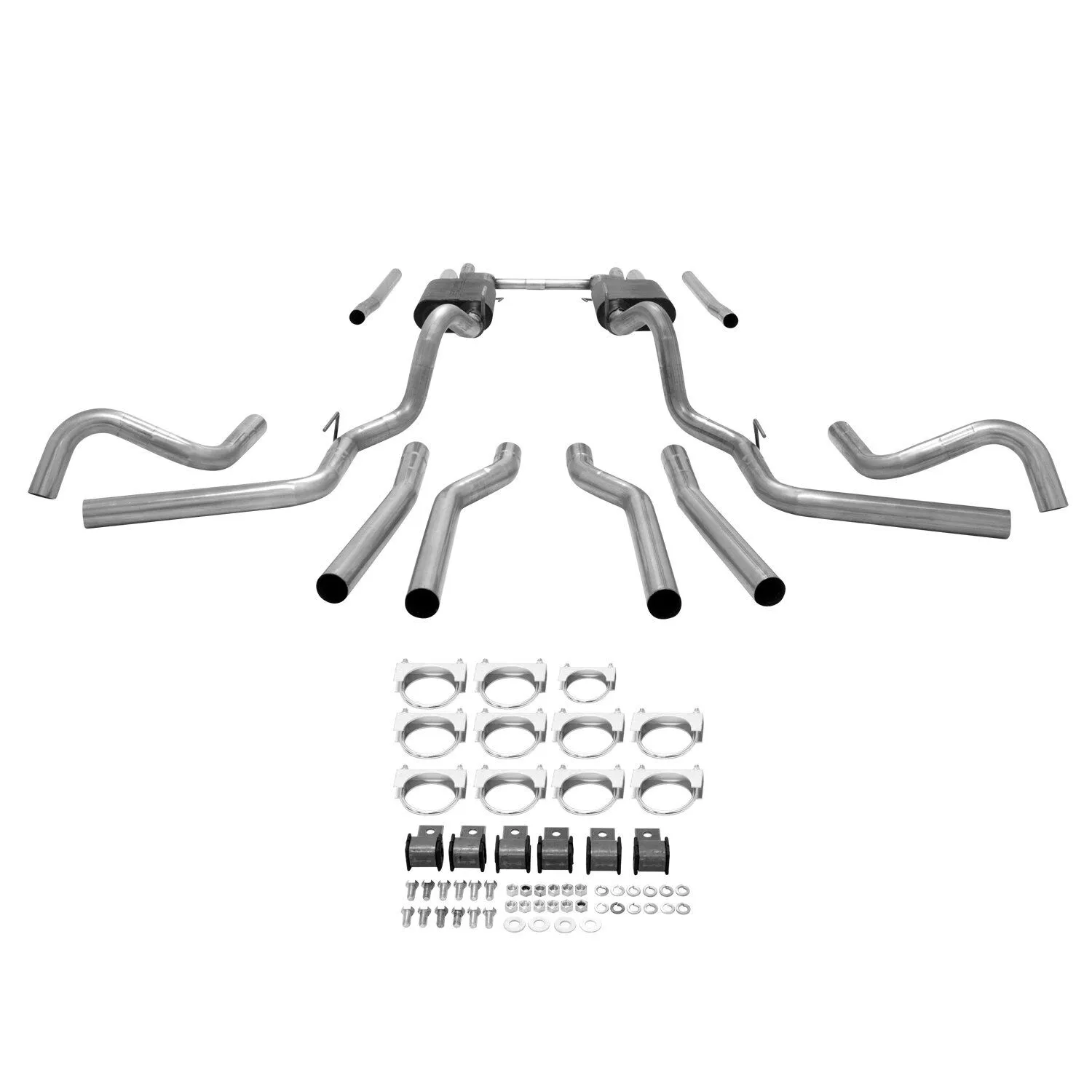

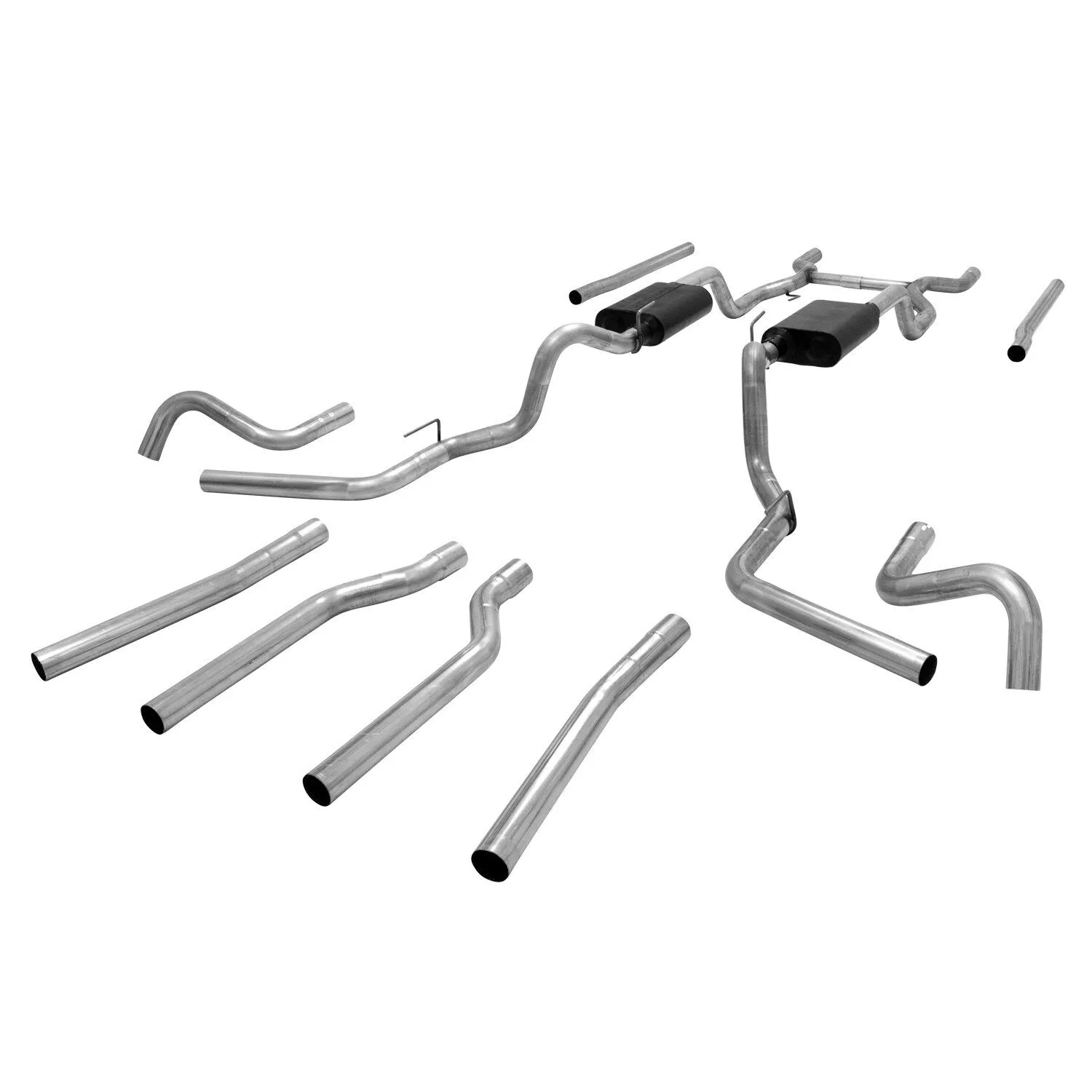

This American Thunder exhaust system is specifically designed for 1967-1972 Chevrolet and GMC C10 and C15 1/2 ton 2wd trucks with coil spring suspension. The system is perfect for the person looking for a moderate to aggressive interior and exterior sound level. Starting at the Crossmember-Back, the exhaust comes complete with a built-in H-pipe crossover, all mandrel-bent 2.50-inch aluminized steel tubing, a pair of Super 44 Series performance mufflers, and your choice of four tailpipe exits. One set slightly angled down to clear larger rear bumpers, one set straight out the back under the rear bumper, out the sides behind the rear tires for that classic truck look or a dump style exiting behind the rear tires level with the body. The system includes all hardware necessary for installation and provides adequate clearance for substantially lowered vehicles. The exhaust system is covered by our 3-year Limited Warranty. If you prefer Stainless Steel construction, check out system# 817654 which comes with our Lifetime Limited Warranty. Notes: Fits both short and long wheelbase trucks.

Features

  • Super 44 Series Mufflers for Deep Powerful Sound
  • Mandrel-bent 16-gauge Aluminized Steel Tubing
  • Includes Hangers and Hardware for Installation
  • Aggressive to Moderate Exterior Exhaust Tone
  • Crossmember-Back True Dual Exhaust System
  • H-pipe Crossover for Maximum Power
  • Does Not Include Header Reducers or Downpipes for Factory Manifolds
  • Four Choices of Tailpipe Exits

Specifications

2WD/4WD2WD
BrandFlowmaster
California Proposition 65 RequiredNo
Catalytic Converter QuantityNot Included
Clamping TypeU Bolt
Clamps IncludedYes
Emission Code5
Exhaust SeriesAmerican Thunder
Exhaust Tip QuantitySold Separately
Exit PositionDual Out Rear / Dual Out Side
Exit StyleDual Out Rear
Exit StyleDual Side Exit
Exit StyleDual Rear Exit
FinishAluminized
Gasket Or Seal IncludedNo
Grade TypePerformance
Hangers IncludedYes
Heat ShieldNo
Inlet Diameter2.5
Inlet TypeWeld-On
Main Piping Diameter2.50
Main Piping Diameter2-1/2
MaterialAluminized Steel
Mounting Bracket IncludedYes
Muffler (Left) Body Height4
Muffler (Left) Body Length13
Muffler (Left) Body Width9.75
Muffler (Left) TypeChambered
Muffler (Right) Body Height4
Muffler (Right) Body Length13
Muffler (Right) Body Width9.75
Muffler (Right) TypeChambered
Muffler Body Length13
Muffler Body MaterialAluminized Steel
Muffler Body ShapeOval
Muffler FinishBlack High-Temperature Paint Finish
Muffler Flanged InletNo
Muffler Flanged OutletNo
Muffler Inlet ConnectionSlip-Fit
Muffler Inlet Inside Diameter2.5
Muffler Inlet Outside Diameter2.63
Muffler Outlet ConnectionSlip-Fit
Muffler Outlet Quantity1
Muffler Part NumberKit Only
Muffler Quantity2
Muffler SeriesSuper 44 Series
Muffler TypeChambered
Outlet Diameter2.5
Pipe MaterialAluminized Steel
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelAggressive / Moderate
Spring Bolt Kit IncludedNo
System TypeCrossmember-back
Tail Pipe Outlet Outside Diameter2.5
Tail Pipe Quantity2
Tail Pipe Tapered OutletNo
Tip QuantityNot Included
Truck Bed LengthLong Bed
Truck Bed LengthShort Bed
Tube Diameter2.5 inch
Tubing Diameter2.5
TypeCrossmember-back
Type of ExhaustCrossmember-back
Valve IncludedNo
Valve TypeNot Included

Compatibility

  • 1967 - 1972 Chevrolet C10 Pickup Base
  • 1967 - 1972 Chevrolet C10 Pickup Base
  • 1967 - 1972 Chevrolet C10 Pickup Base
  • 1967 - 1969 Chevrolet C10 Pickup Base 5.3
  • 1967 - 1968 Chevrolet C10 Pickup Base
  • 1967 - 1968 Chevrolet C10 Pickup Base
  • 1967 - 1968 Chevrolet C10 Pickup Base
  • 1967 - 1967 Chevrolet C10 Pickup Base 4.6
  • 1968 - 1972 Chevrolet C10 Pickup Base 5.0
  • 1968 - 1969 Chevrolet C10 Pickup Base 6.5
  • 1968 - 1968 Chevrolet C10 Pickup Base 5.4
  • 1969 - 1972 Chevrolet C10 Pickup Base 5.7
  • 1970 - 1972 Chevrolet C10 Pickup Base 6.6
  • 1967 - 1972 GMC C15/C1500 Pickup Base
  • 1967 - 1972 GMC C15/C1500 Pickup Base
  • 1967 - 1972 GMC C15/C1500 Pickup Base
  • 1967 - 1968 GMC C15/C1500 Pickup Base 5.3
  • 1967 - 1968 GMC C15/C1500 Pickup Base
  • 1967 - 1968 GMC C15/C1500 Pickup Base
  • 1967 - 1968 GMC C15/C1500 Pickup Base
  • 1968 - 1972 GMC C15/C1500 Pickup Base 5.0

This American Thunder exhaust system is specifically designed for 1967-1972 Chevrolet and GMC C10 and C15 1/2 ton 2wd trucks with coil spring suspension. The system is perfect for the person looking for a moderate to aggressive interior and exterior sound level. Starting at the Crossmember-Back, the exhaust comes complete with a built-in H-pipe crossover, all mandrel-bent 2.50-inch aluminized steel tubing, a pair of Super 44 Series performance mufflers, and your choice of four tailpipe exits. One set slightly angled down to clear larger rear bumpers, one set straight out the back under the rear bumper, out the sides behind the rear tires for that classic truck look or a dump style exiting behind the rear tires level with the body. The system includes all hardware necessary for installation and provides adequate clearance for substantially lowered vehicles. The exhaust system is covered by our 3-year Limited Warranty. If you prefer Stainless Steel construction, check out system# 817654 which comes with our Lifetime Limited Warranty. Notes: Fits both short and long wheelbase trucks.

Features

  • Super 44 Series Mufflers for Deep Powerful Sound
  • Mandrel-bent 16-gauge Aluminized Steel Tubing
  • Includes Hangers and Hardware for Installation
  • Aggressive to Moderate Exterior Exhaust Tone
  • Crossmember-Back True Dual Exhaust System
  • H-pipe Crossover for Maximum Power
  • Does Not Include Header Reducers or Downpipes for Factory Manifolds
  • Four Choices of Tailpipe Exits
2WD/4WD2WD
BrandFlowmaster
California Proposition 65 RequiredNo
Catalytic Converter QuantityNot Included
Clamping TypeU Bolt
Clamps IncludedYes
Emission Code5
Exhaust SeriesAmerican Thunder
Exhaust Tip QuantitySold Separately
Exit PositionDual Out Rear / Dual Out Side
Exit StyleDual Out Rear
Exit StyleDual Side Exit
Exit StyleDual Rear Exit
FinishAluminized
Gasket Or Seal IncludedNo
Grade TypePerformance
Hangers IncludedYes
Heat ShieldNo
Inlet Diameter2.5
Inlet TypeWeld-On
Main Piping Diameter2.50
Main Piping Diameter2-1/2
MaterialAluminized Steel
Mounting Bracket IncludedYes
Muffler (Left) Body Height4
Muffler (Left) Body Length13
Muffler (Left) Body Width9.75
Muffler (Left) TypeChambered
Muffler (Right) Body Height4
Muffler (Right) Body Length13
Muffler (Right) Body Width9.75
Muffler (Right) TypeChambered
Muffler Body Length13
Muffler Body MaterialAluminized Steel
Muffler Body ShapeOval
Muffler FinishBlack High-Temperature Paint Finish
Muffler Flanged InletNo
Muffler Flanged OutletNo
Muffler Inlet ConnectionSlip-Fit
Muffler Inlet Inside Diameter2.5
Muffler Inlet Outside Diameter2.63
Muffler Outlet ConnectionSlip-Fit
Muffler Outlet Quantity1
Muffler Part NumberKit Only
Muffler Quantity2
Muffler SeriesSuper 44 Series
Muffler TypeChambered
Outlet Diameter2.5
Pipe MaterialAluminized Steel
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelAggressive / Moderate
Spring Bolt Kit IncludedNo
System TypeCrossmember-back
Tail Pipe Outlet Outside Diameter2.5
Tail Pipe Quantity2
Tail Pipe Tapered OutletNo
Tip QuantityNot Included
Truck Bed LengthLong Bed
Truck Bed LengthShort Bed
Tube Diameter2.5 inch
Tubing Diameter2.5
TypeCrossmember-back
Type of ExhaustCrossmember-back
Valve IncludedNo
Valve TypeNot Included
  • 1967 - 1972 Chevrolet C10 Pickup Base
  • 1967 - 1972 Chevrolet C10 Pickup Base
  • 1967 - 1972 Chevrolet C10 Pickup Base
  • 1967 - 1969 Chevrolet C10 Pickup Base 5.3
  • 1967 - 1968 Chevrolet C10 Pickup Base
  • 1967 - 1968 Chevrolet C10 Pickup Base
  • 1967 - 1968 Chevrolet C10 Pickup Base
  • 1967 - 1967 Chevrolet C10 Pickup Base 4.6
  • 1968 - 1972 Chevrolet C10 Pickup Base 5.0
  • 1968 - 1969 Chevrolet C10 Pickup Base 6.5
  • 1968 - 1968 Chevrolet C10 Pickup Base 5.4
  • 1969 - 1972 Chevrolet C10 Pickup Base 5.7
  • 1970 - 1972 Chevrolet C10 Pickup Base 6.6
  • 1967 - 1972 GMC C15/C1500 Pickup Base
  • 1967 - 1972 GMC C15/C1500 Pickup Base
  • 1967 - 1972 GMC C15/C1500 Pickup Base
  • 1967 - 1968 GMC C15/C1500 Pickup Base 5.3
  • 1967 - 1968 GMC C15/C1500 Pickup Base
  • 1967 - 1968 GMC C15/C1500 Pickup Base
  • 1967 - 1968 GMC C15/C1500 Pickup Base
  • 1968 - 1972 GMC C15/C1500 Pickup Base 5.0
