Description

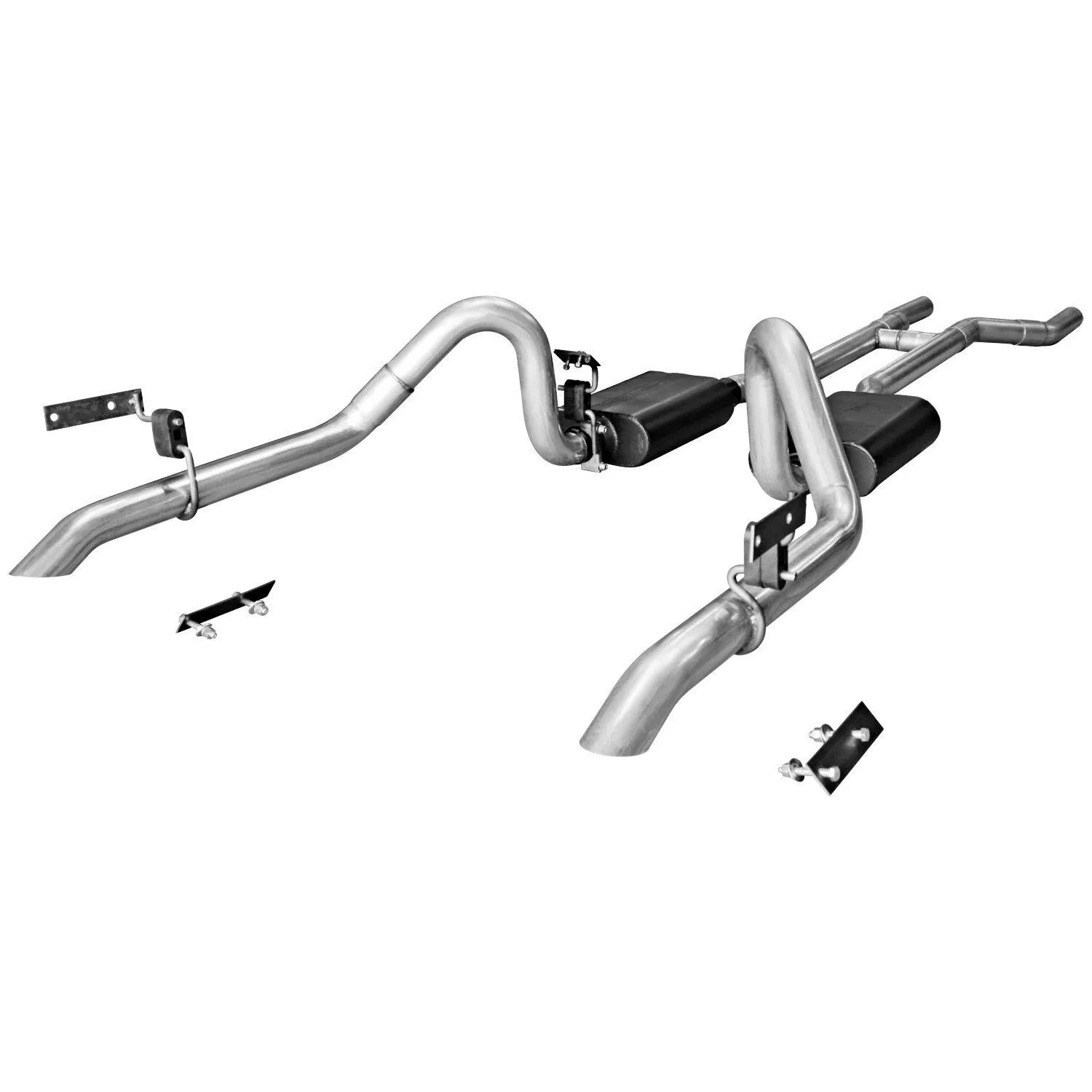

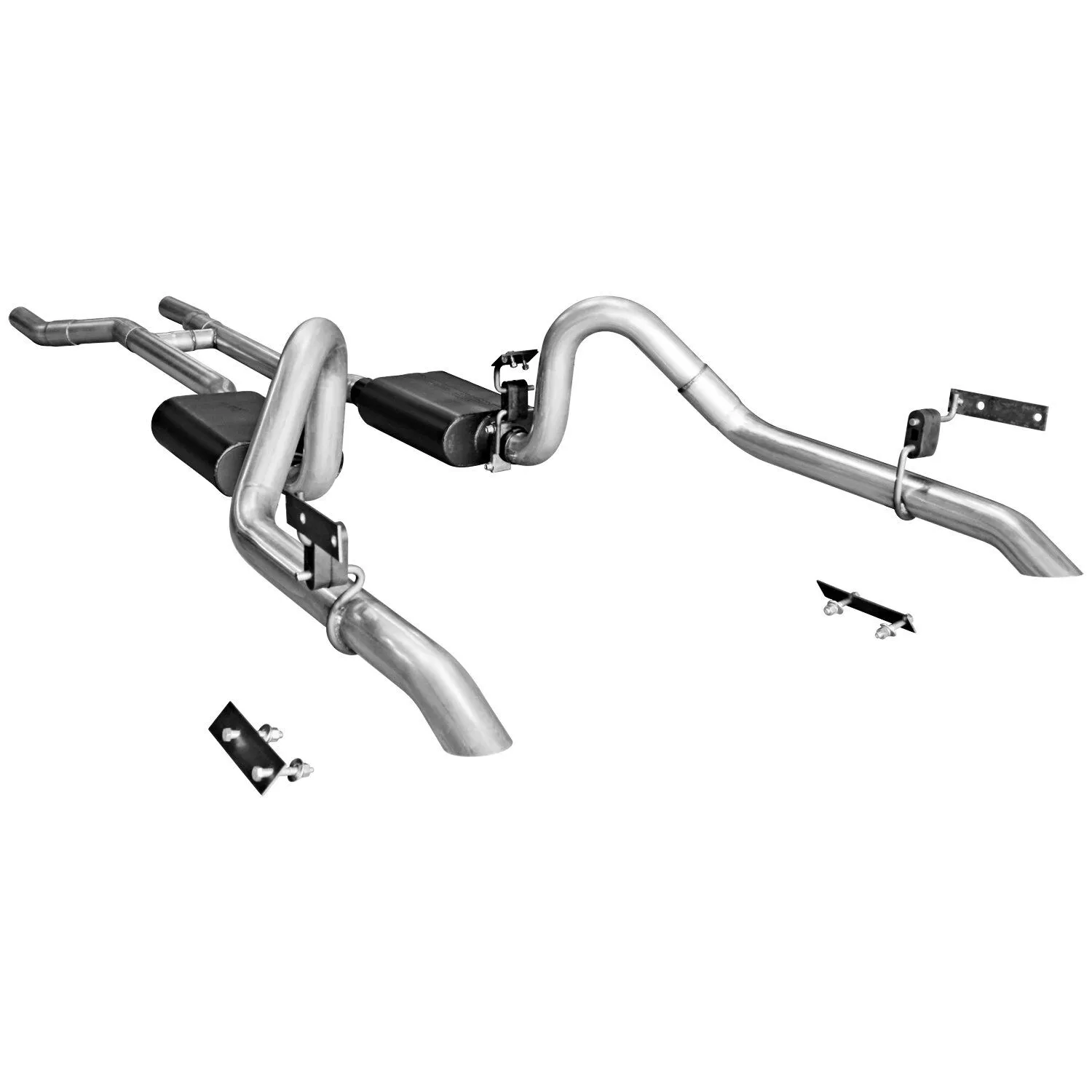

For the person who is looking for a true dual Crossmember-Back exhaust system with an moderate to aggressive exhaust tone. With an easy fit in mind, these systems are constructed from 16-gauge mandrel-bent stainless steel tubing with a built-in H-pipe crossover, a pair of specially selected Super 44 Series mufflers and includes all hangers and hardware necessary for installation. The American Thunder systems deliver a moderate to aggressive interior and exterior tone and are best suited to the enthusiast who wants their performance to be heard. The tailpipes in this system exit under the rear valance with a turn-down in the tailpipes. Like all Flowmaster exhaust systems, the benefits include improved throttle response, power and mileage. If you prefer aluminized steel construction, check out optional system# 17282.

Features

  • H-pipe Crossover for Maximum Power and Deep Tone
  • Super 44 Series Mufflers for Deep Powerful Sound
  • Includes Hangers and Hardware for Installation
  • Mandrel-bent 16-gauge Stainless Steel Tubing
  • Moderate to Aggressive Exterior Exhaust Tone
  • Crossmember-Back True Dual Exhaust System
  • Does Not Include Header Reducers or Downpipes for Factory Manifolds
  • Lifetime Limited Warranty

Specifications

2WD/4WD2WD
BrandFlowmaster
California Proposition 65 Chemical NameChromium (hexavalent compounds), Nickel (Metallic)
California Proposition 65 RequiredYes
Catalytic Converter QuantityNot Included
Clamping TypeFlat Band
Clamps IncludedYes
Emission Code5
Exhaust SeriesAmerican Thunder
Exhaust Tip ConnectionClamp-On
Exhaust Tip QuantitySold Separately
Exit PositionDual Out Rear
Exit StyleDual Out Rear
FinishNatural
Grade TypePerformance
Hangers IncludedYes
Heat ShieldNo
Inlet Diameter2.5
Inlet TypeWeld-On
Main Piping Diameter2.50
Main Piping Diameter2-1/2
Material409 Stainless Steel
Mounting Bracket IncludedYes
Muffler (Left) Body Height4
Muffler (Left) Body Length13
Muffler (Left) Body Width9.75
Muffler (Left) TypeChambered
Muffler (Right) Body Height4
Muffler (Right) Body Length13
Muffler (Right) Body Width9.75
Muffler (Right) TypeChambered
Muffler Body Length13
Muffler Body Material409 Stainless Steel
Muffler Body ShapeOval
Muffler FinishBlack High-Temperature Paint Finish
Muffler Flanged InletNo
Muffler Flanged OutletNo
Muffler Inlet ConnectionSlip-Fit
Muffler Inlet Inside Diameter2.5
Muffler Inlet Outside Diameter2.63
Muffler Outlet ConnectionSlip-Fit
Muffler Outlet Quantity1
Muffler Part NumberKit Only
Muffler Quantity2
Muffler SeriesSuper 44 Series
Muffler TypeChambered
Outlet Diameter2.5
Pipe MaterialStainless Steel
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelAggressive / Moderate
Spring Bolt Kit IncludedNo
System TypeCrossmember-back
Tail Pipe Outlet Outside Diameter2.5
Tail Pipe Quantity2
Tail Pipe Tapered OutletNo
Tip ShapeRound
Tubing Diameter2.5
TypeCrossmember-back
Valve IncludedNo
Valve TypeNot Included

Compatibility

  • 1967 - 1970 Ford Mustang Shelby GT-500 7.0
  • 1967 - 1969 Ford Mustang Base 6.4
  • 1967 - 1968 Ford Mustang Base 4.7
  • 1967 - 1967 Ford Mustang Shelby GT-350 4.7
  • 1968 - 1970 Ford Mustang Base 7.0
  • 1968 - 1970 Ford Mustang Base 5.0
  • 1968 - 1968 Ford Mustang Base 7.0
  • 1968 - 1968 Ford Mustang Shelby GT-500 7.0
  • 1968 - 1968 Ford Mustang Shelby GT-350 5.0
  • 1968 - 1968 Ford Mustang Shelby GT-500KR 7.0
  • 1969 - 1970 Ford Mustang Boss 302 5.0
  • 1970 - 1970 Ford Mustang Grande 7.0
  • 1970 - 1970 Ford Mustang Grande 5.0
  • 1970 - 1970 Ford Mustang Mach 1 5.0
  • 1970 - 1970 Ford Mustang Mach 1 7.0

For the person who is looking for a true dual Crossmember-Back exhaust system with an moderate to aggressive exhaust tone. With an easy fit in mind, these systems are constructed from 16-gauge mandrel-bent stainless steel tubing with a built-in H-pipe crossover, a pair of specially selected Super 44 Series mufflers and includes all hangers and hardware necessary for installation. The American Thunder systems deliver a moderate to aggressive interior and exterior tone and are best suited to the enthusiast who wants their performance to be heard. The tailpipes in this system exit under the rear valance with a turn-down in the tailpipes. Like all Flowmaster exhaust systems, the benefits include improved throttle response, power and mileage. If you prefer aluminized steel construction, check out optional system# 17282.

Features

  • H-pipe Crossover for Maximum Power and Deep Tone
  • Super 44 Series Mufflers for Deep Powerful Sound
  • Includes Hangers and Hardware for Installation
  • Mandrel-bent 16-gauge Stainless Steel Tubing
  • Moderate to Aggressive Exterior Exhaust Tone
  • Crossmember-Back True Dual Exhaust System
  • Does Not Include Header Reducers or Downpipes for Factory Manifolds
  • Lifetime Limited Warranty
2WD/4WD2WD
BrandFlowmaster
California Proposition 65 Chemical NameChromium (hexavalent compounds), Nickel (Metallic)
California Proposition 65 RequiredYes
Catalytic Converter QuantityNot Included
Clamping TypeFlat Band
Clamps IncludedYes
Emission Code5
Exhaust SeriesAmerican Thunder
Exhaust Tip ConnectionClamp-On
Exhaust Tip QuantitySold Separately
Exit PositionDual Out Rear
Exit StyleDual Out Rear
FinishNatural
Grade TypePerformance
Hangers IncludedYes
Heat ShieldNo
Inlet Diameter2.5
Inlet TypeWeld-On
Main Piping Diameter2.50
Main Piping Diameter2-1/2
Material409 Stainless Steel
Mounting Bracket IncludedYes
Muffler (Left) Body Height4
Muffler (Left) Body Length13
Muffler (Left) Body Width9.75
Muffler (Left) TypeChambered
Muffler (Right) Body Height4
Muffler (Right) Body Length13
Muffler (Right) Body Width9.75
Muffler (Right) TypeChambered
Muffler Body Length13
Muffler Body Material409 Stainless Steel
Muffler Body ShapeOval
Muffler FinishBlack High-Temperature Paint Finish
Muffler Flanged InletNo
Muffler Flanged OutletNo
Muffler Inlet ConnectionSlip-Fit
Muffler Inlet Inside Diameter2.5
Muffler Inlet Outside Diameter2.63
Muffler Outlet ConnectionSlip-Fit
Muffler Outlet Quantity1
Muffler Part NumberKit Only
Muffler Quantity2
Muffler SeriesSuper 44 Series
Muffler TypeChambered
Outlet Diameter2.5
Pipe MaterialStainless Steel
Product TypeExhaust System
Sale CategoryExhaust
Single DualDual
Sound LevelAggressive / Moderate
Spring Bolt Kit IncludedNo
System TypeCrossmember-back
Tail Pipe Outlet Outside Diameter2.5
Tail Pipe Quantity2
Tail Pipe Tapered OutletNo
Tip ShapeRound
Tubing Diameter2.5
TypeCrossmember-back
Valve IncludedNo
Valve TypeNot Included
  • 1967 - 1970 Ford Mustang Shelby GT-500 7.0
  • 1967 - 1969 Ford Mustang Base 6.4
  • 1967 - 1968 Ford Mustang Base 4.7
  • 1967 - 1967 Ford Mustang Shelby GT-350 4.7
  • 1968 - 1970 Ford Mustang Base 7.0
  • 1968 - 1970 Ford Mustang Base 5.0
  • 1968 - 1968 Ford Mustang Base 7.0
  • 1968 - 1968 Ford Mustang Shelby GT-500 7.0
  • 1968 - 1968 Ford Mustang Shelby GT-350 5.0
  • 1968 - 1968 Ford Mustang Shelby GT-500KR 7.0
  • 1969 - 1970 Ford Mustang Boss 302 5.0
  • 1970 - 1970 Ford Mustang Grande 7.0
  • 1970 - 1970 Ford Mustang Grande 5.0
  • 1970 - 1970 Ford Mustang Mach 1 5.0
  • 1970 - 1970 Ford Mustang Mach 1 7.0
