Description

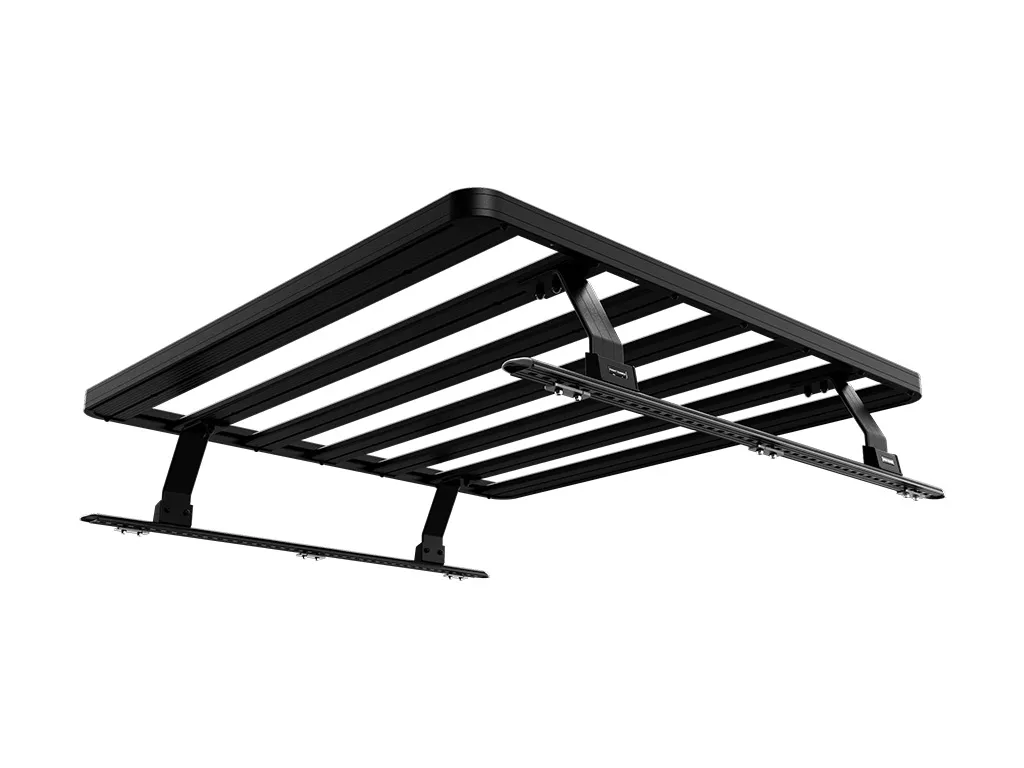

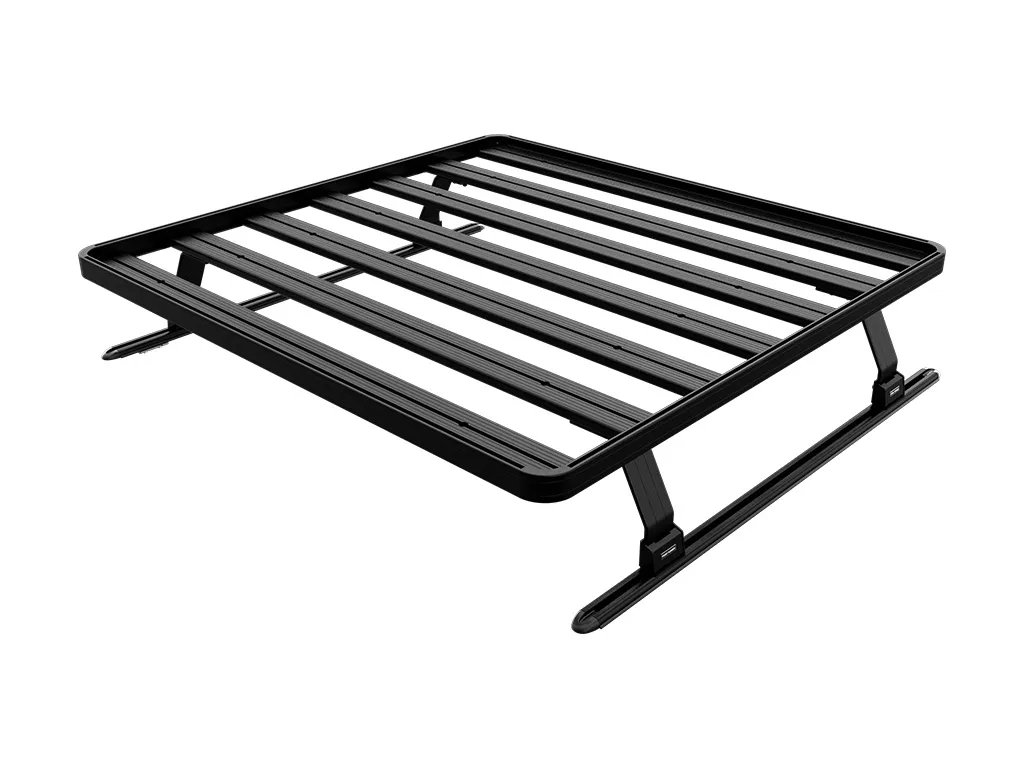

This kit creates a full-size rack that sits above your Chevrolet Colorado's (2015-current) truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, 2 Pick-Up Truck Bed Universal Legs that fit into the Tracks, and 2 Pick-Up Roll Top Leg Mounts. Drilling is required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.This Rack Kit creates a second level of storage for your load bed above the roll top of your Chevy Colorado.All Front Runner Racks are backed by a Limited Lifetime Warranty*A load bed top ledge with a minimum surface area of 55mm wide and length of 1000mm - 1600mm is required to mount Front Runner tracks.Dependent on the roll top used a minimum clearance of 20mm is required from the inner face of the leg base, to the roll top outer edge. This applies when the leg is fitted to a Front Runner Track or other Roll Top channel.

Instructions for LASS026

Instructions for LASS028

Instructions for RRSTUNI

Instructions for TRBU002

Specifications

Materials used:Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 30kg (65lbs)

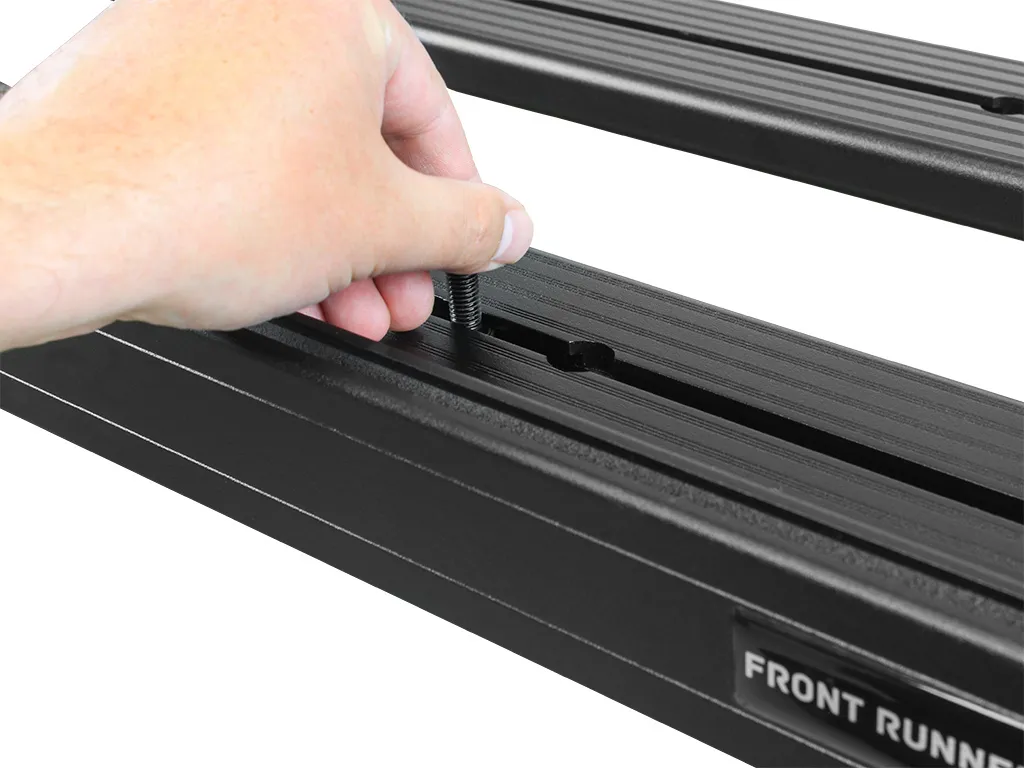

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle's roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 455mm (18")
Length 1620mm (64")
Height 270mm (11")


Shipping Weight:

Weight 34.5kg (75.9lbs)

What's Included

  • 2x LASS026 - Universal Load Bed Leg / Tall (Pair)
  • 2x LASS028 - Pick-Up Roll Top Leg Mount
  • 1x RRAC902 - Load Bed Bolt Kit- Ford F150 2004-2014
  • 1x RRSTJ07 - Slimline II Tray - 1425mm(W) X 1358mm(L)
  • 1x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L)

Compatibility

  • 2015-Current Chevy Colorado Roll Top 5.1'

This kit creates a full-size rack that sits above your Chevrolet Colorado's (2015-current) truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, 2 Pick-Up Truck Bed Universal Legs that fit into the Tracks, and 2 Pick-Up Roll Top Leg Mounts. Drilling is required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.This Rack Kit creates a second level of storage for your load bed above the roll top of your Chevy Colorado.All Front Runner Racks are backed by a Limited Lifetime Warranty*A load bed top ledge with a minimum surface area of 55mm wide and length of 1000mm - 1600mm is required to mount Front Runner tracks.Dependent on the roll top used a minimum clearance of 20mm is required from the inner face of the leg base, to the roll top outer edge. This applies when the leg is fitted to a Front Runner Track or other Roll Top channel.

Instructions for LASS026

Instructions for LASS028

Instructions for RRSTUNI

Instructions for TRBU002

Materials used:Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 30kg (65lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle's roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 455mm (18")
Length 1620mm (64")
Height 270mm (11")


Shipping Weight:

Weight 34.5kg (75.9lbs)

  • 2x LASS026 - Universal Load Bed Leg / Tall (Pair)
  • 2x LASS028 - Pick-Up Roll Top Leg Mount
  • 1x RRAC902 - Load Bed Bolt Kit- Ford F150 2004-2014
  • 1x RRSTJ07 - Slimline II Tray - 1425mm(W) X 1358mm(L)
  • 1x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L)
  • 2015-Current Chevy Colorado Roll Top 5.1'
