Description

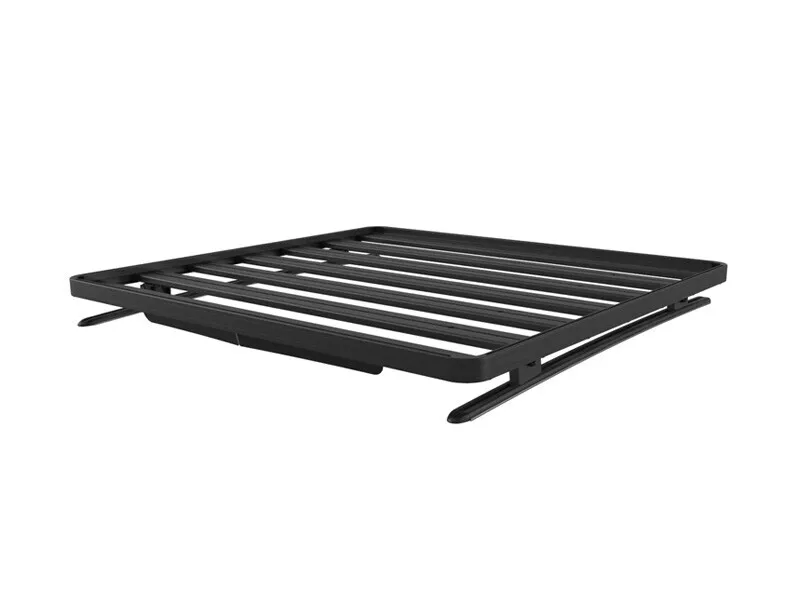

This 1156mm/45.5" long full-size Slimline II cargo carrying roof rack kit for the Ford Super Cab 2012

  • contains Slimline II Tray, Wind Deflector, 2 Tracks and 4 Feet. Drilling is required for installation.

    All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*

    Instructions for FASSUNI

    Instructions for FASSUNI

    Instructions for RRSTUNI

    Instructions for TRFS002

  • Specifications

    Material Used:
    Black epoxy powder - coated T6 aluminium
    High strength steel


    Approximate Installed Weight: 23.3kg (51.3lbs)

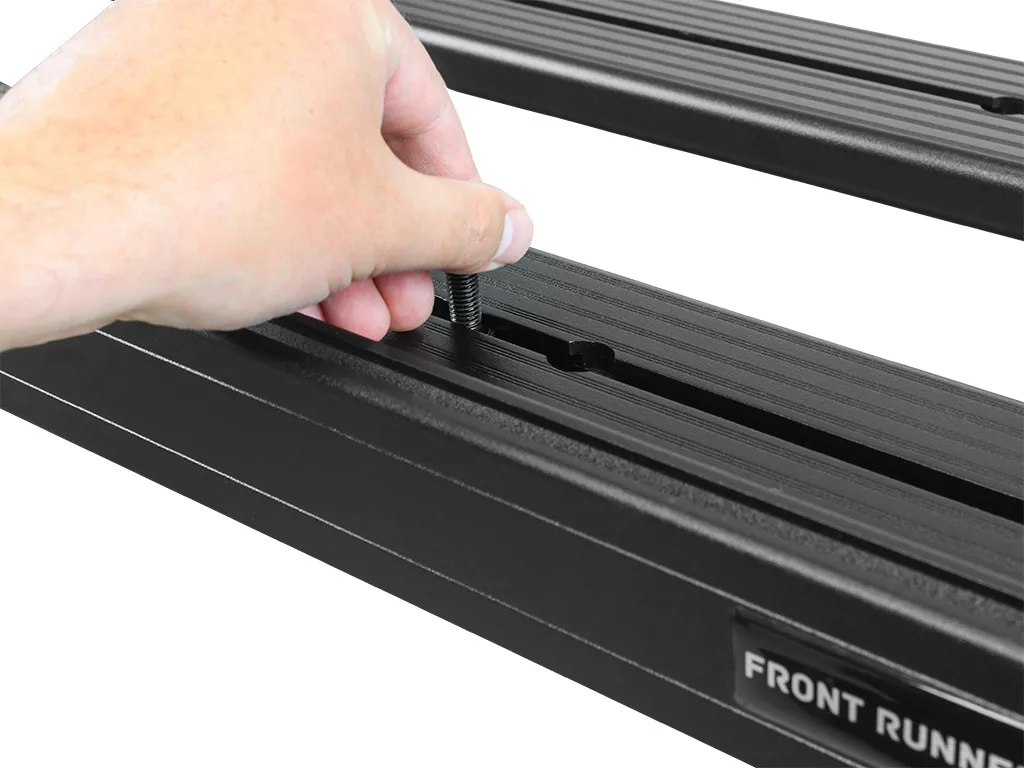

    The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.


    To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.


    If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicleÂ’s rain gutters.


    If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


    Shipping Dimensions:
    Width: 450mm (18.0")
    Length: 1615mm (64.0")
    Height: 140mm (6.0")


    Shipping Weight:
    26.4kg (58.0lbs)


    What's Included

    • 1x FASS012 - Foot Set / 40mm-50mm
    • 1x FASS014 - Foot Set - Angled / 65mm
    • 1x RRSTD06 - Slimline II Tray - 1255mm(W) X 1156mm(L)
    • 1x TRFS002 - Ford Super Cab T6 (2012-Current) Tracks / 1080mm(L)

    Compatibility

    • 2012-Current Ford Super Cab

    This 1156mm/45.5" long full-size Slimline II cargo carrying roof rack kit for the Ford Super Cab 2012

  • contains Slimline II Tray, Wind Deflector, 2 Tracks and 4 Feet. Drilling is required for installation.

    All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*

    Instructions for FASSUNI

    Instructions for FASSUNI

    Instructions for RRSTUNI

    Instructions for TRFS002

  • Material Used:
    Black epoxy powder - coated T6 aluminium
    High strength steel


    Approximate Installed Weight: 23.3kg (51.3lbs)


    The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.


    To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.


    If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicleÂ’s rain gutters.


    If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


    Shipping Dimensions:
    Width: 450mm (18.0")
    Length: 1615mm (64.0")
    Height: 140mm (6.0")


    Shipping Weight:
    26.4kg (58.0lbs)


    • 1x FASS012 - Foot Set / 40mm-50mm
    • 1x FASS014 - Foot Set - Angled / 65mm
    • 1x RRSTD06 - Slimline II Tray - 1255mm(W) X 1156mm(L)
    • 1x TRFS002 - Ford Super Cab T6 (2012-Current) Tracks / 1080mm(L)
    • 2012-Current Ford Super Cab
