Description

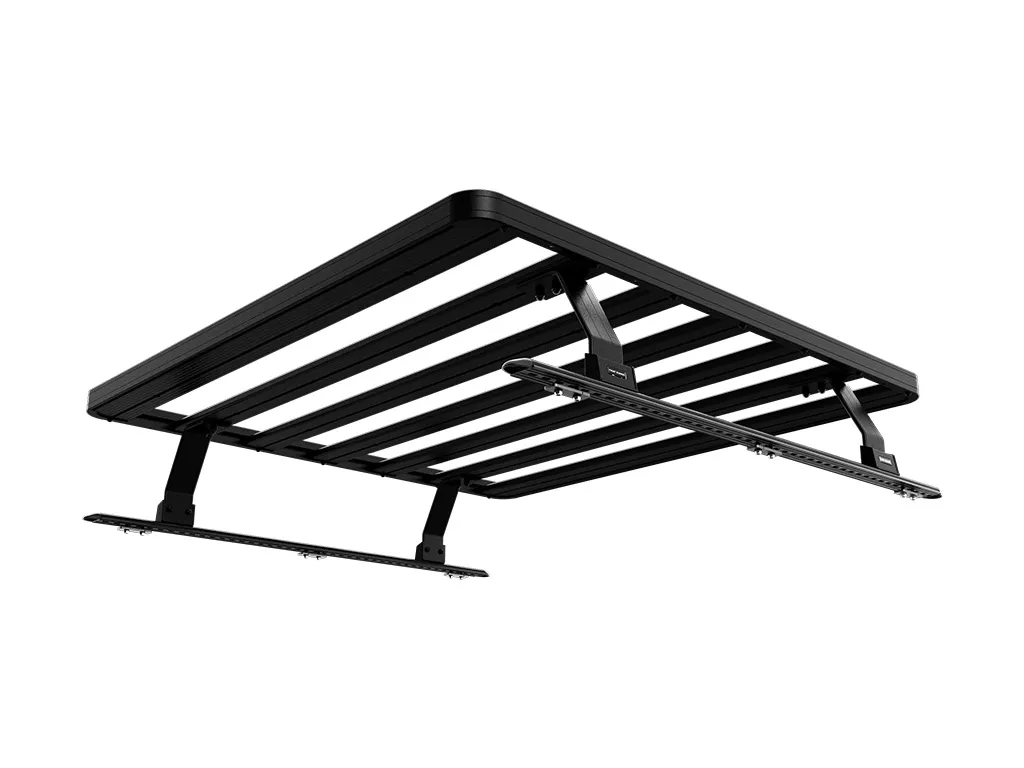

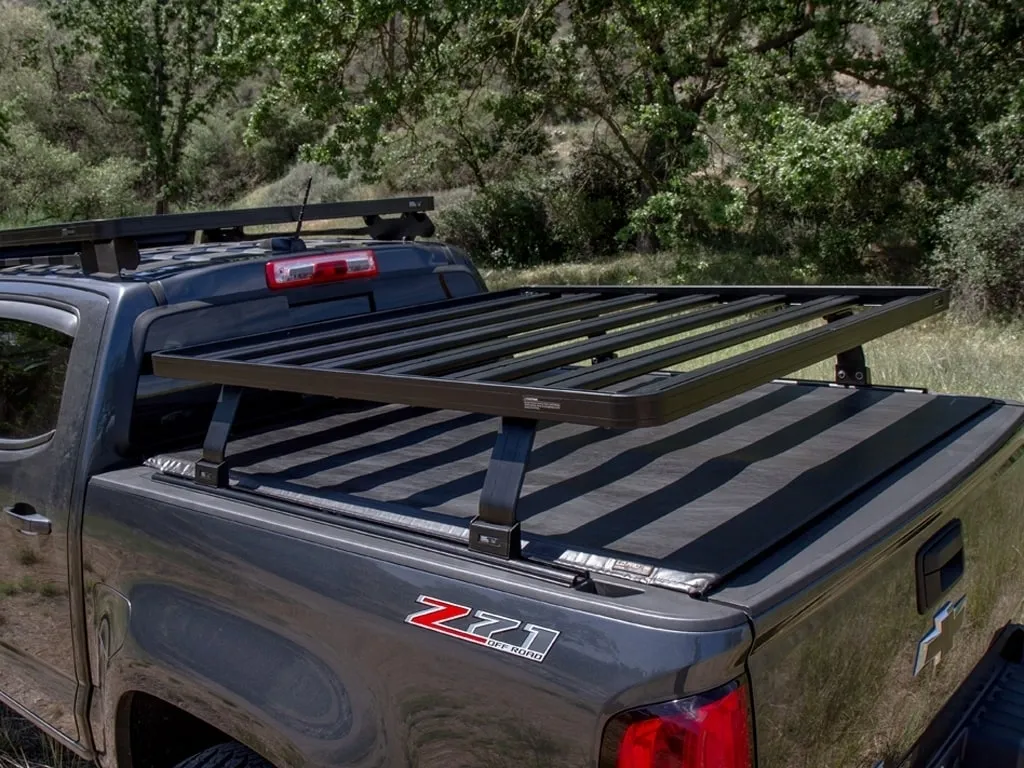

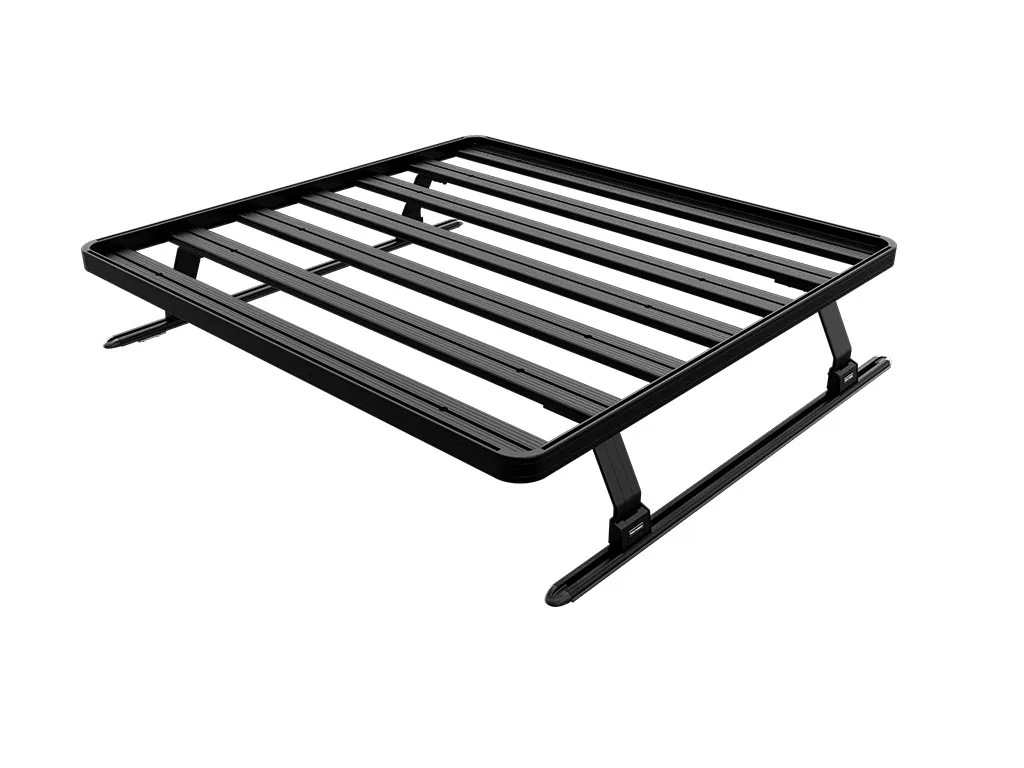

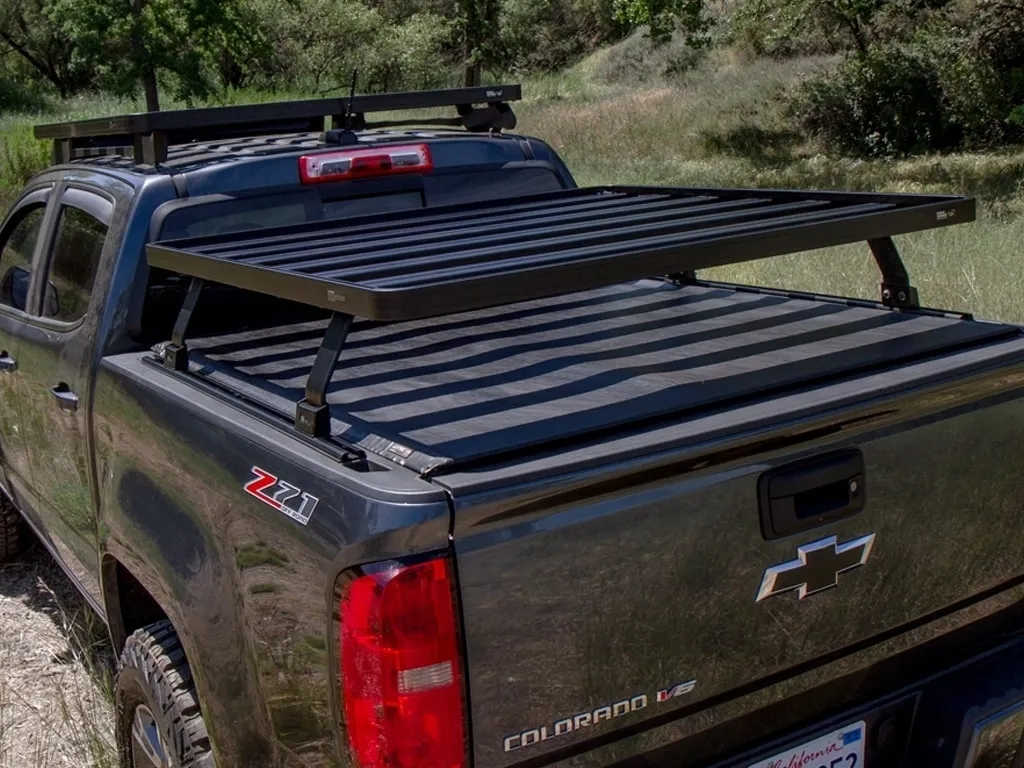

This kit creates a full-size rack that sits above your GMC CanyonÂ’s Roll Top (2015-present) truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, and 2 Pickup Truck Bed Universal Legs that fit into the Tracks and 2 Pickup Truck Roll Top Leg Mounts.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*Drilling may be required to mount the track to the bed of your truck. Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.

Instructions for LASS026

Instructions for LASS028

Instructions for RRSTUNI

Instructions for TRBU002

Specifications

Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed Weight: 34.39kg (75.82lbs)

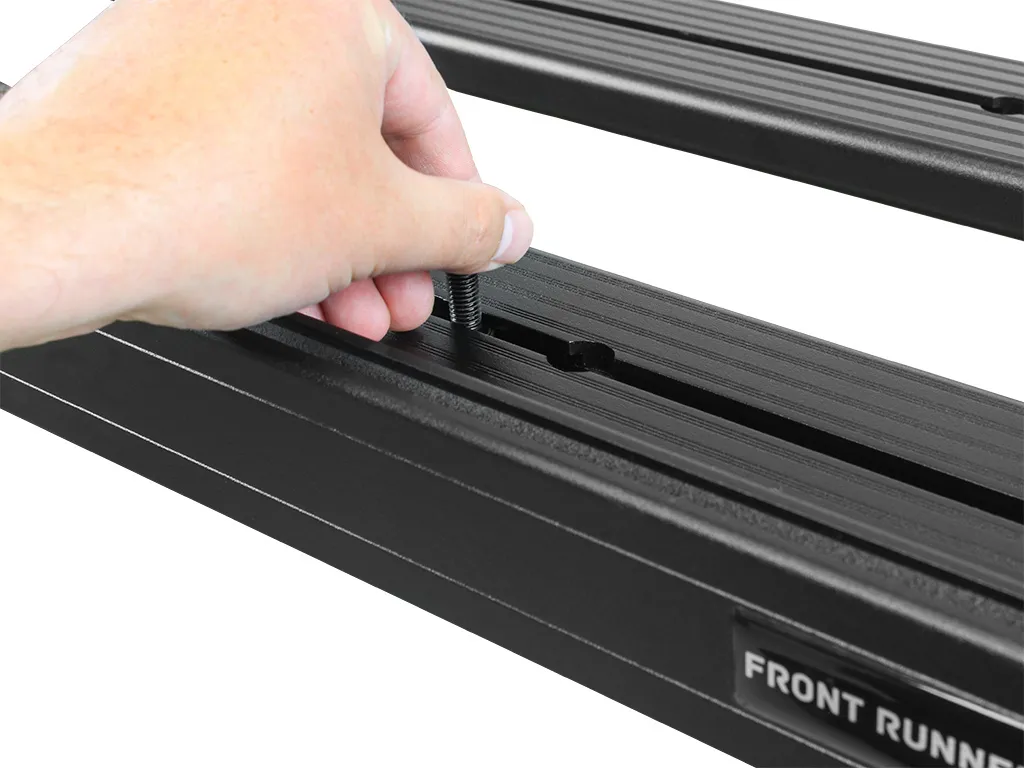

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


Shipping Dimensions:

Width: 455mm (18")

Length: 1730mm (68")

Height: 280mm (11")

Shipping Weight:

Weight: 34.63kg (76lbs)

What's Included

  • 2x LASS026 - Universal Load Bed Leg / Tall (Pair)
  • 2x LASS028 - Pick-Up Roll Top Leg Mount
  • 1x RRAC902 - Load Bed Bolt Kit- Ford F150 2004-2014
  • 1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)
  • 1x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L)

Compatibility

  • 2015-Current GMC Canyon Roll Top 5.1'

This kit creates a full-size rack that sits above your GMC CanyonÂ’s Roll Top (2015-present) truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, and 2 Pickup Truck Bed Universal Legs that fit into the Tracks and 2 Pickup Truck Roll Top Leg Mounts.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*Drilling may be required to mount the track to the bed of your truck. Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.

Instructions for LASS026

Instructions for LASS028

Instructions for RRSTUNI

Instructions for TRBU002

Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed Weight: 34.39kg (75.82lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


Shipping Dimensions:

Width: 455mm (18")

Length: 1730mm (68")

Height: 280mm (11")

Shipping Weight:

Weight: 34.63kg (76lbs)
  • 2x LASS026 - Universal Load Bed Leg / Tall (Pair)
  • 2x LASS028 - Pick-Up Roll Top Leg Mount
  • 1x RRAC902 - Load Bed Bolt Kit- Ford F150 2004-2014
  • 1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)
  • 1x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L)
  • 2015-Current GMC Canyon Roll Top 5.1'
