Description

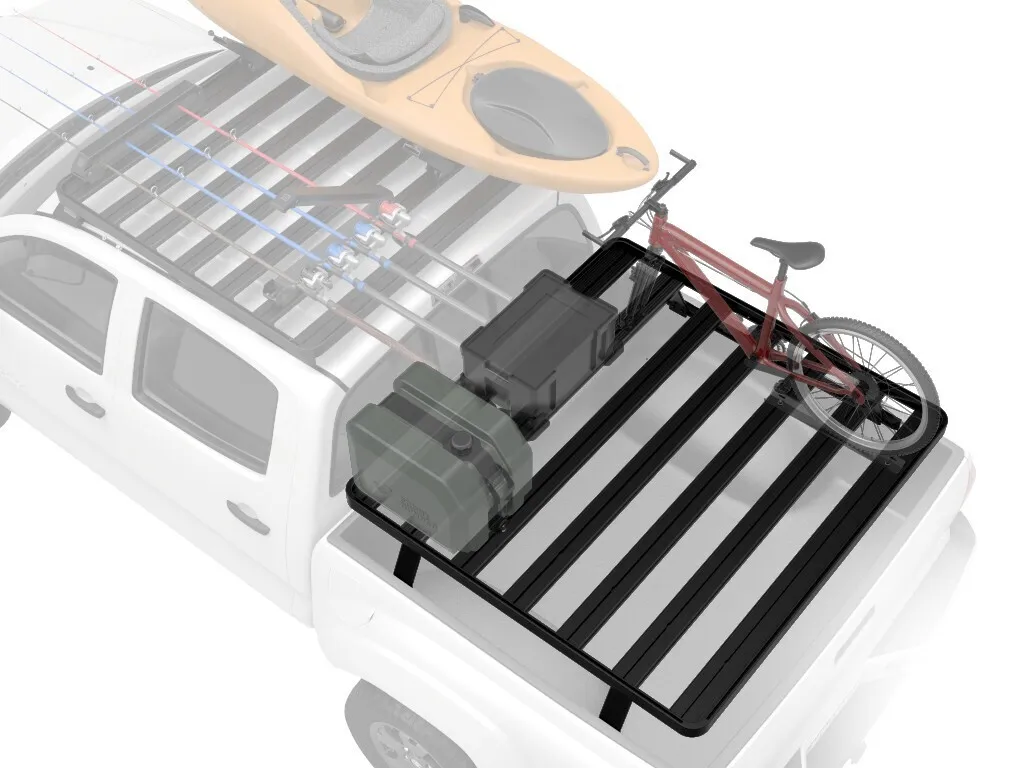

This kit creates a full size rack that sits above your GMC Sierra Pick-Up Truck 1987

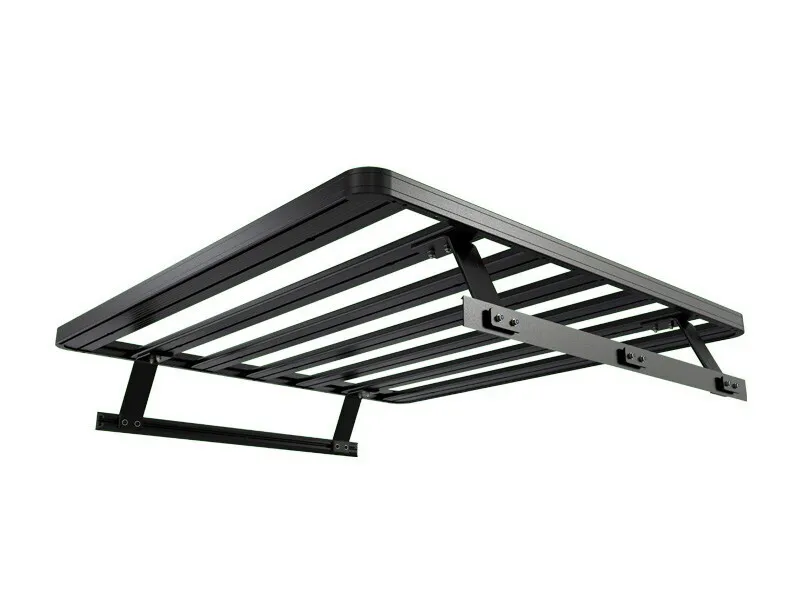

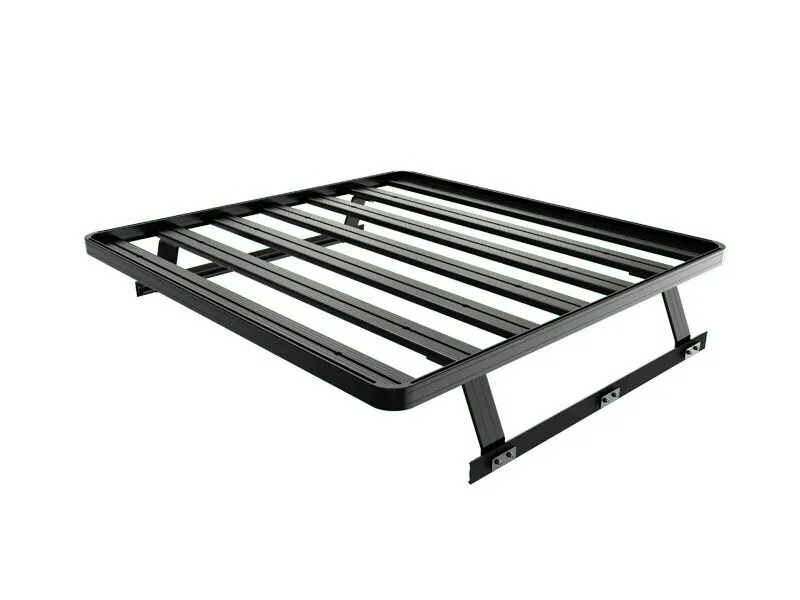

  • truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1358mm), 2 Tracks, and 4 Pickup Truck Bed Universal Legs that fit into the Tracks. Drilling is required for installation.

    All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*Drilling may be required to mount the track to the bed of your truck.

    Instructions for LASS026

    Instructions for RRSTUNI

    Instructions for TRBU001

  • Specifications

    Materials used:

    Black epoxy powder-coated T6 aluminium
    High strength steel



    Approximate Installed Weight 26kg (57lbs)

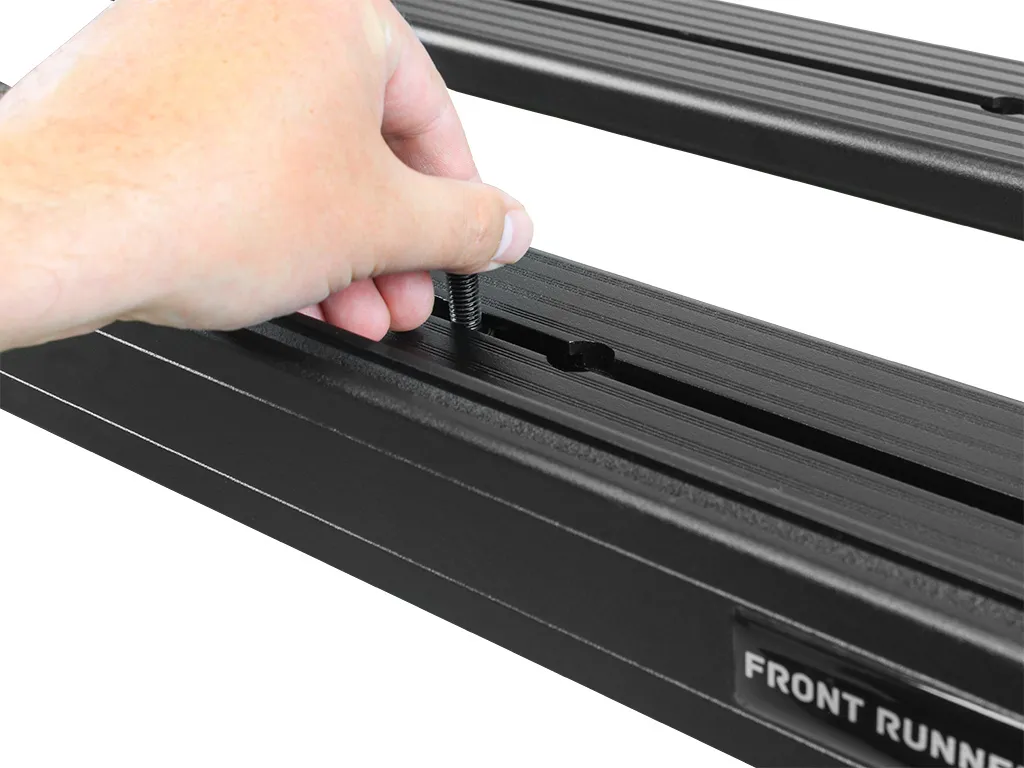

    The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.


    To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

    If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicleÂ’s rain gutters.

    If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


    Shipping Dimensions:

    Width 455mm (18")
    Length 1610mm (63")
    Height 280mm (11")



    Shipping Weight:

    Weight 30.3kg (66.7lbs)



    What's Included

    • 2x LASS026 - Universal Load Bed Leg / Tall (Pair)
    • 1x RRSTM07 - Slimline II Tray - 1475mm(W) X 1358mm(L)
    • 1x TRBU001 - Pickup Load Bed Tracks / 1000mm(L)

    Compatibility

    • 1987-Current GMC Sierra Ute

    This kit creates a full size rack that sits above your GMC Sierra Pick-Up Truck 1987

  • truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1358mm), 2 Tracks, and 4 Pickup Truck Bed Universal Legs that fit into the Tracks. Drilling is required for installation.

    All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*Drilling may be required to mount the track to the bed of your truck.

    Instructions for LASS026

    Instructions for RRSTUNI

    Instructions for TRBU001

  • Materials used:

    Black epoxy powder-coated T6 aluminium
    High strength steel



    Approximate Installed Weight 26kg (57lbs)


    The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.


    To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

    If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicleÂ’s rain gutters.

    If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


    Shipping Dimensions:

    Width 455mm (18")
    Length 1610mm (63")
    Height 280mm (11")



    Shipping Weight:

    Weight 30.3kg (66.7lbs)



    • 2x LASS026 - Universal Load Bed Leg / Tall (Pair)
    • 1x RRSTM07 - Slimline II Tray - 1475mm(W) X 1358mm(L)
    • 1x TRBU001 - Pickup Load Bed Tracks / 1000mm(L)
    • 1987-Current GMC Sierra Ute
